akawaka/sulu-multi-ckeditor-bundle

Multi-Configuration CKEditor Bundle for Sulu CMS - Provides different editor configurations within the same Sulu installation by AKAWAKA.

v0.2.0 2025-08-01 08:18 UTC

Requires

• php: ^8.2
• jackalope/jackalope-doctrine-dbal: ^1.7 || ^2.0
• sulu/sulu: ^2.5.20
• symfony/framework-bundle: ^6.4 || ^7.0

Requires (Dev)

• friendsofphp/php-cs-fixer: ^3.0
• phpstan/phpstan: ^1.0
• phpunit/phpunit: ^9.0 || ^10.0 || ^11.0

Suggests

• sulu/article-bundle: For enhanced article editing capabilities with custom editors
• sulu/form-bundle: For form integration with different editor configurations

MIT

• configuration
• cms
• bundle
• editor
• CKEditor
• sulu
• text-editor
• multi-config

README

Sulu Multi CKEditor Bundle

Multiple CKEditor configurations for Sulu CMS - Provides different editor configurations within the same Sulu installation using YAML configuration without JavaScript rebuilds.

Overview

The Sulu Multi CKEditor Bundle addresses Sulu's limitation of having a single global CKEditor configuration by providing YAML-based editor configurations. This allows you to define multiple editor configurations that are dynamically applied without rebuilding JavaScript assets.

Features

• 🔧 YAML Configuration: Define editor configs in YAML without rebuilding JS
• 🎨 Multiple Configurations: Unlimited editor configurations per project
• 🏷️ Tag-Based Control: Fine-grained HTML tag control (p, h1-h6, table, etc.)
• ⚡ No JS Rebuild: Change configurations without recompiling assets
• 🔮 Future-Proof: Designed for multiple editors (CKEditor, TipTap)
• 📝 Content Type Support: Use configurable_text_editor in templates
• 🎯 Toolbar Customization: Full toolbar configuration control
• 🔗 Sulu Integration: Follows Sulu's configuration patterns
• 🔗 Link Support: Internal and external link functionality
• 📝 Rich Features: Headings, tables, lists, formatting, and more

Requirements

• PHP: ^8.1
• Sulu CMS: ^2.5
• Symfony: ^6.4 || ^7.0
• Node.js: ^18 (for asset compilation)

Installation

Step 1: Install via Composer

composer require akawaka/sulu-multi-ckeditor-bundle

Step 2: Register the Bundle

Add the bundle to your config/bundles.php:

<?php

return [
    // ... other bundles
    Akawaka\SuluMultiCKEditorBundle\MultiEditorBundle::class => ['all' => true],
];

Step 3: Configure Editors

Create config/packages/akawaka_sulu_multi_text_editor.yaml:

akawaka_sulu_multi_text_editor:
    configs:
        # Default configuration
        default:
            editor: ckeditor
            tags:
                p: true
                a: true
                sulu_link: true
                ul: true
                ol: true
                h2: true
                h3: true
                h4: true
                table: true
                strong: true
                em: true
            toolbar:
                - 'heading'
                - '|'
                - 'bold'
                - 'italic'
                - 'externalLink'
                - 'internalLink'
                - '|'
                - 'bulletedlist'
                - 'numberedlist'
                - '|'
                - 'insertTable'

        # Minimal configuration
        minimal:
            editor: ckeditor
            tags:
                p: true
                a: true
                strong: true
                em: true
            toolbar:
                - 'bold'
                - 'italic'
                - 'externalLink'
                - 'internalLink'
                - 'numberedlist'

        # Rich configuration
        rich:
            editor: ckeditor
            tags:
                p: true
                a: true
                sulu_link: true
                ul: true
                ol: true
                h1: true
                h2: true
                h3: true
                h4: true
                h5: true
                h6: false
                table: true
                code: true
                blockquote: true
                strong: true
                em: true
                u: true
                s: true
                sub: true
                sup: true
                br: true
                hr: true
            toolbar:
                - 'heading'
                - '|'
                - 'fontSize'
                - 'fontColor'
                - '|'
                - 'bold'
                - 'italic'
                - 'underline'
                - 'strikethrough'
                - 'subscript'
                - 'superscript'
                - '|'
                - 'externalLink'
                - 'internalLink'
                - '|'
                - 'bulletedlist'
                - 'numberedlist'
                - '|'
                - 'insertTable'
                - 'blockQuote'
                - 'codeBlock'
                - 'horizontalLine'

Step 4: Copy Frontend Assets

Copy the required JavaScript components to your project:

# Copy the JavaScript components from the bundle to your project
cp -r vendor/akawaka/sulu-multi-ckeditor-bundle/assets/admin/* assets/admin/

# Or manually copy these files:
# - assets/admin/adapters/CKEditor5Configurable.js
# - assets/admin/components/CKEditor5Configurable.js
# - assets/admin/fields/ConfigurableTextEditor.js

Step 5: Register Components in Your App

Add this code to your assets/admin/app.js:

import {textEditorRegistry, fieldRegistry} from 'sulu-admin-bundle/containers';
import {initializer} from 'sulu-admin-bundle/services';

// Import the copied components
import CKEditor5ConfigurableAdapter from './adapters/CKEditor5Configurable';
import ConfigurableTextEditor from './fields/ConfigurableTextEditor';

// Config management (simple implementation)
let editorConfigs = {};

export const setEditorConfigs = (configs) => {
    editorConfigs = configs;
};

export const getEditorConfig = (configType = 'default') => {
    return editorConfigs[configType] || editorConfigs['default'] || {};
};

// Initialize the bundle when config is received from backend
initializer.addUpdateConfigHook('akawaka_sulu_multi_text_editor', (config, initialized) => {
    if (config && config.configs) {
        setEditorConfigs(config.configs);
    }

    if (initialized) {
        return;
    }
});

// Register the adapter and field type
textEditorRegistry.add('ckeditor5_configurable', CKEditor5ConfigurableAdapter);
fieldRegistry.add('configurable_text_editor', ConfigurableTextEditor);

Step 6: Update Component Import

In the copied assets/admin/components/CKEditor5Configurable.js, update the import:

// Change this line:
// NOTE: Import getEditorConfig from your main app.js file where you implement the config functions

// To this:
import {getEditorConfig} from '../app';

Step 7: Build Assets

# Build your project assets
npm run build
# or
yarn build

# Don't forget to run Sulu's build command
php bin/console sulu:build --env=prod

Step 8: Clear Cache

php bin/console cache:clear

Development Environment (Bundle Testing)

The tests/Application directory is only for bundle development and testing. End users should follow the installation steps above.

For Bundle Development

# Complete development installation
make install

# Start services
make start

# Access application
# Website: http://localhost:8080
# Admin: http://localhost:8080/admin (admin/admin)

Usage

In Templates

Use the configurable_text_editor type in your Sulu templates:

<!-- Minimal editor: bold, italic, links, lists -->
<property name="intro" type="configurable_text_editor">
    <meta>
        <title lang="en">Introduction</title>
    </meta>
    <params>
        <param name="config" value="minimal"/>
    </params>
</property>

<!-- Default editor: standard features -->
<property name="content" type="configurable_text_editor">
    <meta>
        <title lang="en">Content</title>
    </meta>
    <params>
        <param name="config" value="default"/>
    </params>
</property>

<!-- Rich editor: all features -->
<property name="description" type="configurable_text_editor">
    <meta>
        <title lang="en">Description</title>
    </meta>
    <params>
        <param name="config" value="rich"/>
    </params>
</property>

<!-- With stripped paragraph tags -->
<property name="summary" type="configurable_text_editor">
    <meta>
        <title lang="en">Summary</title>
    </meta>
    <params>
        <param name="config" value="minimal"/>
        <param name="strip_p_tags" value="true"/>
    </params>
</property>

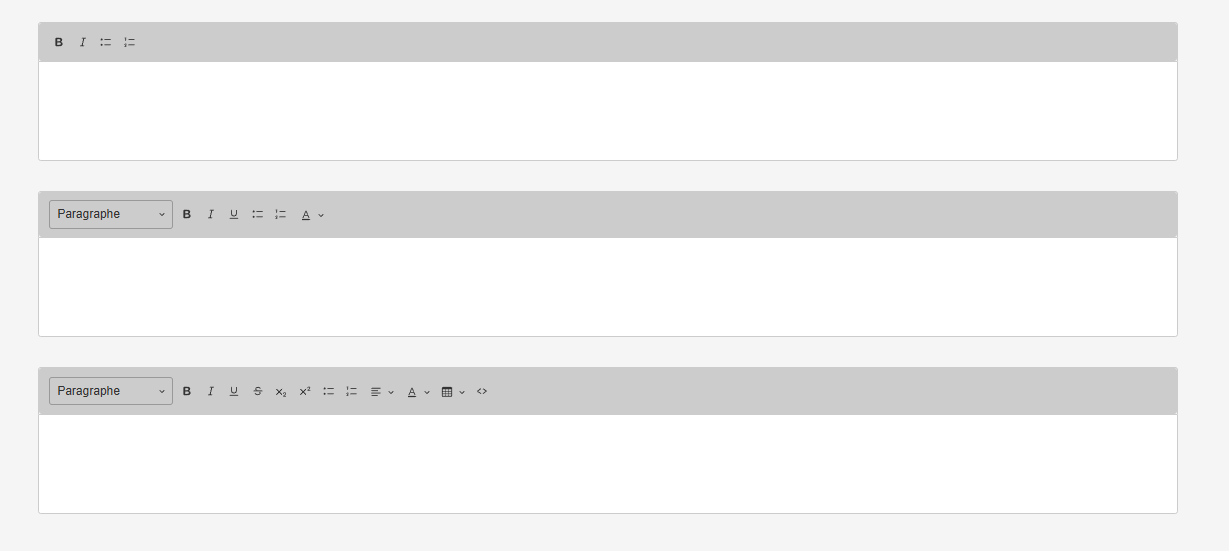

Example Rendering

Configuration System

Available Tags

Control which HTML tags are allowed in each configuration:

Tag	Description	Default
p	Paragraph tags	✅
a	Links	✅
sulu_link	Sulu internal links	✅
ul, ol	Lists	✅
h1	Heading 1	❌
h2-h6	Headings 2-6	✅
table	Tables	✅
code	Code blocks	✅
blockquote	Block quotes	✅
strong, em	Bold, italic	✅
u, s	Underline, strikethrough	❌
sub, sup	Subscript, superscript	❌
br	Line breaks	✅
hr	Horizontal rules	❌

Available Toolbar Items

Common CKEditor 5 toolbar items:

• Text Formatting: heading, fontSize, fontColor, fontBackgroundColor
• Basic Styles: bold, italic, underline, strikethrough
• Advanced Styles: subscript, superscript, code
• Links: externalLink, internalLink (Sulu-specific)
• Lists: bulletedlist, numberedlist (note: lowercase)
• Alignment: outdent, indent, alignment
• Content: insertTable, blockQuote, codeBlock
• Utilities: horizontalLine, undo, redo

Important: Use externalLink and internalLink for Sulu integration, not the generic link.

Docker Development

Quick Start

# Complete installation
make install

# Start services
make start

# Access application
# Website: http://localhost:8080
# Admin: http://localhost:8080/admin (admin/admin)

Development Commands

# Environment
make start          # Start Docker services
make stop           # Stop services
make restart        # Restart services
make shell          # Access PHP container

# Development
make build          # Build frontend assets
make watch          # Watch assets for changes
make logs           # Show container logs

# Database
make db-reset       # Reset database
make admin          # Create admin user

# Quality Assurance
make validate       # Validate composer.json
make phpstan        # Run static analysis
make cs-fix         # Fix code style
make ci             # Run all QA tasks

Architecture

Configuration Flow

1. YAML Config → Parsed by Configuration.php
2. Bundle Extension → Processes and stores config
3. Admin Class → Exposes config to JavaScript via getConfig()
4. JS Initializer → Receives config via addUpdateConfigHook
5. Editor Component → Uses config to configure CKEditor5

Key Files

src/
├── Admin/
│   └── MultiEditorAdmin.php              # Config exposure to JS
├── Content/Type/
│   └── MultiTextEditorType.php           # Content type implementation
├── DependencyInjection/
│   ├── Configuration.php                 # YAML schema
│   └── MultiEditorExtension.php          # Config processing
├── Resources/
│   ├── config/services.yaml              # Service definitions
│   ├── js/index.js                       # JS config management
│   └── views/content-types/
│       └── multi-text-editor.html.twig   # Twig template
└── MultiEditorBundle.php                 # Bundle class

assets/admin/                              # For end users to copy
├── adapters/CKEditor5Configurable.js     # Template parameter extraction
├── components/CKEditor5Configurable.js   # CKEditor5 component
├── fields/ConfigurableTextEditor.js      # Field type registration
└── app.example.js                        # Integration example

tests/Application/                         # For bundle development only
└── assets/admin/                         # Development/testing assets

Extending

Adding Custom Configurations

Create new configurations in your YAML:

akawaka_sulu_multi_text_editor:
    configs:
        blog_post:
            editor: ckeditor
            tags:
                p: true
                h2: true
                h3: true
                strong: true
                em: true
                blockquote: true
                code: true
            toolbar:
                - 'heading'
                - '|'
                - 'bold'
                - 'italic'
                - '|'
                - 'blockQuote'
                - 'code'

Use in templates:

<property name="content" type="configurable_text_editor">
    <params>
        <param name="config" value="blog_post"/>
    </params>
</property>

Future Editor Support

The system is designed for multiple editors:

akawaka_sulu_multi_text_editor:
    configs:
        tiptap_config:
            editor: tiptap  # Future support
            tags:
                # Same tag structure

Testing

Run the test script to verify installation:

./test_multi_editor.sh

This verifies:

• ✅ Docker environment setup
• ✅ Bundle registration
• ✅ Content type availability
• ✅ Asset compilation
• ✅ Configuration system

Troubleshooting

Configuration Not Applied

# Clear cache and rebuild
make restart
docker-compose exec php php tests/Application/bin/console cache:clear
docker-compose exec php php -d memory_limit=-1 tests/Application/bin/console sulu:build dev

Memory Issues

All PHP commands must use unlimited memory:

# ✅ Correct
docker-compose exec php php -d memory_limit=-1 tests/Application/bin/console <command>

# ❌ Wrong - will cause memory exhaustion
docker-compose exec php php tests/Application/bin/console <command>

CKEditor5 Issues

Heading selection not working:

• Verify heading is in toolbar configuration
• Check that heading tags (h1-h6) are enabled in tags

Links not working:

• Use externalLink and internalLink instead of link
• Ensure a and/or sulu_link tags are enabled

Lists not working:

• Use bulletedlist and numberedlist (lowercase) in toolbar
• Enable ul and ol tags in configuration

JavaScript Errors

1. Check browser console for errors
2. Verify config name matches YAML configuration
3. Rebuild assets: make build
4. Clear cache: make restart

Documentation

• Configuration Guide - Detailed configuration documentation
• Template Examples - Example template usage
• Configuration Examples - YAML configuration examples

License

This project is licensed under the MIT License - see the LICENSE file for details.

Contributing

Contributions, issues and feature requests are welcome!

Feel free to check the issues page.
