README

This bundle makes it easy to incorporate the RICH architecture into your Symfony application. RICH stands for Request, Input, Command, Handler, and its goal is to make backend web application development as easy, straightforward, and futureproof as possible. RICH applications apply the single responsibility principle to each action a user can take with your application which guarantees that it can mutate over time without unintended consequences.

RICH philosophy

The central philosophy behind a RICH application is to apply to backend engineering what Tailwind CSS did to frontend engineering without introducing the unnecessary complexity of hexagonal architecture, domain driven design, and CQRS.

Tailwind decoupled CSS into atomic components that you can apply as classes to HTML elements. This essentially undoes the Cascading in Cascading Style Sheets, but for good reason: you can safely modify the style of one element without much fear that it will radically alter the layout of your application. This is incredibly powerful for teams of developers: the tenured team member knows that the CSS class .btn-blue renders a full width block level button with a red background, but the developer that started last week doesn't, and he accidentally destroyed the styling of the application with his first PR.

RICH applies these sames principles to backend engineering: each input, command, and handler are separate PHP classes that only have a single responsibility. The naming of these classes should describe an action that can be performed in your application. For example, if your application allows users to be created and updated, you would have CreateUserInput and UpdateUserInput as your input classes, CreateUserCommand and UpdateUserCommand as your command classes, and you guessed it, CreateUserHandler and UpdateUserHandler as your handler classes. Like Tailwind, this may seem redundant and a source of code duplication, but the benefits an architecture like this provide far outweigh the negatives.

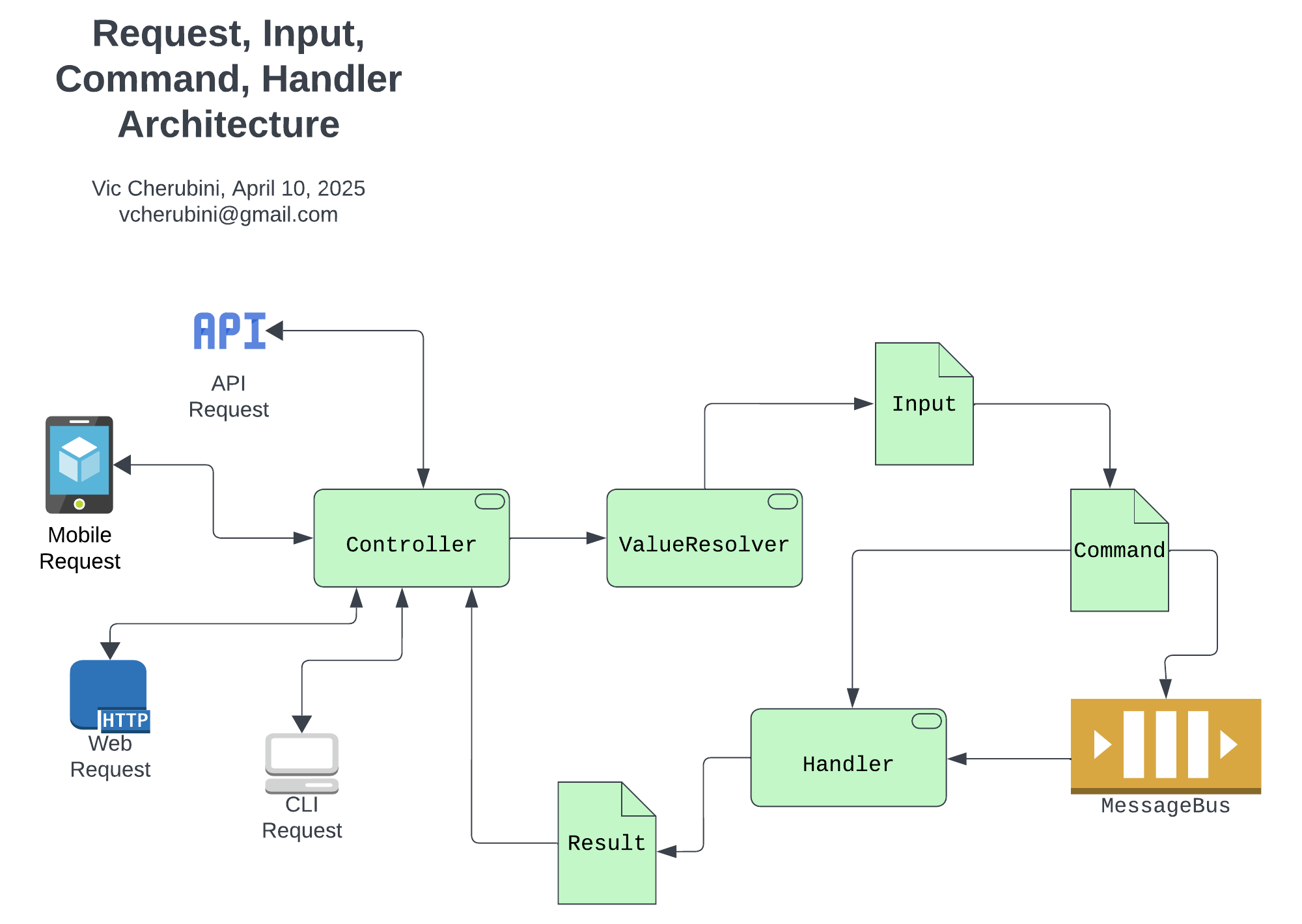

RICH structure

Request Everything starts with an action taken by an outside actor. The request is content and metadata associated with that action. Almost anything can generate a request: another system that has integrated with your REST API, a user submitting a form, a developer running a console command, or even another module from within your application.

Input Once sent, the request content and metadata is mapped onto an input object and validated. By default, this bundle uses the Symfony serializer and validator components, but you're welcome to manually map data and validate it however you see fit.

Input objects can contain some basic logic, but should generally rely on no additional dependencies outside of the standard PHP library.

In this bundle, all input objects must implement the interface defined in OneToMany\RichBundle\Contract\InputInterface.

Command The input object creates the command object once the request is successfully mapped and validated. A command object is as simple of a class as you can get in PHP. Ideally, it should be final, readonly, and use constructor promotion to ensure immutability.

A command object is a POPO - Plain Old PHP Object - and should do its best to use scalar primitives (null, bool, int, float, and string), basic arrays, standard PHP classes, or other value objects.

In other words, a command object would use an int (or a simple value object) to refer to the primary key of a Doctrine entity rather than the entity itself. Command objects should be so simple they can easily be serialized and deserialized so they can used in an asynchronous message queue.

In this bundle, all command objects must implement the interface defined in OneToMany\RichBundle\Contract\CommandInterface.

Handler Once created, the command object is passed to the handler. For the vast majority of applications, this can (and should) be done manually - using an asynchronous message queue is not necessary. A handler should hydrate the environment it needs without assuming it already exists. It should not be aware of an HTTP request, session data, cookie data, or that an entity it relies on is already being managed by Doctrine.

The handler that runs synchronously today may need to be placed in a message queue tomorrow for a variety of reason and having the foresight to make it stateless today will save you endless headaches tomorrow. This is also why you want your handlers to rehydrate your entity map: an entity that existed when the command was pushed onto an asynchronous queue may not exist when the handler is executed.

Each handler should contain the business logic necessary to handle the command passed to it. Ideally, handlers should be final and readonly as well to ensure they don't accidentally rely on any previous state to handle a command.

Getting started

Because this is a new bundle, you'll have to manually create the structure for each module in your application. My goal is to leverage the Symfony Maker Bundle to allow you to create the RICH structure for each action similar to how you would create a Doctrine entity.

Install the bundle

Install the bundle using Composer:

composer require 1tomany/rich-bundle

Create the module structure

Next, you'll need to create the directory structure for your first module. There is no strict definition on what a module is, other than a set of features that are loosely related to the same domain.

It's easiest to think of a module as being related to each of your "primary" entities where a "primary" entity is one that can (mostly) exist without a parent entity. For example, Invoice would be a "primary" entity, but InvoiceLine would not be because an InvoiceLine can't exist without a parent Invoice.

I recommend the following directory structure for each module:

src/
  <Module>/
    Action/
      Command/
      Handler/
      Exception/
      Input/
      Result/
    Contract/
      Exception/
    Framework/
      Controller/
        Api/
        Web/

We'll get into the purpose of each of these soon. You can use the following command to quickly create this structure. Replace <Module> with the actual name of your module (e.g. Account or Invoice).

mkdir -p src/<Module>/{Action/{Command,Handler/Exception,Input,Result},Contract/Exception,Framework/Controller/{Api,Web}}

Moving forward, lets assume we're working on a module named Account for a Doctrine entity also named Account which uses a repository (shockingly) named AccountRepository.

Create the module's contracts

As the name implies, the Contract directory stores contracts to interact with this module. You should have, at minimum, two contracts to start with: a <Entity>RepositoryInterface and ExceptionInterface.

In the Contract directory, create a file named <Entity>RepositoryInterface.php where <Entity> is the Doctrine entity that will use this repository. Create a file named AccountRepositoryInterface.php in src/Account/Contract and populate it with the following code:

<?php

namespace App\Account\Contract;

use App\Entity\Account;

interface AccountRepositoryInterface
{
    public function findOneById(?int $accountId): ?Account;
}

Again, a RICH application is flexible by nature so you're not required to create a method named findOneById(), but I find it more descriptive and extensible than just find().

A RICH application encourages you to keep your Doctrine entities and repositories in their original locations. There's no reason to fight with the Doctrine configuration to force each entity to reside in a directory or namespace different than what it expects. While modules remain loosely coupled in a RICH application, entities will always remain tightly coupled, so it's best to leave them in src/Entity.

Assuming the Account entity and AccountRepository repository already exist, update the AccountRepository class to implement your new AccountRepositoryInterface.

Because only a single class will implement the App\Account\Contract\AccountRepositoryInterface interface, you can use it as a typehint and the Symfony container will know what class to inject.

<?php

namespace App\Repository;

use App\Entity\Account;
use App\Account\Contract\AccountRepositoryInterface;
use Doctrine\Bundle\DoctrineBundle\Repository\ServiceEntityRepository;
use Doctrine\Persistence\ManagerRegistry;

/**
* @extends ServiceEntityRepository<Account>
*/
class AccountRepository extends ServiceEntityRepository implements AccountRepositoryInterface
{
    public function __construct(ManagerRegistry $registry)
    {
        parent::__construct($registry, Account::class);
    }

    /**
    * @see App\Account\Contract\AccountRepositoryInterface
    */
    public function findOneById(?int $accountId): ?Account
    {
        if (!$accountId) {
            return null;
        }

        return $this->find($accountId);
    }
}

We also need an interface that all exceptions from this module originate from. This makes it easy for any other module using services from this module to catch all thrown exceptions.

Create a file named ExceptionInterface.php in the src/Account/Contract/Exception directory and populate it with the following code:

<?php

namespace App\Account\Contract\Exception;

interface ExceptionInterface extends \Throwable
{
}

Finally, I'll generally place other value objects and enums in the Contract directory for a module. It loosely indicates they will be used in other modules or domains in your application.

Create the command class

Though the input class is used first, the command class is shared amongst the input and handler classes, so lets start by creating it. Each command class must implement the OneToMany\RichBundle\Contract\CommandInterface interface.

Create a file named CreateAccountCommand.php in the src/Account/Action/Command directory and populate it with the following code:

<?php

namespace App\Account\Action\Command;

use OneToMany\RichBundle\Contract\CommandInterface;

final readonly class CreateAccountCommand implements CommandInterface
{
    public function __construct(
        public string ?$author,
        public string $name,
        public string $company,
        public string $email,
        public ?string $notes,
        public ?\DateTimeImmutable $founded = null,
        public ?string $ipAddress = null,
    ) {
    }
}

Create the input class

Now that we have a command class, we need an input class that creates the command object after the request has been mapped and validated. Each input class must implement the OneToMany\RichBundle\Contract\InputInterface interface.

Create a file named CreateAccountInput.php in the src/Account/Action/Input directory and populate it with the following code:

<?php

namespace App\Account\Action\Input;

use App\Account\Action\Command\CreateAccountCommand;
use OneToMany\RichBundle\Attribute\SourceIpAddress;
use OneToMany\RichBundle\Attribute\SourceRequest;
use OneToMany\RichBundle\Attribute\SourceSecurity;
use OneToMany\RichBundle\Contract\CommandInterface;
use OneToMany\RichBundle\Contract\InputInterface;
use Symfony\Component\Validator\Constraints as Assert;

/**
 * @implements InputInterface<CreateAccountCommand>
 */
final class CreateAccountInput implements InputInterface
{
    public function __construct(
        #[Assert\Email]
        #[Assert\Length(max: 128)]
        #[SourceSecurity(nullify: true)]
        private(set) public ?string $author,

        #[Assert\Length(min: 4, max: 128)]
        #[SourceRequest]
        private(set) public string $name,

        #[Assert\Length(min: 4, max: 48)]
        #[SourceRequest]
        private(set) public string $company,

        #[Assert\NotBlank]
        #[Assert\Email]
        #[Assert\Length(max: 128)]
        #[SourceRequest]
        private(set) public string $email,

        #[Assert\Length(max: 1024)]
        #[SourceRequest(nullify: true)]
        private(set) public ?string $notes,

        #[Assert\Range(
            min: '1900-01-01',
            max: 'today',
        )]
        #[SourceRequest(nullify: true)]
        private(set) public ?\DateTimeImmutable $founded = null,

        #[Assert\Ip(version: 'all')]
        #[SourceIpAddress(nullify: true)]
        private(set) public ?string $ipAddress = null,
    ) {
    }

    public function toCommand(): CommandInterface
    {
        return new CreateAccountCommand(...[
            'author' => $this->author,
            'name' => $this->name,
            'company' => $this->company,
            'email' => $this->email,
            'notes' => $this->notes,
            'founded' => $this->founded,
            'ipAddress' => $this->ipAddress,
        ]);
    }
}

While the input class is also fairly simple in nature, it accomplishes a lot. If possible, I recommend you take advantage of asymmetric visibility in PHP 8.4: making the class readonly limits what can be done with property hooks, so it's best to make the setters private and the getters public.

Classes that implement the OneToMany\RichBundle\Contract\InputInterface interface should use the @implements annotation to indicate the type of command the toCommand() method creates.

Property sources

You'll also notice some new attributes: #[SourceSecurity], #[SourceRequest], and #[SourceIpAddress]. These allow you to indicate where in the request the data should come from. The #[MapRequestPayload] attribute that was announced in Symfony 6.3 is powerful, but limiting in that it assumes everything comes from the request content. There are nine attributes provided by this bundle that allow you to specify the source of the data from the request.

#[SourceContainer(name: 'app.config_setting')] Fetches a parameter named app.config_setting from the container bag. While the $name argument is not strictly required, unless the container property is named identically to the class property, you'll need to supply it.
#[SourceFile(name: 'file')] Fetches a parameter named file from the Symfony\Component\HttpFoundation\Request::$files bag. The property should be type hinted with the Symfony\Component\HttpFoundation\File\UploadedFile class.
#[SourceHeader(name: 'Content-Type')] Fetches the Content-Type header from the Symfony\Component\HttpFoundation\Request::$headers bag. The name is not case-sensitive, and underscores and dashes can be swapped: CONTENT_TYPE would result in the same value.
#[SourceIpAddress] Fetches the value returned by the Symfony\Component\HttpFoundation\Request::getClientIp() method.
#[SourceQuery(name: 'query')] Fetches a parameter named query from the Symfony\Component\HttpFoundation\Request::$query bag.
#[SourceRequest(name: 'user')] Fetches a parameter named user from the request content. This bundle uses HTTP content negotiation via the Content-Type request header to attempt to determine the type of content submitted. A standard Symfony installation allows you to use form, json, and xml formats by default.
#[SourceRoute(name: 'productId')] Fetches a parameter named productId from the route.
#[SourceSecurity] Fetches the value returned by the Symfony\Component\Security\Core\Authentication\TokenInterface::getUserIdentifier() method if the request is made by an authenticated user. This is helpful if you want to bind this input object to an authenticated request.
#[PropertyIgnored] Indicates that the value resolver should ignore this property.

If a property is not explicitly ignored or sourced, the value resolver will assume it uses the #[SourceRequest] attribute.

The $name argument for each attribute is optional. The value resolver will use the name of the property if a $name is not given. The #[SourceIpAddress] and #[SourceSecurity] attributes do not have a $name argument because their values are the results of a method call.

Sources are also chainable. This allows you to support multiple versions of an API without having to change the underlying input object. For example, the first version if your API might use a key named email but the second version of your API changed that to username. All attributes are chainable, but #[SourceIpAddress] and #[SourceSecurity] are not repeatable.

In the example below, the $username property could be mapped from either of the following URLs:

/api/v1/accounts?email=vic@1tomany.com
/api/v2/accounts?username=vic@1tomany.com

<?php

namespace App\Account\Action\Input;

use App\Account\Action\Command\ReadAccountCommand;
use OneToMany\RichBundle\Attribute\SourceRequest;
use OneToMany\RichBundle\Contract\CommandInterface;
use OneToMany\RichBundle\Contract\InputInterface;
use Symfony\Component\Validator\Constraints as Assert;

/**
 * @implements InputInterface<ReadAccountCommand>
 */
final class ReadAccountInput implements InputInterface
{
    public function __construct(
        #[Assert\Email]
        #[Assert\NotBlank]
        #[Assert\Length(max: 128)]
        #[SourceQuery('email')]
        #[SourceQuery('username')]
        private(set) public string $username,
    ) {
    }

    public function toCommand(): CommandInterface
    {
        return new ReadAccountCommand($this->username);
    }
}

The value resolver will attempt to extract a value from all configured sources until it finds one. Behind the scenes, \array_key_exists() is used to determine if a value was found for a property, so NULL or falsy values are still considered "found".

For instance, given the query string email=&username=vic@1tomany.com, the resolver would map an empty string to the $username property because the key email is present and comes before the username key.

You can also combine chained sources. For example, you can have both a #[SourceRequest] and #[SourceContainer] attribute on a property: if the value wasn't found in the request content, then it would be retrieved from the container parameters.

Additional property source arguments

Each source attribute has boolean $trim and $nullify arguments as well. By default, $trim is true and $nullify is false. When $trim is true, the resolver will convert any scalar value to a string and run the \trim() function in it. The value will then be coerced back to the type specified by the property of the input class during denormalization.

When $nullify is true, the resolver will convert any scalar value to null if the value is exactly an empty string. The underlying property must also allow null values, otherwise an OneToMany\RichBundle\ValueResolver\Exception\PropertyIsNotNullableException exception is thrown.

Take the following input class as an example:

<?php

namespace App\Account\Action\Input;

use OneToMany\RichBundle\Attribute\SourceRequest;
use OneToMany\RichBundle\Attribute\SourceSecurity;
use OneToMany\RichBundle\Contract\InputInterface;

final class UpdateAccountInput implements InputInterface
{
    public function __construct(
        #[SourceRequest(trim: true, nullify: true)]
        private(set) public string $name,

        #[SourceRequest(trim: true, nullify: true)]
        private(set) public ?string $email,

        #[SourceRequest(trim: false, nullify: false)]
        private(set) public string $notes,

        #[SourceRequest(trim: true, nullify: false)]
        private(set) int $pin,

        #[SourceRequest(trim: true, nullify: true)]
        private(set) ?\DateTimeImmutable $birth,
    ) {
    }
}

The following request content would be decoded correctly.

{
  "name": "Modesto Herman   ",
  "email": " mh@example.com  ",
  "notes": " Please call back! \n",
  "pin": "  8891",
  "birth": ""
}

$name would have the value string(14) "Modesto Herman" because $trim is true.
$email would have the value string(14) "mh@example.com" because $trim is true.
$notes would have the value string(20) " Please call back! \n" because $trim is false.
$pin would have the value int(8891) because $trim is true.
$birth would have the value NULL because $trim and $nullify are true. After being trimmed, the value is identical to an empty string and is nullified.

However, if an empty string was used for the value of the key name the request, a OneToMany\RichBundle\ValueResolver\Exception\PropertyIsNotNullableException would be thrown because the $name property is not nullable, yet the source was explicitly set to nullify the value.

In practice, you would only set $nullify to true on properties that are nullable.

Input denormalization

Once the data from the request has been extracted, it is denormalized and used to construct an object of type OneToMany\RichBundle\Contract\InputInterface. If any exception is thrown during the denormalization process, it is captured and wrapped in an OneToMany\RichBundle\ValueResolver\Exception\InvalidMappingException exception. This exception provides a nicer message to the end user while still allowing a developer to review the exception stack.

Input validation

The final step when resolving the input class is validating it. Each class goes through two rounds of validation. The first uses an internal validation constraint named OneToMany\RichBundle\Validator\UninitializedProperties. This constraint ensures that there are no uninitialized properties in the input object.

A property is uninitialized if it was explicitly ignored or not mapped and does not have a default value.

If all properties are initialized, the resolver then validates the hydrated input object.

The value resolver will throw a Symfony\Component\Validator\Exception\ValidationFailedException exception if the input object has uninitialized properties or validation fails, whichever happens first.

Create the result class

We're almost there! We've defined our input object and the command object the input object creates after validation. Next, we need to define a class that the handler returns upon successful execution. Unsurprisingly, this is known as the result.

Each result class must implement the OneToMany\RichBundle\Contract\ResultInterface interface.

Create a file named AccountCreatedResult.php in the src/Account/Action/Result directory and populate it with the following code:

<?php

namespace App\Account\Action\Result;

use App\Entity\Account;
use OneToMany\RichBundle\Contract\ResultInterface;

final readonly class AccountCreatedResult implements ResultInterface
{
    public function __construct(public Account $account)
    {
    }
}

Like your input and command classes, result classes should be very simple. However, because they are immediately returned by a handler, it's fine for them to contain Doctrine entities or other "complex" objects. They should contain as much data as necessary to respond to the user that the request was successful.

Create the handler class

The Request has been handled, the Input has been validated, and the Command can be created. It's now time to Handle the command with the handler class.

Each handler class must implement the OneToMany\RichBundle\Contract\HandlerInterface interface. This requires creating a method named handle() that takes an object of type OneToMany\RichBundle\Contract\CommandInterface as it's argument and returns an object of type OneToMany\RichBundle\Contract\ResultInterface.

Let's see what this class looks like:

<?php

namespace App\Account\Action\Handler;

use App\Account\Action\Command\CreateAccountCommand;
use App\Account\Action\Input\CreateCustomerInput;
use App\Account\Action\Input\CreateSubscriberInput;
use App\Account\Action\Handler\Exception\UserNotFoundForCreatingAccountException;
use App\Account\Action\Result\AccountCreatedResult;
use App\Entity\Account;
use App\User\Contract\UserRepositoryInterface;
use Doctrine\ORM\EntityManagerInterface;
use OneToMany\RichBundle\Contract\CommandInterface;
use OneToMany\RichBundle\Contract\HandlerInterface;
use OneToMany\RichBundle\Contract\ResultInterface;

/**
 * @implements HandlerInterface<CreateAccountCommand, AccountCreatedResult>
 */
final readonly class CreateAccountHandler implements HandlerInterface
{
    public function __construct(
        private UserRepositoryInterface $userRepository,
        private EntityManagerInterface $entityManager,
    ) {
    }

    public function handle(CommandInterface $command): ResultInterface
    {
        // Create Account
        $account = Account::create(...[
            'name' => $command->name,
            'company' => $command->company,
            'email' => $command->email,
            'notes' => $command->notes,
            'founded' => $command->founded,
            'ipAddress' => $command->ipAddress,
        ]);

        // Attempt to Find Author User
        if (null !== $command->author) {
            $author = $this->userRepository->findOneByUsername(...[
                'username' => $command->author,
            ]);

            if (null === $author) {
                throw new UserNotFoundForCreatingAccountException($command->author);
            }

            $account->setAuthor($author);
        }

        $this->entityManager->persist($account);
        $this->entityManager->flush();

        return new AccountCreatedResult($account);
    }
}

Classes that implement the OneToMany\RichBundle\Contract\HandlerInterface should use the @implements annotation to indicate the type of command the handler handles and the type of result the handler returns.

Next, if an author was provided, the handler attempts to find that record. If not found, an exception is thrown. This is personal preference: my feeling is that if a nullable property has a value and that value isn't valid, an exception should be thrown rather than silently discarding the value.

Finally, the new App\Entity\Account object is persisted, flushed, and returned. If there were other actions that needed to be taken, such as creating a record in another system, you could easily inject the Symfony message bus and enqueue a command to create a new customer record in Stripe, for instance.

Unnecessary queries

The query to find the author user may seem unnecessary - if the request was previously authenticated by Symfony and we know the author user, why query for them again?

Your intuition is right, in a simple environment, this is likely a redundant query that returns the same user object that was already loaded and hydrated by the Symfony security system. However, we want to build robust systems that can operate in a variety of different contexts, so you can't always make that assumption:

This handler may be placed behind a message queue on a server unaware of the HTTP request.
This handler may be used from the command line which is unaware of any authenticated users.
This handler may be used for bulk data imports where each row in a CSV file can have a different author.

In each of these scenarios, the handler is unaware of the HTTP context, so it can't rely on it to exist to function properly. Ensuring each handler can operate in isolation also makes them easier to test: you can write a functional test without worrying about bootstrapping an HTTP environment.

Handler exceptions

A very specifically named exception App\Account\Action\Handler\Exception\UserNotFoundForCreatingAccountException is thrown when the author user can't be found. I prefer to create a new exception class for each exception state. From just the name of the class, any developer can quickly tell what caused it to be thrown. A unique class for each exception also lets you standardize the error message and exception code.

<?php

namespace App\Account\Action\Handler\Exception;

use App\Account\Contract\Exception\ExceptionInterface;
use OneToMany\RichBundle\Exception\HasUserMessage;

#[HasUserMessage]
final class UserNotFoundForCreatingAccountException extends \RuntimeException implements ExceptionInterface
{
    public function __construct(?string $username)
    {
        parent::__construct(\sprintf('The account could not be created because a user with username "%s" could not be found.', $username), 404);
    }
}

Despite what I said about writing handlers that are not HTTP aware, I typically make the $code argument of my exceptions mirror HTTP status codes:

Most handlers are called in an HTTP context, so it's easiest if any exception they throw easily provides the correct HTTP status code.
HTTP has a very well defined list of standard response status codes that aren't likely to change.
Any non-HTTP environment or context can simply ignore the exception's code or map it to one of their own.

Create the controller

One beautiful result of the RICH architecture is your controllers are usually very small. Because Symfony treats a controller as any other service, you can place them wherever you like. We'll take advantage of that and place them in the same root directory and namespace that the input, command, handler, and result classes live.

<?php

namespace App\Account\Framework\Controller\Api;

use App\Account\Action\Handler\CreateAccountHandler;
use App\Account\Action\Input\CreateAccountInput;
use OneToMany\RichBundle\Controller\ControllerResponse;
use Symfony\Component\HttpKernel\Attribute\AsController;

#[AsController]
final readonly class CreateAccountController
{
    public function __construct(private CreateAccountHandler $createAccountHandler)
    {
    }

    public function __invoke(CreateAccountInput $createAccountInput): ControllerResponse
    {
        $result = $this->createAccountHandler->handle(
            $createAccountInput->toCommand()
        );

        return ControllerResponse::created($result->account, [
            'groups' => ['read']
        ]);
    }
}

It's that simple! You can now start the Symfony development server and make a request to your API:

curl --location 'https://localhost:8000/api/accounts' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data-raw '{
    "name": "Modesto Herman",
    "company": "Flurp Plumbing, LLC",
    "notes": "Plumbing company based out of Dallas, TX",
    "founded": "2002-08-25"
  }'

Conclusion

I've been using this bundle (or rather, the code in this bundle) in production applications for over a year, and it's provided a delightful developer experience. Each class has a single purpose, I can easily throw a long running handler into a message queue, testing is much simpler, and most importantly, I can change individual components without fear they'll break something unrelated.

Make your application RICH!

1tomany / rich-bundle

Maintainers

Details
