README

Magento Connector MCP Module turns a Magento 2 / Adobe Commerce store into a Model Context Protocol (MCP) server, so Claude can run read-only GraphQL queries - products, categories, customers, orders, and anything else the store's schema exposes - on behalf of an authenticated admin, using that admin's own Magento permissions.

It connects to Claude exactly like any other MCP integration: as a normal custom connector in Claude.ai / Claude Desktop (Settings > Connectors > Add - the same flow you'd use for any other service) over a standard OAuth 2.1 flow, or as a local MCP server for Claude Code. No special Claude-side support is needed either way.

Two transports, same underlying tools and safety guarantees either way:

stdio - a local subprocess (bin/magento mcp:serve), for Claude Code / Claude Desktop's local MCP config. No network, no OAuth - trust comes from "you can already run bin/magento on this server."
HTTP + OAuth 2.1 - a real "custom connector" (/mcp, with DCR/PKCE/consent screen under admin/upturnstudio_mcp/oauth/authorize), for Claude.ai's hosted apps. Requires the site to be reachable over public HTTPS.

For background and a walkthrough, see the blog post: Magento MCP Claude Connector.

Example

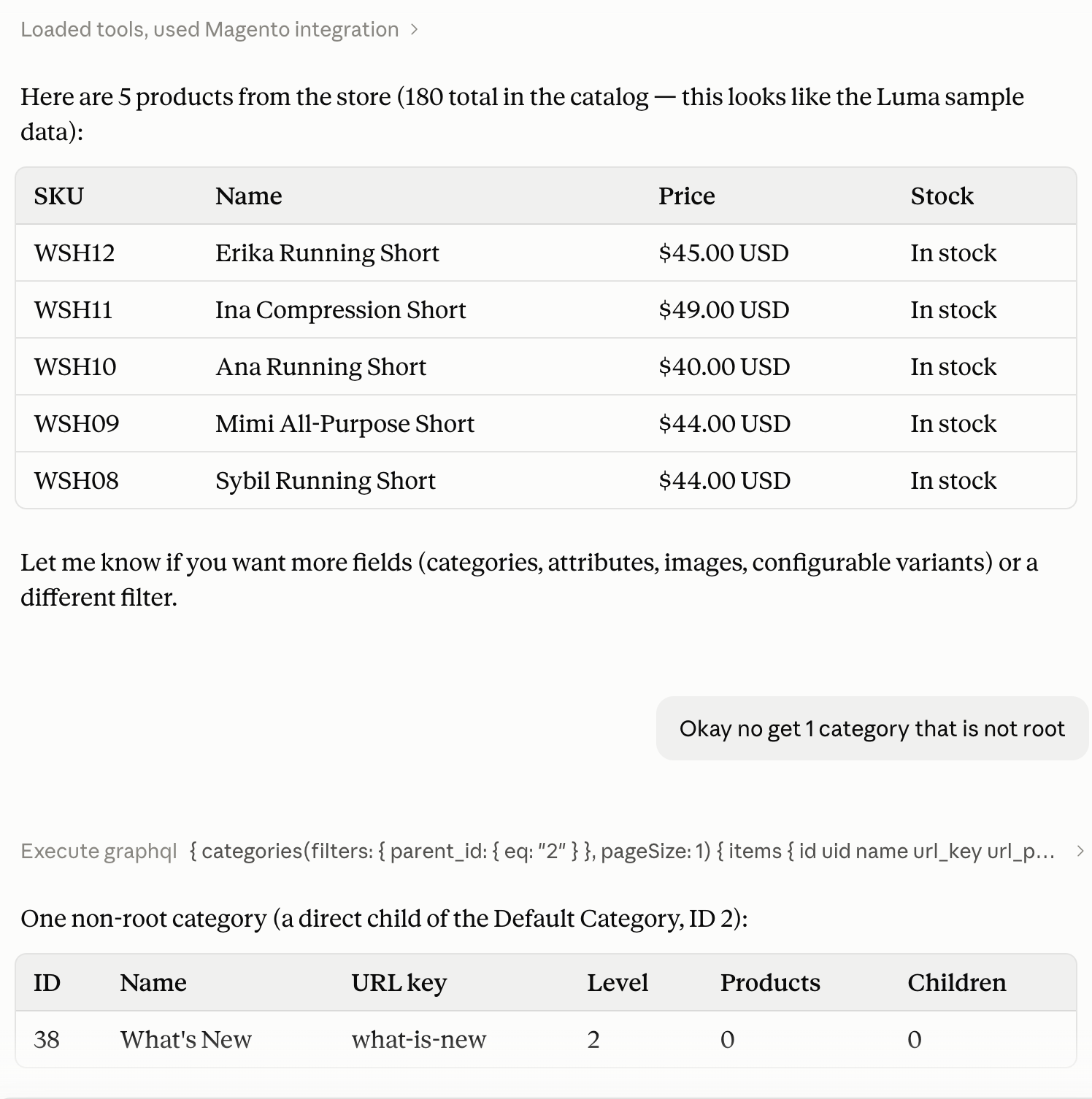

Claude calling execute_graphql against a live store, then narrowing the query based on the result - no hand-written integration code, just the schema:

Installation

composer require upturnstudio/module-mcp
bin/magento module:enable UpturnStudio_Mcp
bin/magento setup:upgrade
bin/magento cache:flush

Running in production mode? Also run bin/magento setup:di:compile before cache:flush.

Setup

Grant the permission. A brand-new ACL resource, UpturnStudio_Mcp::connector ("AI Connector (MCP)"), gates who can authorize this connector at all. It is not granted to any role automatically - go to Admin > System > Permissions > User Roles and add it to whichever role(s) should be allowed to connect Claude.
(HTTP transport only) Set the public base URL. Stores > Configuration > Advanced > AI Connector (MCP) > Public Base URL must be a real https:// URL this store is reachable at, with no path (e.g. https://your-domain.com, not .../mcp) - it's the OAuth issuer and MCP resource identifier, and must never change once a client has registered against it. Not needed for the stdio transport. See "Using it remotely" below for the actual URL to give Claude, which is this value plus /mcp.
(Optional) Set a PageSpeed Insights API key. Stores > Configuration > Advanced > AI Connector (MCP) > Core Web Vitals > PageSpeed Insights API Key. Only used by the check_core_web_vitals tool - leave blank to use Google's free, unauthenticated tier (lower rate limit).

Using it locally (stdio)

bin/magento mcp:serve --admin-user=<username>

--admin-user is a real Magento admin username (not email, not display name) that already has the permission above. Point Claude Code/Desktop's local MCP config at it directly:

{
  "mcpServers": {
    "magento-demo": {
      "command": "/path/to/php",
      "args": ["/path/to/bin/magento", "mcp:serve", "--admin-user=admin"]
    }
  }
}

To interactively poke at it with the official MCP Inspector instead of a real client:

bin/magento mcp:inspector --admin-user=<username>

This shells out to npx @modelcontextprotocol/inspector with the right invocation pre-built (config file, protocolEra, etc.) and auto-switches to a working Node version via nvm first if the active one is too old for the Inspector's own dependencies. Add --cli for one-shot scripted calls (-- --method tools/list --format json) instead of the interactive web UI. Requires Node.js/npx; this only launches the Inspector, it doesn't bundle it.

Using it remotely (HTTP + OAuth)

This works as a completely standard custom connector - no special setup on Claude's side. In Claude.ai: Settings > Connectors > Add custom connector, and paste the public base URL with /mcp appended - not the bare domain. For example, if the Public Base URL configured above is https://your-domain.com, enter:

https://your-domain.com/mcp

(Claude Code / Claude Desktop: add it as a remote server pointed at that same /mcp URL instead.) This has to be reachable over the public internet - a local .test/.localhost domain only works with the stdio transport above, not this one.

After adding it, Claude handles the rest automatically:

Claude requests that URL, gets a 401, and follows it to this store's OAuth endpoints (/.well-known/oauth-protected-resource, then /.well-known/oauth-authorization-server).
Claude registers itself as a client (/register) - nothing for the admin to do here.
A browser tab opens to admin/upturnstudio_mcp/oauth/authorize. If the admin isn't already logged into Magento admin, they're asked to log in first, then shown a consent screen naming the connector and asking them to Allow or Deny it.
On Allow, Claude exchanges the result for its own token and the connector is ready to use.

Connected apps can be reviewed and revoked afterwards at Admin > System > AI Connector (MCP).

The token Claude receives is not a Magento admin token - it only works against this module's own /mcp endpoint. Internally, a real (short-lived, never cached) Magento admin token is minted per call so Magento's own GraphQL resolvers and ACL checks see a genuine, live admin identity.

Tools

execute_graphql - runs a GraphQL query. Read-only: any mutation operation is refused before it's ever sent to Magento, regardless of what the admin's own role would otherwise permit.
introspect_graphql_schema - returns the full schema via standard introspection, so Claude can discover what's queryable without guessing.
check_core_web_vitals - given a store page URL, reports its Core Web Vitals (field data plus a live Lighthouse run, via Google PageSpeed Insights) and resolves that URL to the Magento entity behind it - product, category, or CMS page, including its entity ID - so a follow-up execute_graphql query (or a human editing it directly) knows exactly which record to target. Read-only, like everything else here: it identifies the entity, it doesn't touch it.

execute_graphql and introspect_graphql_schema run through Magento's real /graphql endpoint internally (not in-process GraphQL classes) - the schema's own DI wiring is scattered across ~50 modules' etc/graphql/di.xml files and isn't safely reproducible from another area, so this reuses it as-is instead. check_core_web_vitals doesn't need any of that: its entity lookup is a plain url_rewrite table lookup plus a repository fetch, both globally bound services with no area-scoping problem, so it resolves the entity in-process directly rather than paying for a loopback HTTP call to /graphql.

Adding more tools

Other modules can register additional tools without touching this one. Implement UpturnStudio\Mcp\Api\ToolInterface:

class MyTool implements \UpturnStudio\Mcp\Api\ToolInterface
{
    public function getName(): string
    {
        return 'my_tool';
    }

    public function getDefinition(): array
    {
        return [
            'description' => 'What this tool does.',
            'inputSchema' => ['type' => 'object', 'properties' => (object) []],
        ];
    }

    public function execute(int $adminUserId, array $arguments): array
    {
        // Return an array on success. Throw ToolExecutionException to signal a refusal
        // or failure (isError: true) instead of encoding it in the return value.
        return ['ok' => true];
    }
}

Then register it from your own module's etc/di.xml:

<type name="UpturnStudio\Mcp\Model\Mcp\ToolRegistry">
    <arguments>
        <argument name="tools" xsi:type="array">
            <item name="myTool" xsi:type="object">Vendor\Module\Model\Mcp\Tool\MyTool</item>
        </argument>
    </arguments>
</type>

It shows up in tools/list and is callable via tools/call on both transports automatically

nothing in this module needs to change. Tool names must be unique; a later-merged entry with the same getName() replaces an earlier one, the same way Magento's DI array arguments normally merge.

Security notes

Opaque access/refresh tokens are scoped to this connector only - they're useless against Magento's real /rest or /graphql if leaked.
An admin's connector access is re-checked live on every single call (not just at OAuth grant time) - disabling the admin account in Magento takes effect immediately, even for an already-issued, unexpired token.
Refresh tokens rotate on every use; replaying an already-rotated one revokes the entire token family and forces re-consent.
