spiggle / visual-dashboards

1.1.0 2026-10-24 17:54 UTC

Requires

• php: ^8.2
• filament/filament: ^3.3|^4.0|^5.0
• illuminate/database: >=11.0
• illuminate/support: >=11.0
• livewire/livewire: ^3.0|^4.0

Suggests

• bezhansalleh/filament-shield: Role-based access for dashboard resources.
• spiggle/form-builder-core: Form submission data source driver.

proprietary

• Spiggle

• analytics
• charts
• laravel
• dashboard
• filament
• spiggle
• visual-dashboards

Published on Packagist.org on 2026-10-24 18:20 UTC

README

Package	spiggle/visual-dashboards v1.1.3

Turn the records already in your app into a dashboard people actually want to open. Pick a model, drop a chart on the canvas, and publish a live page in a few minutes.

Install

composer require spiggle/visual-dashboards
php artisan migrate

Register the plugin on the panel:

use Spiggle\VisualDashboards\Filament\VisualDashboardsPlugin;

$panel->plugin(VisualDashboardsPlugin::make());

Check the install:

php artisan visual-dashboards:verify

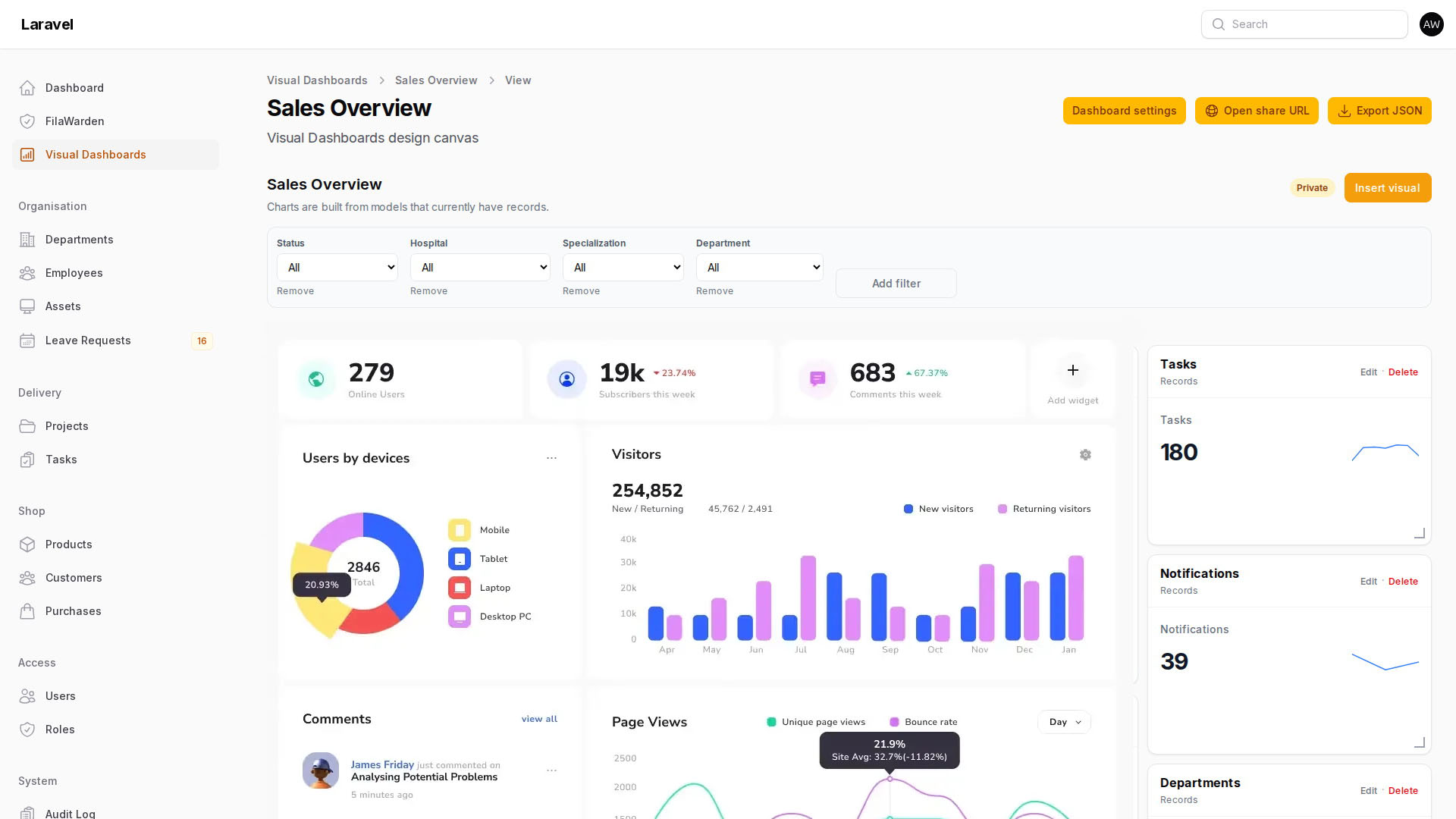

Build a dashboard

1. Open Visual Dashboards and create a new dashboard. Name it, then open the canvas.
2. Choose Insert visual and pick a chart. Bars work well when you want to compare categories.
3. Set the source category to Models and choose the model that holds the records. For the bars, pick the category field. For the length, pick Row count, or another measure. Save the chart.
4. Insert a KPI card the same way when the page needs a headline number.
5. Drag a card by its header. It snaps into the nearest gap. Drop it on another card to place it in front or behind.
6. Open Dashboard settings, turn on Public link, and save.
7. Open the share URL. Signed-in allowed viewers can always use it. With the public link on, anyone with the URL can view the page.

Features

• Visual Dashboards canvas — drag, resize, snap into gaps, and stack cards in front or behind
• Chart gallery — KPI card, table, line, bar, column, pie, donut, stacked, funnel, radial gauge
• Live models — chart fields come from Eloquent models that already have records, including related names
• Public link — optional anonymous access at /visual-dashboards/{id}/{slug}
• Viewer roles — optional Spatie or Shield allowlist for signed-in viewing, including per dashlet
• One sidebar item — Visual Dashboards opens the dashboard list
• Works without Shield — Spatie or Filament Shield permissions apply when those packages are installed

Architecture

See docs/VISUAL_DASHBOARDS.md.

Spiggle plugins

• FilaWarden Core — deployment checks, queue and cron health, and production diagnostics inside Filament.
• Form Builder Core — public forms, submissions, and CSV export.
• Dynamic Fields Core — custom fields on any Eloquent model.
• Rules Engine — event triggers you design in the panel.
• List View — switch a Filament table to an alphabetical list.
• Portal Snapshot — schedule, restore, and export database snapshots, including demo resets.

Sponsors

Support the plugins at github.com/sponsors/skillbobby.

Contact

Spiggle on X

License

All rights reserved. You can review this repository and install the package in your own Laravel application. See LICENSE.
