README

The Messenger Worker Registry component provides real-time visibility into your Symfony Messenger workers. Track running workers, their transports, message throughput, failure rates, and per-message-type performance — all via a simple console command.

Features

Zero configuration — install the bundle and it just works
Automatic registration — workers register themselves on startup via event listeners
Worker status — see at a glance which workers are running, stopped, or dead
Hostname tracking — identify which host each worker is running on
Heartbeat with TTL — crashed workers show as "dead" before expiring from the registry
Configurable TTL — adjust the TTL to match your environment
Message counters — track handled and failed messages per worker
Per-message-type stats — see count, failure rate, and average processing time per message class
Console command — messenger:worker:list with table and JSON output
Web Debug Toolbar — see worker count and status at a glance in the Symfony profiler
Configurable cache pool — use any PSR-6 cache pool instead of the default cache.app
No external dependencies — uses Symfony's built-in PSR-6 cache (filesystem, Redis, APCu — whatever you have configured)

Requirements

PHP 8.2+
Symfony 7.0+ or 8.0+

Installation

composer require roman-1983/messenger-worker-registry

If you're not using Symfony Flex, register the bundle manually:

// config/bundles.php
return [
    // ...
    ShopWatch\MessengerWorkerRegistry\MessengerWorkerRegistryBundle::class => ['all' => true],
];

That's it. No configuration needed — the defaults work out of the box.

Usage

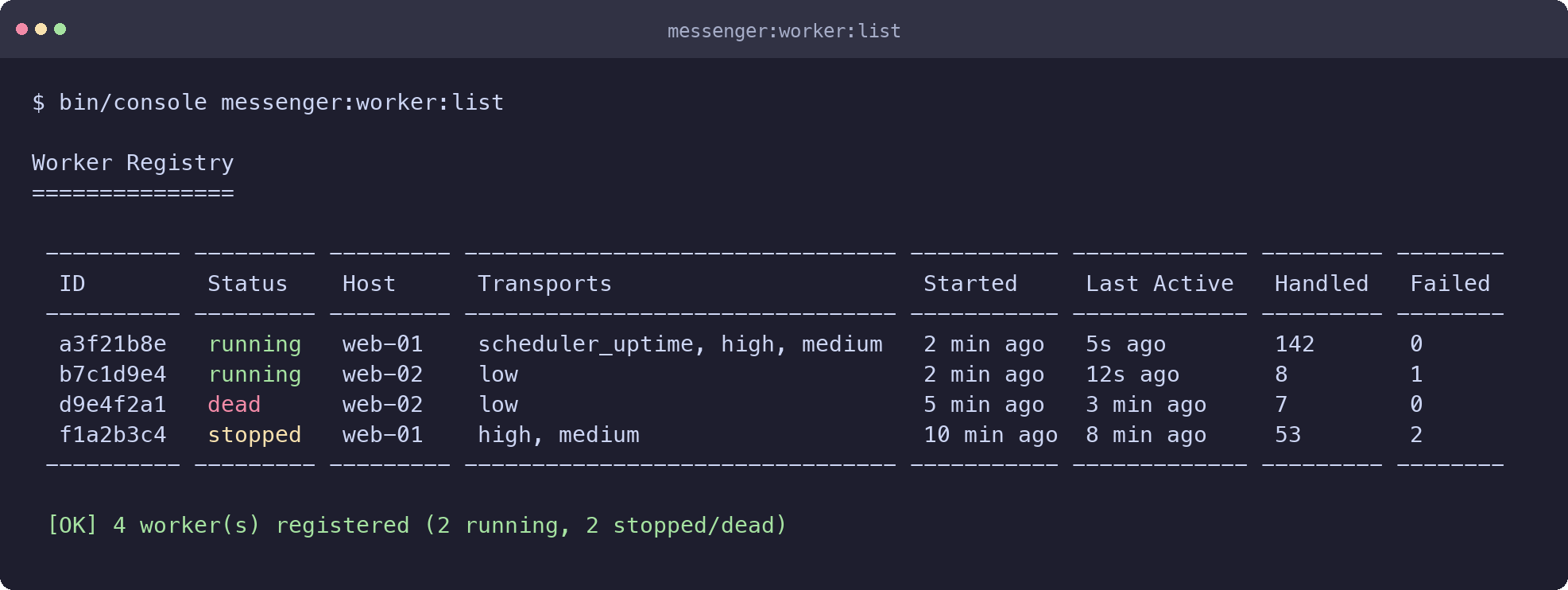

List Running Workers

bin/console messenger:worker:list

Worker Status

Each worker has one of three statuses:

Status	Meaning
`running`	Worker is active, heartbeat received within TTL
`stopped`	Worker shut down gracefully via `WorkerStoppedEvent`
`dead`	Worker crashed — no heartbeat received for longer than TTL

Stopped workers remain visible for 1x TTL after shutdown. Dead workers remain visible for 2x TTL after their last heartbeat, then expire from the cache automatically.

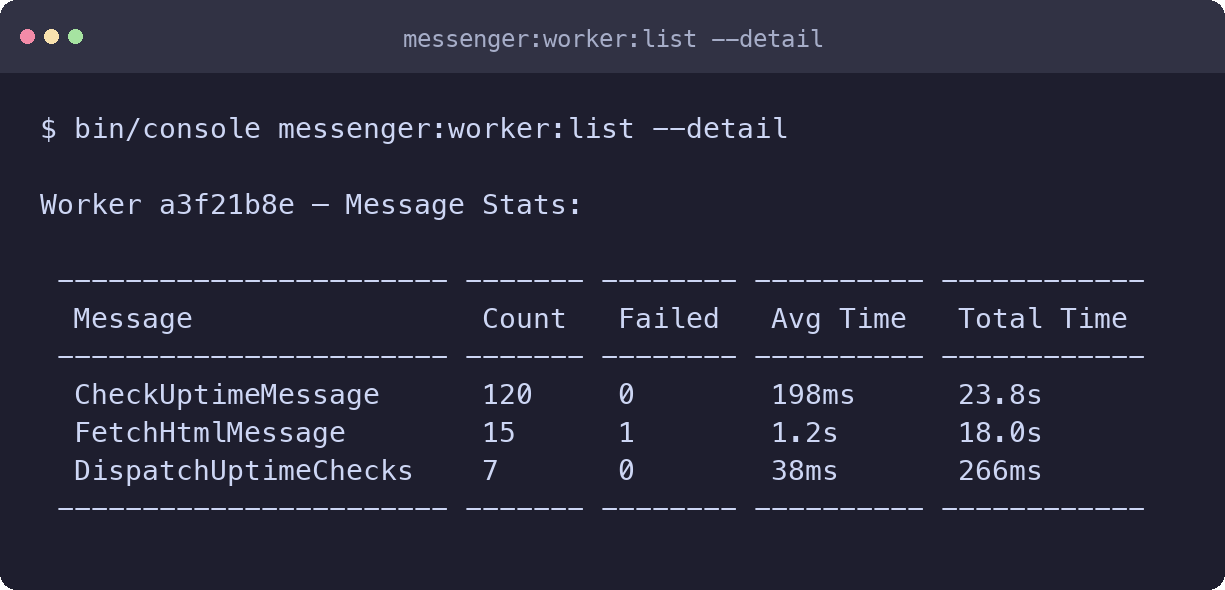

Detailed View with Per-Message Stats

bin/console messenger:worker:list --detail

JSON Output

bin/console messenger:worker:list --format=json
bin/console messenger:worker:list --format=json --detail

Returns a JSON array for programmatic consumption:

[
  {
    "id": "a3f21b8e",
    "status": "running",
    "hostname": "web-01",
    "transports": ["scheduler_uptime", "high", "medium"],
    "started_at": "2026-03-03T14:22:10+00:00",
    "last_active_at": "2026-03-03T14:24:55+00:00",
    "messages_handled": 142,
    "messages_failed": 0,
    "message_stats": {
      "CheckUptimeMessage": {
        "count": 120,
        "failed": 0,
        "avg_ms": 198.3,
        "total_ms": 23796.0
      }
    }
  }
]

The message_stats key is only included when using --detail.

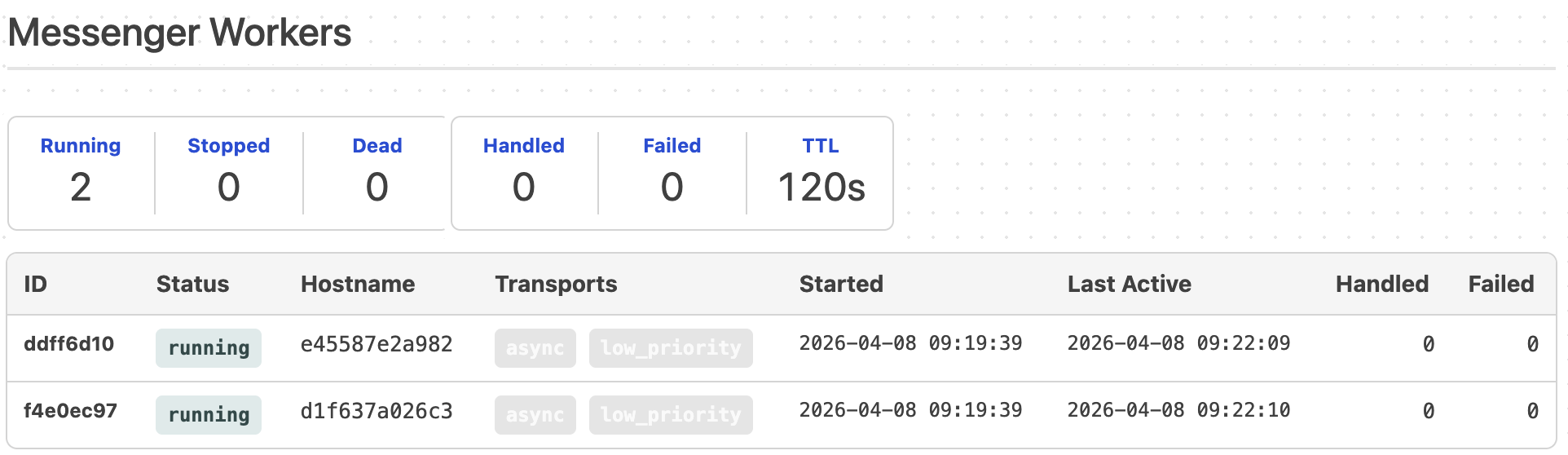

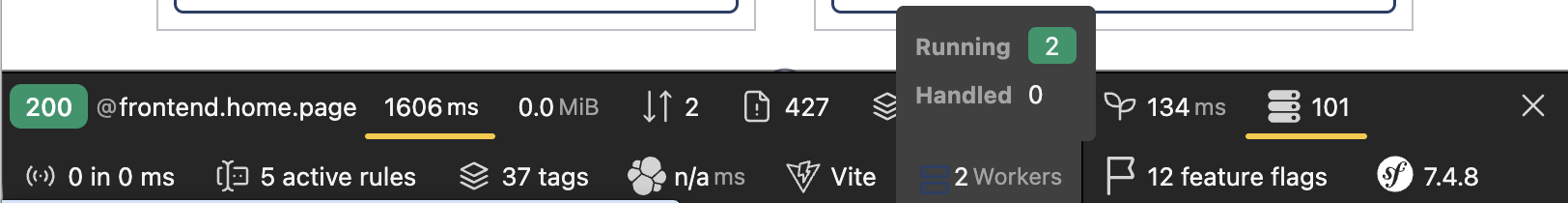

Web Debug Toolbar

When symfony/web-profiler-bundle is installed, the bundle automatically adds a toolbar item showing the number of running workers. The toolbar icon turns red when dead workers are detected, and yellow when no workers are running.

Click the toolbar item to open the full profiler panel with:

Summary metrics (running / stopped / dead counts, handled / failed totals, TTL)
Worker table with status, hostname, transports, relative timestamps, and message counters
Per-message-type breakdown with count, failure rate, total and average processing time

No extra configuration is needed — the data collector is registered automatically.

How It Works

The bundle listens to Symfony Messenger's built-in worker events:

Event	Action
`WorkerStartedEvent`	Registers the worker with a generated ID, hostname, and transport list
`WorkerRunningEvent`	Sends a heartbeat every 30s to extend the cache TTL
`WorkerStoppedEvent`	Marks the worker as "stopped" (stays visible for 1x TTL)
`WorkerMessageReceivedEvent`	Starts a timer for processing duration
`WorkerMessageHandledEvent`	Increments handled counter, records per-type stats
`WorkerMessageFailedEvent`	Increments failed counter, records per-type stats

TTL and Worker Lifecycle

Each worker entry is stored with a cache TTL of 2x the configured TTL (default: 240 seconds). The heartbeat (fired every 30 seconds) resets this TTL on each cycle.

Running: Heartbeat keeps the entry alive. Status is "running" as long as lastActiveAt is within 1x TTL.
Crashed: If a worker crashes without triggering WorkerStoppedEvent, its lastActiveAt goes stale. After 1x TTL it shows as "dead". After 2x TTL the cache entry expires automatically.
Graceful stop: WorkerStoppedEvent sets stoppedAt and saves the entry with 1x TTL. It shows as "stopped" until it expires.

Storage

The bundle uses Symfony's cache.app pool by default. This means it works out of the box with whatever cache adapter you have configured (filesystem, Redis, Memcached, APCu). For multi-server setups, make sure your cache adapter is shared (e.g., Redis).

Docker / multi-container note: If your web server and workers run in separate containers with the default filesystem cache adapter, they each have an isolated filesystem. Workers will register themselves, but the web container won't see them. To fix this, either mount a shared volume on the cache directory (e.g., /app/var/share) across all containers, or switch to a shared cache adapter like Redis.

Configuration

Zero configuration — the bundle works out of the box. It uses Symfony's cache.app pool (typically filesystem) and a default TTL of 120 seconds. No Redis, no database, no external services required.

Important: Workers and your web application must share the same cache. Workers write their status to the cache, and the web app (console command, profiler panel) reads from it. If they use separate cache pools or isolated filesystems, the registry will appear empty.

You can optionally customize the TTL and cache pool:

# config/packages/messenger_worker_registry.yaml
messenger_worker_registry:
    ttl: 120          # seconds (default: 120, minimum: 10)
    cache: cache.app  # cache pool service ID (default: cache.app)

If you need a dedicated cache pool (e.g., to use a different adapter or separate the worker data from your application cache), define one and reference it:

# config/packages/cache.yaml
framework:
    cache:
        pools:
            cache.worker_registry:
                adapter: cache.adapter.filesystem

# config/packages/messenger_worker_registry.yaml
messenger_worker_registry:
    cache: cache.worker_registry

Testing

composer install
vendor/bin/phpunit

Resources

Contributing
Report issues and send Pull Requests please.

License

MIT License. See LICENSE for details.
