README

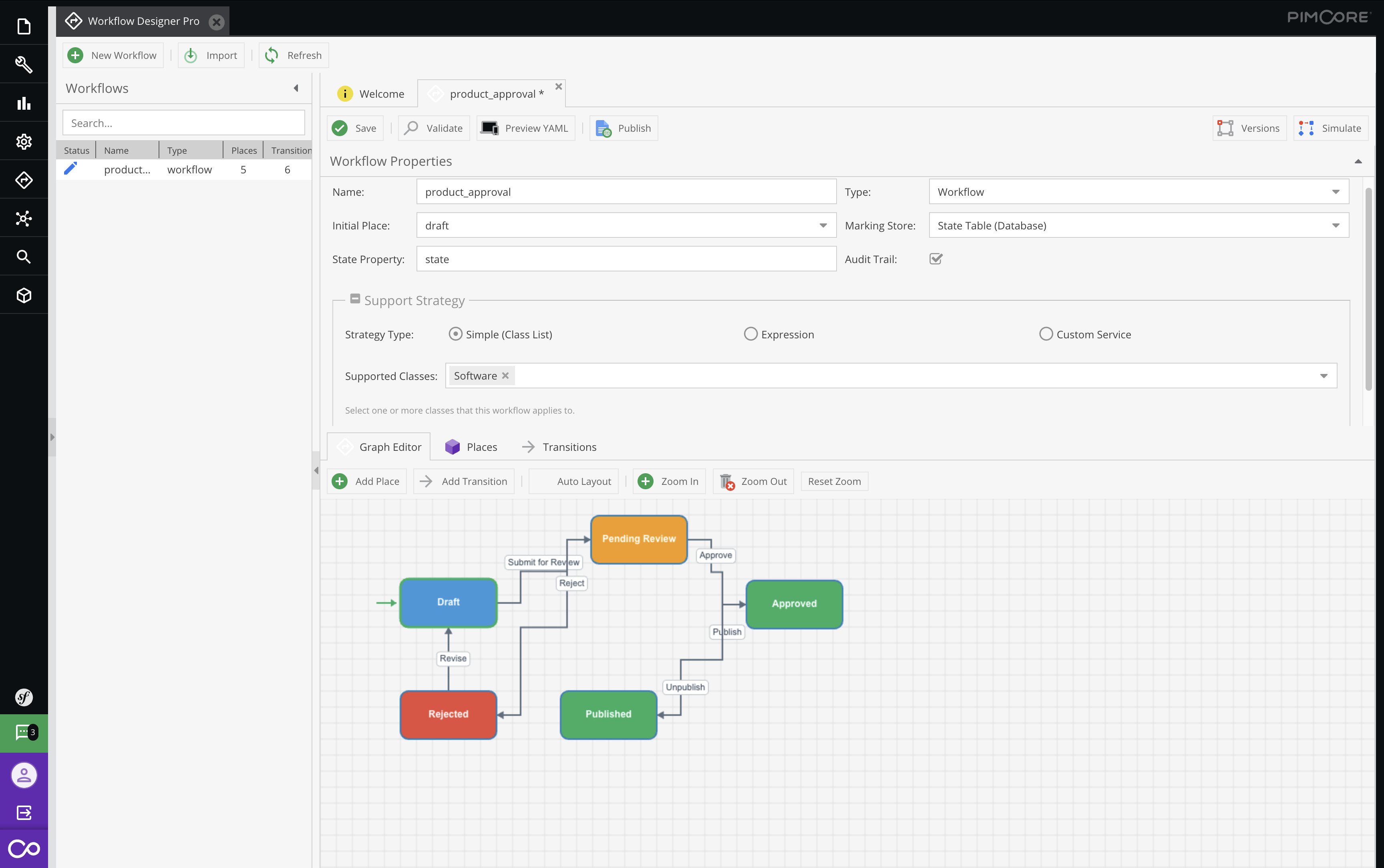

Visual Workflow Designer for Pimcore - Create, edit, and manage workflows with a graphical interface based on Symfony Workflow.

Features

🎨 Visual Graph Editor - Drag-and-drop interface for creating workflow diagrams
📝 Places & Transitions - Full support for Pimcore workflow places and transitions
🎯 Flexible Support Strategies - Simple class list, expression-based, or custom service strategies
🔒 Guard Expressions - Visual editing of Symfony guard expressions
🔐 Permission Rules - Configure place permissions with conditions
📧 Notifications - Set up email/Pimcore notifications per transition
📤 Import/Export - YAML and JSON workflow import/export
🔄 Version Control - Track workflow changes with version history
🧪 Simulation Mode - Test workflows before publishing
📱 Responsive UI - Works on different screen sizes

Requirements

PHP >= 8.1
Pimcore >= 11.0 or >= 2024.0
Symfony >= 6.4

Installation

Via Composer

composer require praetorian-digital/workflow-designer-pro-bundle

Enable the Bundle

Add to config/bundles.php:

return [
    // ...
    PraetorianDigital\WorkflowDesignerProBundle\WorkflowDesignerProBundle::class => ['all' => true],
];

Install Assets

bin/console assets:install --symlink
bin/console cache:clear

Run the Installer

bin/console pimcore:bundle:install WorkflowDesignerProBundle

Configuration

Create config/packages/workflow_designer_pro.yaml:

workflow_designer_pro:
    storage_path: '%kernel.project_dir%/var/config/workflow_designer_pro'
    publish_path: '%kernel.project_dir%/config/workflows'
    max_versions: 10
    backup_enabled: true
    auto_cache_clear: true

Make sure your workflows are imported in config/packages/workflows.yaml:

imports:
    - { resource: '../workflows/*.yaml' }

Usage

Accessing the Designer

Navigate to Settings → Workflow Designer Pro in Pimcore admin
Or use the top-level Workflow Designer menu item

Creating a Workflow

Click New Workflow
Fill in the basic settings (name, label, supports)
Add places in the Places tab or Graph Editor
Add transitions connecting places
Configure guards and notifications as needed
Save Draft to store your work
Publish to activate the workflow

Support Strategies

Choose how the workflow applies to objects:

Simple (Class List) - Apply to all objects of selected classes:

supports:
    - Pimcore\Model\DataObject\Product

Expression - Apply based on conditions:

support_strategy:
    type: expression
    arguments:
        - Pimcore\Model\DataObject\Product
        - "subject.getProductType() == 'article'"

Custom Service - Use custom PHP logic:

support_strategy:
    service: App\Workflow\CustomSupportStrategy

See the User Guide for detailed documentation on support strategies.

Permissions

The bundle creates two permissions:

workflow_designer - View and edit workflows
workflow_designer_publish - Publish workflows to configuration

Assign these to users via Settings → Users → Permissions.

Documentation

User Guide

Contributing

Contributions are welcome! Please read our Contributing Guide before submitting a Pull Request.

License

This bundle is released under the MIT License. See the LICENSE file for details.

Credits

Built with ❤️ for the Pimcore community.

Based on:
