README

Command-line tool for OPC UA servers. Browse, read, write, watch, interactively explore, discover endpoints, manage certificates, and generate PHP code from NodeSet2.xml -- all from the terminal.

Built on top of php-opcua/opcua-client, the pure PHP OPC UA client.

Installation

Standalone binary (no PHP required)

Pre-built, self-contained executables are published on every tag release. No PHP installation, no composer, no php.ini, no extensions — one file.

# Linux x86_64
curl -LO https://github.com/php-opcua/opcua-cli/releases/latest/download/opcua-cli-linux-x86_64
chmod +x opcua-cli-linux-x86_64
./opcua-cli-linux-x86_64 --version

# Linux aarch64 (ARM: Raspberry Pi, AWS Graviton, industrial edge gateways)
curl -LO https://github.com/php-opcua/opcua-cli/releases/latest/download/opcua-cli-linux-aarch64
chmod +x opcua-cli-linux-aarch64

# macOS arm64 (Apple Silicon — M1/M2/M3/M4)
curl -LO https://github.com/php-opcua/opcua-cli/releases/latest/download/opcua-cli-macos-arm64
chmod +x opcua-cli-macos-arm64
xattr -cr opcua-cli-macos-arm64     # clear Gatekeeper quarantine — see note below

# Windows x86_64 (experimental in v4.3.0 — may be missing from some releases, see note below)
curl.exe -LO https://github.com/php-opcua/opcua-cli/releases/latest/download/opcua-cli-windows-x86_64.exe
opcua-cli-windows-x86_64.exe --version

Each release also ships SHA256SUMS.txt; verify with sha256sum --check SHA256SUMS.txt (Linux/macOS) or Get-FileHash -Algorithm SHA256 (PowerShell).

The binaries bundle PHP 8.4, the statically linked OpenSSL (with full ECC curve support including brainpoolP256r1/P384r1), and the compiled opcua-cli — built via static-php-cli + Box.

macOS note — unsigned binaries. The macOS artefact for v4.3.0 is not code-signed or notarized. On first launch Gatekeeper will refuse to run it ("cannot be opened because the developer cannot be verified"). Strip the quarantine flag with xattr -cr <binary> as shown above, or open the binary once via System Settings → Privacy & Security → Open Anyway. Code-signing + notarization is tracked for v4.4.0.

Intel Mac (macos-x86_64) not shipped. GitHub retired the free macos-13 runner pool during 2025, so a native Intel build is no longer producible on CI without a paid runner. Intel Mac users should install via Composer (composer global require php-opcua/opcua-cli) or build from source — see doc/04-build-from-source.md. Note that the Apple Silicon binary (macos-arm64) will not run on Intel Macs: Rosetta 2 translates x86_64 → arm64, not the reverse.

Windows note — experimental. The windows-x86_64.exe leg of the release workflow runs with continue-on-error: true, so a release is published even if the Windows build fails. If the .exe is not listed on a given release page, the Windows build did not complete successfully that cycle — use doc/04-build-from-source.md to produce it locally, or wait for the next release. Windows promotion to first-class support is tracked for v4.4.0.

Need a binary for a platform not in the list above (Alpine/musl, a different PHP or extension set)? See doc/04-build-from-source.md — step-by-step instructions for reproducing the build locally.

Via Composer

composer require php-opcua/opcua-cli

The binary is installed at vendor/bin/opcua-cli.

For global installation:

composer global require php-opcua/opcua-cli

Quick Start

# Discover what's available
opcua-cli endpoints opc.tcp://localhost:4840

# Browse the address space
opcua-cli browse opc.tcp://localhost:4840

# Read a value
opcua-cli read opc.tcp://localhost:4840 "i=2259"

# Write a value
opcua-cli write opc.tcp://localhost:4840 "ns=2;i=1001" 42 --type=Int32

# Watch a value in real time
opcua-cli watch opc.tcp://localhost:4840 "ns=2;i=1001"

Commands

`browse` -- Browse the address space

opcua-cli browse opc.tcp://localhost:4840
opcua-cli browse opc.tcp://localhost:4840 /Objects/MyPLC
opcua-cli browse opc.tcp://localhost:4840 "ns=2;i=1000"
opcua-cli browse opc.tcp://localhost:4840 /Objects --recursive --depth=3
opcua-cli browse opc.tcp://localhost:4840 /Objects --json

├── Server (i=2253) [Object]
├── MyPLC (ns=2;i=1000) [Object]
│   ├── Temperature (ns=2;i=1001) [Variable]
│   └── Pressure (ns=2;i=1002) [Variable]
└── DeviceSet (ns=3;i=5001) [Object]

Option	Description
`--recursive`	Browse recursively (tree view)
`--depth=N`	Maximum depth for recursive browse (default: 3)

`read` -- Read a node value

opcua-cli read opc.tcp://localhost:4840 "i=2259"
opcua-cli read opc.tcp://localhost:4840 "ns=2;i=1001" --attribute=DisplayName
opcua-cli read opc.tcp://localhost:4840 "ns=2;i=1001" --json

NodeId:     ns=2;i=1001
Attribute:  Value
Value:      23.5
Type:       Double
Status:     Good (0x00000000)
Source:     2026-03-24T15:30:00+00:00
Server:     2026-03-24T15:30:00+00:00

Option	Description
`--attribute=NAME`	Attribute to read: Value (default), DisplayName, BrowseName, DataType, NodeClass, Description, AccessLevel, NodeId

`write` -- Write a value to a node

opcua-cli write opc.tcp://localhost:4840 "ns=2;i=1001" 42
opcua-cli write opc.tcp://localhost:4840 "ns=2;i=1001" 42 --type=Int32
opcua-cli write opc.tcp://localhost:4840 "ns=2;i=2000" true --type=Boolean

Option	Description
`--type=TYPE`	Explicit OPC UA type: Boolean, SByte, Byte, Int16, UInt16, Int32, UInt32, Int64, UInt64, Float, Double, String

`endpoints` -- Discover server endpoints

opcua-cli endpoints opc.tcp://localhost:4840

Endpoint: opc.tcp://localhost:4840
Security: None (mode: None)
Auth:     Anonymous, UserName

Endpoint: opc.tcp://localhost:4840
Security: Basic256Sha256 (mode: SignAndEncrypt)
Auth:     Anonymous, UserName, Certificate

Endpoint: opc.tcp://localhost:4840
Security: ECC_nistP256 (mode: SignAndEncrypt)
Auth:     Anonymous, UserName

`watch` -- Watch a value in real time

# Subscription mode (default) -- server pushes changes
opcua-cli watch opc.tcp://localhost:4840 "ns=2;i=1001"

# Polling mode -- read every 250ms
opcua-cli watch opc.tcp://localhost:4840 "ns=2;i=1001" --interval=250

[15:30:00.123] 23.5
[15:30:00.625] 23.6
[15:30:01.127] 23.4
^C

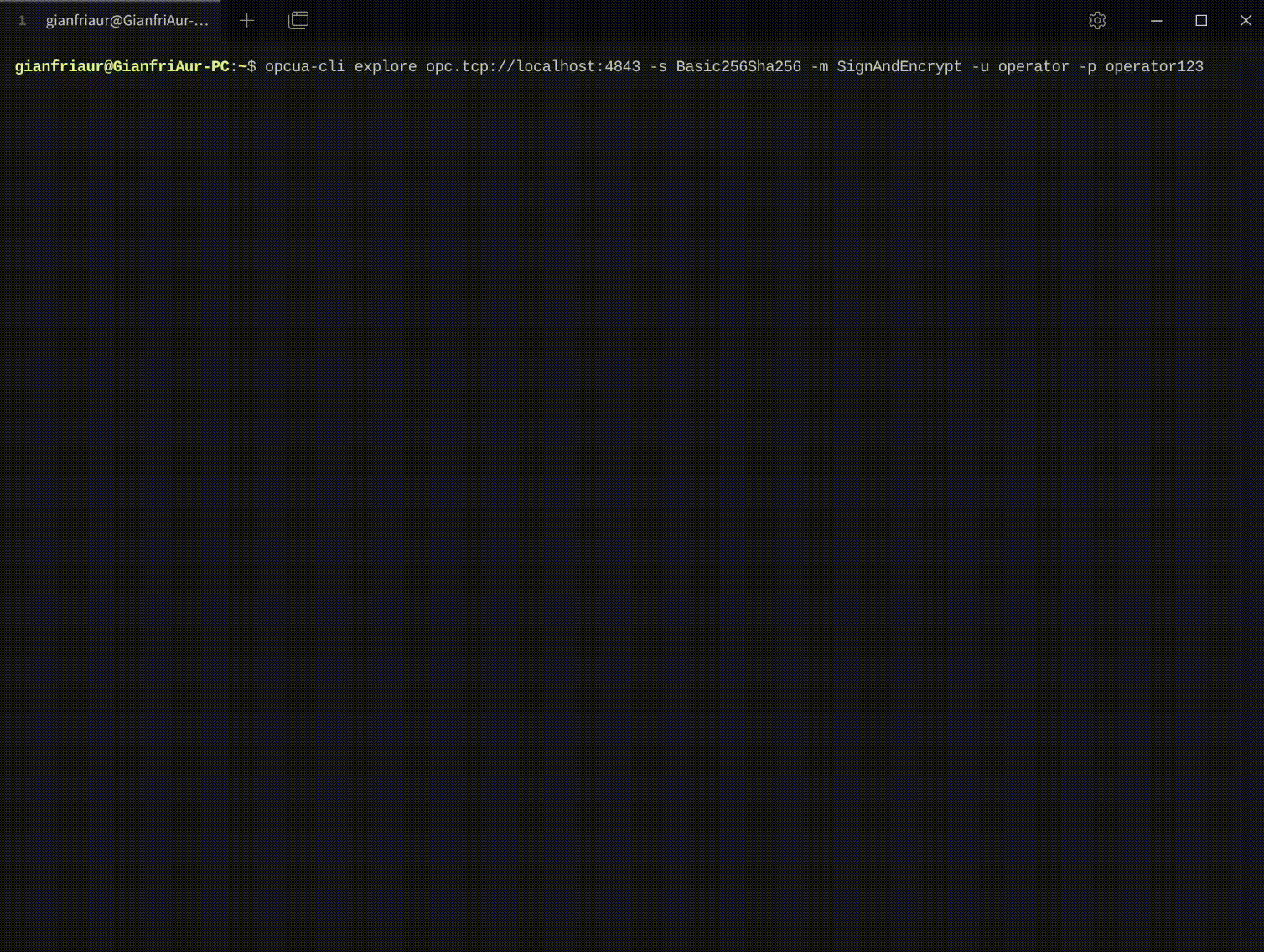

`explore` -- Interactive TUI browser

Full-screen terminal UI to walk the address space without typing commands. Tree on the left, details pane on the right (with live Value / Status / Source timestamp for Variables), log pane at the bottom.

opcua-cli explore opc.tcp://localhost:4840
opcua-cli explore opc.tcp://localhost:4840 -u operator -p operator123

Key	Action
`↑` / `↓`	Move selection
`→` / `Enter`	Expand node (browse children)
`←`	Collapse or jump to parent
`r`	Refresh the Value of the selected Variable
`q` / `Esc`	Quit

Platform support. explore currently runs on Linux and macOS. Windows support is coming soon.

Flags. --json and --debug are rejected (they would corrupt the interactive screen). Use --debug-stderr or --debug-file=<path> if you need logs while explore is running.

`generate:nodeset` -- Generate PHP classes from NodeSet2.xml

opcua-cli generate:nodeset path/to/Opc.Ua.Di.NodeSet2.xml \
  --output=src/Generated/Di/ --namespace=App\\OpcUa\\Di

Generates:

NodeId constants -- one class with all node IDs as string constants
PHP enums -- BackedEnum for each OPC UA enumeration type
DTOs -- readonly classes with typed properties for structured DataTypes
Codecs -- ExtensionObjectCodec implementations for binary encoding/decoding
Registrar -- batch-registers all codecs with the client

Option	Description
`--output=PATH`	Output directory (default: `./generated/`)
`--namespace=NS`	PHP namespace (default: `Generated\\OpcUa`)

No server connection required -- reads the XML file locally.

`dump:nodeset` -- Export server address space to NodeSet2.xml

opcua-cli dump:nodeset opc.tcp://192.168.1.100:4840 --output=MyPLC.NodeSet2.xml
opcua-cli dump:nodeset opc.tcp://192.168.1.100:4840 --output=MyPLC.NodeSet2.xml --namespace=2

Option	Description
`--output=FILE`	Output XML file path (required)
`--namespace=N`	Export only this namespace index (default: all non-zero)

The exported file can be fed directly to generate:nodeset.

`trust` -- Trust a server certificate

opcua-cli trust opc.tcp://server:4840 --trust-store=~/.opcua

`trust:list` -- List trusted certificates

opcua-cli trust:list --trust-store=~/.opcua

`trust:remove` -- Remove a trusted certificate

opcua-cli trust:remove ab:cd:12:34:... --trust-store=~/.opcua

Option	Description
`--trust-store=<path>`	Custom trust store path
`--trust-policy=<policy>`	Validation policy (fingerprint, fingerprint+expiry, full)
`--no-trust-policy`	Disable trust validation for this command

Security Options

All commands support full security configuration — 10 policies (6 RSA + 4 ECC), 3 modes, 3 auth methods:

# Username/password authentication
opcua-cli read opc.tcp://server:4840 "i=2259" -u admin -p secret

# Full security with RSA certificates
opcua-cli read opc.tcp://server:4840 "i=2259" \
  --security-policy=Basic256Sha256 \
  --security-mode=SignAndEncrypt \
  --cert=/path/to/client.pem \
  --key=/path/to/client.key \
  --ca=/path/to/ca.pem \
  -u operator -p secret

# ECC security (auto-generated ECC certificate)
opcua-cli read opc.tcp://server:4840 "i=2259" \
  --security-policy=ECC_nistP256 \
  --security-mode=SignAndEncrypt \
  -u operator -p secret

Option	Short	Description
`--security-policy=<policy>`	`-s`	None, Basic128Rsa15, Basic256, Basic256Sha256, Aes128Sha256RsaOaep, Aes256Sha256RsaPss, ECC_nistP256, ECC_nistP384, ECC_brainpoolP256r1, ECC_brainpoolP384r1
`--security-mode=<mode>`	`-m`	None, Sign, SignAndEncrypt
`--cert=<path>`		Client certificate path
`--key=<path>`		Client private key path
`--ca=<path>`		CA certificate path
`--username=<user>`	`-u`	Username
`--password=<pass>`	`-p`	Password
`--timeout=<seconds>`	`-t`	Connection timeout (default: 5)

ECC disclaimer: ECC security policies (ECC_nistP256, ECC_nistP384, ECC_brainpoolP256r1, ECC_brainpoolP384r1) are fully implemented and tested against the OPC Foundation's UA-.NETStandard reference stack. However, no commercial OPC UA vendor supports ECC endpoints yet. When using ECC, client certificates are auto-generated if --cert/--key are omitted, and username/password authentication uses the EccEncryptedSecret protocol automatically.

Output Options

JSON

Add --json (or -j) to any command for machine-readable output:

opcua-cli browse opc.tcp://localhost:4840 --json | jq '.[].name'
opcua-cli read opc.tcp://localhost:4840 "i=2259" --json | jq '.Value'

Debug Logging

# Log to stdout (incompatible with --json)
opcua-cli read opc.tcp://localhost:4840 "i=2259" --debug

# Log to stderr (compatible with --json)
opcua-cli read opc.tcp://localhost:4840 "i=2259" --debug-stderr --json

# Log to file
opcua-cli read opc.tcp://localhost:4840 "i=2259" --debug-file=/tmp/opcua.log --json

Global Options

Option	Short	Description
`--json`	`-j`	Output in JSON format
`--debug`	`-d`	Debug logging on stdout
`--debug-stderr`		Debug logging on stderr
`--debug-file=<path>`		Debug logging to file
`--help`	`-h`	Show help
`--version`	`-v`	Show version

Ecosystem

Package	Description
opcua-client	Pure PHP OPC UA client
opcua-cli	CLI tool — browse, read, write, watch, interactively explore, discover endpoints, manage certificates, generate code from NodeSet2.xml (this package)
opcua-session-manager	Daemon-based session persistence across PHP requests. Keeps OPC UA connections alive between short-lived PHP processes via a ReactPHP daemon and Unix sockets. Separate package by design — see ROADMAP.md for rationale.
opcua-client-nodeset	Pre-generated PHP types from 51 OPC Foundation companion specifications (DI, Robotics, Machinery, MachineTool, ISA-95, CNC, MTConnect, and more). 807 PHP files — NodeId constants, enums, typed DTOs, codecs, registrars with automatic dependency resolution. Just `composer require` and `loadGeneratedTypes()`.
laravel-opcua	Laravel integration — service provider, facade, config
uanetstandard-test-suite	Docker-based OPC UA test servers (UA-.NETStandard) for integration testing

Testing

Tested against the OPC UA reference implementation

The underlying opcua-client is integration-tested against UA-.NETStandard — the reference implementation maintained by the OPC Foundation, the organization that defines the OPC UA specification. This is the same stack used by major industrial vendors to certify their products.

This CLI tool is additionally integration-tested via uanetstandard-test-suite, verifying that every command works correctly against real-world OPC UA servers. Like opcua-client, the CLI unit tests run on Linux, macOS, and Windows across PHP 8.2–8.5 in CI on every push.

288 tests (258 unit + 30 integration) with 99.9% code coverage. Unit tests run cross-OS (Linux, macOS, Windows) × PHP 8.2–8.5 = 12 combinations; integration tests run on Linux × PHP 8.2–8.5 = 4 combinations against uanetstandard-test-suite — a Docker-based OPC UA environment built on the OPC Foundation's UA-.NETStandard reference implementation.

./vendor/bin/pest                                          # everything
./vendor/bin/pest tests/Unit/                              # unit only
./vendor/bin/pest tests/Integration/ --group=integration   # integration only

CI runs on PHP 8.2, 8.3, 8.4, and 8.5 via GitHub Actions.

Requirements

PHP >= 8.2
php-opcua/opcua-client

AI-Ready

This package ships with machine-readable documentation designed for AI coding assistants (Claude, Cursor, Copilot, ChatGPT, and others). Feed these files to your AI so it knows how to use the CLI tool correctly:

File	Purpose
`llms.txt`	Compact project summary — commands, options, architecture. Optimized for LLM context windows with minimal token usage.
`llms-full.txt`	Comprehensive technical reference — every command, option, class, code generator, output system. For deep dives and complex questions.
`llms-skills.md`	Task-oriented recipes — step-by-step instructions for common tasks (browse, read, write, watch, security, trust, code generation, scripting). Written so an AI can generate correct commands from a user's intent.

How to use: copy the files you need into your project's AI configuration directory. The files are located in vendor/php-opcua/opcua-cli/ after composer install.

Claude Code: reference per-session with --add-file vendor/php-opcua/opcua-cli/llms-skills.md
Cursor: copy into your project's rules directory — cp vendor/php-opcua/opcua-cli/llms-skills.md .cursor/rules/opcua-cli.md
GitHub Copilot: copy or append the content into your project's .github/copilot-instructions.md file (create the file and directory if they don't exist). Copilot reads this file automatically for project-specific context
Other tools: paste the content into your system prompt, project knowledge base, or context configuration

Versioning

This package follows the same version numbering as php-opcua/opcua-client. Each release of opcua-cli is aligned with the corresponding release of the client library to ensure full compatibility.

License

MIT. See LICENSE.

php-opcua / opcua-cli

Maintainers

Package info

Statistics

Security

README

Installation

Standalone binary (no PHP required)

Via Composer

Quick Start

Commands

`browse` -- Browse the address space

`read` -- Read a node value

`write` -- Write a value to a node

`endpoints` -- Discover server endpoints

`watch` -- Watch a value in real time

`explore` -- Interactive TUI browser

`generate:nodeset` -- Generate PHP classes from NodeSet2.xml

`dump:nodeset` -- Export server address space to NodeSet2.xml

`trust` -- Trust a server certificate

`trust:list` -- List trusted certificates

`trust:remove` -- Remove a trusted certificate

Security Options

Output Options

JSON

Debug Logging

Global Options

Ecosystem

Testing

Tested against the OPC UA reference implementation

Requirements

AI-Ready

Versioning

License

php-opcua / opcua-cli

Maintainers

Package info

Statistics

Security

README

Installation

Standalone binary (no PHP required)

Via Composer

Quick Start

Commands

browse -- Browse the address space

read -- Read a node value

write -- Write a value to a node

endpoints -- Discover server endpoints

watch -- Watch a value in real time

explore -- Interactive TUI browser

generate:nodeset -- Generate PHP classes from NodeSet2.xml

dump:nodeset -- Export server address space to NodeSet2.xml

trust -- Trust a server certificate

trust:list -- List trusted certificates

trust:remove -- Remove a trusted certificate

Security Options

Output Options

JSON

Debug Logging

Global Options

Ecosystem

Testing

Tested against the OPC UA reference implementation

Requirements

AI-Ready

Versioning

License

`browse` -- Browse the address space

`read` -- Read a node value

`write` -- Write a value to a node

`endpoints` -- Discover server endpoints

`watch` -- Watch a value in real time

`explore` -- Interactive TUI browser

`generate:nodeset` -- Generate PHP classes from NodeSet2.xml

`dump:nodeset` -- Export server address space to NodeSet2.xml

`trust` -- Trust a server certificate

`trust:list` -- List trusted certificates

`trust:remove` -- Remove a trusted certificate
