README

Professional Laravel admin console for padosoft/product-image-discovery: inspect discovery requests, approve or reject candidates, tune provider configuration, run diagnostics, and ship safer product-image workflows without building a back office from scratch.

Why Teams Use It
What You Get
Screenshots
Architecture
Quickstart
Local Setup
Login
Demo Data
Testing
CI
Security Model
Admin Routes
Relationship To The Package
Process Docs
License

Why Teams Use It

Product images are operational data. A wrong product-color image can leak into ERP, PIM, marketplaces, catalogs, feeds, and customer-facing storefronts. This admin app gives catalog and operations teams a dense, production-shaped cockpit for the conservative discovery pipeline in padosoft/product-image-discovery.

Review uncertain matches before they publish.
Compare candidates with source, score, AI, quality, and audit evidence.
Manage thresholds, providers, trusted sources, and client overrides.
Run debug flows against real or fake providers.
Inspect health, queues, storage, AI configuration, and redacted reports.
Export filtered request data and keep demo operator filters locally.

What You Get

Operations dashboard with KPI cards, score distribution, provider readiness, queue phase health, latest attention items, and shortcuts.
Requests and Manual Review pages with dense filters, pagination, CSV export, detail drawer, compare mode, protected image previews, approve/reject/retry flows, and audit timeline.
Configuration tools for settings, search providers, provider credential status, trusted sources, trust scores, policies, scopes, and URL patterns.
Diagnostics suite with guided debug-flow runner, report viewer, JSON search, redacted report download, health checks, and API workbench.
Offline demo path with deterministic seeded data for Herno, Nike, and New Balance scenarios.
Release gate through PHPUnit, Vitest, Vite, Playwright, Composer validation, and GitHub Actions.

Screenshots

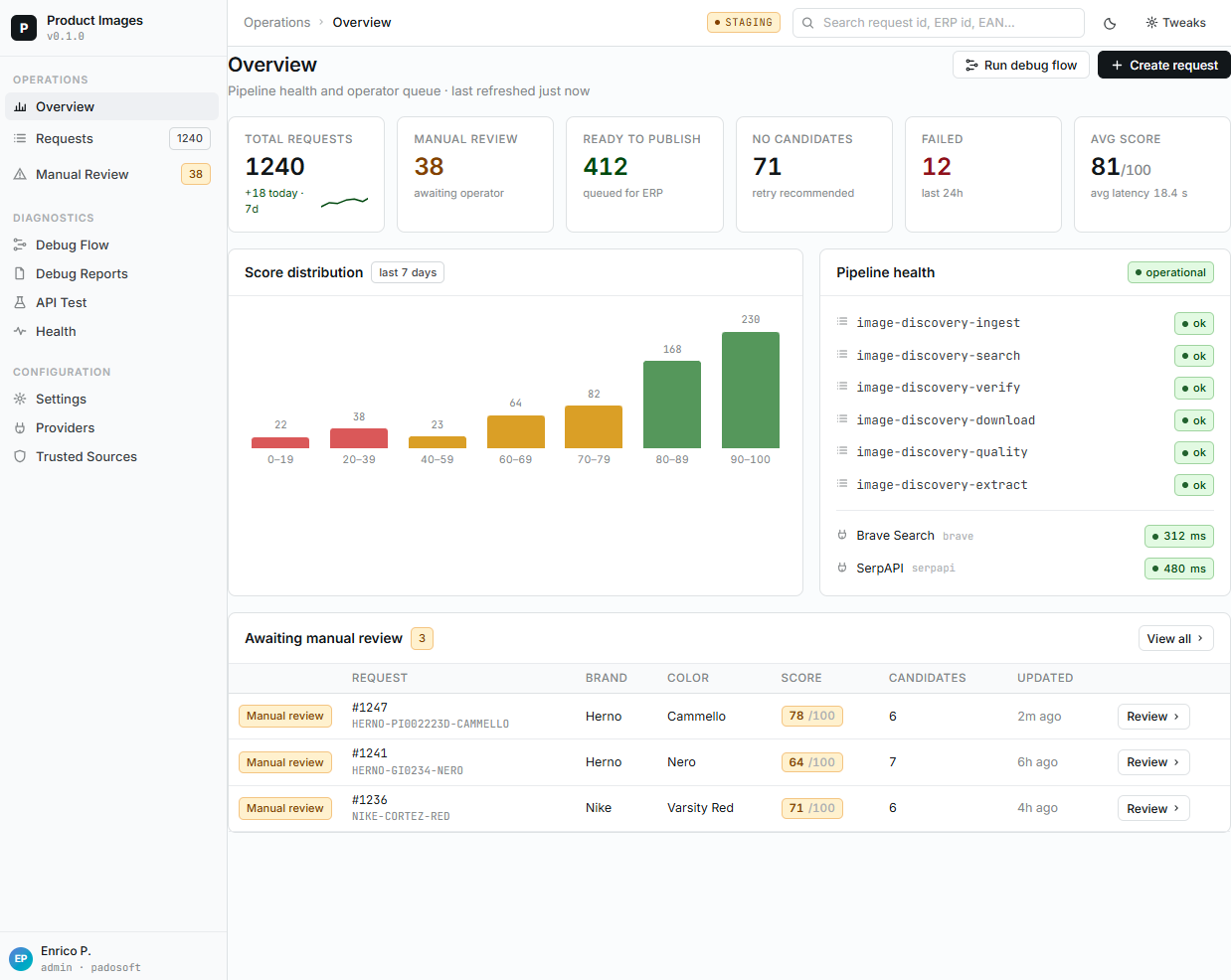

Overview Dashboard

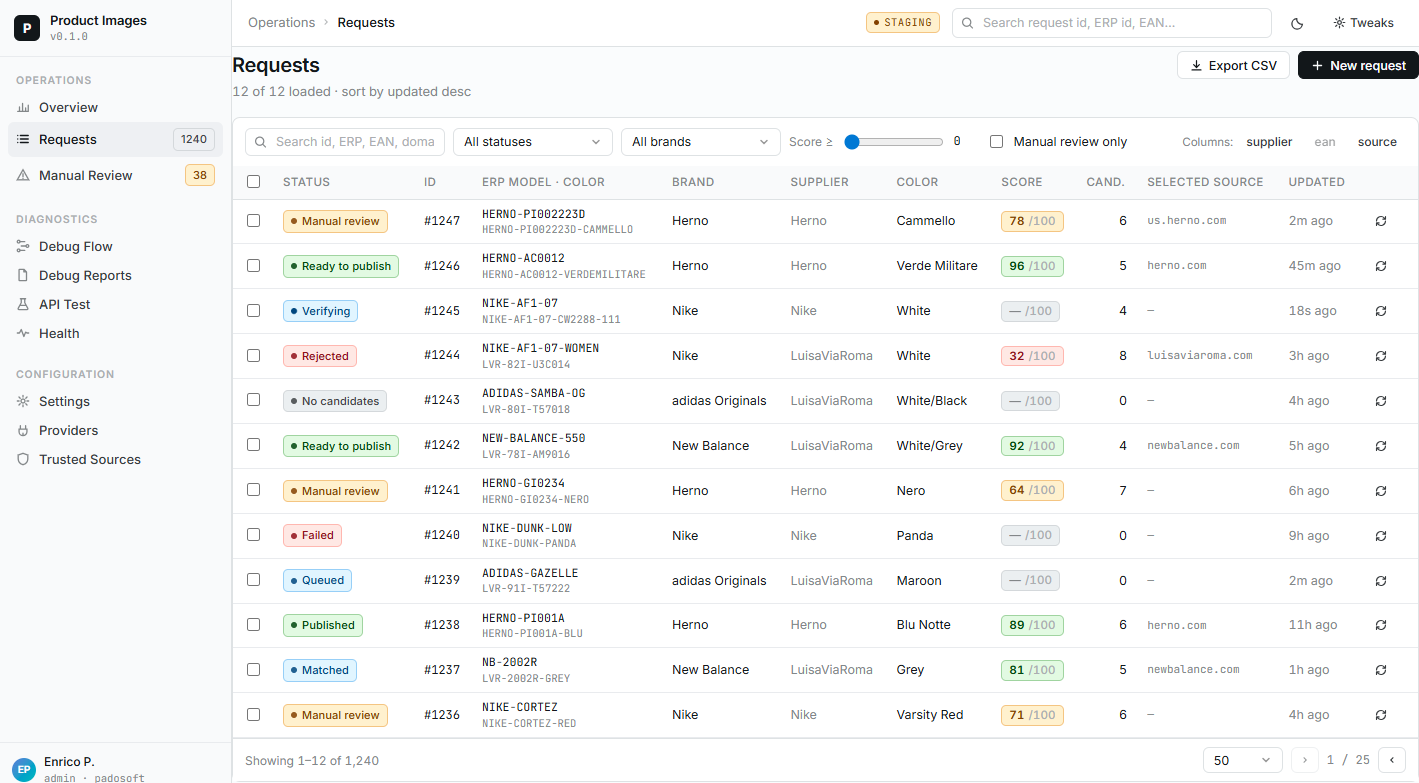

Request Search

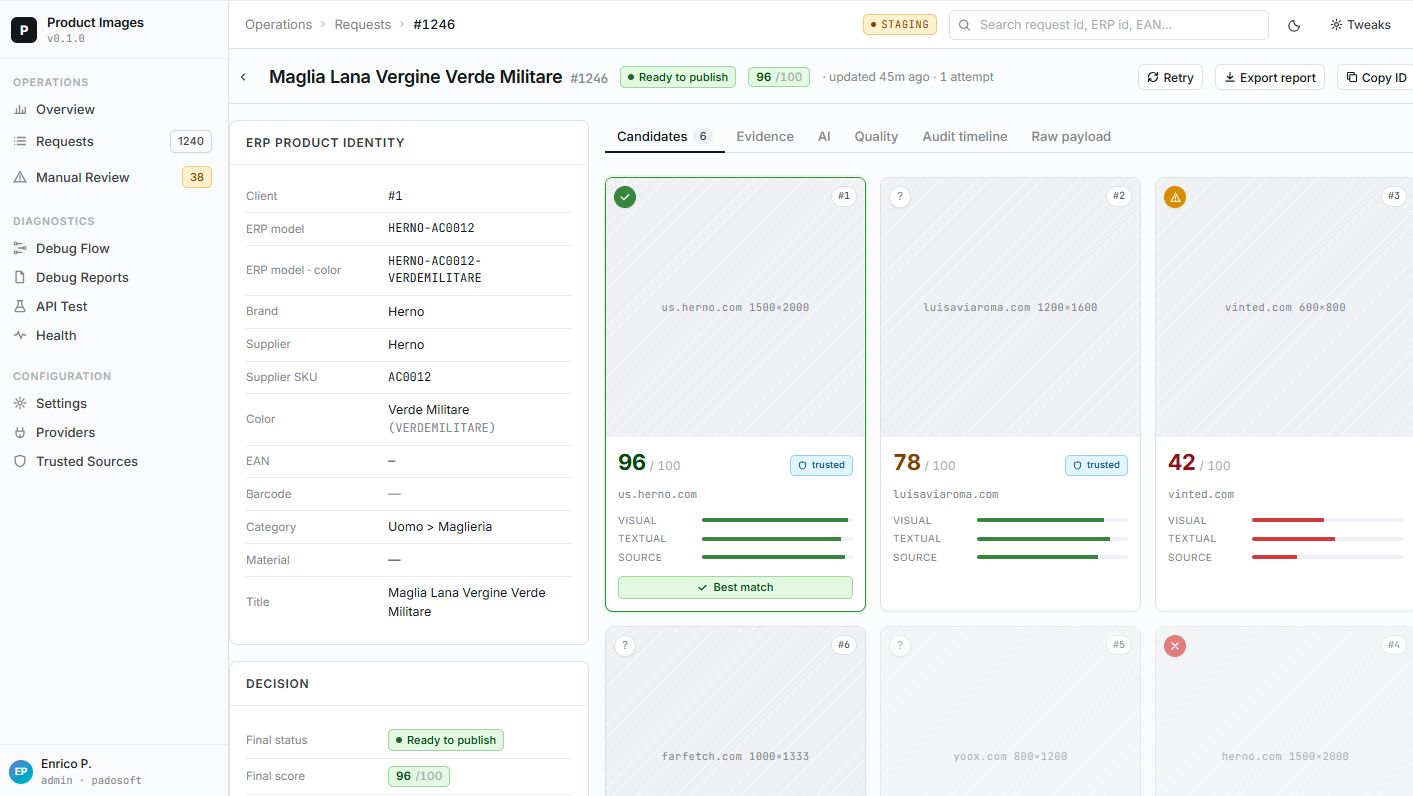

Request Detail And Candidate Review

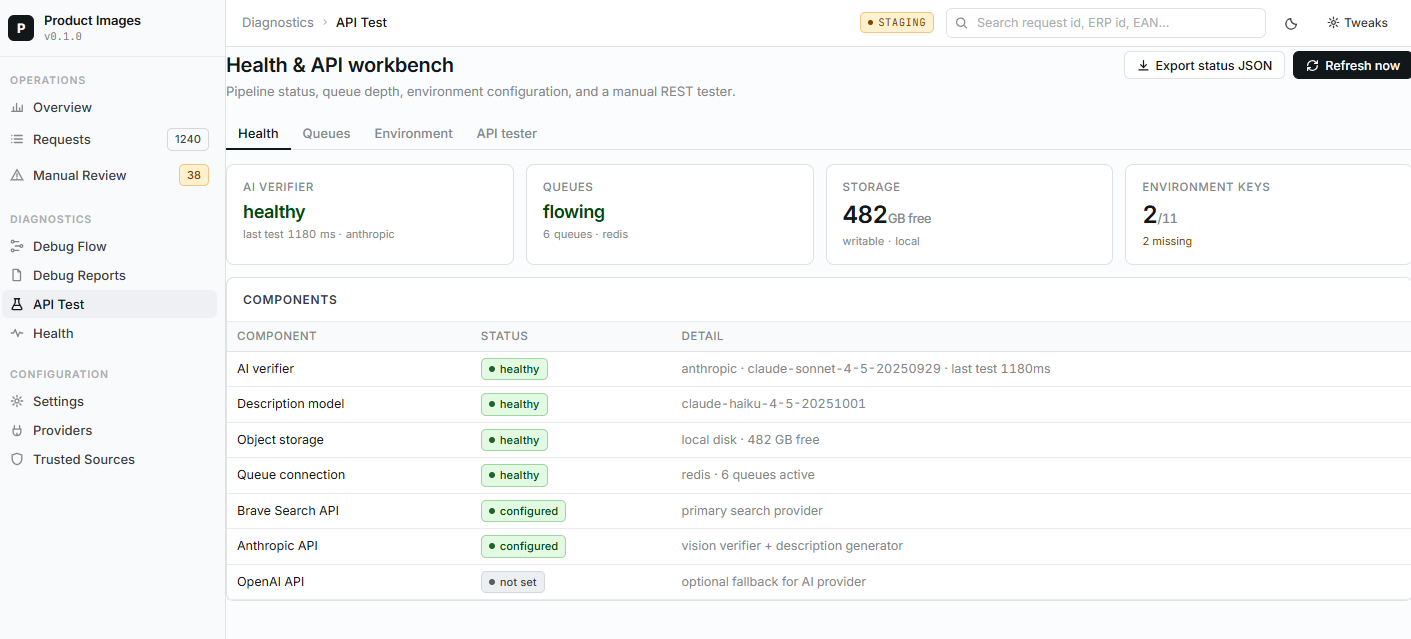

API Test Workbench

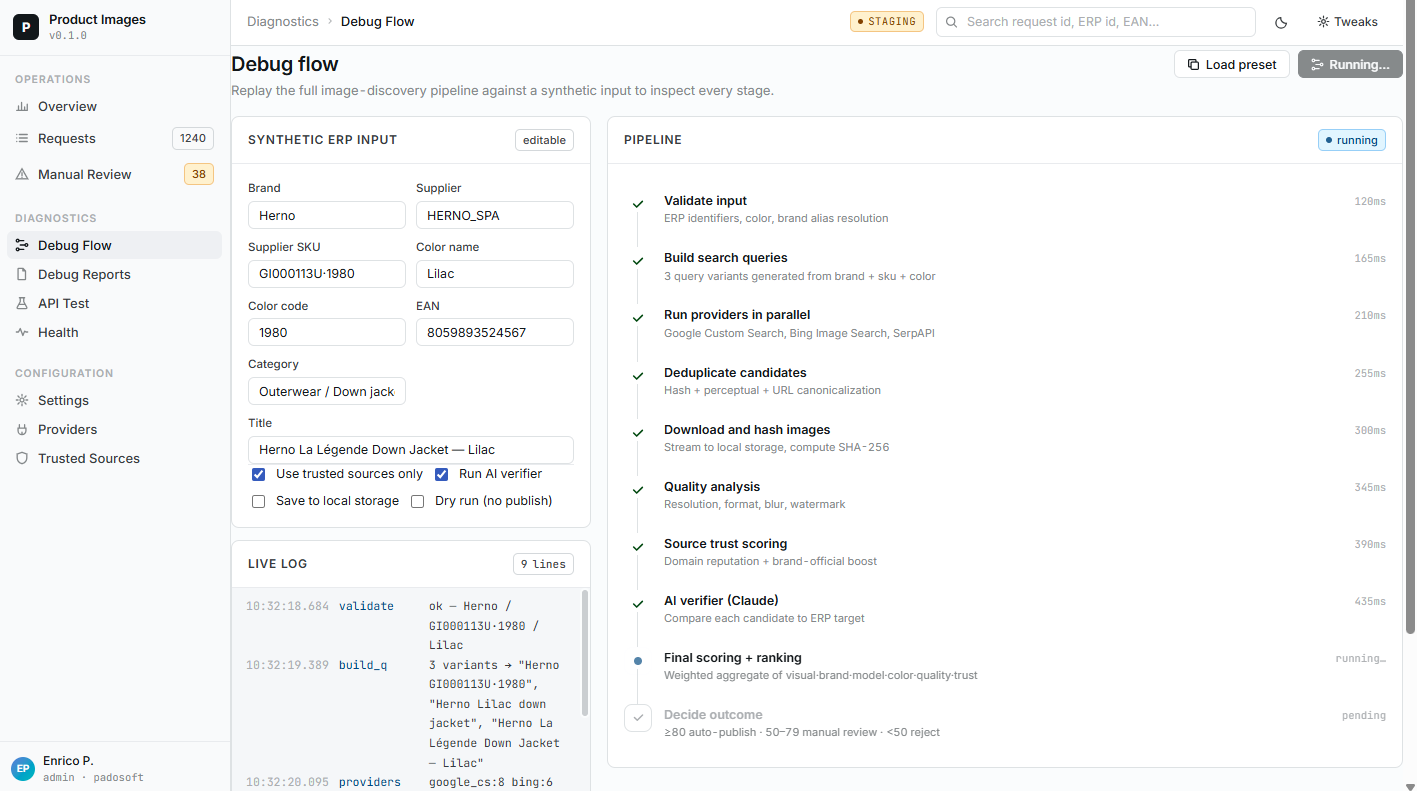

Debug Flow

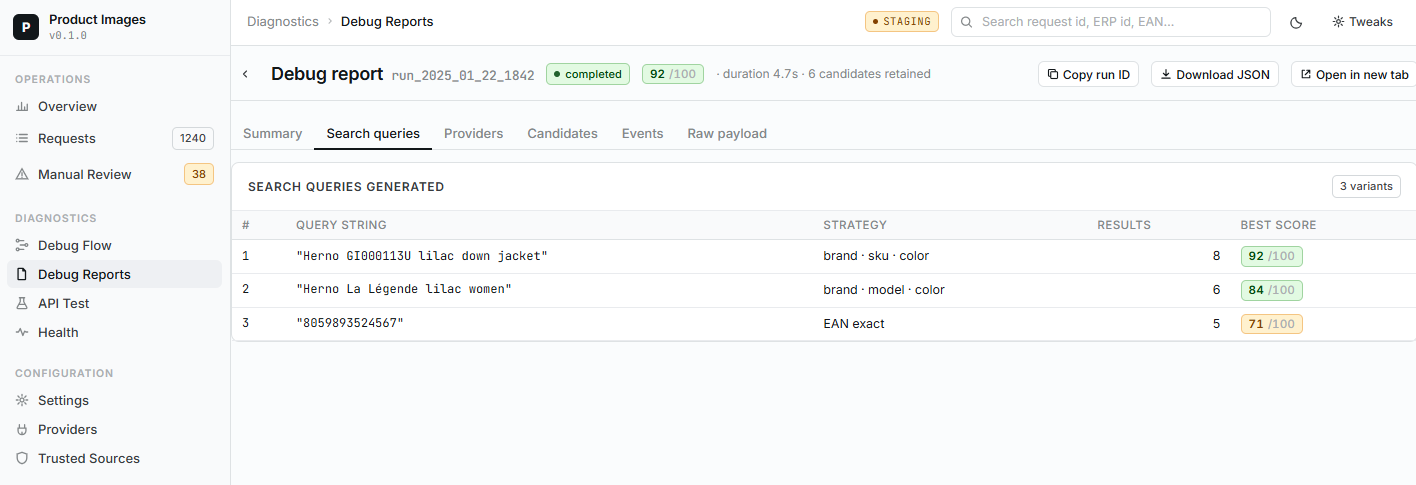

Debug Flow Results

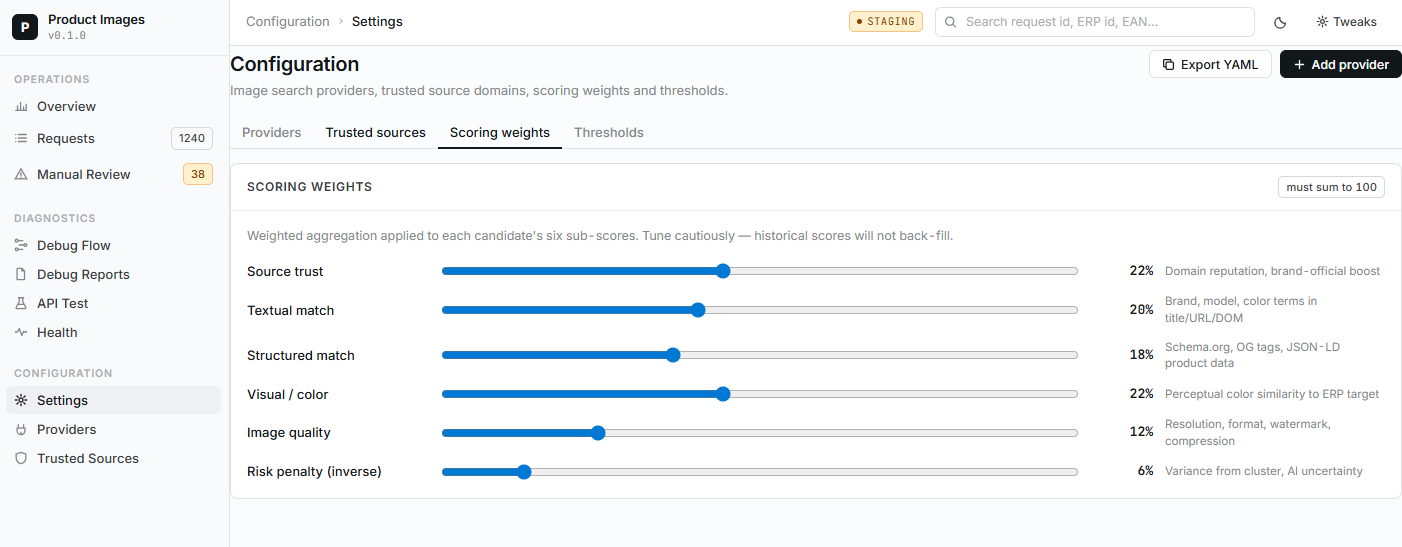

Scoring Configuration

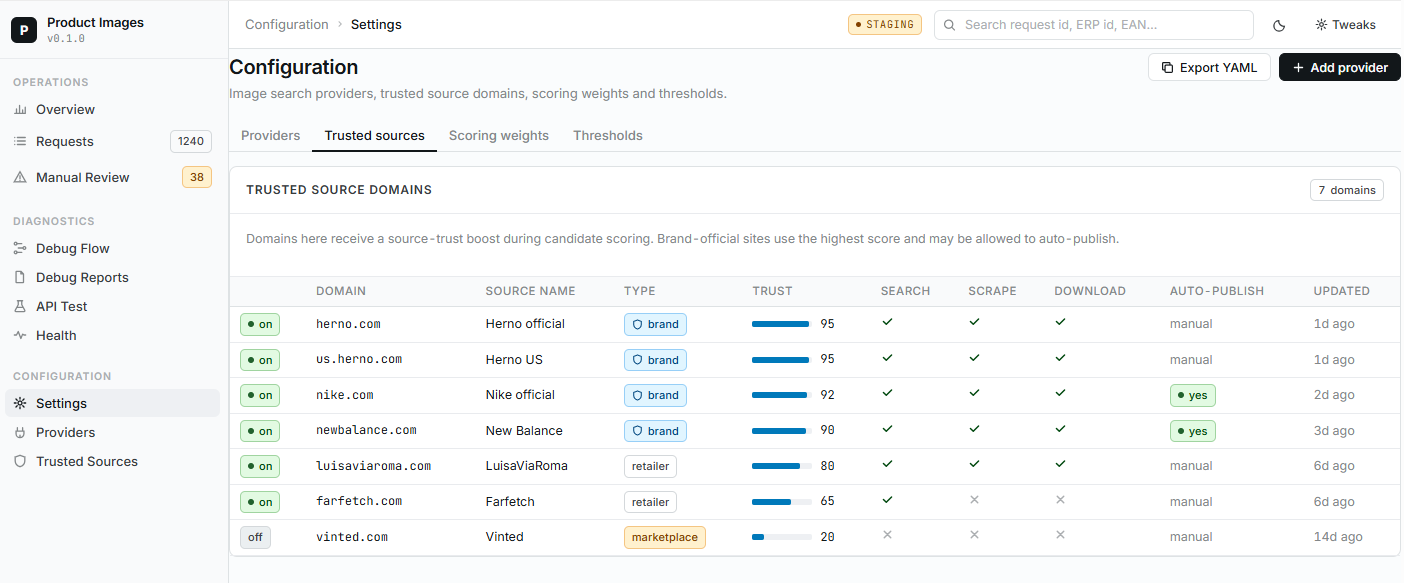

Trusted Sources Configuration

Architecture

This repository is a Laravel 13 admin/demo application, not a reusable UI package. It consumes the sibling headless package through a Composer path repository:

..\product_image_discovery
..\product_image_discovery_admin

The stack is intentionally boring and inspectable:

Laravel 13 host app.
SQLite by default for local development and tests.
Blade shell at the admin route.
Vite + React for the operator UI.
Session/CSRF-protected admin JSON wrappers.
Package API left available under its own prefix.
Playwright browser smoke coverage for desktop and tablet layouts.

Quickstart

End-to-end walkthrough from a fresh clone to a working Brave-backed debug run on macOS/Linux. Windows/Herd users have an equivalent block below in Local Setup.

Prerequisites: PHP 8.3+, Composer, Node 20+ (npm 10+), and a checkout of the sibling package next to this repo:

parent/
├─ product_image_discovery/         # headless package
└─ product_image_discovery_admin/   # this repo

1. Install dependencies

composer install
npm ci

2. Configure the environment

cp .env.example .env
php artisan key:generate
touch database/database.sqlite

Open .env and confirm at minimum:

APP_URL=http://127.0.0.1:8000
DB_CONNECTION=sqlite
DB_DATABASE=/absolute/path/to/database/database.sqlite   # or leave default
SESSION_DRIVER=file
PID_ADMIN_ROUTE_MIDDLEWARE=web
PID_ADMIN_DEBUG_RUN_MIDDLEWARE=auth

BRAVE_SEARCH_API_KEY is intentionally not read from .env. Search-provider credentials live in the database (write-only via the admin UI). See step 6.

3. Migrate and seed demo data

php artisan migrate
php artisan pid-admin:seed-demo

This creates:

the deterministic Herno / Nike / New Balance demo requests,
a demo fake-demo search provider (seeded is_active=true, priority=1),
a demo admin user — email admin@demo.test, password password, only when APP_ENV is local or testing. In any other environment the seeder skips the user step so a known-credentials operator never lands in a non-dev DB. Use pid-admin:create-user for staging/production.

The artisan command is namespaced. Use pid-admin:seed-demo, not seed-demo.

If you want a real user instead of the demo one:

php artisan pid-admin:create-user you@example.com --name="You" --password=secret
# omit --password to receive a generated one (printed once)

4. Build the frontend and start the server

npm run build
php artisan serve

Leave php artisan serve running. For frontend hot reload during development run npm run dev in a second terminal instead of npm run build.

5. Sign in

Open http://127.0.0.1:8000/login, log in with admin@demo.test / password, and you'll land on http://127.0.0.1:8000/admin/product-image-discovery.

The admin shell (Blade + React) uses the configured web middleware, but /debug-runs and POST /requests sit behind auth by default, which is why the login step is required before they respond. The Logout button lives in the topbar.

6. Configure a real search provider (Brave)

The demo fake-demo provider is intentionally first in priority so out-of-the-box runs work offline. To exercise a real Brave search you need to either disable the fake provider or give Brave a higher priority (lower number).

Sign in, then open http://127.0.0.1:8000/admin/product-image-discovery/providers.
Edit fake-demo and set is_active = false, or keep it active and bump its priority to a high number (e.g. 100).
Create or update a Brave provider:
- code: brave
- driver: brave
- name: Brave
- base_url: https://api.search.brave.com
- api_key: your Brave API key (write-only — saved encrypted, never echoed back)
- is_active: true
- priority: 1 (or any value lower than the rest)

Provider selection: SearchProviderManager orders active providers by priority ASC and uses the first that returns non-empty results. The rest are treated as fallbacks.

7. Run a debug flow against Brave

Open http://127.0.0.1:8000/admin/product-image-discovery/debug.
Leave the default Herno payload (or paste your own product JSON). The fields the package actually reads are:

Required Optional

client_id, erp_model_color_id, brand supplier, supplier_sku, model_code, color_code, color_name, category, description, ean, season, material, metadata (any keys)

Anything outside this set is preserved on the request but not used by the search/scoring/AI pipeline. description (or its fallbacks name / title / metadata.description / metadata.title) is used as a search term when model_code is empty, so for products that don't have a clean SKU it's important to fill it in.
Recommended options for a first real test:
- no_env_brave: true (default) — keep it; we are using the DB provider, not auto-creating one from env.
- no_download: true (default) — skip downloading the candidate images. You will still see them via the View Image column in the report.
- max_candidates: 2 (default) or higher.
Click Run debug. The right panel polls until status becomes succeeded or failed.

Required	Optional
`client_id`, `erp_model_color_id`, `brand`	`supplier`, `supplier_sku`, `model_code`, `color_code`, `color_name`, `category`, `description`, `ean`, `season`, `material`, `metadata` (any keys)

8. Inspect the report

Open http://127.0.0.1:8000/admin/product-image-discovery/reports, click Open on the latest run.

The Request tab shows two sections:

package_request_summary — the slim summary the package emits in the report (id, status, brand, model_code, color_name, scores, candidate pointers).
original_request_payload — the full JSON you submitted to the debug flow, redacted. This is the place to verify that description, ean, metadata, and any other optional field actually arrived at the package.

In the Candidates tab the table is sorted by final_score desc — the top row is the best match. Each row exposes:

View URL — opens source_page_url in a new tab (the page Brave found)
View Image — opens image_url in a new tab (works even with no_download: true)

Empty/invalid URLs render as a disabled chip.

Common pitfalls

401 Unauthorized on /debug-runs — you are not signed in. Visit /login (step 5).
Command "seed-demo" is not defined — use the prefix: php artisan pid-admin:seed-demo.
BRAVE_SEARCH_API_KEY missing on the Health screen — the slot label is now BRAVE_SEARCH_PROVIDER. It checks the DB, not env. Configure a Brave provider (step 6).
Brave never gets called — the fake-demo provider has priority: 1 and short-circuits the chain. Disable it or raise its priority (step 6).
All candidates land in manual_review even with high score — that's expected without trusted sources. Add the candidate's host on /admin/product-image-discovery/trusted if you want verified_match/ready_to_publish.
You changed React/CSS and don't see the change — npm run build writes to public/build/; the browser may cache the old bundle. Hard refresh (Cmd+Shift+R on macOS, Ctrl+F5 on Linux). For iterative work prefer npm run dev.

Local Setup

Keep the headless package checked out beside this app:

..\product_image_discovery
..\product_image_discovery_admin

Install and bootstrap the app:

composer install
Copy-Item .env.example .env -ErrorAction SilentlyContinue
php artisan key:generate --ansi
New-Item -ItemType File database\database.sqlite -Force
php artisan migrate
php artisan pid-admin:seed-demo --fresh
npm ci
npm run build
php artisan serve

Open:

http://127.0.0.1:8000/admin/product-image-discovery

If php is not on PATH, this Windows/Herd workstation uses:

%USERPROFILE%\.config\herd\bin\php84\php.exe

Login

Debug-run endpoints (POST /admin/product-image-discovery/debug-runs, POST /admin/product-image-discovery/requests) sit behind the auth middleware controlled by pid-admin.debug_run_middleware. The admin shell itself runs under web only, but operators must sign in before the debug and request-creation surfaces respond.

The app ships with three minimal endpoints, registered outside the admin prefix:

GET  /login
POST /login
POST /logout

The pid-admin:seed-demo command seeds a demo operator suitable for local/offline testing only when APP_ENV is local or testing:

email: admin@demo.test
password: password

Outside those environments the seeder skips the demo user, so a well-known credential never lands in a staging or production database. Use pid-admin:create-user instead.

Create or update a real user with the artisan helper:

php artisan pid-admin:create-user me@example.com --name="Op"
# omit --password to receive a generated one (printed once)
php artisan pid-admin:create-user me@example.com --password=secret

The admin topbar exposes a Logout button that submits a CSRF-protected POST /logout.

To bypass auth in CI or short-lived local smoke tests, leave PID_ADMIN_DEBUG_RUN_MIDDLEWARE empty. The PHPUnit suite already does this in phpunit.xml.

Demo Data

The local seeder gives you deterministic, offline-friendly scenarios:

Herno manual-review fashion request.
Nike candidate review and retry/no-candidate workflows.
New Balance ready/selected-image example.
Fake demo provider and trusted demo sources.
Inline generated candidate images so previews work without live downloads.

Reset the demo state with:

php artisan pid-admin:seed-demo --fresh

Testing

Run the full local release gate:

composer validate --strict
npm run phpunit
npm run test
npm run build
npm run e2e

npm run phpunit is the preferred PHP test entry point on this machine because it resolves Herd PHP 8.4 before falling back to php on PATH.

CI

GitHub Actions runs the same release gate on pushes and pull requests:

checkout this admin app and the sibling padosoft/product_image_discovery package
composer validate --strict
composer install
npm ci
npm run phpunit
npm run test
npm run build
npm run e2e:ci
upload Playwright traces/screenshots on failure

Security Model

Provider credentials are write-only.
JSON responses expose credential booleans such as has_api_key, never raw secrets or partial previews.
Debug reports and stored artifacts are redacted before display/download.
Admin wrappers use same-origin fetch and CSRF/session protection.
High-impact debug/request creation endpoints support stricter configurable middleware and throttling.
Candidate source URLs are normalized before browser navigation.
CSV exports neutralize spreadsheet formula prefixes in untrusted text cells.

Admin Routes

The admin console lives at:

/admin/product-image-discovery

Admin JSON wrappers live under:

/admin/product-image-discovery/...

The package API remains available at:

/api/product-image-discovery/...

Relationship To The Package

Use this app when you want the ready-made professional admin experience. Use padosoft/product-image-discovery directly when you only need the headless API, models, jobs, configuration, and package-level integration surface.

The admin app intentionally stays close to the package contracts and avoids exposing implementation-only secrets or internal raw payloads.

Process Docs

Read AGENTS.md first when resuming this project. The durable implementation plan is saved at:

%USERPROFILE%\Downloads\productimagesearch-admin\plan.md

The project history and non-obvious setup lessons are tracked in:

License

Apache-2.0. See LICENSE.
