A production-grade inline Image CAPTCHA field for Filament forms.

Native PHP GD only (no Intervention Image)
Zero image file persistence (no temporary files, nothing written to disk)
Base64 data URI output rendered inline inside Filament forms
Deterministic noise per challenge (stable across Livewire re-renders)
Session/cache-based server-side verification with TTL, max attempts, replay protection
Bundled fonts (OFL): Vazirmatn + Noto Sans, with custom font path support
Auto RTL support: Automatically switches fonts based on locale direction.

Screenshots

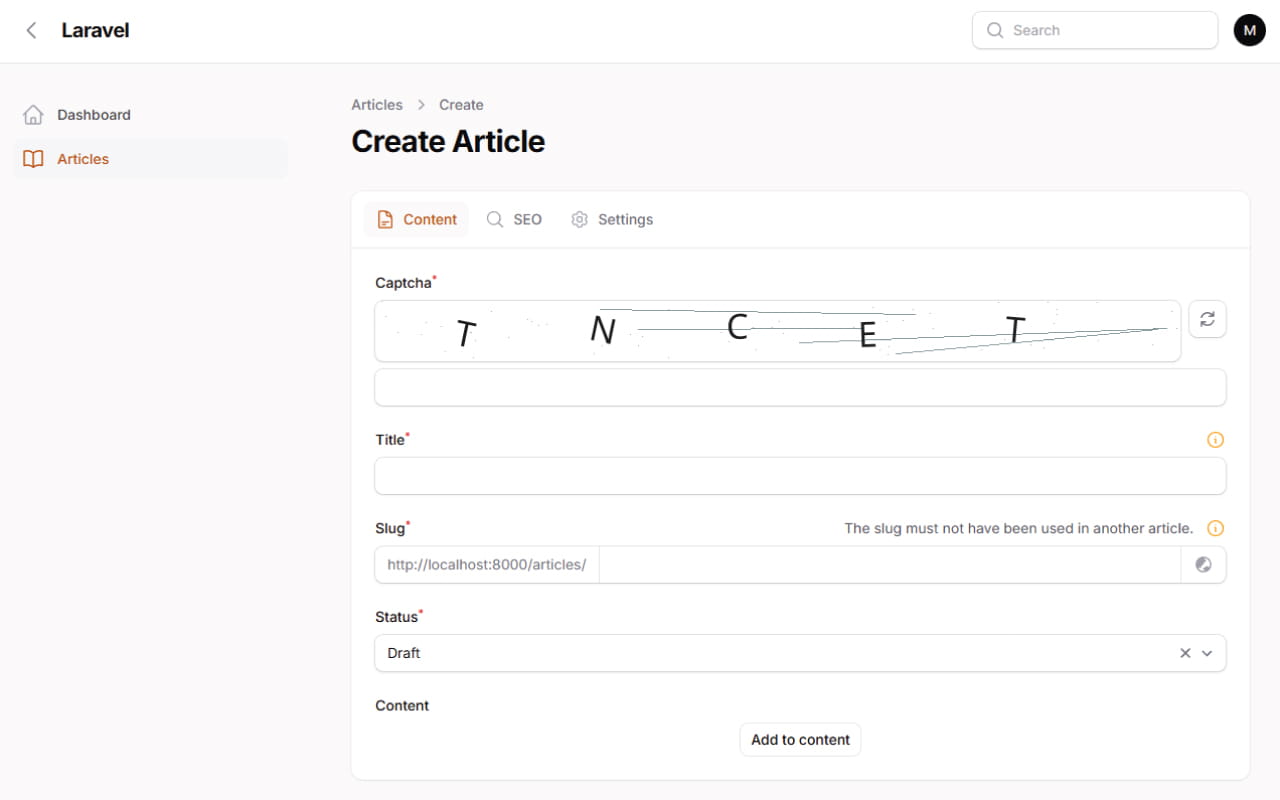

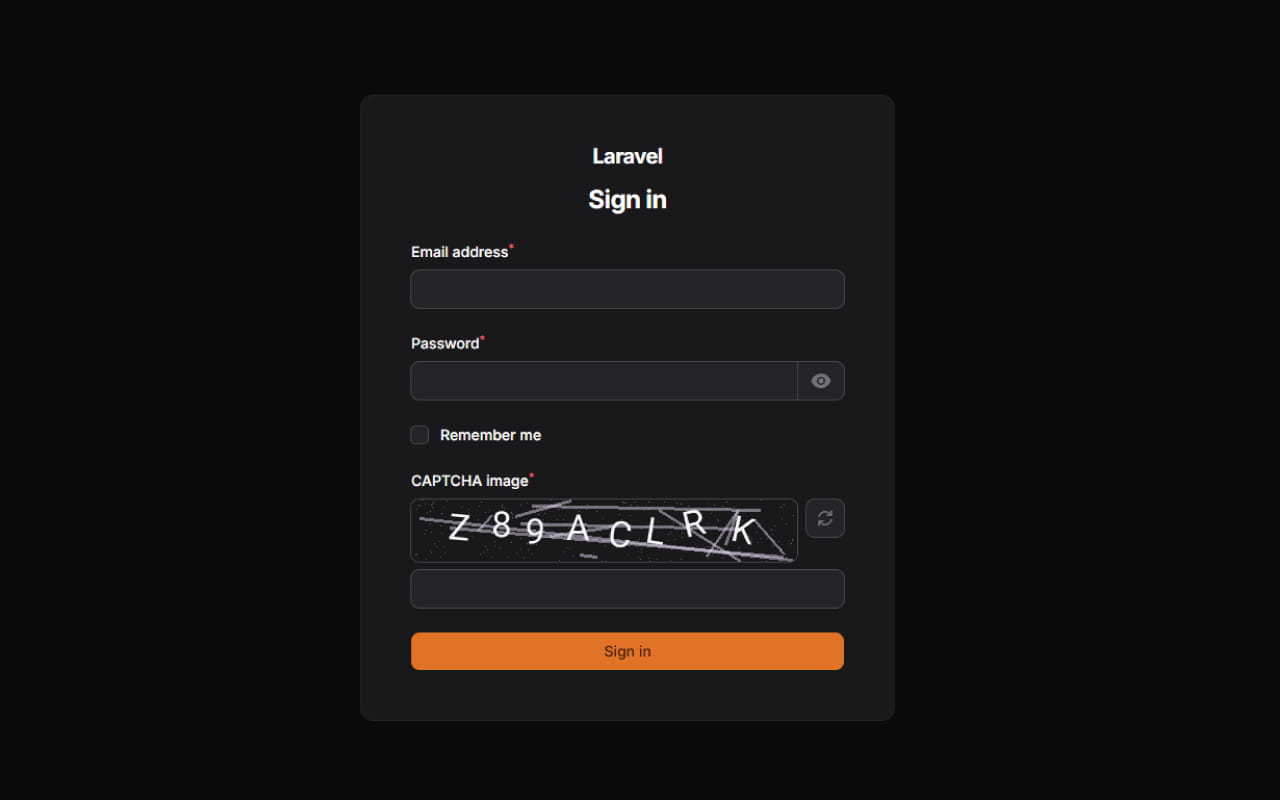

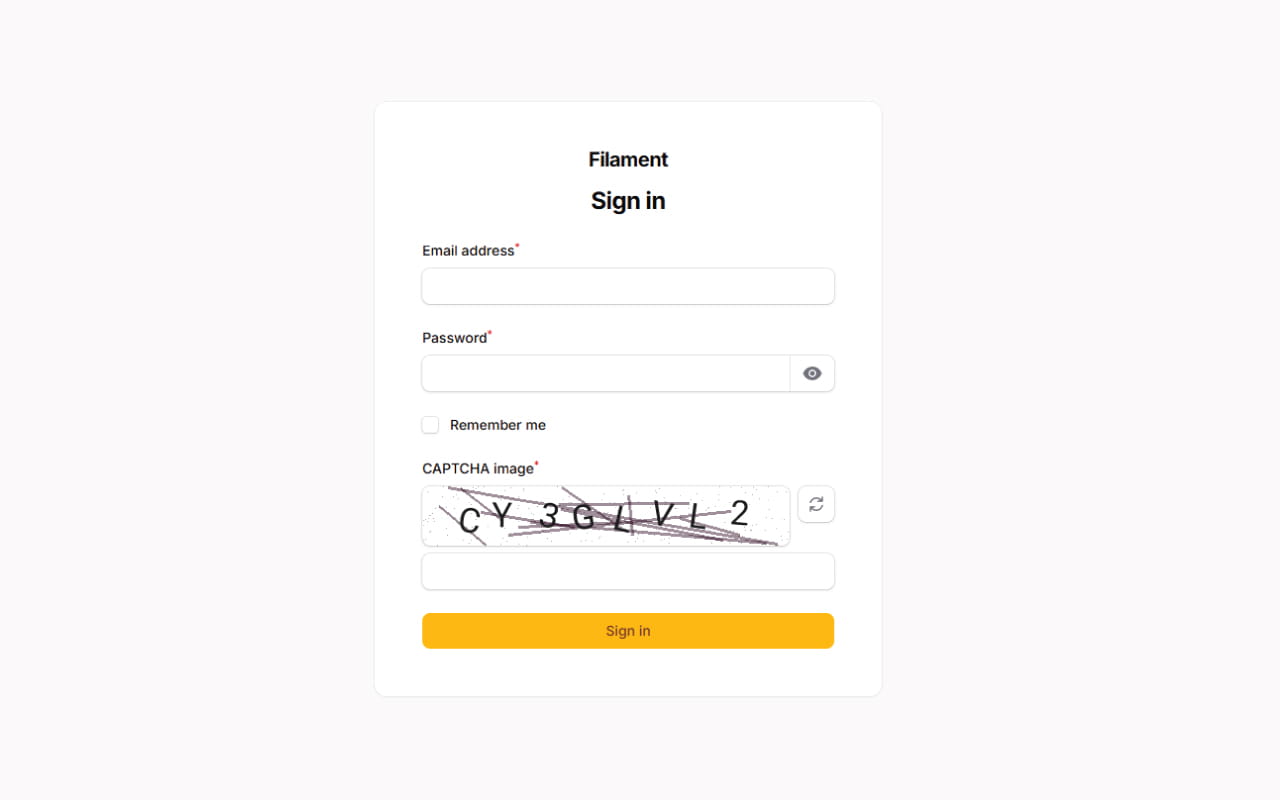

Panel (Light / Dark):

Compatibility

Package	Versions
PHP	8.2, 8.3, 8.4, 8.5
Laravel	11, 12, 13
Filament	3, 4, 5

Installation

composer require mortezaashrafi/filament-shield-captcha

GD requirement

This package requires PHP GD with FreeType support (for imagettftext()).

Common installs:

Debian/Ubuntu: sudo apt-get install php-gd
Alpine: apk add php82-gd (match your PHP version)

Configuration

Publish the config file:

php artisan vendor:publish --tag=filament-shield-captcha-config

Config file: config/filament-shield-captcha.php

Usage in Forms

use MortezaAshrafi\FilamentShieldCaptcha\Forms\Components\Captcha;

Captcha::make('captcha')
    ->required()

Customization (Fluent API)

Method	Description	Range / Limits
`->length(int)`	Number of characters in CAPTCHA	1 to 12 (recommended 4-6)
`->width(int)`	Image width in pixels	min 100 (recommended 220)
`->height(int)`	Image height in pixels	min 30 (recommended 60)
`->fontSize(int)`	Font size in pixels	12 to 40 (recommended 26)
`->font(string)`	Use bundled font key (`vazirmatn`, `noto_sans`)	-
`->rtl()`	Force RTL mode (uses `rtl` font from config)	-
`->ltr()`	Force LTR mode (uses `ltr` font from config)	-
`->numeric()`	Numbers only (0-9)	-
`->alphabetic()`	Letters only (A-Z)	-
`->alphanumeric()`	Letters and numbers (Default)	-
`->symbols(string)`	Alphanumeric + custom symbols	default symbols: `!@#$%^&*+-=`
`->charset(string)`	Completely custom character set	-
`->caseSensitive(bool)`	Require exact case matching	default: `false`
`->noise(level, lines, dots)`	Adjust image noise complexity	level 0-5 (default 2)
`->ttl(int)`	Challenge expiry in seconds	default 300
`->maxAttempts(int)`	Max wrong attempts before lock	default 5

Example with full options:

Captcha::make('captcha')
    ->width(220)
    ->height(60)
    ->length(5)
    ->fontSize(26)
    ->font('vazirmatn')
    ->lightColors(background: [255, 255, 255], text: [30, 30, 30])
    ->darkColors(background: [24, 24, 27], text: [245, 245, 245])
    ->alphanumeric()
    ->caseSensitive(false)
    ->noise(level: 2, lines: 3, dots: 40)
    ->ttl(300)
    ->maxAttempts(5)

Integration with Filament Auth Pages

To add CAPTCHA to Filament's built-in Login, Register, or Reset Password pages (v5), follow these steps:

1. Create Custom Auth Components

Extend the original Filament Auth pages and use the InteractsWithCaptcha trait.

Login Page: app/Filament/Pages/Auth/Login.php

namespace App\Filament\Pages\Auth;

use Filament\Schemas\Schema;
use Filament\Auth\Pages\Login as BaseLogin;
use MortezaAshrafi\FilamentShieldCaptcha\Concerns\InteractsWithCaptcha;

class Login extends BaseLogin
{
    use InteractsWithCaptcha;

    public function form(Schema $form): Schema
    {
        return parent::form($form)
            ->components([
                ...$form->getComponents(),
                $this->getCaptchaFormComponent()
                ->width(371),
            ]);
    }
}

Register Page: app/Filament/Pages/Auth/Register.php

namespace App\Filament\Pages\Auth;

use Filament\Schemas\Schema;
use Filament\Auth\Pages\Register as BaseRegister;
use MortezaAshrafi\FilamentShieldCaptcha\Concerns\InteractsWithCaptcha;

class Register extends BaseRegister
{
    use InteractsWithCaptcha;

    public function form(Schema $form): Schema
    {
        return parent::form($form)
            ->components([
                ...$form->getComponents(),
                $this->getCaptchaFormComponent()
                ->width(371),
            ]);
    }
}

Password Reset Page: app/Filament/Pages/Auth/RequestPasswordReset.php

namespace App\Filament\Pages\Auth;

use Filament\Schemas\Schema;
use Filament\Auth\Pages\RequestPasswordReset as BaseRequestPasswordReset;
use MortezaAshrafi\FilamentShieldCaptcha\Concerns\InteractsWithCaptcha;

class Register extends BaseRequestPasswordReset
{
    use InteractsWithCaptcha;

    public function form(Schema $form): Schema
    {
        return parent::form($form)
            ->components([
                ...$form->getComponents(),
                $this->getCaptchaFormComponent()
                ->width(371),
            ]);
    }
}

2. Register Custom Pages in Panel Provider

Update your AdminPanelProvider.php (or other panel provider) to use your custom Auth pages:

// app/Providers/Filament/AdminPanelProvider.php

public function panel(Panel $panel): Panel
{
    return $panel
        ->login(\App\Filament\Pages\Auth\Login::class)
        ->registration(\App\Filament\Pages\Auth\Register::class)
        ->passwordReset(\App\Filament\Pages\Auth\RequestPasswordReset::class)
        // ...
}

RTL / LTR Support

The package automatically detects the current locale direction. You can configure default fonts for each direction in the config file:

'fonts' => [
    'rtl' => 'vazirmatn',
    'ltr' => 'noto_sans',
],

Security & Architecture

In-Memory Generation: Images are created via GD and encoded to base64 data URIs. No files are ever written to the disk.
Server-Side Verification: The expected answer is never exposed to the client.
Replay Protection: Successful verification invalidates the challenge immediately.
Rate Limiting: Wrong attempts increment a counter; once maxAttempts is reached, the challenge is locked and must be refreshed.

Fonts

Bundled (OFL):

Vazirmatn: Excellent for Persian/Arabic-friendly UI.
Noto Sans: Reliable Latin-friendly default.

To use your own font:

Captcha::make('captcha')->fontPath(storage_path('fonts/my-font.ttf'));

Testing

composer test      # Runs PHPUnit suite
composer analyse   # Runs PHPStan static analysis
composer format    # Runs Laravel Pint formatter

License

The MIT License (MIT). Please see License File for more information.
