Traffic Sentinel

🚦 Self-hosted Laravel traffic analytics for humans vs bots, online users, pageviews, referrers, and crawler detection — no Google Analytics, no cookies, no third-party tracking.

🤔 Why Traffic Sentinel?

Most Laravel apps either:

rely on Google Analytics (privacy issues, blocked by ad-blockers), or
use heavy analytics tools that are hard to self-host.

Traffic Sentinel is different:

✅ 100% self-hosted (your DB, your rules)
🔐 Privacy-first (hashed IPs, optional raw IP, no cookies by default)
🤖 Built to separate real humans vs crawlers
⚡ Lightweight — no JS frameworks, no trackers, no beacons
🧩 Designed for developers, not marketers

If you want operational visibility instead of marketing analytics, Traffic Sentinel fits perfectly.

🆚 How it compares

Feature	Traffic Sentinel	Google Analytics	Laravel Telescope
Self-hosted	✅ Yes	❌ No	✅ Yes
Privacy-friendly	✅ Yes	❌ No	✅ Yes
Bot detection	✅ Built-in	⚠️ Limited	❌ No
Online users	✅ Yes	❌ No	❌ No
Pageviews	✅ Yes	✅ Yes	❌ No
Production-safe	✅ Yes	✅ Yes	❌ No
External scripts	❌ None	✅ Required	❌ None

Traffic Sentinel focuses on traffic intelligence, not debugging or marketing.

✨ Features

🔐 Privacy-first analytics (hashed IPs, optional raw IP, no cookies by default)
✅ Human vs Bot detection (UA keywords + heuristics)
👀 Online users (last N minutes)
📊 Pageviews (humans / all)
🔎 Top pages, bots & referrers
🚫 Exclude internal paths, hosts, IPs & UAs
🧠 Runtime IP → Country / ASN lookup (no external APIs)
🧹 Prune old data (traffic:prune)
🖥️ Modern dashboard (Bootstrap 5)
⚡ No JS framework dependency
🌍 Optional runtime IP lookup (Country + Flag + ASN) using offline datasets
⬇️ One-command dataset installer (traffic-sentinel:ipdata:install)
🧩 Click any IP in the dashboard to open a modern IP details modal (optional)

🔐 IP Privacy Modes (Important)

Traffic Sentinel can store IPs in multiple ways:

Hashed IP (ip.store = hashed) → privacy-friendly, recommended
Full IP (ip.store = full) → store readable IP in traffic_sessions.ip
Raw IP (optional) (privacy.store_raw_ip = true) → stores the real client IP in traffic_sessions.ip_raw

Tip: Many apps keep ip.store = hashed but still want runtime geolocation. We support runtime lookup without storing location in DB.

Traffic Sentinel never sends IPs to external services — all lookups are local.

📦 Installation

composer require kianisanaullah/laravel-traffic-sentinel

Publish config & migrations:

php artisan vendor:publish --tag=traffic-sentinel-config
php artisan vendor:publish --tag=traffic-sentinel-migrations
php artisan migrate

🧩 Middleware

Option A — Auto register (recommended for most apps)

In config/traffic-sentinel.php:

'middleware' => [
'auto_register' => true,
],

Option B — Manually register

Add to your web middleware group: Laravel 11

\Kianisanaullah\TrafficSentinel\Http\Middleware\TrackTraffic::class,

Laravel 12 and above add in bootstrap/app.php

  $middleware->append(\Kianisanaullah\TrafficSentinel\Http\Middleware\TrackTraffic::class);

📊 Dashboard

/admin/traffic-sentinel

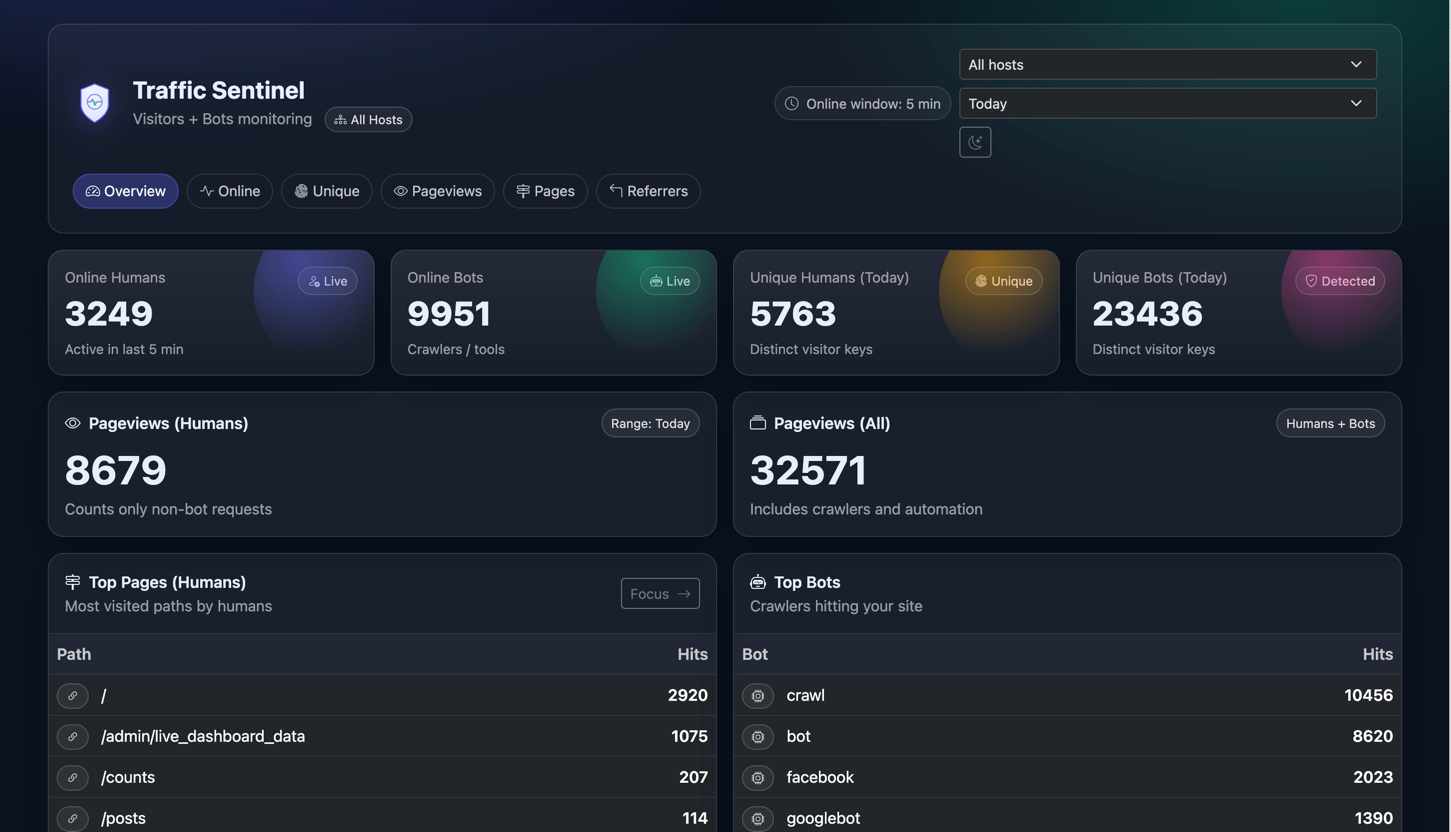

🖼️ Dashboard Preview

Clean, readable, production-ready dashboard.

🔐 Protect Dashboard

Protect it in config: 'dashboard' => [ 'middleware' => ['web', 'auth'], ],

🚫 Excluding URLs

'exclude' => [
  'paths' => [
    'admin',
    'admin/traffic-sentinel',
    'api',
  ],

  'hosts' => [
    'localhost',
    '127.0.0.1',
  ],

  'ips' => [
    '127.0.0.1',
    '::1',
  ],

  'user_agents' => [
    'UptimeRobot',
    'Pingdom',
  ],

  // NOTE: route_names works only if your middleware supports it.
  // If you added Str::is() route exclude logic in TrackTraffic::shouldExclude(),
  // then you can use wildcards like 'admin.*'
  'route_names' => [
    // 'traffic-sentinel.*',
    // 'admin.*',
  ],
],

🌍 Runtime IP Lookup (Country / ASN) — Offline (No APIs)

Traffic Sentinel can optionally resolve:

Country code + country name + flag
ASN + ASN org name

at runtime using offline datasets (no external API calls).

This is useful when:

you want privacy-first tracking (hashed IPs), but
still want country + ASN in the dashboard at view-time.

✅ Datasets are stored in storage/ (not inside vendor/) so Composer updates won’t delete them.

⬇️ Install IP datasets

Publish config (if not already):

php artisan vendor:publish --tag=traffic-sentinel-config

Install datasets:

php artisan traffic-sentinel:ipdata:install

Force re-download (fresh install):

php artisan traffic-sentinel:ipdata:install --force

🌍 IP Modal + Flags (UI)

Traffic Sentinel includes an optional UI helper: • Click an IP in any table → opens a modal with details (country, flag, ASN, CIDR match) • Optional: auto-hydrate small flags in tables

Enable in config:

'ui' => [
  'ip_modal' => [
    'enabled' => true,
    'endpoint' => '/admin/traffic-sentinel/ip/lookup?ip=__IP__',
    'hydrate_flags' => true,
  ],
],

What you need in tables

Render IPs like this:

<a href="#" class="ts-ip-link" data-ts-ip="{{ $ip }}" title="Click to view IP details">
  <span class="me-1" data-ts-flag="{{ $ip }}">🌐</span>
  <code class="small">{{ $ip }}</code>
</a>

The data-ts-flag attribute will be replaced with a small flag icon if the IP is found in the dataset. The data-ts-ip attribute is used to trigger the IP detail modal. The data-ts-ip attribute is required for the modal to work. The data-ts-flag attribute is optional. The data-ts-ip attribute can be used in any table cell.

✅ Notes / Best Practices

If config('traffic-sentinel.privacy.store_raw_ip') is null, you likely haven’t published config or config is cached:

php artisan config:clear
php artisan cache:clear

When publishing config and file already exists:

php artisan vendor:publish --tag=traffic-sentinel-config --force

🧹 Prune Old Data

php artisan traffic:prune --days=30

🗄️ Database Configuration (Optional)

By default, Traffic Sentinel uses your application’s default database connection (mysql).

You can override this and store all traffic tables in a separate connection (recommended for analytics-heavy apps).

⚙️ Step 1 — Configure Connection

In config/traffic-sentinel.php:

'database' => [
    'connection' => env('TRAFFIC_SENTINEL_DB_CONNECTION', 'mysql'),
],

⚙️ Step 2 — Set in .env (Optional)

TRAFFIC_SENTINEL_DB_CONNECTION=analytics

Now all Traffic Sentinel queries will use the analytics connection instead of the default one.

👤 Who is this for?

Traffic Sentinel is ideal for:

Laravel SaaS & dashboards
Admin panels & internal tools
News / content websites
APIs with crawler traffic
Any app where you want visibility without surveillance

Not ideal if:

You need ad conversion tracking
You want marketing funnels / heatmaps

🧩 Common Use Cases

Detect SEO crawlers vs real readers
Monitor traffic spikes & bot floods
See which pages are actually visited by humans
Track uptime bots & monitoring tools
Audit referrers and external traffic sources
Lightweight alternative to GA for internal dashboards

🛣️ Roadmap

Planned improvements:

IPv6 country zones expansion
Per-route analytics
Rate-limit & bot flood alerts
Export to CSV / JSON
Live updates (optional)

Suggestions & PRs are welcome.

⚡ Performance & Safety

Single lightweight insert per request
Uses indexed tables (safe for production)
No event listeners or observers
No cookies unless you enable them
No outbound HTTP calls
Designed for high-traffic Laravel apps
