README

Catches requests that call themselves Googlebot or bingbot but come from an address the crawler's owner does not publish, and answers them with a 403 before Magento routes them.

Anyone can put Googlebot in a User-Agent, and shops often let such requests skip captchas and bot filters. Google and Bing publish the address ranges their crawlers use. This module fetches those lists, stores them in the database, serves them from the Magento cache and checks every request that claims a crawler against them. It runs in PHP, so it works on shops without Cloudflare rules or access to the web server's configuration.

Packages

Package	Module	Adds
`hryvinskyi/magento2-bot-verification`	`Hryvinskyi_BotVerification`	The check, the refusal, the address lists and their refresh, the admin settings and the CLI commands
`hryvinskyi/magento2-bot-verification-google`	`Hryvinskyi_BotVerificationGoogle`	Google's crawlers and fetchers and their five address lists
`hryvinskyi/magento2-bot-verification-bing`	`Hryvinskyi_BotVerificationBing`	bingbot and its address list
`hryvinskyi/magento2-bot-verification-cloudflare`	`Hryvinskyi_BotVerificationCloudflare`	Cloudflare's edge servers as trusted proxies; install it only on a shop behind Cloudflare

The provider packages hold configuration only. With none installed, the core recognises no crawler and refuses nothing.

The metapackage hryvinskyi/magento2-bot-verification-pack requires the core, Google and Bing packages, and leaves Cloudflare out.

How a request is judged

One regular-expression pass over the User-Agent finds every crawler it names. A browser names none, and its request is done here.
The visitor's address is read from X-Forwarded-For, right to left, starting at REMOTE_ADDR. The walk steps over the shop's own proxies (loopback and private ranges by default), then over at most one CDN edge server that a provider module declares, and the next address is the visitor's. Entries further left are written by the client and never read. Stepping over only one edge server stops a CDN customer's own code from forging the header through the CDN.
The address is checked against every list of the claimed crawler. The verdict is genuine when the address is in one of them. It is impostor when the address is public, every list has been fetched, at least one list covers the address's family (IPv4 or IPv6), none of those is older than 7 days, and the address is in none of them. Anything else is unverifiable: a list never fetched or out of date, a private address, a visitor address that cannot be determined. A request that claims no crawler gets none, and one that names several crawlers gets the worst of their verdicts.
With Refuse impostors on, an impostor gets a 403 and Magento never routes the request. Every other verdict passes.

Missing or stale lists, an unknown visitor address, a broken provider configuration and any error let the request through: a fault stops the module from catching impostors rather than blocking anyone. The one setup that does refuse real crawlers is a proxy with a public address in front of the shop that is not in the trusted proxies, because its address is then taken for the visitor's; check for it before turning refusal on (see Configuration). Nothing on the request path waits for the network. A cron job fetches the lists every 6 hours, and the CLI fetches them on demand.

Installation

composer require hryvinskyi/magento2-bot-verification \
    hryvinskyi/magento2-bot-verification-google \
    hryvinskyi/magento2-bot-verification-bing
# behind Cloudflare, also:
composer require hryvinskyi/magento2-bot-verification-cloudflare

bin/magento module:enable Hryvinskyi_BotVerification Hryvinskyi_BotVerificationGoogle Hryvinskyi_BotVerificationBing
bin/magento setup:upgrade
bin/magento cache:enable bot_verification
bin/magento bot-verification:refresh

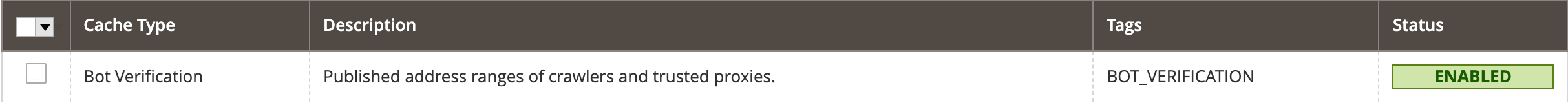

Magento leaves a new cache type disabled until it is enabled by hand. Without cache:enable bot_verification every request that claims a crawler reads the lists from the database, three to four times slower (see Performance), and bot-verification:status exits non-zero.

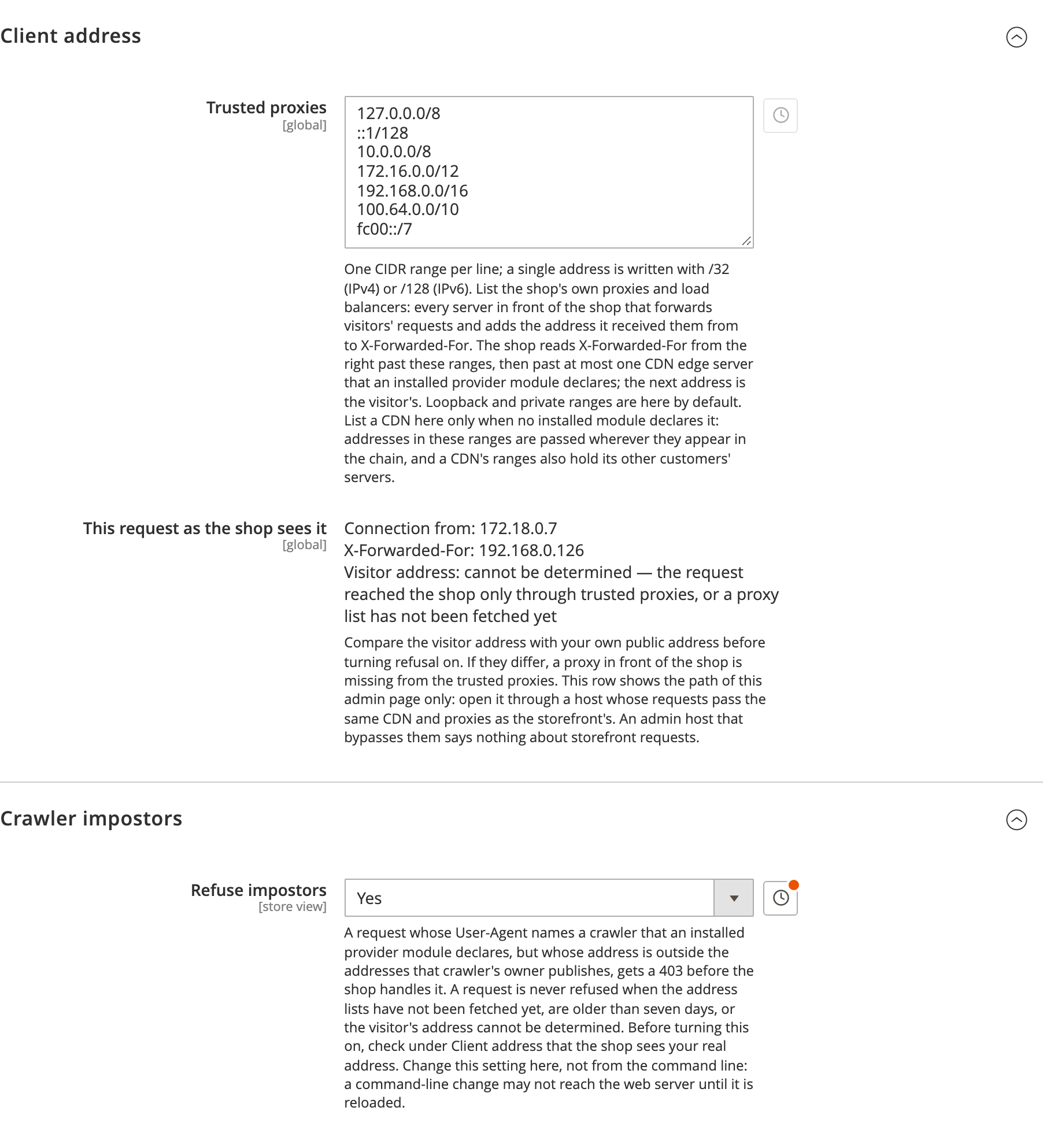

Configuration

Stores › Configuration › Hryvinskyi › Bot Verification

Trusted proxies (global) holds one CIDR range per line: the shop's own proxies and load balancers, every server in front of the shop that adds the address it received a request from to X-Forwarded-For. The defaults are 127.0.0.0/8, ::1/128, 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16, 100.64.0.0/10 and fc00::/7. Add a CDN here only when no provider module declares it, because addresses in this list are passed wherever they appear in the chain.

This request as the shop sees it shows the connecting address and X-Forwarded-For of the admin page you are on, and the visitor address the module resolves from them. It must show your own public address. If it shows a proxy's address, that proxy is missing from the trusted proxies, and with refusal on every crawler behind it would be refused. The screenshot comes from a local Docker setup whose only hops are private, so no visitor address can be determined and nothing would be refused. The row describes the admin page's own path: when the admin host bypasses the CDN or proxies the storefront uses, check the storefront path with bot-verification:check --forwarded-for (below).

Refuse impostors (store view) is off by default. Change it in the admin: on hosts that serve configuration from opcache, a change made from the command line may not reach PHP-FPM until it is reloaded.

Command line

bot-verification:refresh [--force] [<list code>...] fetches the lists now, all of them when no code is given. A list that cannot be fetched, is not in its format, holds a malformed prefix or shrank to under half of its stored ranges keeps its previous copy and is reported, and the command exits non-zero. --force accepts a shrink.

bing: 27 ranges
cloudflare_ipv4: 14 ranges
cloudflare_ipv6: 7 ranges
google_common: 36 ranges
google_special: 17 ranges
google_user_triggered: 110 ranges
google_user_triggered_google: 37 ranges
google_user_triggered_agents: 6 ranges

bot-verification:status shows each list's size and age and the cache type's state. It exits non-zero while a list is missing or older than 7 days, or the cache type is disabled, so it can drive a monitoring check.

bing: 27 ranges, fetched 0 h ago
cloudflare_ipv4: 14 ranges, fetched 0 h ago
...
google_user_triggered_agents: 6 ranges, fetched 0 h ago
Maximum age: 7 days
Cache type bot_verification: enabled

bot-verification:check <address> <User-Agent> [--forwarded-for <chain>] prints the verdict a request would get. With --forwarded-for the address is REMOTE_ADDR, and the visitor is resolved from the chain the way a live request is, so a line copied from the web server's log checks the storefront path.

$ bin/magento bot-verification:check 127.0.0.1 'Mozilla/5.0 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)' \
    --forwarded-for '203.0.113.9, 172.68.159.52, 127.0.0.1'
Client address: 203.0.113.9
Verdict: impostor
Crawler: google

What a request gets

Requests to a Magento 2.4.9 shop with refusal on, sent through its web server with REMOTE_ADDR 127.0.0.1 and the visitor in X-Forwarded-For, the way a reverse proxy hands them over:

Request	Response
Googlebot User-Agent from 203.0.113.9	403
Googlebot User-Agent from 66.249.66.1 (Google)	200
bingbot User-Agent from 157.55.39.1 (Microsoft)	200
bingbot User-Agent from 203.0.113.9	403
bingbot User-Agent over IPv6 (Bing publishes IPv4 ranges only)	200
Firefox from 203.0.113.9	200
Googlebot User-Agent behind private proxies only	200

The headers the refusal sets:

HTTP/1.1 403 Forbidden
Content-Type: text/plain; charset=UTF-8
Cache-Control: max-age=0, must-revalidate, no-cache, no-store, private

Forbidden

private keeps the 403 out of shared caches, including a cache that turns every response not marked private into a short public one.

Performance

Measured on an AMD Ryzen 9 7950X with opcache and PCRE JIT, through Magento's object manager without compiled DI metadata, as the best of 5 runs of 2,000 to 200,000 iterations each. Two installations: Magento 2.4.9 on PHP 8.4 with the file cache, and Magento 2.4.6 on PHP 8.1 with Redis. Times are per call.

Step	2.4.9 · PHP 8.4 · file	2.4.6 · PHP 8.1 · Redis
Refusal off: read the switch	0.94 µs	1.36 µs
Scan a browser User-Agent	0.27 µs	0.25 µs
Scan a Googlebot User-Agent	0.78 µs	0.75 µs
Look an address up in Google's 36 crawler blocks	0.23 µs	0.25 µs
Same lookup, looping over the 170 published IPv4 prefixes	19.0 µs	17.6 µs
Look an address up in the 110 blocks of the largest list	0.25 µs	0.25 µs
Same lookup, looping over its 534 published IPv4 prefixes	60.7 µs	57.1 µs
Resolve the visitor behind a CDN edge	2.06 µs	1.99 µs
Verdict for a Googlebot impostor (4 lists)	4.17 µs	4.16 µs

A whole request, with every object built fresh as in PHP-FPM:

Request	2.4.9 · PHP 8.4 · file	2.4.6 · PHP 8.1 · Redis
Browser	14 µs	14 µs
Real Googlebot behind a CDN (2 cache reads)	75 µs	94 µs
Googlebot impostor behind a CDN (5 cache reads)	128 µs	167 µs
Googlebot impostor, cache type disabled (5 database reads)	465 µs	506 µs
Memory held by the objects and the lists they read	8.2 KB	9.6 KB

End to end through nginx and PHP-FPM on Magento 2.4.9 in developer mode with the built-in page cache, median of 90 requests interleaved over three rounds:

Request	Refusal off	Refusal on
Firefox, page-cache hit	25.4 ms	25.7 ms
Real Googlebot, page-cache hit	25.6 ms	26.0 ms
Googlebot impostor, page-cache hit	25.3 ms	24.3 ms (403)

The medians differ by 0.3 to 0.4 ms, inside a 10th-to-90th-percentile spread of 2.3 to 3.5 ms. On a page-cache miss the difference is the render: the home page took 102.5 ms for Firefox and 24.4 ms for a refused impostor (medians of 25).

The lists are stored as packed binary ranges, sorted and merged, and searched by binary search without building an array, which makes a lookup 70 to 240 times faster than looping over the published prefixes. Google's crawler list packs to 480 bytes, and all eight lists take 4,544 bytes in the cache. With refusal off nothing behind the switch is built. A request that claims no crawler pays for building the crawler registry and one pattern scan, and never touches the cache or the visitor address. Each list a request needs is read from the cache once, and requests a page cache in front of PHP answers never reach the module.

Adding a crawler or a CDN

A provider module is a di.xml that adds items to the registry:

<type name="Hryvinskyi\BotVerification\Model\Crawler\CrawlerRegistry">
    <arguments>
        <argument name="rangeLists" xsi:type="array">
            <item name="example_list" xsi:type="string">https://example.com/crawler.json</item>
            <item name="example_edge" xsi:type="string">https://example.com/edge-servers.txt</item>
        </argument>
        <argument name="crawlers" xsi:type="array">
            <item name="example" xsi:type="array">
                <item name="tokens" xsi:type="array">
                    <item name="examplebot" xsi:type="string">ExampleBot</item>
                </item>
                <item name="lists" xsi:type="array">
                    <item name="example_list" xsi:type="string">example_list</item>
                </item>
            </item>
        </argument>
        <argument name="rangeListFormats" xsi:type="array">
            <item name="example_edge" xsi:type="string">plain_text</item>
        </argument>
        <argument name="proxyLists" xsi:type="array">
            <item name="example_edge" xsi:type="string">example_edge</item>
        </argument>
    </arguments>
</type>

A list is read as {"prefixes": [{"ipv4Prefix": …}, {"ipv6Prefix": …}]}, the format Google, Bing, Apple and DuckDuckGo publish, unless rangeListFormats names another; plain_text reads one prefix per line. A new format is a class implementing PrefixListParserInterface, added to the parsers argument of Hryvinskyi\BotVerification\Model\Source\HttpRangeListFetcher. Codes are lower-case letters, digits and underscores. A malformed declaration fails loudly in the refresh, the CLI and tests, and fails open on storefront requests.

Limits

Only crawlers whose owners publish address lists can be verified. There is no reverse-DNS check, because waiting for DNS on the request path would let a scraper tie up PHP-FPM workers.
If the origin server can be reached around the CDN, a CDN customer's code that calls it directly is taken for the edge server, and the address it writes into X-Forwarded-For is read as the visitor's. That lets an impostor through and never refuses a real crawler. Requiring the CDN's client certificate at the origin (Cloudflare's Authenticated Origin Pulls) closes it.
An edge range a CDN adds between two refreshes resolves to the edge server itself until the next refresh, so a real crawler arriving through it could be refused in that window.
The switch is read before routing, so a REST or GraphQL request that names another store reads the switch of the store its host resolves to.

Requirements

PHP 8.1 or later and hryvinskyi/magento2-base 2.2 or later. Verified on Magento 2.4.6 with PHP 8.1 and Magento 2.4.9-beta1 with PHP 8.4.

License

MIT
