hryvinskyi/magento2-api-logger

Enterprise API logging solution with granular endpoint control, secret sanitization, and advanced viewer

1.1.2 2026-02-18 10:59 UTC

Requires

• php: ^8.1
• hryvinskyi/magento2-base: ^2.1.9
• magento/framework: *
• magento/module-backend: *
• magento/module-webapi: *

MIT

• Volodymyr Hryvinskyi

README

Enterprise API logging solution for Magento 2 with granular endpoint control, secret sanitization, analytics dashboard, request replay, and an advanced log viewer.

Screenshots

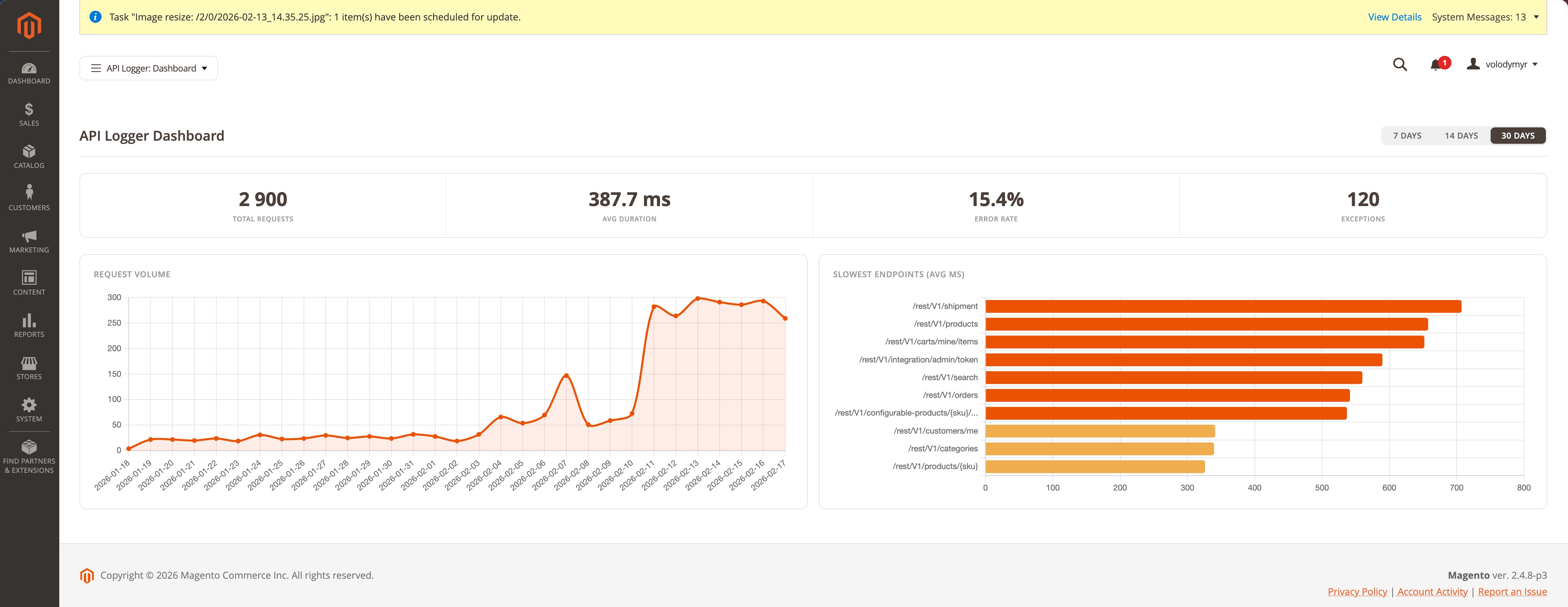

Dashboard

Real-time analytics with request volume charts, slowest endpoints, error rate, and summary cards. Supports 7 / 14 / 30 day period switching.

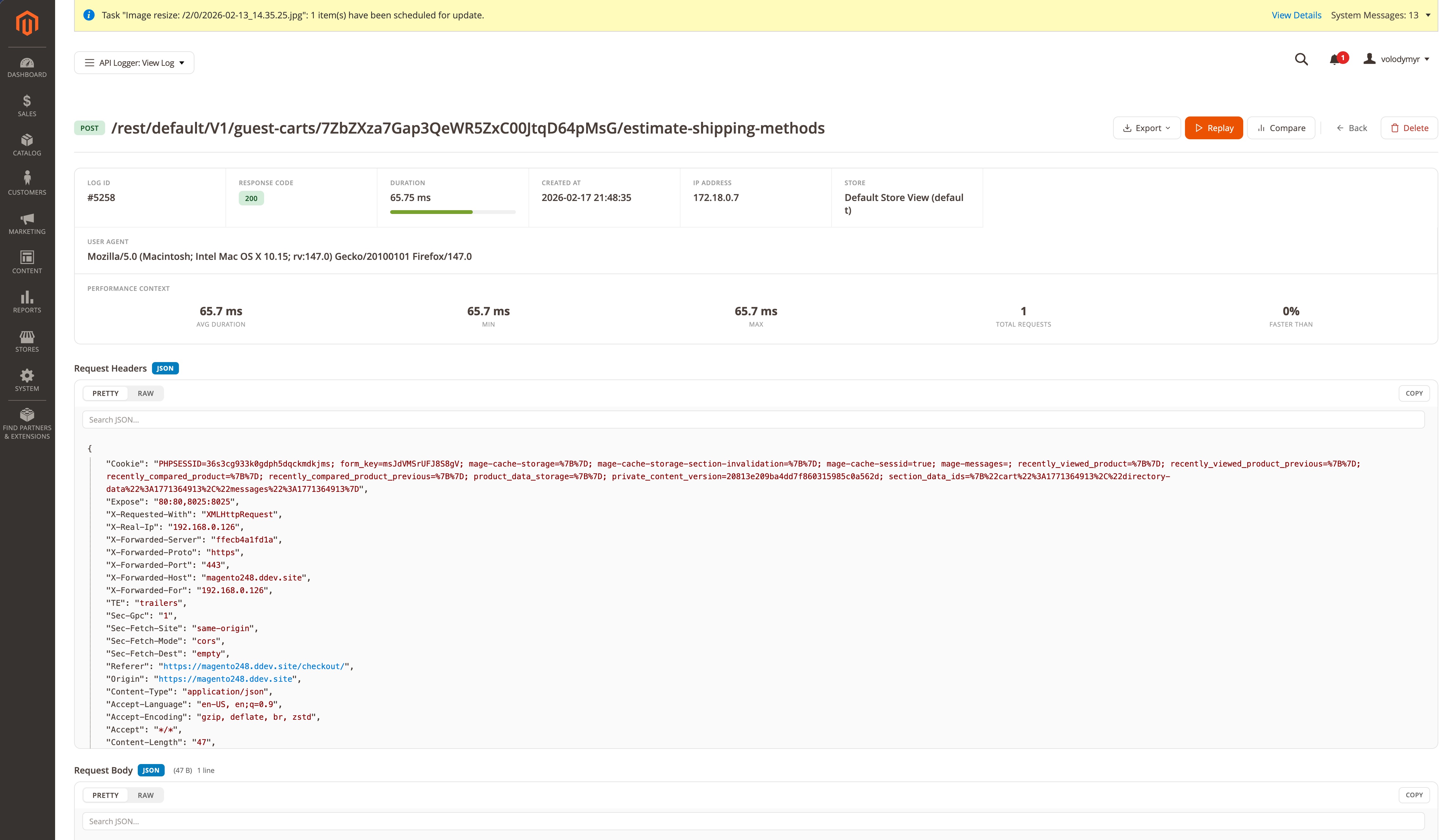

Log Detail View

Full request/response inspection with formatted JSON, syntax highlighting, performance metrics, query parameters, and quick actions.

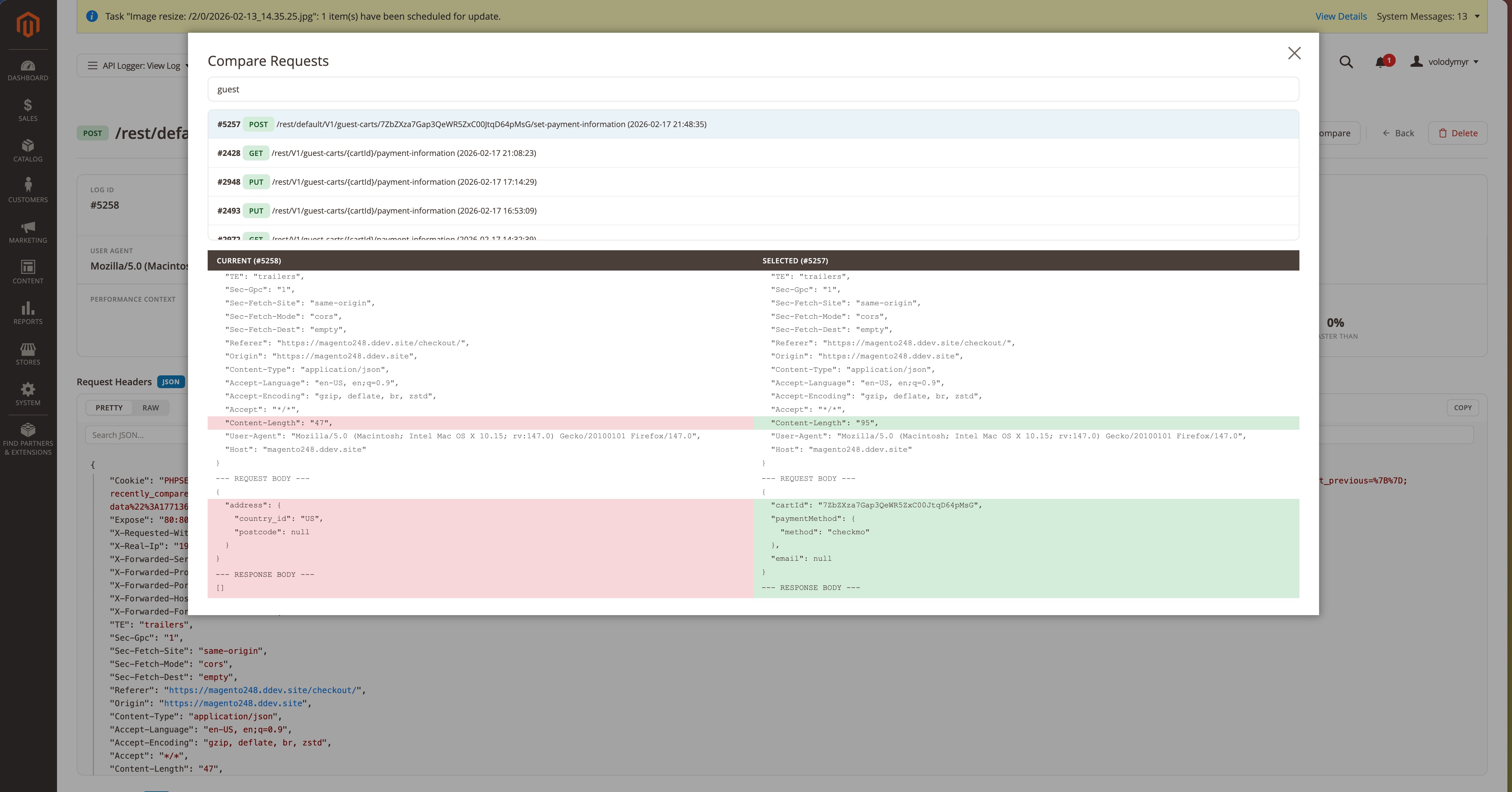

Compare & Replay

Side-by-side comparison of two log entries and request replay for debugging.

Features

• Granular Endpoint Control — whitelist specific REST API endpoints with pattern-based matching and per-endpoint HTTP method filtering
• Selective Response Code Logging — choose which HTTP status codes to capture (200, 400, 401, 404, 500, etc.)
• Secret Sanitization — automatic detection and hashing of sensitive fields (passwords, tokens, API keys, card numbers) with customizable field list
• Analytics Dashboard — request volume over time, top 10 slowest endpoints, error rate, exception count with 7/14/30 day period views
• Advanced Log Viewer — formatted JSON with syntax highlighting, query parameter extraction, content-type badges, body size display, and status code badges
• Request Replay — re-execute original API requests and compare response status, duration, and body against the original
• Compare Mode — side-by-side comparison of any two log entries with related endpoint search
• Export — download logs as HAR (HTTP Archive) or raw HTTP (RFC 7230) format
• Performance Metrics — per-endpoint statistics including avg/min/max duration, request count, and percentile rank
• Automatic Cleanup — cron-based retention policy with configurable period and batch deletion
• Admin Grid — sortable, filterable listing with mass delete, column bookmarks, and date range filters
• Multi-Store Support — store-scoped logging configuration with store name display in log viewer

Requirements

• PHP 8.1 or higher
• Magento 2.4.x (Open Source or Adobe Commerce)
• hryvinskyi/magento2-base module

Installation

Via Composer (recommended)

composer require hryvinskyi/magento2-api-logger
bin/magento module:enable Hryvinskyi_ApiLogger
bin/magento setup:upgrade
bin/magento cache:flush

Manual Installation

1. Download the module from GitHub
2. Place it in app/code/Hryvinskyi/ApiLogger
3. Run:

bin/magento module:enable Hryvinskyi_ApiLogger
bin/magento setup:upgrade
bin/magento cache:flush

Configuration

Navigate to Stores > Configuration > Hryvinskyi Extensions > API Logger

General Settings

Option	Description	Default
Enable API Logging	Master on/off switch	Disabled
Enabled Endpoints	Select which endpoints to log (grouped selector with search)	All
Enabled Response Codes	Select specific HTTP response codes to log	All
Log Request Headers	Include HTTP request headers in log	Yes
Log Request Body	Include request payload in log	Yes
Log Response Headers	Include HTTP response headers in log	Yes
Log Response Body	Include response payload in log	Yes

Security & Sanitization

Option	Description	Default
Sanitize Sensitive Data	Automatic secret field detection and hashing	Enabled
Secret Field Names	Comma-separated list of field patterns to treat as secrets	password, token, authorization, api_key, secret, access_token, refresh_token, private_key, client_secret, card_number, cvv, ssn

Cleanup & Retention

Option	Description	Default
Enable Automatic Cleanup	Cron job to delete old logs (daily at 2:00 AM)	Enabled
Retention Period	Days to keep logs before automatic deletion	30

Usage

Dashboard

Navigate to System > Tools > API Logger > Dashboard to view analytics:

• Summary Cards — total requests, average duration, error rate, and exception count
• Request Volume Chart — line chart showing daily request count over the selected period
• Slowest Endpoints Chart — horizontal bar chart with the top 10 slowest endpoints by average duration (color-coded: green < 100ms, yellow < 500ms, orange < 1000ms, red >= 1000ms)
• Period Selector — switch between 7, 14, and 30 day views

Viewing Logs

Navigate to System > Tools > API Logger > Logs:

1. Use grid filters to find specific logs by endpoint, method, response code, IP address, or date range
2. Click View on any entry to open the detail view
3. Detail view provides:
   • Formatted JSON request/response with syntax highlighting and search
   • Query parameters extracted from endpoint URL
   • Performance metrics (duration, percentile rank among similar endpoints)
   • Content-type and body size badges
   • Related log entries for the same endpoint

Replay Requests

From the log detail view, click Replay to:

1. Re-execute the original API request with the same method, headers, and body
2. Compare original vs. replayed response status code and duration
3. Inspect the full replay response body

Compare Entries

From the log detail view, click Compare to:

1. Search for related log entries by endpoint pattern
2. Select an entry for side-by-side comparison
3. Review differences in status codes, durations, headers, and response bodies

Export Logs

From the log detail view, use the export dropdown to download:

• HAR Format — standard HTTP Archive format compatible with browser dev tools and analysis tools
• Raw HTTP — plain text RFC 7230 format showing the full request and response

Managing Logs

• Delete Single — delete button in grid row or detail view
• Mass Delete — select multiple entries in the grid and use the mass delete action
• Automatic Cleanup — configure retention period in settings; cron runs daily at 2:00 AM

ACL Resources

Resource	Description
Hryvinskyi_ApiLogger::api_logger	Main module access
Hryvinskyi_ApiLogger::dashboard	View dashboard
Hryvinskyi_ApiLogger::logs	View and manage logs
Hryvinskyi_ApiLogger::replay	Replay API requests
Hryvinskyi_ApiLogger::delete	Delete log entries
Hryvinskyi_ApiLogger::config	Module configuration

Technical Details

How It Works

The module uses a Magento plugin on Magento\Webapi\Controller\Rest::dispatch to intercept REST API requests and responses. The plugin:

1. Captures request data (endpoint, method, headers, body, IP, user agent) in beforeDispatch
2. Captures response data (status code, headers, body) and measures duration in afterDispatch
3. Matches the endpoint against configured whitelist patterns
4. Sanitizes sensitive fields if enabled
5. Persists the log entry to the hryvinskyi_api_log_entry database table

Database Table

Table: hryvinskyi_api_log_entry

Column	Type	Description
entity_id	INT (PK)	Auto-increment primary key
endpoint	VARCHAR(512)	API endpoint path
method	VARCHAR(10)	HTTP method
request_headers	MEDIUMTEXT	JSON-encoded request headers
request_body	MEDIUMTEXT	Request payload
response_headers	MEDIUMTEXT	JSON-encoded response headers
response_body	MEDIUMTEXT	Response payload
response_code	SMALLINT	HTTP response status code
duration	DECIMAL(10,4)	Request duration in milliseconds
is_exception	BOOLEAN	Whether an exception occurred
store_id	INT	Associated store ID
ip_address	VARCHAR(45)	Client IP address (IPv4/IPv6)
user_agent	VARCHAR(512)	Client user agent string
created_at	TIMESTAMP	Entry creation timestamp

Indexed columns: endpoint, method, response_code, is_exception, created_at, store_id

Author

Volodymyr Hryvinskyi

• Email: [e-mail]
• GitHub: https://github.com/hryvinskyi

License

This module is licensed under the MIT License.

Support

For issues, feature requests, or questions, please contact the author or submit an issue on GitHub.
