ekumanov/flarum-ext-markdown-tables

Markdown tables for Flarum 2.0, with Tiptap rich-text editor integration.

v1.0.2 2026-04-30 21:10 UTC

Requires

• php: ^8.2
• flarum/core: ^2.0@beta

MIT

• ekumanov
• Alexander Skvortsov

• markdown
• extension
• tables
• flarum
• tiptap

README

Adds proper markdown table support to Flarum 2.0, both in rendered posts and inside the FriendsOfFlarum Rich Text WYSIWYG editor.

This is a Flarum 2.0 port of askvortsov/flarum-markdown-tables — the original Flarum 1.x extension was built on askvortsov-rich-text (ProseMirror-based), which has been replaced in 2.0 by fof-rich-text (Tiptap v3-based). The port was made with Claude Code.

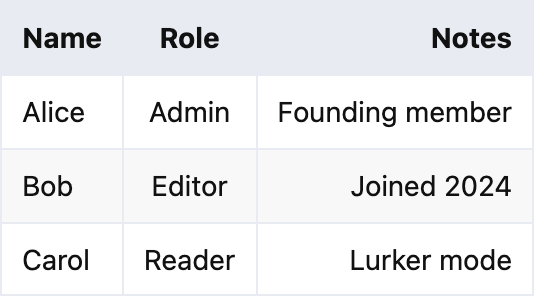

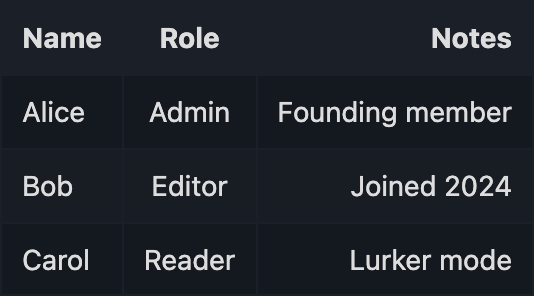

Screenshots

Light	Dark

Tables size to their natural content, so a typical post table fits comfortably on mobile. Tables wider than the post column get a horizontal-scroll wrapper instead of forcing every cell to crush.

What you get

Type a standard pipe table in the composer:

| Name  | Role   | Notes           |
|-------|:------:|----------------:|
| Alice | Admin  | Founding member |
| Bob   | Editor | Joined 2024     |
| Carol | Reader | Lurker mode     |

…and your post renders it as a proper, styled HTML table — with header row, column alignment from the :---: markers, alternating row backgrounds, and horizontal scrolling when the table is wider than the post column.

Features

• Pipe-table parsing — standard GitHub-flavoured Markdown syntax. Handles left/center/right column alignment via :---, :---:, and ---: separators.
• Rich-text editor integration — when fof/rich-text is enabled, an "Insert table" button appears in the composer toolbar. Set columns and rows, click insert, type into cells.
• Markdown round-trip — tables created in the WYSIWYG editor serialize back to clean pipe-table markdown, so the post stays human-readable in the database and editable in plain mode.
• Responsive overflow — wide tables get wrapped in a horizontally-scrolling container so they never blow out narrow viewports.
• Theme-aware — borders, header background, and zebra striping use Flarum's CSS custom properties, so tables follow your light/dark scheme automatically.
• No configuration — install, enable, done.
• Works without fof/rich-text too — if you don't use the WYSIWYG editor, posts still parse and render markdown tables correctly.

Requirements

• Flarum 2.0 (tested against 2.0.0-rc.1)
• PHP 8.2+
• Optional: fof/rich-text 2.0+ for the WYSIWYG insert button. Markdown rendering works without it.

Installation

composer require ekumanov/flarum-ext-markdown-tables
rm -rf storage/formatter/*
php flarum cache:clear

Then enable the extension in the admin panel under Extensions > Markdown Tables.

Why rm -rf storage/formatter/*? Flarum compiles the s9e/text-formatter renderer into a PHP class under storage/formatter/Renderer_*.php. php flarum cache:clear does not touch that file. If a renderer was compiled before this extension was active, it has no template branches for <TABLE> / <TR> / <TD> etc., and existing posts that contain table XML will silently render as empty space. Removing the file forces a regenerate that includes the table templates.

Upgrading from Flarum 1.x with askvortsov/flarum-markdown-tables

If you're coming from Flarum 1.x and previously had askvortsov/flarum-markdown-tables installed, your existing post XML is already compatible — both extensions enable the same s9e/text-formatter PipeTables plugin and the stored XML uses the same <TABLE> tag names. No re-parse of old posts is needed.

But you almost certainly do need to clear the formatter cache, because during the period between the 1.x→2.0 migration and the install of this extension the renderer was recompiled without table templates. Run:

composer require ekumanov/flarum-ext-markdown-tables
rm -rf storage/formatter/*
php flarum cache:clear
php flarum assets:publish

After that, every existing post that already had a markdown table will render as a real <table> again — no edits required.

Updating

composer update ekumanov/flarum-ext-markdown-tables
php flarum cache:clear

How it works

Backend

The PHP side is small. We register an Extend\Formatter callback that enables the s9e/text-formatter PipeTables plugin:

(new Extend\Formatter())
    ->configure(function (Configurator $config) {
        $config->PipeTables;
    });

PipeTables is already shipped inside s9e/text-formatter (a Flarum core dependency), so this adds zero new code paths to the parser — it just turns on a feature that's already there.

Frontend (forum, always-on)

Two small things happen on the forum side regardless of which editor you use:

1. Wrap rendered tables for horizontal scroll. PipeTables emits bare <table> elements; without a wrapper, a table wider than the post column overflows or breaks layout. We hook into Post#oncreate/onupdate and wrap each <table> in a <div class="markdown-table-wrapper"> with overflow-x: auto. The wrap is idempotent — a data-markdown-tables-wrapped attribute prevents double-wrapping when Mithril rerenders.

2. Style the table. Borders use var(--control-bg), header rows pick up var(--control-bg) as background, even rows get a subtle striping. Everything goes through Flarum 2's CSS custom properties so it follows the theme automatically.

Frontend (composer, when fof/rich-text is enabled)

This is where most of the code lives, because Tiptap doesn't know about pipe tables out of the box. The integration happens in four pieces:

1. Tiptap node specs

fof/rich-text exposes Node from @tiptap/core via flarum.reg.get('fof-rich-text', 'common/tiptap/tiptap'). We use that to define six nodes:

table > tableHead > tableRow > tableHeader   (one head row)
      > tableBody > tableRow > tableCell     (zero or more body rows)

Each node has standard parseHTML / renderHTML rules. Cell nodes carry an optional style attribute that holds the alignment (text-align: left|center|right), parsed from the markdown separator and replayed when the cell renders.

The Node constructor is captured lazily, after fof/rich-text's async chunk loads — resolving it at module load time would crash, because the chunk hasn't loaded yet. We push our setup work onto TextEditor.prototype.oninit's _loaders array, which Tiptap's editor awaits before construction.

2. Markdown parser tokens

fof/rich-text's MarkdownParserBuilder uses markdown-it in CommonMark mode, which has the table rule disabled. We patch its prototype to:

• Call .enable('table') on the tokenizer.
• Add token-to-node mappings for table, thead, tbody, tr, th, td. The th/td mappings lift the style attribute from the markdown-it token onto the node attributes — that's how alignment survives parsing.

3. Markdown serializer

When the user types a table in the WYSIWYG editor and hits submit, Tiptap calls our serializer to turn the doc back into markdown. We hook MarkdownSerializerBuilder.prototype.buildNodes and add a table handler that walks tableHead → tableRow → tableHeader, emits the header pipe row, then the alignment separator row (| --- | :---: | ---: |), then each tableBody row.

Pipe characters that appear inside a cell are escaped to \| so they don't break the table syntax.

4. Toolbar dropdown

InsertTableDropdown.js is a Mithril component that extends Flarum's Dropdown. Its menu has two faces:

• Outside a table — a small form with "columns" and "rows (including header)" inputs and an "Insert table" button. Clicking it dispatches our insertTable(rows, cols) Tiptap command, which builds a fresh table node populated with single-space cells (PipeTables drops empty cells, so the space keeps the structure intact through round-trips).
• Inside a table — a context menu with "Insert/delete row before/after", "Insert/delete column before/after", and "Delete table".

The button is added to the toolbar via extend(TiptapMenu.prototype, 'items', …), so it sits alongside Bold, Italic, Image, etc.

A note on bundle isolation

Our extension does not bundle @tiptap/extension-table. Instead we built minimal Node specs ourselves and reused fof/rich-text's exposed @tiptap/core Node constructor. This avoids shipping a duplicate copy of Tiptap-core or prosemirror-tables — nodes share the same Tiptap instance the editor is using, so instanceof checks and schema lookups all line up.

The trade-off: we don't get column-resize handles or the cell-selection plugin you'd get from @tiptap/extension-table. For a markdown forum, that's the right trade — pipe tables can't express column widths anyway, so column-resize would only set state that disappears on save.

Limitations

• Single-column tables don't render. This is a PipeTables limitation, not ours — GitHub-flavoured Markdown's pipe-table grammar requires at least two columns.
• Cells contain inline content only. No nested block elements (lists, quotes, code blocks) inside cells. This matches the standard pipe-table specification.

Links

• Packagist
• GitHub
• Original Flarum 1.x extension by Alexander Skvortsov

License

MIT — see LICENSE. Original copyright notice retained for the Flarum 1.x extension this is ported from.
