README

Official CaptchaFox integration for Magento Open Source and Adobe Commerce. It renders the CaptchaFox widget in the storefront and admin forms you choose and verifies every answer on the server.

Compatibility

Magento Open Source / Adobe Commerce	Module	PHP
2.4.4 or later	1.x	8.1 or later

Magento 2.4.3 and earlier are not supported.

Installation

In the Magento root folder:

composer require captchafox/magento
bin/magento setup:upgrade

In production mode, also run bin/magento setup:di:compile and bin/magento setup:static-content:deploy.

Without Composer, copy the files of a release into app/code/CaptchaFox/Core and run the same bin/magento commands.

Configuration

Get your keys

In the CaptchaFox portal, open your website under Sites > Site Details and copy the site key and the secret key.

Set up the module

Go to Stores → Configuration → Services → CaptchaFox:

Under Settings, enter the Site key and the Secret key.
Under Storefront, set Enabled to Yes and select the forms in Forms to validate.
Under Admin Panel, do the same for the admin forms.
Click Save Config and refresh the caches that Magento lists as invalidated.

Options

Option	Default	Meaning
Storefront → Enabled	No	CaptchaFox in the storefront
Storefront → Theme	light	light or dark
Storefront → Mode	inline	inline or popup
Storefront → Language Code	-- Auto Detected --	Language of the widget
Storefront → Forms to validate	none	See Usage
Storefront → Skip validation for logged in customers	No	Yes: no widget and no check for logged-in customers
Admin Panel → Enabled, Theme, Mode, Language Code	No, light, inline, -- Auto Detected --	As for the storefront
Admin Panel → Forms to validate	none	See Usage

Turn off Magento's own captchas

So that a form does not show two captchas, turn off the captchas that Magento brings for the forms CaptchaFox protects:

Stores → Configuration → Customers → Customer Configuration → CAPTCHA: set Enable CAPTCHA on Storefront to No.
Stores → Configuration → Security → Google reCAPTCHA Storefront → Storefront: set Enable for Customer Login, Enable for Forgot Password, Enable for Create New Customer Account, Enable for Contact Us and Enable for Product Review to No.
Stores → Configuration → Security → Google reCAPTCHA Admin Panel → Admin Panel: set Enable for Login and Enable for Forgot Password to No.

To remove Magento's reCAPTCHA modules entirely, list them under replace in the composer.json of your project:

{
  "replace": {
    "magento/module-re-captcha-admin-ui": "*",
    "magento/module-re-captcha-checkout": "*",
    "magento/module-re-captcha-checkout-sales-rule": "*",
    "magento/module-re-captcha-contact": "*",
    "magento/module-re-captcha-customer": "*",
    "magento/module-re-captcha-frontend-ui": "*",
    "magento/module-re-captcha-gift-card": "*",
    "magento/module-re-captcha-invitation": "*",
    "magento/module-re-captcha-migration": "*",
    "magento/module-re-captcha-multiple-wishlist": "*",
    "magento/module-re-captcha-newsletter": "*",
    "magento/module-re-captcha-paypal": "*",
    "magento/module-re-captcha-review": "*",
    "magento/module-re-captcha-send-friend": "*",
    "magento/module-re-captcha-store-pickup": "*",
    "magento/module-re-captcha-ui": "*",
    "magento/module-re-captcha-user": "*",
    "magento/module-re-captcha-validation": "*",
    "magento/module-re-captcha-validation-api": "*",
    "magento/module-re-captcha-version-2-checkbox": "*",
    "magento/module-re-captcha-version-2-invisible": "*",
    "magento/module-re-captcha-version-3-invisible": "*",
    "magento/module-re-captcha-webapi-api": "*",
    "magento/module-re-captcha-webapi-graph-ql": "*",
    "magento/module-re-captcha-webapi-rest": "*",
    "magento/module-re-captcha-webapi-ui": "*"
  }
}

Theme and mode of a single form

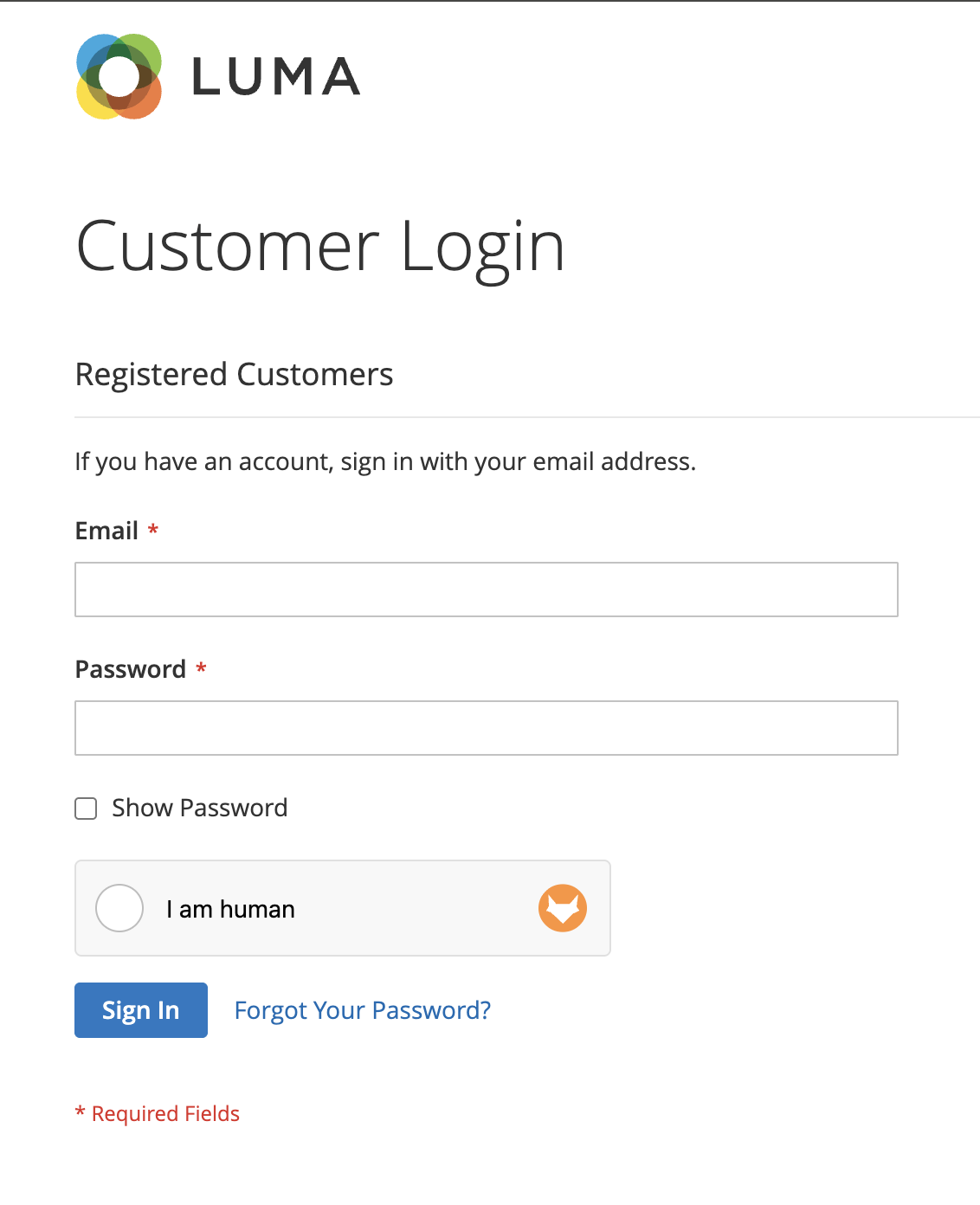

A layout file of your theme can set the theme and the mode of one form, for example of the customer login:

<?xml version="1.0"?>
<!-- layout/customer_account_login.xml -->
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <body>
        <referenceContainer name="form.additional.info">
            <block name="captchafox.login">
                <action method="setMode">
                    <argument name="mode" xsi:type="string">popup</argument>
                </action>
                <action method="setTheme">
                    <argument name="theme" xsi:type="string">dark</argument>
                </action>
            </block>
        </referenceContainer>
    </body>
</page>

Usage

CaptchaFox protects the forms selected in Forms to validate:

Storefront	Form
`contact`	Contact Us
`register`	Create New Customer Account
`login`	Customer Login
`login-ajax`	Login popup and login in the email step of the checkout
`password`	Forgot Your Password?
`review`	Product review
`send-friend`	Email to a Friend
`newsletter`	Newsletter subscription

Admin Panel	Form
`login`	Admin login
`password`	Forgot your password?

Choose where CaptchaFox is used

Select the forms in Forms to validate of the Storefront and of the Admin Panel. No form is selected by default. The selection can differ per website and store view.

How a form is checked

On the server: Before Magento processes a selected form, the module verifies the answer with CaptchaFox. A form without an answer, or with an answer that CaptchaFox rejects, is not processed; the visitor sees "Security validation error: …".
Web API: The same forms are checked when a headless storefront sends them through Magento's web API: by REST, creating an account, requesting a password reset and creating a customer token; by GraphQL, the mutations of all storefront forms except login-ajax. The client sends the answer of the widget in the header X-CaptchaFox. Requests of integrations and admin users are not checked, nor are requests of customers when Skip validation for logged in customers is on.

Operation

Visitor IP

The module sends CaptchaFox only the answer of the widget and the secret key, not the visitor's IP address. Reverse proxies and load balancers need no setup.

Content Security Policy

The module adds CaptchaFox to Magento's own Content Security Policy (etc/csp_whitelist.xml). Only a policy sent outside Magento, for example by the web server or a CDN, needs these directives added by hand. Keep your existing values such as 'self', which the module's own scripts need.

Directive	Add
`script-src`	`https://*.captchafox.com blob:`
`connect-src`	`https://*.captchafox.com`
`style-src`	`https://*.captchafox.com`
`img-src`	`https://*.captchafox.com`
`media-src`	`https://*.captchafox.com`

If you set worker-src or child-src, add blob: there as well. The widget runs a web worker from a blob: URL.
The widget script is loaded from https://cdn.captchafox.com/api.js. It cannot be bundled or self-hosted, and Subresource Integrity (SRI) is not possible because its URL is not versioned.

Privacy

CaptchaFox is operated by Scoria Labs GmbH, Germany. How CaptchaFox processes data and how to get a data processing agreement is described in the CaptchaFox Privacy Center. A suggested paragraph for your privacy policy is on the GDPR page.

Troubleshooting

"Unable to secure the form. The site key is missing."

The site key is missing. Enter it under Settings.

"Unable to secure the form"

The widget could not be rendered. Check the site key, and that the browser may load https://*.captchafox.com (see Content Security Policy).

"Security validation error: …"

Magento did not process the form. The end of the message names the reason:

Message ends with	Cause and fix
"… please complete the security field …" or "… please validate the security field …"	The form was sent without an answer. Solve the widget, then send the form.
"… the response parameter is invalid or has expired."	The answer was too old. Solve the widget again.
"… the response parameter has already been validated before."	The answer was already used. Solve the widget again.
"… the secret key is missing."	Enter the secret key under Settings.
"… the secret parameter was invalid or did not exist."	The secret key is wrong. Copy it again from the CaptchaFox portal.

No widget appears in production mode

In production mode Magento hides errors that occur while a block renders and only logs them. Check var/log/system.log.

License

MIT. See LICENSE.

Credits

Thanks to Pixel-Open for the base implementation.
