anourvalar/office

Generate documents from existing Excel & Word templates | Export tables to Excel (Grids)

2.5.1 2024-09-21 12:15 UTC

Requires

• php: ^8.1

Requires (Dev)

• friendsofphp/php-cs-fixer: ^3.26
• phpstan/phpstan: ^1.10
• phpunit/phpunit: ^10.0
• squizlabs/php_codesniffer: ^3.7
• vimeo/psalm: ^5.17

MIT

• generator
• excel
• xls
• xlsx
• template
• word
• pdf
• view
• doc
• document
• placeholder
• docx
• export
• engine
• report
• grid
• table
• generate
• markers
• templater
• contract
• ods
• variables
• fill
• anourvalar
• replacers

README

Installation

Minimal

composer require anourvalar/office

Phpspreadsheet is required to work with Excel (xlsx).

composer require phpoffice/phpspreadsheet "^1.29"

Zipstream-php is required to work with Word (docx).

composer require maennchen/zipstream-php "^3.1"

Mpdf is required to work with PDF.

composer require mpdf/mpdf: "^8.1"

Generate a document from an XLSX (Excel) template

One-dimensional table (basic usage)

template1.xlsx:

$data = [
    // scalar
    'vat' => 'No',
    'total' => [
        'price' => 2004.14,
        'qty' => 3,
    ],

    // one-dimensional table
    'products' => [
        [
            'name' => 'Product #1',
            'price' => 989,
            'qty' => 1,
            'date' => new \DateTime('2022-03-30'),
        ],
        [
            'name' => 'Product #2',
            'price' => 1015.14,
            'qty' => 2,
            'date' => new \DateTime('2022-03-31'),
        ],
    ],
];

// Save to the file
(new \AnourValar\Office\SheetsService())
    ->generate(
        'template1.xlsx', // template filename
        $data // markers
    )
    ->saveAs(
        'generated_document.xlsx', // filename
        \AnourValar\Office\Format::Xlsx // save format
    );

// Output to the browser
header('Content-type: ' . \AnourValar\Office\Format::Xlsx->contentType());
header('Content-Disposition: attachment; filename="generated_document.xlsx"');
echo (new \AnourValar\Office\SheetsService())
    ->generate('template1.xlsx', $data)
    ->save(\AnourValar\Office\Format::Xlsx);

// Available formats:
// \AnourValar\Office\Format::Xlsx
// \AnourValar\Office\Format::Pdf
// \AnourValar\Office\Format::Html
// \AnourValar\Office\Format::Ods

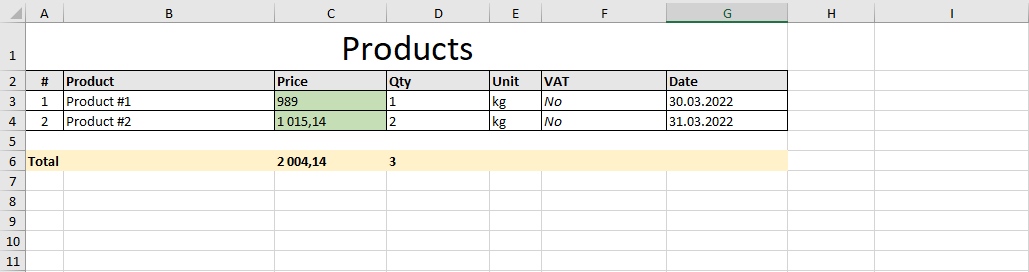

generated_document.xlsx:

The same template with empty data

Two-dimensional table

template2.xlsx:

$data = [
    'best_manager' => 'Sveta',

    // two-dimensional table
    'managers' => [
        'titles' => [[ 'William', 'James', 'Sveta' ]],

        'values' => [
            [ // additional row
                'month' => 'January',
                'amount' => [700, 800, 900], // additional columns
            ],
            [
                'month' => 'February',
                'amount' => [7000, 8000, 9000],
            ],
            [
                'month' => 'March',
                'amount' => [70000, 80000, 90000],
            ],
        ],
    ],
];

// Save as XLSX (Excel)
(new \AnourValar\Office\SheetsService())
    ->generate('template2.xlsx', $data)
    ->saveAs('generated_document.xlsx'); // second argument (format) is optional

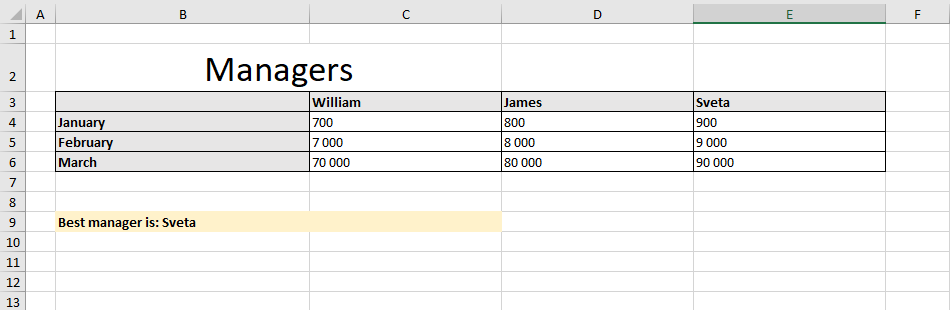

generated_document.xlsx:

Additional Features

template3.xlsx:

$data = [
    'foo' => 'Hello',

    'bar' => function (SheetsInterface $driver, $column, $row) {
        $driver->insertImage('logo.png', $cell, ['width' => 100, 'offset_y' => -45]);
        return 'Logo!'; // replace marker "[bar]" with "Logo!"
    }
];

(new \AnourValar\Office\SheetsService())
    ->hookValue(function (SheetsInterface $driver, $column, $row, $value, $sheetIndex) {
        // Hook will be called for every cell which is changing

        $value .= ' world';
        return $value;
    })
    ->generate(
        'template3.ods', // ods template
        $data,
        true // cells auto format instead of template setup
    )
    ->saveAs('generated_document.xlsx');

// Available hooks:
// hookLoad: Closure(SheetsInterface $driver, string $templateFile, Format $templateFormat)
// hookBefore: Closure(SheetsInterface $driver, array &$data)
// hookValue: Closure(SheetsInterface $driver, string $column, int $row, $value, int $sheetIndex)
// hookAfter: Closure(SheetsInterface $driver)

generated_document.xlsx:

Dynamic templates

$data = [
    'group1' => [
        'name' => 'Group 1',
        'products' => [
            ['name' => 'Product 1', 'stock' => 101],
            ['name' => 'Product 2', 'stock' => 102],
        ],
    ],
    'group2' => [
        'name' => 'Group 2',
        'products' => [
            ['name' => 'Product 3', 'stock' => 103],
            ['name' => 'Product 4', 'stock' => 104],
        ],
    ],
];

(new \AnourValar\Office\SheetsService())
    ->hookLoad(function ($driver, string $templateFile, $templateFormat) {
        // create empty document instead of using existing
        return $driver->create();
    })
    ->hookBefore(function ($driver, array &$data) {
        // place markers on-fly
        $row = 1;
        foreach (array_keys($data) as $group) {
            // group's title
            $driver
                ->setValue("A$row", "[{$group}.name]")
                ->mergeCells("A$row:B$row")
                ->setStyle("A$row", ['align' => 'center', 'bold' => true]);
            $row++;

            // group's products
            $driver
                ->setValue("A$row", "[$group.products.name]")
                ->setValue("B$row", "[$group.products.stock]");
            $row++;
        }
    })
    ->generate('', $data)
    ->saveAs('generated_document.xlsx');

Dynamic template overview

generated_document.xlsx:

Merge (union) few documents to a single file

$dataA = ['foo' => 'hello'];
$dataB = ['foo' => 'world'];

$documentA = (new \AnourValar\Office\SheetsService())->generate('template.xlsx', $dataA);
$documentB = (new \AnourValar\Office\SheetsService())->generate('template.xlsx', $dataB);

$mixer = new \AnourValar\Office\Mixer();
$mixer($documentA, $documentB)->saveAs('generated_document.xlsx');

Access the PhpSpreadsheet directly (default driver)

(new \AnourValar\Office\SheetsService())
    ->hookBefore(function (\AnourValar\Office\Drivers\PhpSpreadsheetDriver $driver, array &$data) {
        $spreadsheet = $driver->spreadsheet;

        // @see \PhpOffice\PhpSpreadsheet\Spreadsheet
        $spreadsheet->createSheet()->setTitle('Foo Bar'); // adding a new Worksheet
    })
    ->generate('template.xlsx', [])
    ->saveAs('generated_document.xlsx');

Generate a document from an DOCX (Word) template

(new \AnourValar\Office\DocumentService)
    ->generate('template.docx', ['foo' => 'bar'])
    ->saveAs('generated_document.docx');

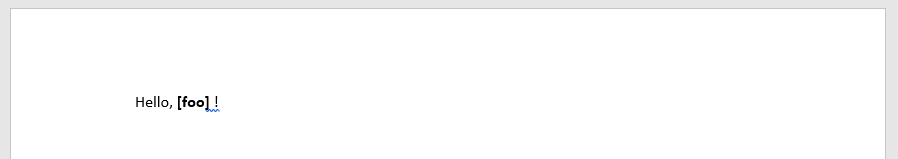

template.docx:

generated_document.docx:

Export table (Grid)

Simple usage

$data = [
    ['William', 3000],
    ['James', 4000],
    ['Sveta', 5000],
];

// Save as XLSX (Excel)
(new \AnourValar\Office\GridService())
    ->generate(
        ['Name', 'Sales'], // headers
        $data // data
    )
    ->saveAs('generated_grid.xlsx');

generated_grid.xlsx:

Advanced usage (generators)

$headers = [
    ['title' => 'Name', 'width' => 30],
    ['title' => 'Sales'],
];

$data = function () {
    yield ['name' => 'William', 'sales' => 3000];
    yield ['name' => 'James', 'sales' => 4000];
    yield ['name' => 'Sveta', 'sales' => 5000];
};

// Save as XLSX (Excel)
(new \AnourValar\Office\GridService())
    ->hookHeader(function (GridInterface $driver, mixed $header, $key, $column) {
        if (isset($header['width'])) {
            $driver->setWidth($column, $header['width']); // column with fixed width
        } else {
            $driver->autoWidth($column); // column with auto width
        }

        return $header['title'];
    })
    ->hookRow(function (GridInterface $driver, mixed $row, $key) {
        return [
            $row['name'],
            $row['sales'],
        ];
    })
    ->hookAfter(function (
        GridInterface $driver,
        string $headersRange,
        string $dataRange,
        string $totalRange,
        array $columns
    ) {
        $driver->setSheetTitle('Foo');

        $driver->setStyle(
            $headersRange, // A1:B1
            ['bold' => true, 'background_color' => 'EEEEEE']
        );

        $driver->setStyle(
            $totalRange, // A1:B4
            ['borders' => true, 'align' => 'left']
        );
    })
    ->generate($headers, $data)
    ->saveAs('generated_grid.xlsx');

generated_grid.xlsx:

Performance

By default, GridService uses PhpSpreadsheetDriver which gives a lot of features and flexability. The only cons are performance and memory consumtion.

ZipDriver as an alternative is simpler, but much more faster:

$data = [
    ['William', 3000],
    ['James', 4000],
    ['Sveta', 5000],
];

// Save as XLSX (Excel)
(new \AnourValar\Office\GridService(new \AnourValar\Office\Drivers\ZipDriver()))
    ->generate(['Name', 'Sales'], $data)
    ->saveAs('generated_grid.xlsx');
