README

Server monitoring package for the MoonShine admin panel: CPU, memory and disk usage with history, right inside your admin.

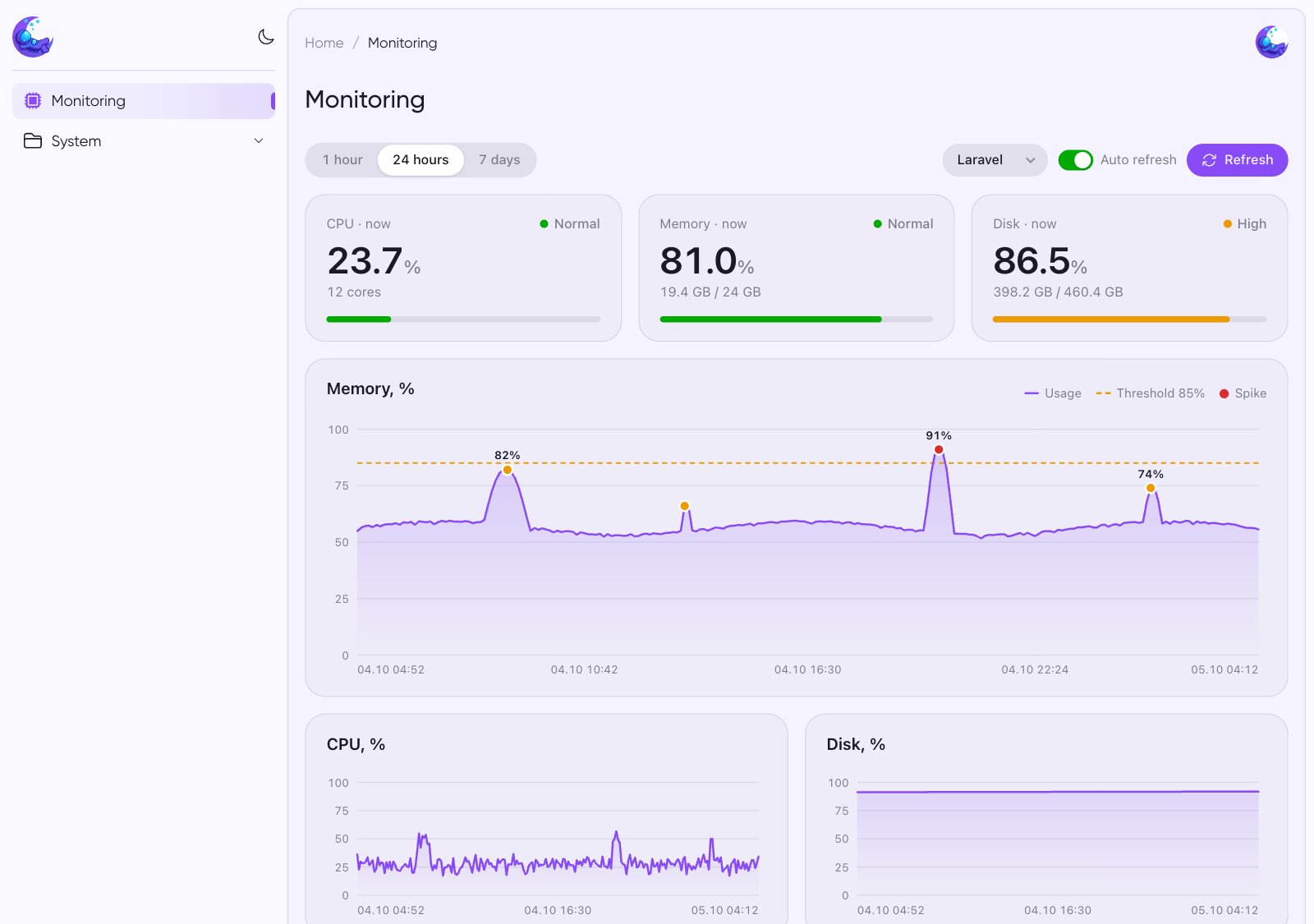

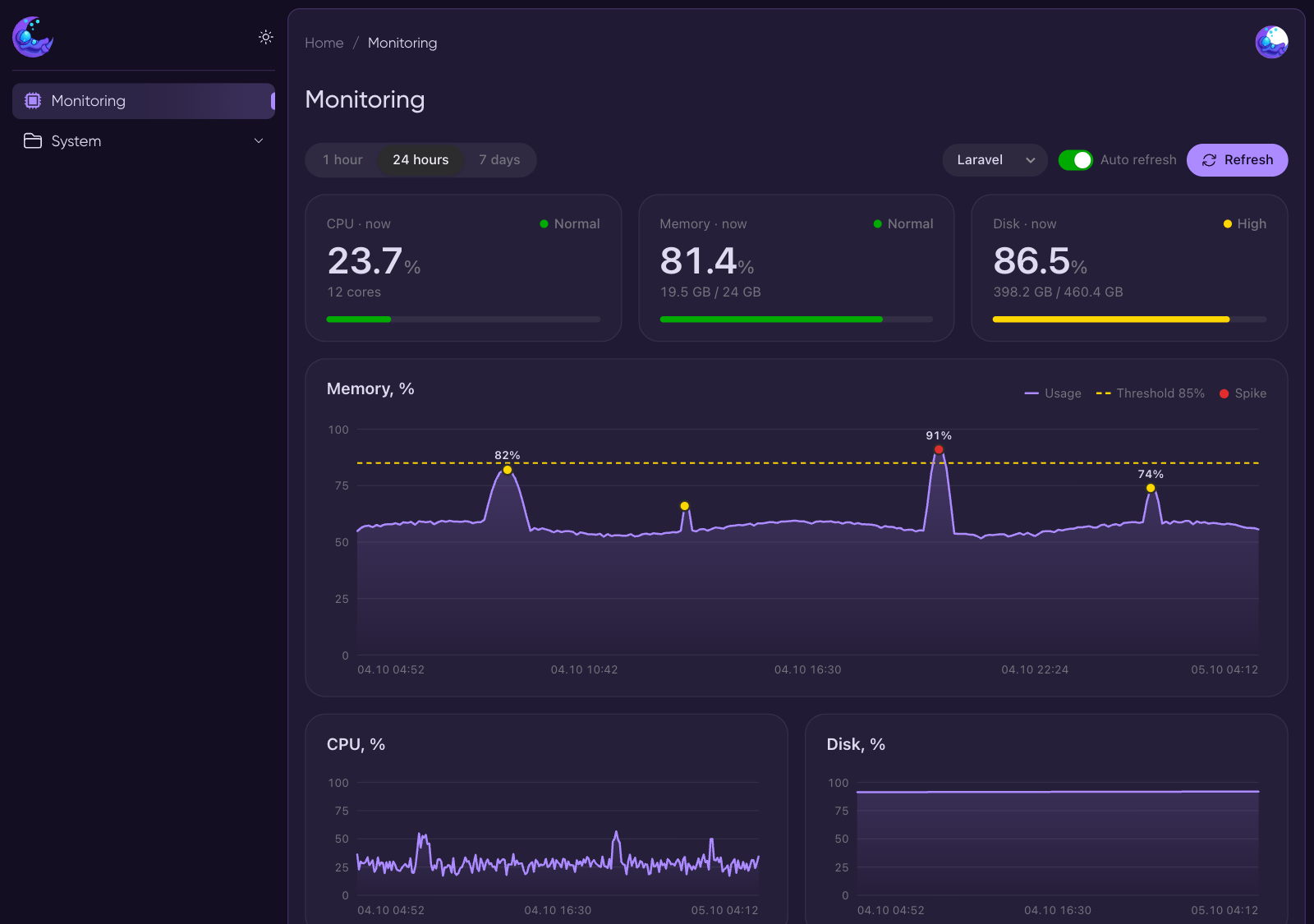

Light	Dark

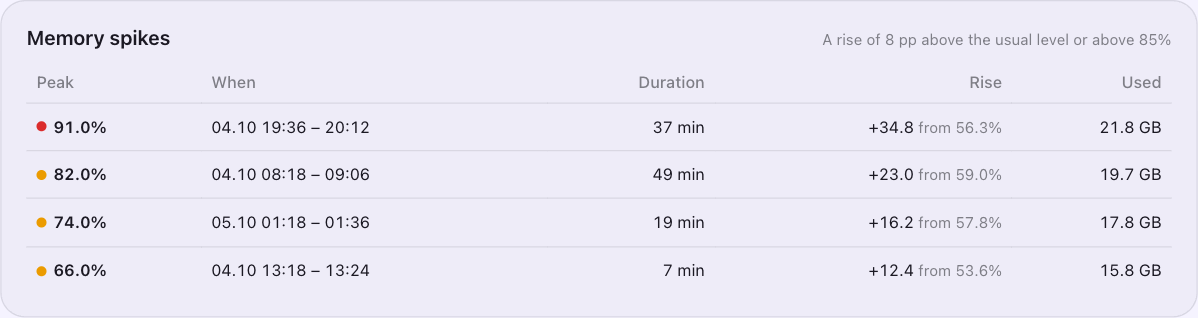

Memory spikes

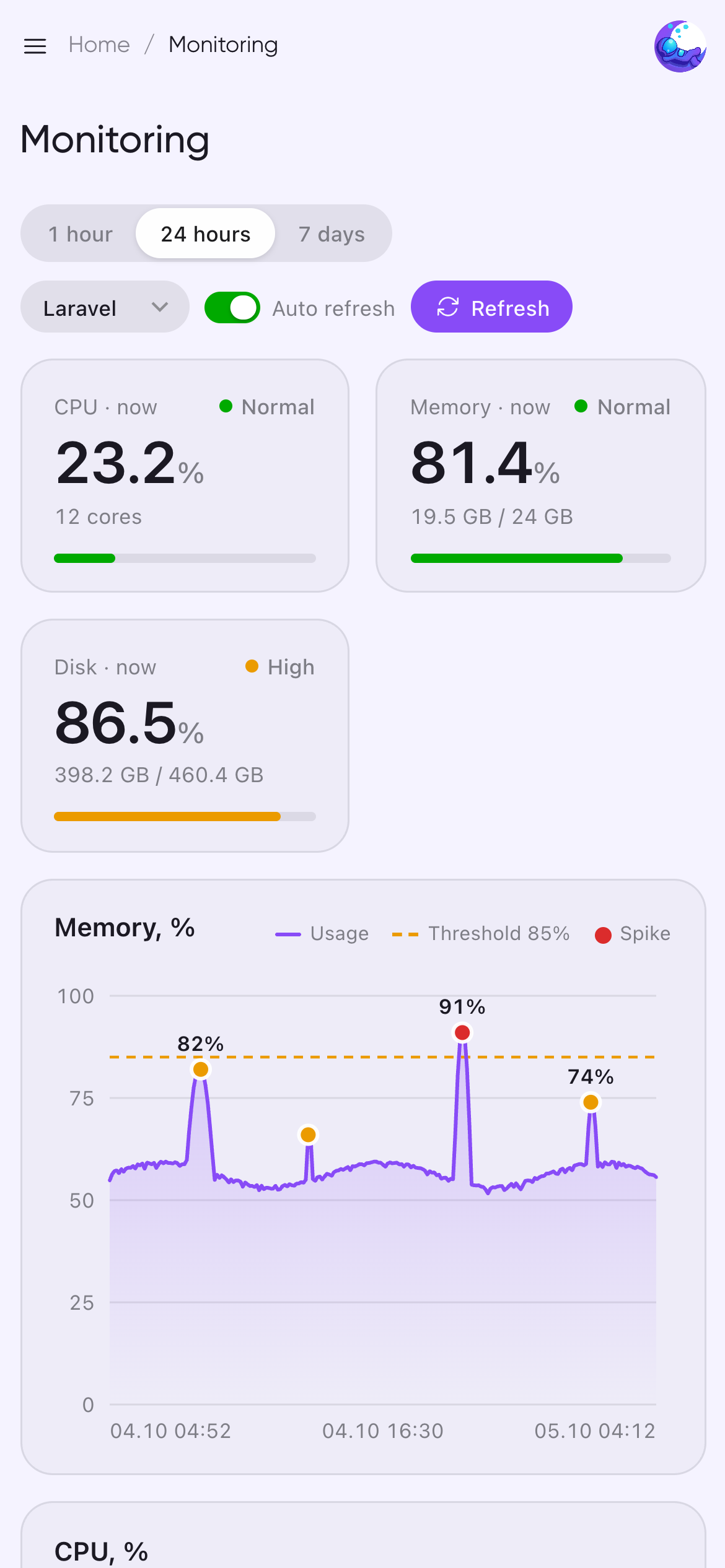

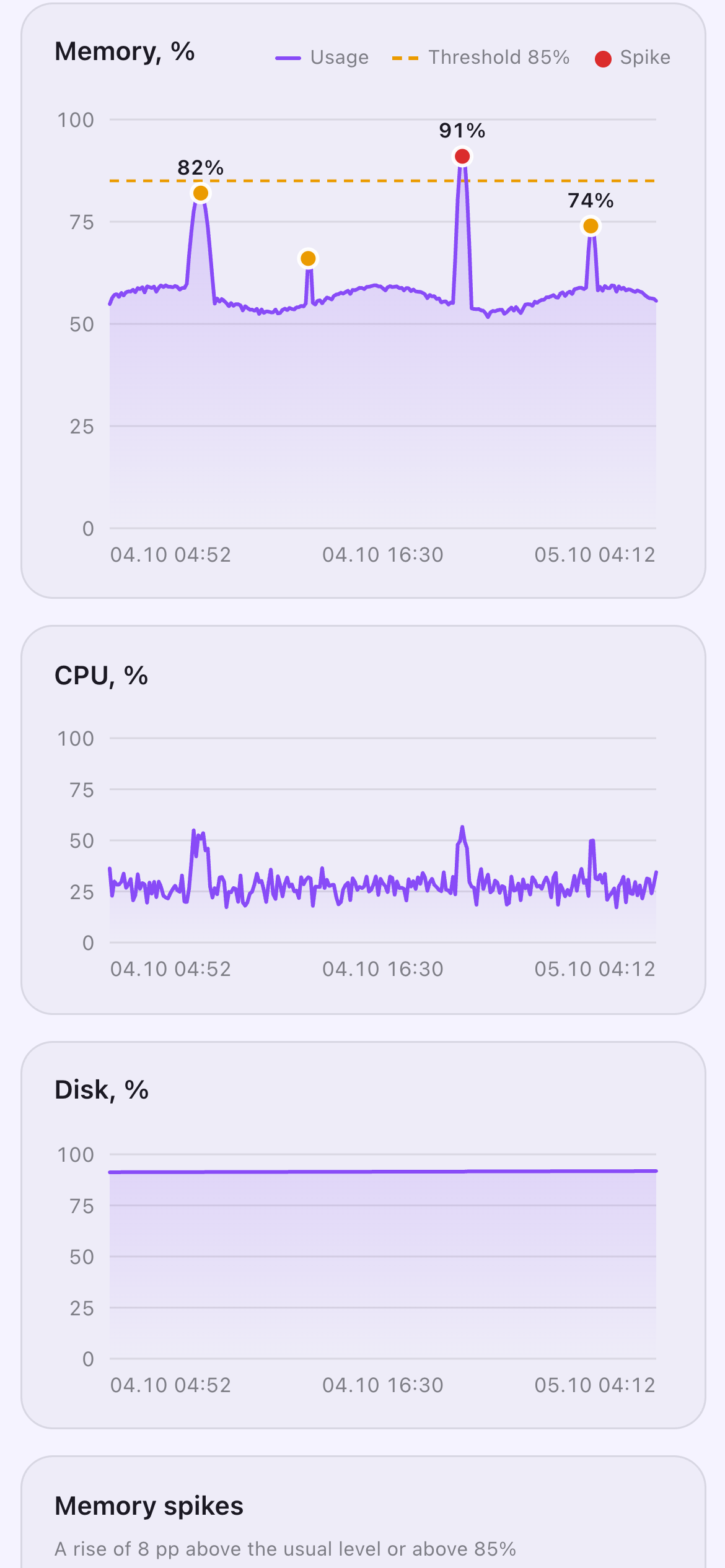

Mobile

Requirements

	Version
PHP	8.2+
Laravel	10, 11, 12, 13
MoonShine	3.x, 4.x

Description

Moonshine Monitoring is a Laravel package that provides system resource monitoring capabilities for applications using the MoonShine admin panel. It tracks CPU, memory, and disk usage of your server and displays this information in an intuitive dashboard within MoonShine.

Features

Real-time monitoring of CPU usage
Memory consumption tracking
Disk space monitoring
Data visualization in MoonShine dashboard
Command-line interface for manual data recording
Database storage of monitoring records
Automatic data purging based on configuration
Multi-instance support with instance naming
Pure PHP implementation (no shell scripts required)
Supports MoonShine 3.x and 4.x
Memory spike detection: spikes are marked on the chart and listed with peak, duration and rise over the usual level
Time ranges: 1 hour, 24 hours, 7 days
Several servers: switch between instances that write to the same database
Auto refresh without page reload
Alerts by email and Telegram when CPU, memory or disk stay above a threshold
Dashboard widget for the MoonShine home page
Old records are purged automatically
Follows the MoonShine theme: light / dark mode and the theme's primary, success, warning and error colors
Enhanced dashboard with progress bars and real-time updates
Multi-language support (English and Russian)

Installation

Install the package via composer:

composer require zhandos717/moonshine-monitoring

Publish the configuration file:

php artisan vendor:publish --tag=moonshine-monitoring-config

Run the migrations:
```
php artisan migrate
```
The monitoring dashboard will automatically appear in your MoonShine menu.

Usage

Basic Usage

The package automatically adds a monitoring page to your MoonShine dashboard. You can configure whether this menu item is automatically added via the auto_menu option in the configuration file.

Command Line

You can manually record resource usage via the command line:

php artisan moonshine-monitoring:record

Scheduling

Schedule the record command to collect history. Laravel 11+ (routes/console.php):

use Illuminate\Support\Facades\Schedule;

Schedule::command('moonshine-monitoring:record')->everyMinute();

Laravel 10 (app/Console/Kernel.php):

protected function schedule(Schedule $schedule): void
{
    $schedule->command('moonshine-monitoring:record')->everyMinute();
}

Configuration

After publishing the configuration file, you can modify the settings in config/monitoring.php:

auto_menu: Whether to automatically add the monitoring page to the MoonShine menu
instance_name: The name of this monitoring instance (defaults to your app name)
migrations: Enable or disable package migrations
thresholds.warning / thresholds.critical: status of the usage tiles, the threshold line on the memory chart (default 85 / 95)
memory_spikes.min_rise: how many percentage points above the usual level counts as a spike (default 8)
memory_spikes.window: number of recent calm samples the usual level is calculated from (default 15)
purge_before: records older than this are deleted by moonshine-monitoring:record (default -30 days, null keeps everything)
disk_path: partition shown as «Disk» (default /)
alerts: notifications, see below
auto_refresh: dashboard refresh interval in seconds, 0 disables it (default 60)

Alerts

An alert is sent when a metric stays above its threshold for alerts.minutes minutes in a row (5 by default). The same metric is not reported again for alerts.cooldown minutes. Alerts are checked by moonshine-monitoring:record, so the command must be scheduled.

MONITORING_ALERTS=true
MONITORING_ALERT_MAIL=ops@example.com
MONITORING_TELEGRAM_BOT_TOKEN=123456:ABC...
MONITORING_TELEGRAM_CHAT_ID=-1001234567890

Email uses your Laravel mail settings. Telegram needs no extra packages.

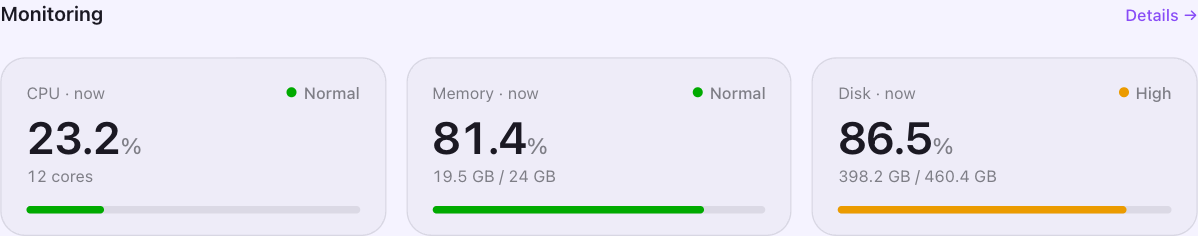

Dashboard widget

use Zhandos717\MoonshineMonitoring\Components\MonitoringWidget;

// app/MoonShine/Pages/Dashboard.php
protected function components(): iterable
{
    return [
        MonitoringWidget::make(),
    ];
}

Testing your application

Replace real measurements in your own tests:

use Zhandos717\MoonshineMonitoring\Facades\Monitoring;

Monitoring::fake(cpu: 40, memory: 92, disk: 70);

Dashboard Features

The updated monitoring dashboard includes:

Real-time Resource Monitoring
- Visual progress bars for CPU, memory, and disk usage
- Current usage percentage display
- Auto-refresh functionality for real-time updates
Historical Data Visualization
- Detailed table of historical monitoring records
- Time-based sorting of records
- Instance name identification
User Interface Enhancements
- Multi-language support (English/Russian)
- Responsive design for different screen sizes
- Intuitive controls for data refresh

Roadmap

Short-term Goals (v1.x)

Complete Dashboard Implementation
- Add line charts for historical data visualization
- Implement filtering by time periods
- Add instance comparison capabilities
Notification System
- Implement Telegram notifications for resource threshold breaches
- Add email notification support
- Create configurable alert thresholds
Performance Improvements
- Optimize database queries for large datasets
- Implement data aggregation for long-term storage
- Add caching mechanisms for frequently accessed data
UI/UX Enhancements
- Improve the visual design of metrics display
- Add dark mode support
- Implement responsive design for mobile devices

Long-term Goals (v2.x)

Extended Monitoring Capabilities
- Network usage monitoring
- Process monitoring
- Service status monitoring
- Database performance metrics
Advanced Analytics
- Predictive resource usage analysis
- Anomaly detection algorithms
- Usage pattern recognition
Multi-server Support
- Centralized monitoring dashboard
- Cross-server comparisons
- Distributed monitoring agents
Export and Reporting
- PDF report generation
- CSV data export
- Scheduled report delivery

Security

The page and the monitoring/data JSON endpoint are registered inside the MoonShine route group and protected by MoonShine authentication middleware.

Testing

The package includes comprehensive tests for all components:

# Run all tests
composer test

# Run tests with coverage
composer test-coverage

Test Coverage

Unit tests for all models, actions, and system resources
Feature tests for controllers and pages
Configuration tests
Tested against MoonShine 3.x and 4.x on PHP 8.2–8.4 in CI

Running Tests

Install development dependencies:

composer install

Run the test suite:

./vendor/bin/phpunit

Test Structure

The tests are organized as follows:

tests/Unit/ - Unit tests for individual components
tests/Feature/ - Feature tests for integrated functionality
tests/TestCase.php - Base test case with package configuration

Screenshots

README screenshots in docs/ are taken by docs/screenshots/shoot.mjs (headless Chrome via puppeteer-core) from a running Laravel + MoonShine app with this package:

cd docs/screenshots && npm install
MS_URL=http://127.0.0.1:8000/admin MS_USER=admin@example.com MS_PASSWORD=secret npm run shoot

Contributing

Contributions are welcome! Here's how you can help:

Fork the repository
Create a new branch for your feature or bug fix
Write your code and tests
Submit a pull request with a clear description of your changes

Development Guidelines

Follow PSR-12 coding standards
Write meaningful commit messages
Include tests for new functionality
Update documentation when needed
Ensure all tests pass before submitting a pull request

Areas Needing Contribution

Windows Support
- Replace deprecated wmic calls (removed in Windows 11 24H2)
- Test cross-platform compatibility
Additional Metrics
- Network usage monitoring
- Process monitoring
- Custom metric support
Testing
- Expand test coverage
- Add integration tests
- Set up continuous integration
Documentation
- Expand usage examples
- Add troubleshooting guides
- Create API documentation

License

The MIT License (MIT). Please see License File for more information.
