README

Make your TYPO3 site installable and offline-ready with a Progressive Web App (PWA) manifest and a minimal service worker. All values are maintained in the TYPO3 site configuration.

The full documentation is located in Documentation/ and is rendered on docs.typo3.org.

Compatibility

TYPO3 13.4 - 14.x.

Installation

composer require woit/wit-pwamanifest

TypoScript integration

TYPO3 13+ sites configure TypoScript via Site sets rather than static includes. This extension ships the Set woit/wit-pwamanifest (Configuration/Sets/WitPwamanifest). It provides the manifest endpoint, the service worker endpoint and the <link rel="manifest"> tag.

Add it to your site's config.yaml:

dependencies:
  - woit/wit-pwamanifest

If a sys_template record of the site has Clear > Setup checked, it removes the setup TypoScript of the Site set. Include the static template WIT PWA Manifest (wit_pwamanifest) in that record instead. Symptom otherwise: ?type=835 returns No page configured for type=835.

Output only one <link rel="manifest"> per page. Remove manifest links from your site package, otherwise the browser does not use this extension's manifest.

Endpoint	URL	Content-Type
Manifest	`?type=835`	`application/manifest+json`
Service worker	`?type=836`	`application/javascript`

Configuration

Open the site configuration in the TYPO3 backend (TYPO3 v14: Sites > Setup) and edit your site. The extension adds four tabs.

PWA Manifest

Basic manifest data: Short Name, Name, Start Url, Scope, Id, Display (standalone, fullscreen, minimal-ui, browser), Background Color, Theme Color and Description.

Icons: one small and one big icon, each with path, type (e.g. image/png) and size (e.g. 192x192). An icon is only added if its path is set.

Empty fields are omitted from the manifest.

Shortcuts and screenshots are provided as three fixed field groups each.

PWA Manifest Shortcuts

Up to three shortcuts with Name, Short name, Description, URL, Icon source and Icon sizes. A shortcut is only added to the manifest if URL and at least one of Name or Short name are set.

PWA Manifest Screenshots

Up to three screenshots with Source, Type, Size and Form factor (wide, narrow). A screenshot is only added to the manifest if Source is set.

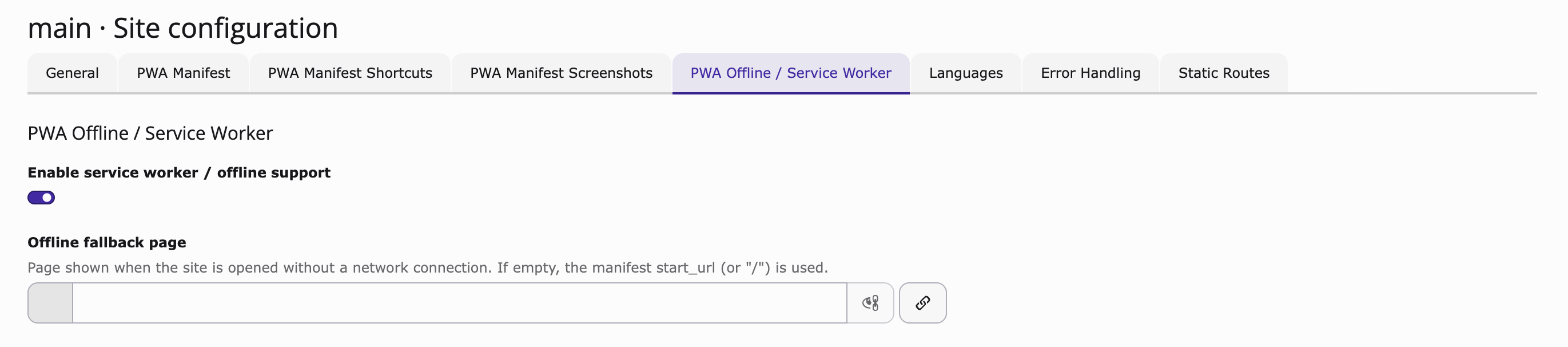

PWA Offline / Service Worker

Enable service worker / offline support – registers the service worker on every page.
Offline fallback page – page shown when a navigation fails because there is no network connection. Falls back to the manifest start_url (or /) if left empty.

Offline support / Service worker

The service worker script is served through the same typeNum-based mechanism as the manifest (?type=836) with a Service-Worker-Allowed: / response header. It is registered with scope: '/'. No RouteEnhancer or docroot changes are required.

Behaviour:

Install: the offline fallback page is stored in the cache wit-pwa-offline-v2.
Activate: all other caches of the origin are deleted.
Page navigation: network first; on failure the cached offline fallback page is returned.
Styles, scripts, fonts, images: cache first; stored on first request. Assets requested before are served from the cache, also offline.
Non-GET requests and non-http(s) requests (e.g. browser extensions) are not handled.
The scope / includes the TYPO3 backend (/typo3/); backend assets are cached as well.

This is intentionally minimal: no configurable caching strategy and no cache versioning per deployment. Use versioned asset URLs (TYPO3 default cache busting) so changed files are loaded.

Disabling the option only stops registration on new page loads. An already installed service worker stays active in the browser until it is unregistered.

Rendering the documentation locally

docker run --rm --pull always -v "$(pwd)":/project -it \
  ghcr.io/typo3-documentation/render-guides:latest --config=Documentation

Output: Documentation-GENERATED-temp/Index.html
