README

Bestagons is a PHP library for creating and managing hexagonal maps using axial and cube coordinates. It is based on the excellent hex grid logic and algorithms from Red Blob Games.

Installation

You can install the package via Composer:

composer require stui/bestagons

Usage

The Hex Class

The Hex class represents a hexagon in a grid. It can be represented using axial coordinates ($q$, $r$) or cube coordinates ($q$, $r$, $s$). Bestagon can handle both and in fact will always store cube coordinates internally.

use Stui\Bestagons\Hex\Hex;

$hex = new Hex(1, 2);
echo $hex->q; // 1
echo $hex->r; // 2
echo $hex->s; // -3 (calculated automatically)

Equality

$hex = new Hex(1, 0);
$hex->equal(new Hex(0, 1)); // false

$hex = new Hex(1, 0);
$hex->equal(new Hex(1, 0)); // true

Coordinate arithmetic

$hex1 = new Hex(1, 0);
$hex2 = new Hex(0, 1);

$sum = $hex1->add($hex2);
$diff = $hex1->subtract($hex2);
$scaled = $hex1->multiply(2);

Distance and Neighbors

For help with directions, please see here.

For a quick reference, the directions - expressed in cardinal directions - are:

	Pointy Top	Flat Top
0	East	South-East
1	North-East	North-East
2	North-West	North
3	West	North-West
4	South-West	South-West
5	South-East	South

$hex1 = new Hex(0, 0);
$hex2 = new Hex(2, 0);

$distance = $hex1->distanceTo($hex2); // 2

// Get a neighbor (0-5)
$neighbor = $hex1->neighbor(0);

// Get a diagonal neighbor (0-5)
$diagonal = $hex1->diagonalNeighbor(0);

Fractional Hex and Rounding

Useful for operations like linear interpolation between two hexagons.

$hex1 = new Hex(0, 0);
$hex2 = new Hex(10, -10);

$fractionalHex = $hex1->lerpHex($hex2, 0.57); // Returns a FractionalHex instance with interpolated coordinates
$roundedHex = $fractionalHex->round(); // Returns a Hex instance

Maps

The Map class allows you to store and retrieve hexagons.

use Stui\Bestagons\Map\Map;
use Stui\Bestagons\Hex\Hex;

$map = new Map();
$hex = new Hex(1, 1);

$map->store($hex);

if ($map->has(1, 1)) {
    $retrievedHex = $map->get(1, 1);
}

$neighbors = $map->getNeighborsOf($hex);

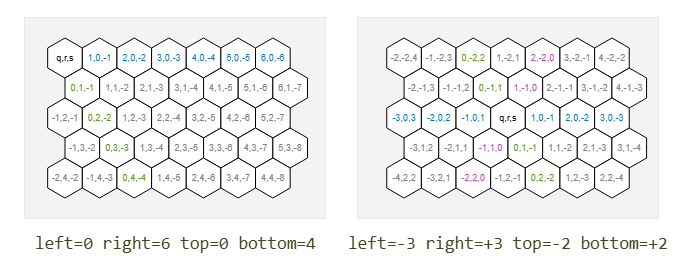

Rectangular Maps

A shape of map that generates a rectangular grid of hexagons.

The params define how far out the rectangle generates from the base point.

use Stui\Bestagons\Map\Shapes\RectangularMap;
use Stui\Bestagons\Enums\HexOrientation;

$map = new RectangularMap(
    left: 0,
    right: 5,
    top: 0,
    bottom: 5,
    orientation: HexOrientation::POINTY_TOP
);

Credits

All logic and algorithms in this library are based on the work of Amit Patel at Red Blob Games.

If you want to understand the math behind hex grids, that is the place to go.

License

The GPL-3.0-or-later. Please see License File for more information.
