README

PlotLib is a wrapper for the PHP charting library JPGraph. It is designed for quickly outputting basic charts in bulk. Many options can be configured as needed but all have defaults.

The main interface to the library is through the BulkPlot class. While JPGraph supports a multitude of different chart types only a subset are currently supported by BulkPlot. Consider BulkPlot a convenience class that uses assumption to reduce the time required to otherwise build and render a graph.

You should ideally have a general understanding of how JPGraph works in order to get the most out of this library.

You can also combine it with Visualise to hook up real-time visual output when working from the command line.

Install

Via Composer

$ composer require sqonk/phext-plotlib

Documentation

API Reference now available here.

Example

use sqonk\phext\plotlib\BulkPlot;

$plot = new BulkPlot;

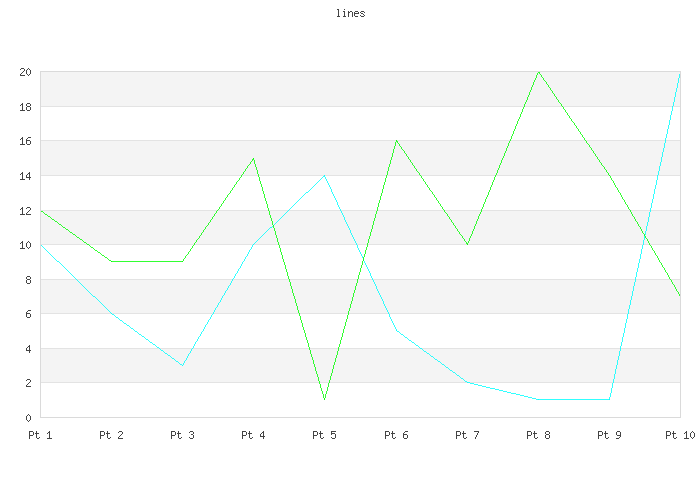

// add a chart with two line plots.
$plot->add('line', [
    	array_map(fn($v) => rand(1, 20), range(1, 10)),
    	array_map(fn($v) => rand(1, 20), range(1, 10))
    ], [
    'title' => 'lines',
    'xseries' => range(1, 10),
    'xformatter' => fn($v) => "Pt $v",
]);

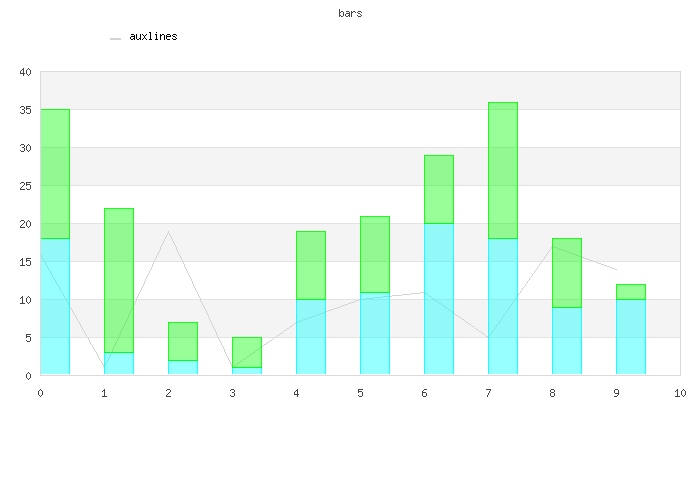

// add a stacked bar chart.
$plot->add('barstacked', [
    	array_map(fn($v) => rand(1, 20), range(1, 10)),
    	array_map(fn($v) => rand(1, 20), range(1, 10))
    ], [
    'title' => 'bars',
    'auxlines' => [
    	['values' => array_map(fn($v) => rand(1, 20), range(1, 10)), 'legend' => 'auxlines']
    ]
]);

$l1 = [19,3,2,7,9,18,4,15,12,13];
$l2 = [17,20,19,17,19,5,13,8,15,8];

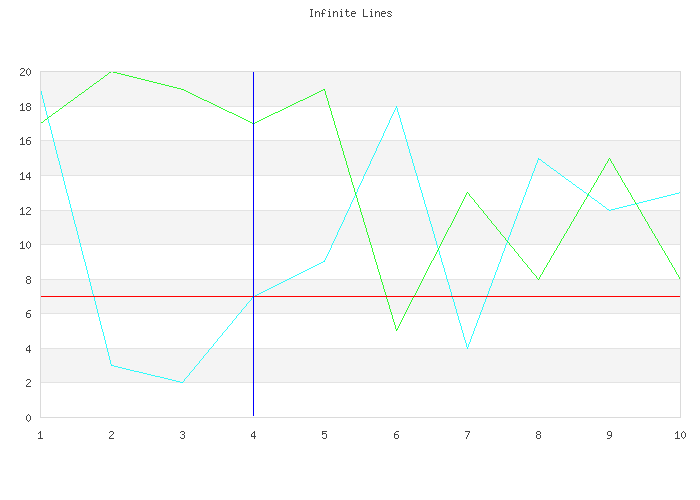

// A graph with horizontal and vertical rules.
$plot->add('line', [$l1, $l2], [
    'title' => 'Infinite Lines',
    'xseries' => range(1, 10),
    'font' => [FF_FONT1, FS_NORMAL, 8],
    'lines' => [
        ['direction' => 'h', 'value' => 7, 'color' => 'red'],
        ['direction' => 'v', 'value' => 4, 'color' => 'blue']
    ]
]);

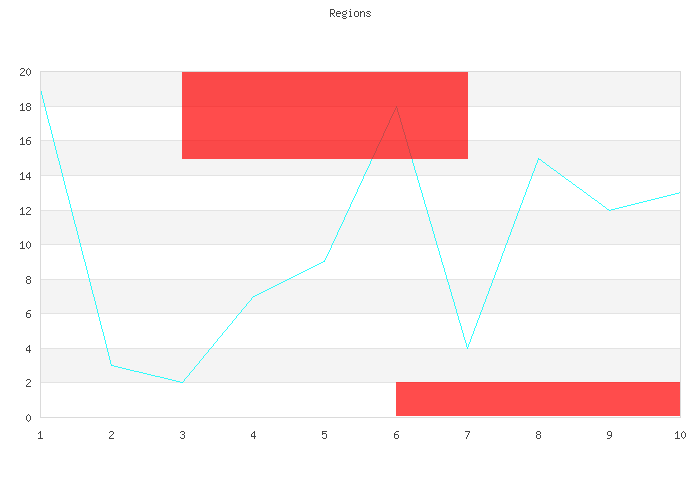

// Finally, a plot with highlighted regions.
$plot->add('line', [$l1], [
    'title' => 'Regions',
    'xseries' => range(1, 10),
    'font' => [FF_FONT1, FS_NORMAL, 8],
    'regions' => [
        ['x' => 3, 'y' => 20, 'x2' => 7, 'y2' => 15, 'color' => 'red@0.3'],
        ['x' => 6, 'y' => 2, 'x2' => 10, 'y2' => 0, 'color' => 'red@0.3']
    ]
]);

// output all charts to a subfolder called 'plotlibtests'.
// this will output two files called 'lines.png' and 'bars.png'.
$plot->output_path('plotlibtests')->render();

Credits

Theo Howell

License

PlotLib is released under the MIT License (MIT). Please see the License File for more information. This licence does not extend to the supplied copy of JPGraph, which has its own licensing agreement.

From the JPGraph package and web site:

JpGraph is released under a dual license. QPL 1.0 (Qt Free License) For non-commercial, open-source or educational use and JpGraph Professional License for commercial use. The professional version also includes additional features and support.

Please see applicable project pages for all external dependancies and their own licensing agreements.

JPGraph

This library utilises the excellent JPGraph as its charting engine.

Both free and pro versions are available. Please see the JPGraph web site for more information.

The author/maintainer of this project is not associated in any way with the development of JPGraph.

PlotLib bundles and utilises its own copy of JPGraph (currently version 4.4.1) which is compatible with PHP 8.0 and later.
