README

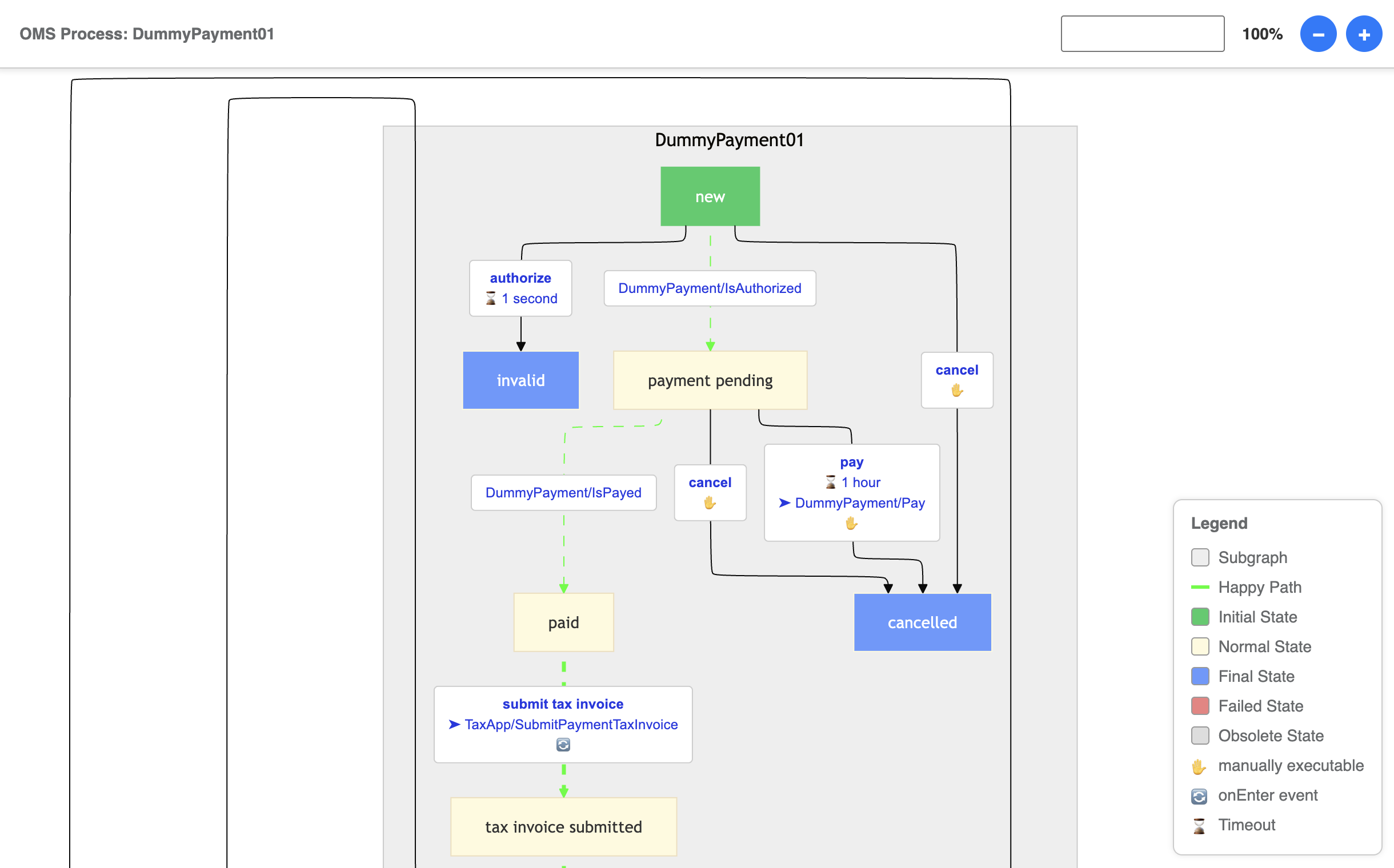

A modern visualization tool for Spryker OMS (Order Management System) process flows. This package provides an enhanced, user-friendly way to visualize and interact with OMS graphs in your Spryker application.

✓ Tested with Spryker B2B-Demoshop 202410.0

Features

Modern, interactive visualization of OMS process flows
Easy integration with existing Spryker projects
Built on Mermaid JS for reliable and attractive graph rendering
Background-, Font- and Graph-Colors can be changed via config
Zoom-In and Zoom-Out
Highlighting Start-, Final-, Failed- and Dead-States

Setup

1. Install Package

Install the package via Composer:

composer require spryker-community/oms-visualizer

2. Integrate ZED Controller

To make the OMS Visualizer accessible through your Spryker application, follow these steps:

Add the SprykerCommunity namespace to CORE_NAMESPACES in your project's config_default.php file:

$config[KernelConstants::CORE_NAMESPACES] = [
    'SprykerShop',
    'SprykerEco',
    'Spryker',
    'SprykerCommunity', // Add this line if not exist
];

Run the following console commands inside the docker/sdk cli to update caches:

console transfer:generate
console cache:empty-all

These commands refresh the router cache, generate transfer objects, and warm up the Twig template cache to ensure your changes take effect.

3. Install Frontend Assets

The OMS Visualizer uses Mermaid JS for graph visualization. Follow these steps to install the necessary frontend dependencies and assets:

Add the spryker-community workspace to the root package.json of your project:

"workspaces": [
   "vendor/spryker/*",
   "vendor/spryker-community/*",
   "vendor/spryker/*/assets/Zed",
   "vendor/spryker-community/*/assets/Zed"
],

Install all JavaScript dependencies from the /vendor/spryker-community directory and compile them for use in your Zed application:

npm install

Create a new file at ./frontend/zed/build.js with the following content:

'use strict';

const oryxForZed = require('@spryker/oryx-for-zed');
const path = require('path');
const api = require('@spryker/oryx-for-zed/lib');
const build = require('@spryker/oryx-for-zed/lib/build');
const copyAssetsCallback = require('@spryker/oryx-for-zed/lib/copy');

// Add the OMS Visualizer package to the build process
oryxForZed.settings.entry.dirs.push(path.resolve('./vendor/spryker-community'));

api.getConfiguration(oryxForZed.settings)
    .then((configuration) => build(configuration, copyAssetsCallback))
    .catch((error) => console.error('An error occurred while creating configuration', error));

Update your project's package.json file to include your ./frontend/zed/build.js as build script:

"scripts": {
   "zed": "node ./frontend/zed/build",
   "other-scripts": "your-other-scripts"
}

Note: Replace "other-scripts" with your existing script entries.

Run the build command to install and compile the frontend assets:

npm run zed

4. Add navigation entry

To have a separate navigation menu for the new OMS Visualizer, copy the content from src/SprykerCommunity/Zed/Communication/navigation.xml into your config/Zed/navigation.xml.

Clear the cache for navigation:

vendor/bin/console application:build-navigation-cache

Troubleshooting

Common Issues

Incompatible Version of Chevrotain

If you encounter errors related to the chevrotain npm module, you may need to install a compatible version:

npm install chevrotain@10.4.1

This resolves a breaking dependency issue that can occur with newer versions of the package.

Usage

After installation, you can access the OMS Visualizer through your Zed application's interface. Navigate to the OMS section to view and interact with your process flow visualizations.

Development

Running Tests

The OMS Visualizer includes a suite of unit tests to ensure code quality and functionality. To run the tests:

Make sure you have installed the development dependencies:

composer install

Run the PHPUnit test suite:

vendor/bin/phpunit

The test suite includes:

Unit tests for the OmsVisualizerFacade
Tests for the FlowChartRenderer
Tests for state styling and creation

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

Support

If you encounter any issues or have questions, please open an issue in the GitHub repository.

License

This package is released under the MIT license.
