README

FlowSense is a Laravel package that provides a developer toolbar and detailed route information. With FlowSense, you can inspect your routes, queries, view data, request info, and performance metrics directly from your browser without leaving your application.

It’s designed for both new developers navigating a large Laravel codebase and experienced developers who want a quick debugging panel.

Features

Route Information: Displays the current route’s URI, controller, method, route name, middleware, and parameters.
Database Queries: Shows executed SQL queries, bindings, execution time, and highlights slow queries.
Performance Metrics: Response time, total DB query time, memory usage, peak memory, PHP version, and Laravel version.
Request Info: HTTP method, URL, query parameters, headers, and cookies.
Views Debugging: Lists views rendered during the request along with the variables passed to each view.
Logs: Displays application logs for the current request.
Collapsible Toolbar: Toolbar can be collapsed/expanded for minimal interference.
Customizable UI: Easily style the toolbar using your application’s accent colors.

Screenshots

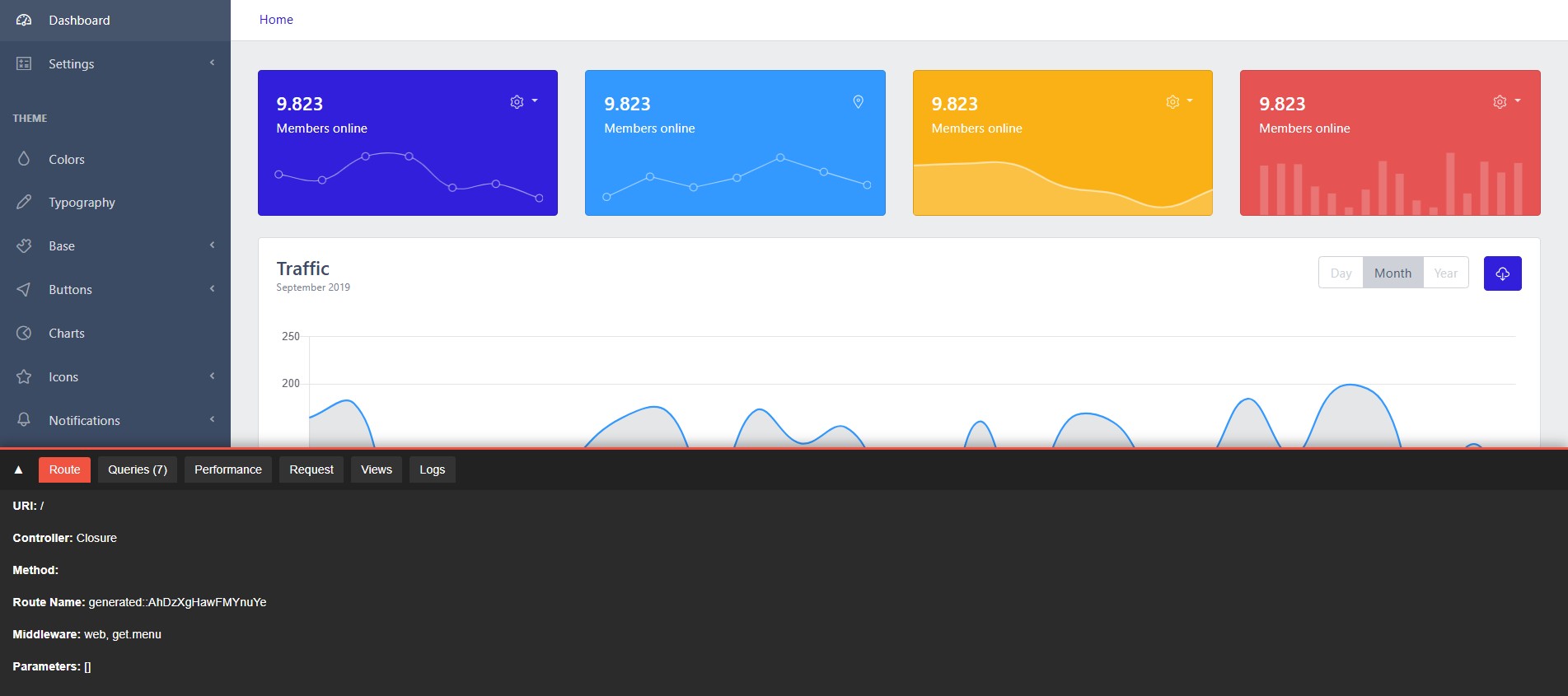

Toolbar

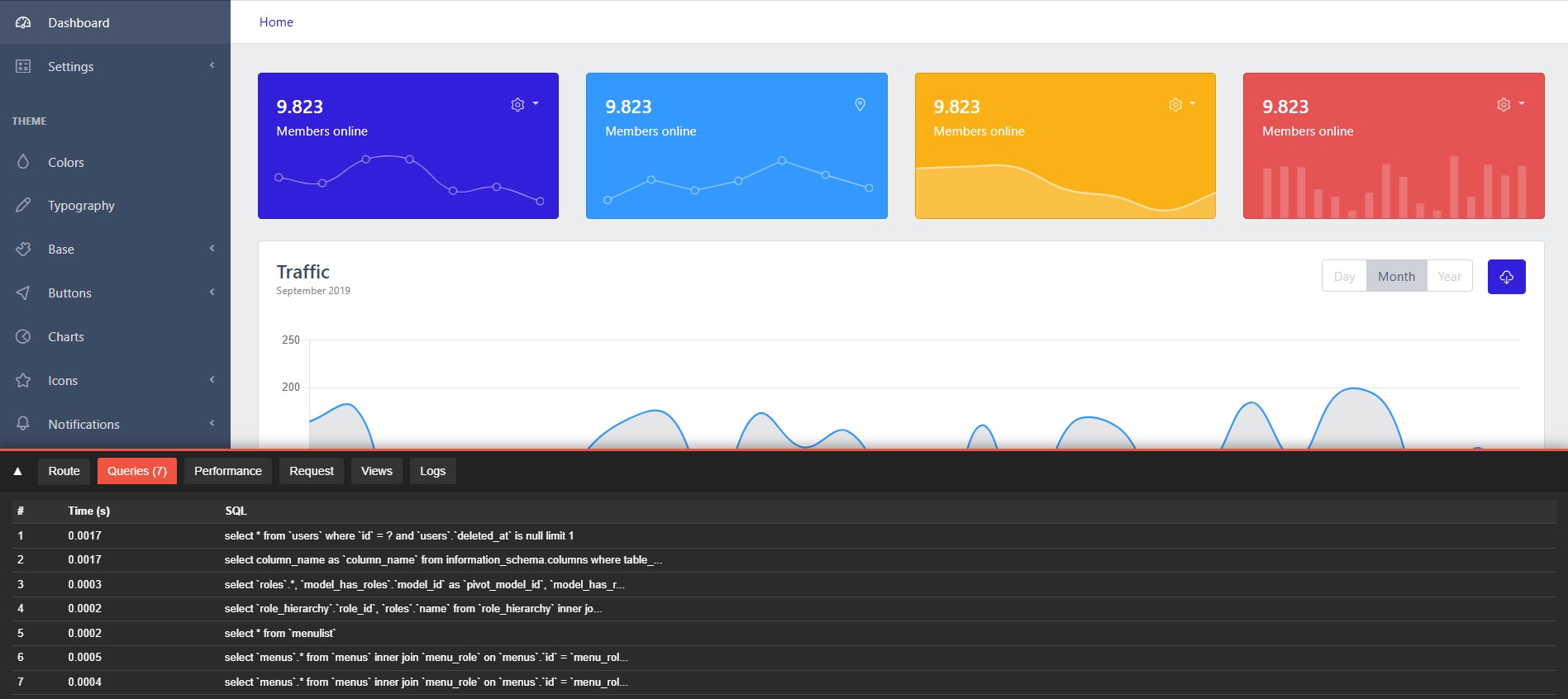

Queries

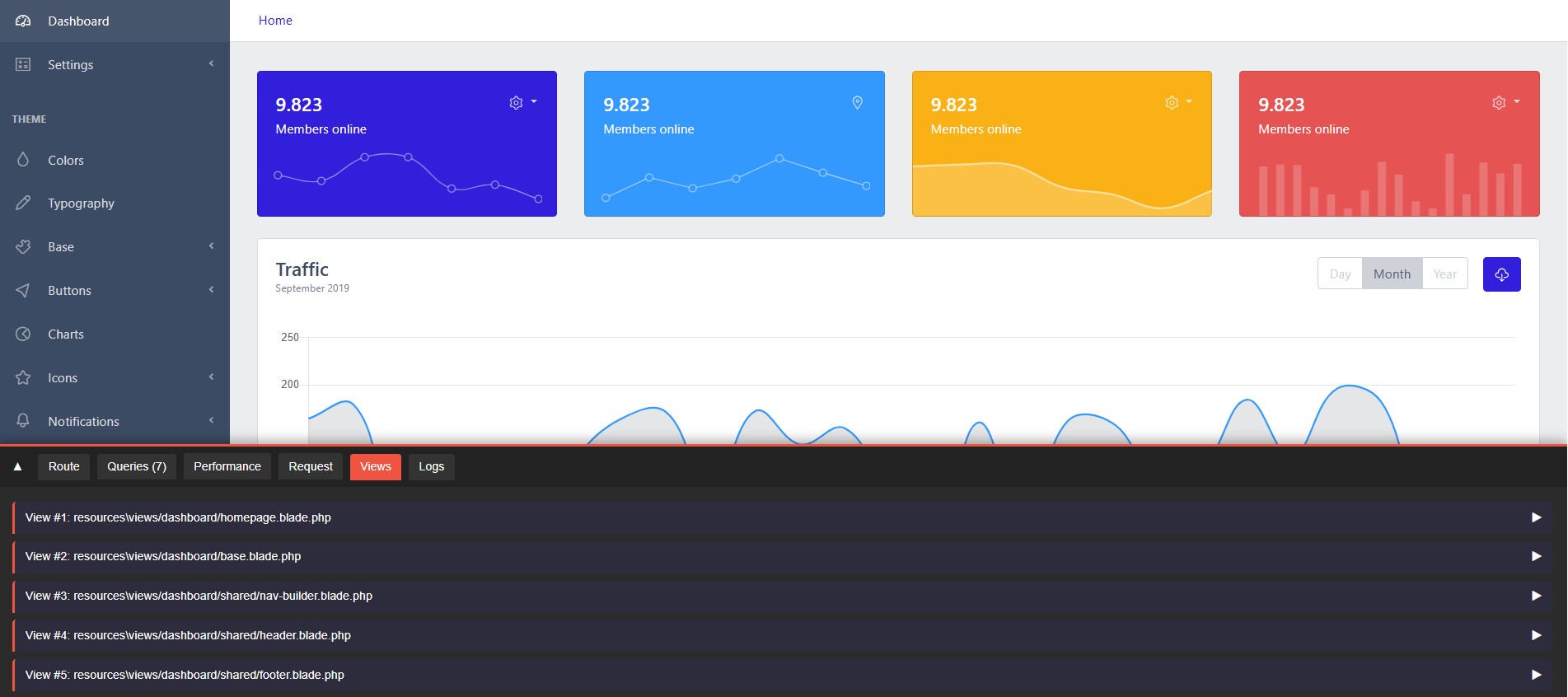

Views

Prerequisites

PHP >= 7.4
Composer
Laravel >= 8.x

Installation

Using Composer

To install FlowSense, add it to your Laravel project via Composer:

 composer require rewaj56/flowsense

Register Service Provider

In Laravel, the package’s service provider should be automatically discovered. If not, add it manually to your config/app.php providers array:

 Rewaj56\Flowsense\Providers\FlowSenseServiceProvider::class,

Add Middleware

The middleware is automatically registered to the web middleware group. Ensure your Kernel.php includes:

protected $middlewareGroups = [
    'web' => [
        // Other middleware...
        \Rewaj56\Flowsense\Http\Middleware\FlowSenseMiddleware::class,
    ],
];

Usage

Once installed, the toolbar appears at the bottom of your application pages. Click the tabs to view:

Route: Current route details
Queries: Executed SQL queries and timings
Performance: Memory, response time, and PHP/Laravel versions
Request: Method, headers, cookies, query parameters
Views: Rendered views with passed variables
Logs: Application logs

You can collapse the toolbar by clicking the arrow on the top-left corner.

Common Issues & Notes

Views Data Empty: If you don’t see variables in the Views tab, ensure you are using View::composer('*', ...) in the ServiceProvider.
Query/SQL Data Missing: Queries are only tracked when app.debug is true.
Asset 404 Errors: If CSS/JS files fail to load, run php artisan vendor:publish --tag=flowsense-assets and ensure public/vendor/flowsense exists.
JS Errors on Page Load: Wrap JS code inside document.addEventListener("DOMContentLoaded", ...) to avoid errors when toolbar elements aren’t yet rendered.
Performance Impact: The toolbar collects queries, views, and logs, so use only in local or debug environments, not in production.

Customization

Toolbar Colors: Update resources/views/vendor/flowsense/css/flowsense-toolbar.css or override styles in your app.
Tabs & Panels: Add/remove tabs by modifying bar.blade.php and the corresponding JS.

License

MIT
