README

Image editor for MoonShine admin panel powered by Filerobot Image Editor. Integrates with MoonShine Media Manager to provide in-browser image editing with automatic optimization and WebP/AVIF conversion.

Features

Full-featured image editor: adjust, annotate, crop, resize, rotate, filters, finetune, watermark
Format selector (PNG/JPG) in modal toolbar — defaults to original format, separate from editor
Automatic optimization on upload via Media Manager events — images are optimized and converted when uploaded through the file manager
Automatic cleanup on delete — WebP/AVIF conversions are removed when the source image is deleted
Admin settings page — manage optimization quality, conversion toggles, and queue settings directly from MoonShine panel (stored in DB)
Batch optimization — scan and re-process existing images with real-time progress bar, detailed logs (webp vs original, avif vs webp), and file filter
Optimization with size comparison (keeps smaller version)
Optional WebP/AVIF conversion with size-aware cleanup
Queue support for async processing
Localization support (EN, RU) via Laravel lang files
No CDN dependencies — all assets are local
Imagick driver support with automatic fallback to GD
Integrates as a file action button in Media Manager

Requirements

PHP 8.2+
Laravel 11+ / 12+
MoonShine 4.x
yurizoom/moonshine-media-manager ^4.0
intervention/image-laravel ^1.0 (installs intervention/image ^3.0 automatically)
PHP Imagick extension (recommended) or GD

Installation

composer require povly/moonshine-image-editor

Image Optimization Dependency

For image optimization and format conversion (WebP/AVIF) to work, install Intervention Image:

composer require intervention/image-laravel

Note: Only intervention/image-laravel is needed — it automatically installs intervention/image as a dependency.

Publish the Intervention Image config (optional):

php artisan vendor:publish --provider="Intervention\Image\Laravel\ServiceProvider"

This creates config/image.php where you can set the default driver (GD or Imagick).

Publish assets:

php artisan vendor:publish --tag=image-editor-assets

Optionally publish config and translations:

php artisan vendor:publish --tag=image-editor-config --tag=image-editor-lang --force

Or everything at once:

php artisan vendor:publish --tag=image-editor-assets --tag=image-editor-config --tag=image-editor-lang --force

Run migrations (creates image_editor_settings table):

php artisan migrate

Setup

1. Register assets

Add the package JS and CSS to your MoonShine layout's assets() method:

use MoonShine\AssetManager\Css;
use MoonShine\AssetManager\Js;

protected function assets(): array
{
    return [
        ...parent::assets(),
        Css::make('/vendor/image-editor/image-editor.css'),
        Js::make('/vendor/image-editor/filerobot-image-editor.min.js'),
        Js::make('/vendor/image-editor/image-editor.js'),
    ];
}

Note: The built-in Image Editor Settings page automatically registers these assets when loaded, so you only need this step if you want the editor modal available on other pages (e.g., Media Manager).

2. Render the editor modal

Add the modal to your layout's getContentComponents() method:

use MoonShine\UI\Components\FlexibleRender;
use Povly\MoonShineImageEditor\Support\ImageEditorRenderer;

protected function getContentComponents(): array
{
    return [
        ...parent::getContentComponents(),
        FlexibleRender::make(
            app(ImageEditorRenderer::class)->renderModal(),
        ),
    ];
}

Alternatively, the legacy static helper still works:

FlexibleRender::make(
    \Povly\MoonShineImageEditor\ImageEditorServiceProvider::renderModal(),
);

The "Edit Image" button automatically appears in the Media Manager for image files. The listeners for upload optimization and delete cleanup are registered automatically — no additional setup required.

3. Image driver (recommended)

For best PNG optimization, install the Imagick PHP extension:

# Arch / CachyOS
sudo pacman -S php-imagick
echo 'extension = imagick' | sudo tee /etc/php/conf.d/imagick.ini

# Ubuntu / Debian
sudo apt install php-imagick

The package auto-detects the driver — if Imagick is available it will be used, otherwise GD. You can also configure it explicitly in config/image.php:

return [
    'driver' => extension_loaded('imagick')
        ? \Intervention\Image\Drivers\Imagick\Driver::class
        : \Intervention\Image\Drivers\Gd\Driver::class,
];

Note: GD cannot optimize PNG effectively — it often makes files larger. Imagick is strongly recommended for PNG support.

Configuration

Settings can be managed from the MoonShine admin panel (recommended) or via the config file. Database settings override config values at runtime.

Publish the config file (optional):

php artisan vendor:publish --tag=image-editor-config

// config/moonshine/image_editor.php
return [
    'available_formats' => ['png', 'jpg'],
    'quality' => ['jpg' => 82],
    'optimize' => [
        'enabled' => true,
        'strip_metadata' => true,
        'max_width' => null,
        'max_height' => null,
    ],
    'convert' => [
        'webp' => ['enabled' => false, 'quality' => 80],
        'avif' => ['enabled' => false, 'quality' => 65],
    ],
    'queue' => [
        'enabled' => false,
        'connection' => null,
        'queue' => 'images',
        'delay' => 60,
    ],
    'default_tabs' => ['Adjust', 'Annotate', 'Watermark', 'Finetune', 'Filters'],
    'default_tab' => null,
    'default_tool' => null,
    'overwrite_original' => false,
    'locale' => null,
    'theme' => [...],
    'watermark_gallery' => [],
];

Config Options

Option	Default	Description
`available_formats`	`['png', 'jpg']`	Formats shown in the save dialog
`quality.jpg`	`82`	JPG quality (1–100). PNG is lossless, no quality setting.
`optimize.enabled`	`true`	Enable post-save optimization
`optimize.strip_metadata`	`true`	Strip EXIF/IPTC metadata
`optimize.max_width`	`null`	Max width (keeps aspect ratio)
`optimize.max_height`	`null`	Max height (keeps aspect ratio)
`convert.webp.enabled`	`false`	Generate WebP version
`convert.webp.quality`	`80`	WebP quality (1–100)
`convert.avif.enabled`	`false`	Generate AVIF version
`convert.avif.quality`	`65`	AVIF quality (1–100)
`queue.enabled`	`false`	Offload optimization to queue
`queue.delay`	`60`	Delay in seconds before processing
`default_tabs`	`['Adjust', ...]`	Visible editor tabs
`overwrite_original`	`false`	Overwrite original or save with `-edited` suffix
`locale`	`null`	Editor language (`null` = auto-detect)

Localization

Translations are loaded from the package automatically. Supported languages:

en — English (default)
ru — Russian

To override translations, publish them:

php artisan vendor:publish --tag=image-editor-lang

Files will be published to lang/vendor/image-editor/en/ and lang/vendor/image-editor/ru/.

How It Works

Image Editor

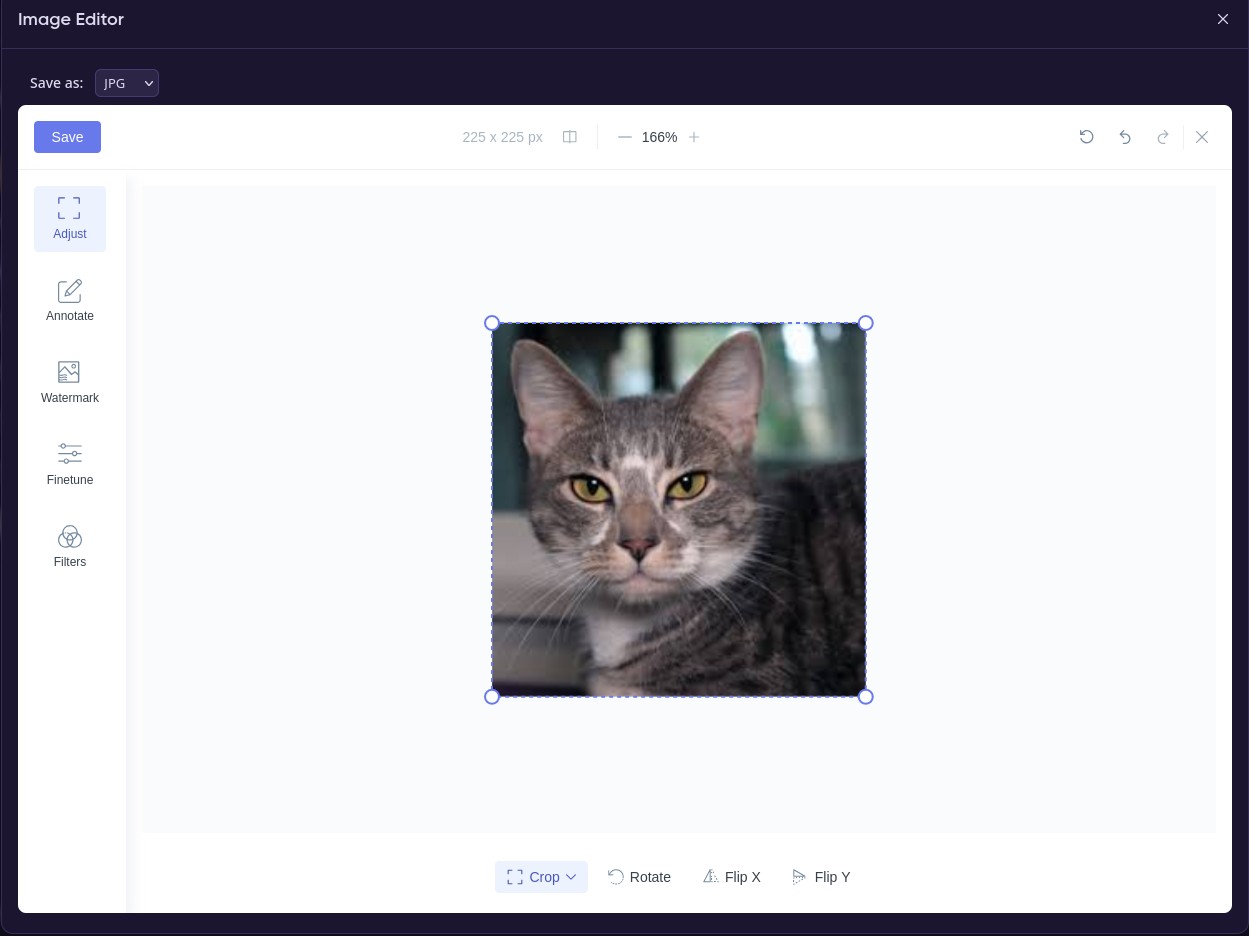

User clicks the "Edit Image" button in Media Manager
A modal opens with the format selector toolbar and Filerobot Image Editor
The format selector defaults to the original image format
User edits the image (crop, filters, text, etc.)
On save, the selected format is used — image is uploaded to the same directory as the original
If overwrite_original is false (default), the file is saved with a -edited suffix
Post-save: optimization runs, WebP/AVIF generated if enabled
Size comparison: if optimized/conversion is larger → smaller version is kept

Automatic Upload Optimization

When a user uploads an image through the Media Manager:

MediaManagerFileUploaded event fires
OptimizeUploadedImage listener detects image files (jpg, png, gif, webp, avif)
Image is optimized (strip metadata, resize if configured)
WebP/AVIF versions generated if enabled
Supports queue for async processing

Automatic Delete Cleanup

When a user deletes an image through the Media Manager:

MediaManagerFileDeleted event fires
DeleteImageConversions listener finds associated .webp and .avif files
Conversion files are removed automatically

Size Comparison Logic

Optimized file  ≥ original size?  → keep original
WebP            ≥ original size?  → delete WebP
AVIF            ≥ WebP size?      → delete AVIF
  (or ≥ original if no WebP)

Admin Settings Page

The package adds a "Image Editor Settings" page to the MoonShine sidebar with two tabs:

Settings Tab

Configure optimization and conversion parameters stored in the database:

Quality — JPG, WebP, AVIF quality (1–100)
Conversion — enable/disable WebP and AVIF generation
Optimization — strip metadata, max width/height
Queue — enable async processing, delay

Settings are applied to the config at runtime on each request, so changes take effect immediately without editing config files.

Batch Optimization Tab

Re-process existing images with current settings:

Choose filter: All images (recreate conversions) or Only without conversions (skip files that already have webp/avif)
Scan files — shows count of matching originals (jpg/png/gif)
Start processing — runs via Laravel Bus::batch on the images queue
Real-time progress bar with processed/total counter
Detailed log showing per-file results:
- Original: photo.jpg (100 KB → 95 KB, -5%)
- WebP conversion: → photo.webp (95 KB → 50 KB, -47.4%, vs original)
- AVIF conversion: → photo.avif (50 KB → 30 KB, -40%, vs webp)
- Automatic deletion: → photo.webp deleted (larger than original)

Queue Worker Setup

For batch processing (and async optimization), run a queue worker:

php artisan queue:work --queue=images

For production, use Supervisor to keep the worker running:

# /etc/supervisor/conf.d/moonshine-worker.conf
[program:moonshine-worker]
process_name=%(program_name)s_%(process_num)02d
command=php /var/www/moonshine/artisan queue:work --queue=images --sleep=3 --tries=3 --max-time=3600
autostart=true
autorestart=true
stopasgroup=true
killasgroup=true
user=http
numprocs=1
redirect_stderr=true
stdout_logfile=/var/www/moonshine/storage/logs/worker.log
stopwaitsecs=3600

Format Conversion Flow

Filerobot always exports PNG regardless of the user's format choice. The server handles format conversion:

PNG → PNG: re-encode to optimize file size (requires Imagick for effective compression)
PNG → JPG: convert with configurable quality, progressive encoding, metadata stripping
JPG → PNG: convert to lossless format
Same format: optimize only (strip metadata, resize if configured)

Artisan Commands

Command	Description
`image-editor:optimize {path} --disk=public --queue`	Optimize a single image and generate conversions. Use `--queue` to dispatch async.
`image-editor:clear-conversions --disk=public --path= --dry-run`	Remove orphan WebP/AVIF files where the original image no longer exists. Use `--dry-run` to preview.
`image-editor:reset-settings`	Reset image editor settings stored in DB back to config defaults.

# Optimize a single image
php artisan image-editor:optimize banners/photo.jpg

# Optimize on a specific disk, async
php artisan image-editor:optimize banners/photo.jpg --disk=s3 --queue

# Find orphan conversions in a directory
php artisan image-editor:clear-conversions --path=banners --dry-run

# Delete all orphan conversions
php artisan image-editor:clear-conversions

# Reset settings to defaults
php artisan image-editor:reset-settings

Security

All controller endpoints are protected by MoonShine auth middleware. Additionally:

Settings whitelist — only predefined keys are accepted (quality, convert, optimize, queue), unknown keys are silently ignored
Path traversal protection — ../ and url-encoded variants are rejected in source paths
File type validation — only image extensions (jpg, jpeg, png, gif, webp, avif) are processed
Batch limit — max 500 files per batch operation
Settings validation — quality values clamped to 1–100, dimensions capped at 10000px, types enforced

Publishing

Tag	Description
`image-editor-assets`	JS and CSS files to `public/vendor/image-editor/`
`image-editor-config`	Config to `config/moonshine/image_editor.php`
`image-editor-lang`	Translations to `lang/vendor/image-editor/`
`image-editor-migrations`	Migrations to `database/migrations/`

Note: Migrations run automatically from the package via loadMigrationsFrom() when you run php artisan migrate. If you need to customize them or prefer having them in your project's database/migrations/ directory, publish them explicitly:
php artisan vendor:publish --tag=image-editor-migrations

License

MIT

This package uses Intervention Image for server-side image processing (optimization, format conversion, WebP/AVIF generation).
