A tool to create dependency related visualizations based on raw-data created via the callmap plugin for PHPStan.

To create the raw-data required you will need to run these commands:

# Install PHPStan
composer require --dev phpstan/phpstan
# Install callmap-plugin
composer require --dev phpdepend/callmap
# parse the sources and generate the callmap.json file
./vendor/bin/phpstan analyse -c vendor/phpdepend/callmap/callmap.neon [path/to/your/sources]

This will create a file callmap.json in your current working directory which is the base for all following commands.

Installation

PHPDepend can be installed via

composer

Installation via composer is straightforward

composer require --dev phpdepend/phpdepend

This will make PHPDepend available via ./vendor/bin/phpdepend

phive

Installation via phive is also possible. This will especially check the signature matches so that you can trust that the downloaded PHAR is the one that was signed during the build.

phive install phpdepend/phpdepend

This will make PHPDepend available via ./tools/phpdepend

PHAR-Download

You can also download the latest PHAR file from the relase-page.

curl -LO https://api.getlatestassets/github/phpdepend/phpdepend/phpdepend.phar
chmod a+x phpdepend.phar

This will make PHPDepend available via ./phpdepend.phar

Dependency Matrix

Create a dependency matrix to see what part of your application is depending on what other parts.

Usage:

phpdepend matrix <path/to/callmap.json>

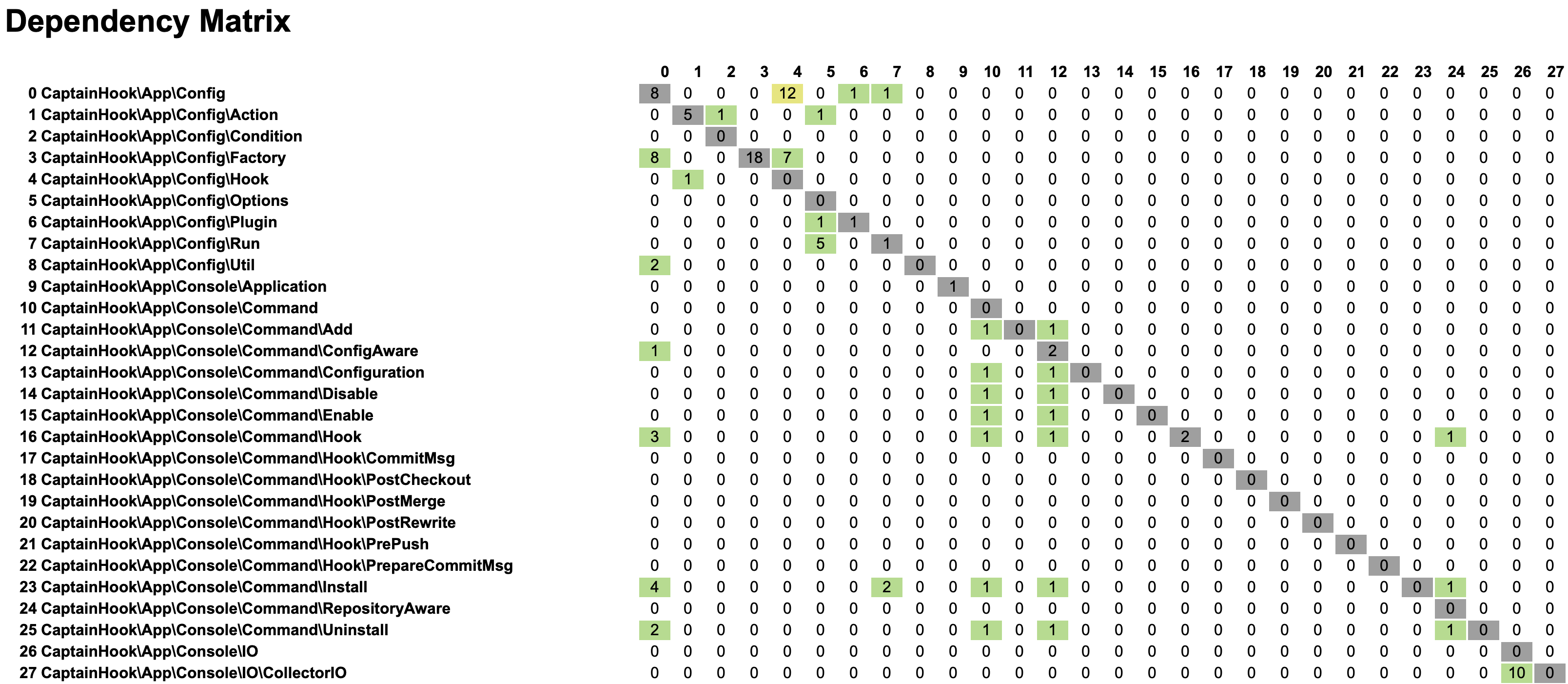

This will create a HTML-file in the current folder whose content looks like this:

Dependency Graph

Create an overview of your applications method-calls. Graph generates a PlantUML file from a CallMap-JSON file.

Usage

phpdepend graph <path/to/callmap.json>

This will generate a PlantUML file callmap.plantuml in the current directory.

You can use this file to generate a PNG os SVG using a PlantUML renderer like at http://www.plantuml.com/plantuml/uml/

Alternatively you can use the plantuml-docker image like this:

# Render a PNG file from the callmap.plantuml file
docker run -v "$(pwd):/app" -w "/app" ghcr.io/plantuml/plantuml callmap.plantuml

For the phpdepend/callmap plugin that should generate something like this:
