oronts/asset-pilot-bundle

Intelligent Rule-Based Asset Organization for Pimcore 12

Features • Installation • Configuration • Examples • Path Templates • Expression Language • Commands • REST API • Permissions • Studio UI • Extending • Testing

Asset Pilot automates the organization of Pimcore assets based on configurable rules. When a DataObject is saved, Asset Pilot evaluates its asset fields against a priority-ordered rule set, resolves target paths from Twig templates, and moves files into a structured folder hierarchy. It handles localized fields, supports async processing via Symfony Messenger, logs every operation to an audit trail, and ships with a full Studio UI dashboard.

Features

Rule Engine — Priority-based rule matching with class filtering, field targeting, expression conditions, and asset filters (type, size, extension). Rules are evaluated top-down; all matching rules produce move operations.

Twig Path Templates — Target paths use full Twig syntax with pre-resolved context variables (object, asset, locale, className) and custom filters (safe_key, pluck, first_of, slug, fallback).

Expression Language Conditions — Rules support Symfony ExpressionLanguage conditions with 9 built-in functions: asset_type(), asset_size(), asset_extension(), object_class(), is_image(), is_video(), is_document(), has_property(), path_matches().

Move Strategies — Three conflict resolution strategies: always (move on every save), first_assignment (move only when no prior audit log exists), callback (delegate to a custom service).

Async Processing — Asset moves dispatch to Symfony Messenger queues with transport-level deduplication via DeduplicateStamp. Bulk operations run in configurable batch sizes.

Localized Field Support — Automatically detects localized asset fields and includes the locale in path resolution, producing per-language folder structures.

Audit Log — Every move operation is logged to asset_pilot_audit_log with source/target paths, duration, status, trigger type, and timestamps. Supports CSV export, operation reversal, and per-rule asset history.

Unused Asset Detection — Finds assets not referenced by any DataObject or Document. Filter by type, extension, date range, folder, file size, and confidence level. Bulk delete or move.

Confidence Scoring — Unused assets are classified into five confidence levels: definitely unused (>90 days), probably unused (30-90 days), recently uploaded (<30 days), historically used (has audit history), and protected (locked). Color-coded badges in the UI help prioritize cleanup.

Asset Protection — Lock individual assets from organization via the asset_pilot_locked property. Configure folder-level exclusions to protect entire directory trees.

Search by Related Object — Find all assets referenced by a specific DataObject via the Pimcore dependencies table. Browse assets moved by a specific rule with optional date and class filters.

Permissions Model — Three granular permission levels: asset_pilot_view (read-only), asset_pilot_operate (lock/unlock, bulk actions, organize), asset_pilot_admin (revert operations). Registered natively in Pimcore via the installer.

Idempotency Hardening — Multi-layer duplicate protection: Redis-backed loop guard (prevents re-entry and async ping-pong), stale job detection (compares dispatch time vs. object modification), already-at-target skip, and Symfony Messenger DeduplicateStamp (prevents transport-level duplicates).

Loop Prevention — Cache-backed guard prevents infinite recursion when asset moves trigger DataObject saves. Includes a 5-minute cooldown for recently-moved assets and 10-second dispatch deduplication.

Config Validation — CLI command validates all rules: class existence, field names, condition syntax, Twig template compilation, callback service registration, filter values, and duplicate priority warnings.

Rule Debugger — Step-by-step rule evaluation trace per object/asset pair. Shows why each rule matched or was skipped (disabled, class mismatch, field mismatch, condition failed, filter rejected).

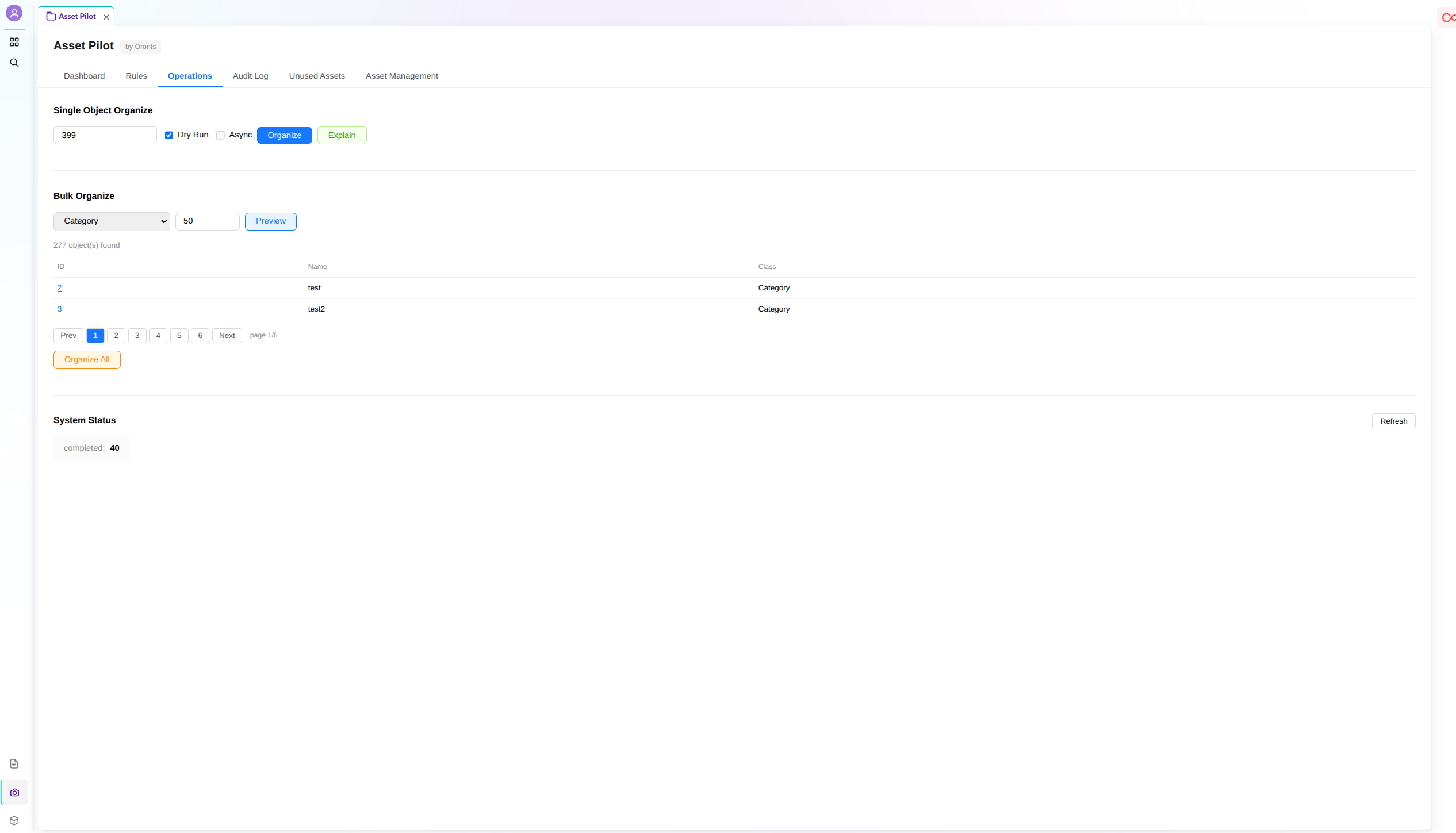

Studio UI Integration — Full React dashboard integrated into Pimcore Studio via Module Federation. Six tabs: Dashboard, Rules, Operations, Audit Log, Unused Assets, Asset Management.

Architecture

flowchart TD
    subgraph Trigger
        A([DataObject saved / Asset uploaded])
    end

    subgraph EventListener
        B{Bundle enabled?}
        C{Object class allowed?}
        D{Async enabled?}
        E["Dispatch OrganizeAssetsMessage
        to Messenger queue
        with DeduplicateStamp"]
        F[Call AssetOrganizer directly]
    end

    subgraph AssetOrganizer
        G["Check LoopGuard (prevent re-entry)"]
        H{Already processing?}
        I["Check asset_pilot_locked property"]
        J{Asset locked?}
        K[Skip — log as skipped]
        L[Mark object as processing]
    end

    subgraph AssetFieldExtractor
        M[Scan all object fields]
        N["Return AssetFieldInfo[ ]"]
    end

    subgraph RuleEngine
        O[Load rules sorted by priority desc]
        P{Class matches?}
        Q{Field matches?}
        R{Condition passes?}
        S{Filters accept?}
        T["Create RuleMatch"]
        U["Return RuleMatch[ ]"]
    end

    subgraph PathResolver
        V["Render Twig template
        with object/asset context"]
        W[Sanitize path segments]
        X[Return resolved path]
    end

    subgraph StrategyResolver
        Y{Strategy type?}
        Z[Proceed with move]
        AA{Audit log exists?}
        AB[Skip — already assigned]
        AC[Delegate to custom service]
    end

    subgraph MoveExecution
        AD["Dispatch PRE_MOVE event"]
        AE{Event cancelled?}
        AF["Generate safe filename (NamingStrategy)"]
        AG[Move asset to target path]
        AH["Dispatch POST_MOVE event"]
    end

    subgraph AuditLogger
        AI["Log operation to
        asset_pilot_audit_log
        (asset, object, paths, status, duration)"]
    end

    A --> B
    B -- yes --> C
    B -- no --> STOP1([Stop])
    C -- yes --> D
    C -- no --> STOP2([Stop])
    D -- yes --> E
    D -- no --> F
    E --> G
    F --> G
    G --> H
    H -- yes --> STOP3([Stop])
    H -- no --> I
    I --> J
    J -- yes --> K --> STOP4([Stop])
    J -- no --> L

    L --> M
    M --> N

    N --> O
    O --> P
    P -- yes --> Q
    P -- no --> O
    Q -- yes --> R
    Q -- no --> O
    R -- yes --> S
    R -- no --> O
    S -- yes --> T --> O
    S -- no --> O
    O -. all assets and rules evaluated .-> U

    U --> V --> W --> X

    X --> Y
    Y -- always --> Z
    Y -- first_assignment --> AA
    Y -- callback --> AC
    AA -- yes --> AB --> STOP5([Stop])
    AA -- no --> Z
    AC --> Z

    Z --> AD --> AE
    AE -- yes --> STOP6([Stop])
    AE -- no --> AF --> AG --> AH

    AH --> AI

    style Trigger fill:#E8F4FD,stroke:#333
    style EventListener fill:#E8F4FD,stroke:#333
    style AssetOrganizer fill:#E8F4FD,stroke:#333
    style AssetFieldExtractor fill:#E8F4FD,stroke:#333
    style RuleEngine fill:#E8F4FD,stroke:#333
    style PathResolver fill:#E8F4FD,stroke:#333
    style StrategyResolver fill:#E8F4FD,stroke:#333
    style MoveExecution fill:#E8F4FD,stroke:#333
    style AuditLogger fill:#E8F4FD,stroke:#333

Note: Extracts assets from: image, video, document fields · gallery, hotspotimage fields · relation fields (many-to-one, many-to-many) · localized fields (all locales)

src/
├── Audit/                  AuditLogger — database-backed operation logging
├── Command/                CLI: organize, debug-rule, validate-config, status, audit, cleanup-unused
├── Condition/              ConditionEvaluatorInterface + ExpressionLanguage impl
├── Controller/Api/         REST API controllers (6 controllers, 25+ endpoints)
├── DependencyInjection/    Bundle configuration tree + service loading
├── Dto/                    API request/response DTOs
├── Engine/                 RuleEngine — core matching + explain logic
├── Enum/                   MoveStrategy, OperationStatus, TriggerType, AssetPilotPermission
├── Event/                  AssetMoveEvent + event constants
├── EventListener/          DataObject save + Asset upload listeners (with DeduplicateStamp)
├── Filter/                 AssetFilterInterface + type/size/extension/composite
├── Message/                Messenger messages: OrganizeAssets, BulkOrganize
├── MessageHandler/         Async handlers with stale job detection
├── Model/                  Rule, RuleMatch, RuleEvaluation, MoveOperation, OperationResult
├── Naming/                 NamingStrategyInterface + SafeNamingStrategy
├── PathResolver/           PathResolverInterface + Twig TemplatePathResolver
├── Service/                AssetOrganizer, AssetFieldExtractor, AssetSearchService,
│                           AssetPropertyService, UnusedAssetFinder, ConfidenceScorer,
│                           ConfigValidator, LoopGuard
├── Strategy/               ConflictStrategyInterface + Always/FirstAssignment/Callback
├── Webpack/                Module Federation entry point provider
├── Installer.php           Database schema + permission registration
└── OrontsAssetPilotBundle.php

Installation

1. Require the package

composer require oronts/asset-pilot-bundle

2. Enable the bundle

Add to config/bundles.php:

return [
    // ...
    Oronts\AssetPilotBundle\OrontsAssetPilotBundle::class => ['all' => true],
];

3. Install the database table and permissions

bin/console pimcore:bundle:install OrontsAssetPilotBundle

This creates:

The asset_pilot_audit_log table with indexes on asset_id, object_id, rule_name, status, and created_at
Three Pimcore permissions: asset_pilot_view, asset_pilot_operate, asset_pilot_admin

4. Configure Messenger transport

Add the transport and routing to config/packages/messenger.yaml:

framework:
    messenger:
        transports:
            asset_pilot:
                dsn: '%messenger.dsn%/asset_pilot'
                retry_strategy:
                    max_retries: 3
                    delay: 2000
                    multiplier: 3
                    max_delay: 30000

        routing:
            'Oronts\AssetPilotBundle\Message\OrganizeAssetsMessage': asset_pilot
            'Oronts\AssetPilotBundle\Message\BulkOrganizeMessage': asset_pilot

5. Configure Symfony Lock (required for message deduplication)

# config/packages/lock.yaml
framework:
    lock: 'redis://%env(REDIS_HOST)%'

6. Build the Studio UI assets

bin/console assets:install
bin/console cache:clear

Configuration

Create config/packages/oronts_asset_pilot.yaml:

oronts_asset_pilot:
    enabled: true

    rules:
        product_images:
            class: Product
            fields: [images, galleryImages]
            condition: 'object.getItemNumber() != null'
            target_path: '/Products/{{ object.getItemNumber() }}/Images'
            strategy: always
            priority: 100
            filters:
                types: [image]
                max_size: 52428800

        product_documents:
            class: Product
            fields: [datasheet, manual, brochure]
            target_path: '/Products/{{ object.getItemNumber() }}/Documents{{ locale ? "/" ~ locale : "" }}'
            strategy: always
            priority: 70

    strategies:
        default: always

    naming:
        collision_pattern: counter
        slugify: true

    async:
        enabled: true
        batch_size: 50

    audit:
        enabled: true
        retention_days: 90

    protection:
        exclude_folders:
            - /Protected/
            - /Manual/
        lock_property: asset_pilot_locked

    logging:
        channel: asset_pilot

Configuration Reference

Key	Type	Default	Description
`enabled`	`bool`	`true`	Global on/off switch
`rules`	`map`	`[]`	Named rule definitions (see below)
`strategies.default`	`enum`	`always`	Default strategy: `always`, `first_assignment`, `callback`
`naming.collision_pattern`	`enum`	`counter`	Filename collision resolution: `counter`, `timestamp`, `uuid`
`naming.slugify`	`bool`	`true`	Slugify filenames during organization
`async.enabled`	`bool`	`true`	Dispatch moves via Symfony Messenger
`async.batch_size`	`int`	`50`	Operations per batch message
`audit.enabled`	`bool`	`true`	Enable audit logging
`audit.retention_days`	`int`	`90`	Days to retain audit entries
`protection.exclude_folders`	`string[]`	`[]`	Folders excluded from organization (e.g., `["/Protected/"]`)
`protection.lock_property`	`string`	`asset_pilot_locked`	Custom property name used to lock assets
`logging.channel`	`string`	`asset_pilot`	Monolog channel name

Rule Options

Key	Type	Required	Default	Description
`class`	`string`	yes	—	DataObject class name or `*` for wildcard
`fields`	`string[]`	no	`[]`	Field names to match. Empty = all asset fields
`condition`	`string`	no	`null`	ExpressionLanguage condition
`target_path`	`string`	yes	—	Twig path template
`strategy`	`enum`	no	`always`	`always`, `first_assignment`, `callback`
`callback`	`string`	no	`null`	Service ID (required when strategy is `callback`)
`priority`	`int`	no	`10`	Higher values match first
`enabled`	`bool`	no	`true`	Enable/disable individual rules
`filters.types`	`string[]`	no	`[]`	Asset types: `image`, `video`, `document`, etc.
`filters.min_size`	`int`	no	`null`	Minimum file size in bytes
`filters.max_size`	`int`	no	`null`	Maximum file size in bytes
`filters.extensions`	`string[]`	no	`[]`	Allowed file extensions

Configuration Examples

E-commerce: Product Assets by Item Number

Organize product images and documents into folders named by item number. Localized documents (datasheets, manuals) get a locale subfolder.

oronts_asset_pilot:
    rules:
        product_images:
            class: Product
            fields: [images, galleryImages, thumbnails]
            condition: 'object.getItemNumber() != null'
            target_path: '/Products/{{ object.getItemNumber() }}/Images'
            strategy: always
            priority: 100
            filters:
                types: [image]
                extensions: [jpg, png, webp]
                max_size: 52428800

        product_documents:
            class: Product
            fields: [datasheet, manual, brochure]
            condition: 'object.getItemNumber() != null'
            target_path: '/Products/{{ object.getItemNumber() }}/Documents{{ locale ? "/" ~ locale : "" }}'
            strategy: always
            priority: 80

        product_videos:
            class: Product
            fields: [productVideo, tutorialVideo]
            target_path: '/Products/{{ object.getItemNumber() }}/Media'
            strategy: always
            priority: 60
            filters:
                types: [video]

Resulting folder structure:

/Products/
├── ART-10042/
│   ├── Images/
│   │   ├── product-front.jpg
│   │   └── product-back.png
│   ├── Documents/
│   │   ├── en/
│   │   │   └── datasheet-en.pdf
│   │   └── de/
│   │       └── datasheet-de.pdf
│   └── Media/
│       └── tutorial.mp4
└── ART-10043/
    └── ...

Category-Based Hierarchy

Organize assets into folders derived from the object's category relation. Uses first_of to grab the category key, with a fallback for uncategorized products.

oronts_asset_pilot:
    rules:
        category_images:
            class: Product
            fields: [images]
            target_path: >-
                /Catalog/{{ object.getCategories()|first_of("key", "Uncategorized") }}/{{ object.getItemNumber()|fallback("unknown") }}/Images
            strategy: always
            priority: 100
            filters:
                types: [image]

        category_documents:
            class: Product
            fields: [datasheet, certificate]
            target_path: >-
                /Catalog/{{ object.getCategories()|first_of("key", "Uncategorized") }}/{{ object.getItemNumber()|fallback("unknown") }}/Docs{{ locale ? "/" ~ locale : "" }}
            strategy: always
            priority: 80

Resulting folder structure:

/Catalog/
├── Electronics/
│   ├── ART-10042/
│   │   ├── Images/
│   │   └── Docs/
│   │       ├── en/
│   │       └── de/
│   └── ART-10043/
│       └── ...
├── Furniture/
│   └── ...
└── Uncategorized/
    └── ...

Multi-Class Setup

Apply rules to different DataObject classes. Use the * wildcard to create a catch-all rule for any class that doesn't have a specific rule.

oronts_asset_pilot:
    rules:
        product_assets:
            class: Product
            target_path: '/Products/{{ object.getItemNumber()|fallback(object.getKey()) }}/Assets'
            strategy: always
            priority: 100
            filters:
                types: [image, document]

        category_banners:
            class: Category
            fields: [bannerImage, icon]
            target_path: '/Categories/{{ object.getKey() }}'
            strategy: first_assignment
            priority: 90
            filters:
                types: [image]

        brand_logos:
            class: Brand
            fields: [logo, headerImage]
            target_path: '/Brands/{{ object.getName()|slug }}'
            strategy: first_assignment
            priority: 80

        catch_all:
            class: '*'
            target_path: '/Assets/{{ className }}/{{ object.getKey()|safe_key }}'
            strategy: always
            priority: 1

First Assignment Strategy

Use first_assignment when assets should only be organized on first save. Once moved, they stay put even if the object is updated. Useful for QR codes, generated certificates, or any asset that should not be relocated after initial placement.

oronts_asset_pilot:
    rules:
        generated_qrcode:
            class: Product
            fields: [qrCode]
            target_path: '/Products/{{ object.getItemNumber() }}/QR{{ locale ? "/" ~ locale : "" }}'
            strategy: first_assignment
            priority: 50
            filters:
                types: [image]

        certificates:
            class: Product
            fields: [certificate, testReport]
            target_path: '/Products/{{ object.getItemNumber() }}/Certificates'
            strategy: first_assignment
            priority: 40
            filters:
                types: [document]
                extensions: [pdf]

Callback Strategy with Custom Logic

Delegate the move decision to a custom service. The service receives the asset, object, and rule, and returns true to proceed or false to skip.

oronts_asset_pilot:
    rules:
        conditional_move:
            class: Product
            target_path: '/Products/{{ object.getItemNumber() }}/Images'
            strategy: callback
            callback: App\AssetPilot\Strategy\ApprovalStrategy
            priority: 100

// src/AssetPilot/Strategy/ApprovalStrategy.php
class ApprovalStrategy implements ConflictStrategyInterface
{
    public function resolve(Asset $asset, AbstractObject $object, Rule $rule): bool
    {
        // Only move assets for published objects
        if ($object instanceof Concrete && !$object->isPublished()) {
            return false;
        }

        // Only move during business hours
        $hour = (int) date('H');
        return $hour >= 8 && $hour < 18;
    }

    public function supports(MoveStrategy $strategy): bool
    {
        return $strategy === MoveStrategy::Callback;
    }
}

Sync Mode (No Messenger Queue)

Disable async processing to move assets immediately during the save request. Suitable for development environments or small catalogs where move operations are fast.

oronts_asset_pilot:
    async:
        enabled: false

    rules:
        product_images:
            class: Product
            target_path: '/Products/{{ object.getKey() }}/Images'
            strategy: always
            priority: 10

Asset Protection

Lock specific folders from automation and configure the lock property name.

oronts_asset_pilot:
    protection:
        exclude_folders:
            - /Protected/
            - /Manual/
            - /Brand-Assets/
        lock_property: asset_pilot_locked

Assets in excluded folders are never processed. Individual assets can be locked/unlocked via the API (POST /assets/{id}/lock, DELETE /assets/{id}/lock) or the Studio UI.

Date-Based Organization

Organize uploads by year and month. Useful for editorial content, blog posts, or any time-based content.

oronts_asset_pilot:
    rules:
        blog_images:
            class: BlogPost
            fields: [heroImage, contentImages]
            target_path: '/Blog/{{ date.format("Y") }}/{{ date.format("m") }}/{{ object.getKey()|slug }}'
            strategy: always
            priority: 100
            filters:
                types: [image]

        news_attachments:
            class: NewsArticle
            target_path: '/News/{{ date.format("Y/m/d") }}/{{ object.getKey()|slug }}'
            strategy: always
            priority: 90

Restrictive Filters

Combine type, extension, and size filters to tightly control which assets a rule processes.

oronts_asset_pilot:
    rules:
        high_res_photos:
            class: Product
            fields: [images]
            target_path: '/Products/{{ object.getItemNumber() }}/HighRes'
            strategy: always
            priority: 100
            filters:
                types: [image]
                extensions: [jpg, tiff, png]
                min_size: 1048576      # at least 1 MB
                max_size: 104857600    # max 100 MB

        small_thumbnails:
            class: Product
            fields: [thumbnail]
            target_path: '/Products/{{ object.getItemNumber() }}/Thumbs'
            strategy: always
            priority: 90
            filters:
                types: [image]
                extensions: [jpg, png, webp]
                max_size: 1048576      # under 1 MB

Path Templates

Target paths use Twig syntax. The resolver provides these context variables:

Variable	Type	Description
`object`	`AbstractObject`	The DataObject being saved
`asset`	`Asset`	The asset being organized
`locale`	`?string`	Locale code for localized fields (`en`, `de`, etc.) or `null`
`date`	`DateTimeImmutable`	Current date/time
`className`	`string`	DataObject class name

You can call any method on the object and asset variables directly in the template. The resolver handles null values gracefully and falls back to 'unknown' for empty segments.

Custom Filters

Filter	Usage	Description
`safe_key`	`{{ value\|safe_key }}`	Replace non-alphanumeric chars with `-`
`pluck`	`{{ items\|pluck('key') }}`	Extract a property from each array item
`first_of`	`{{ items\|first_of('key') }}`	Get property from first item, fallback to `'unknown'`
`slug`	`{{ value\|slug }}`	URL-safe lowercase slug
`fallback`	`{{ value\|fallback('default') }}`	Return fallback when value is empty/null
`trim_path`	`{{ value\|trim_path }}`	Strip leading/trailing slashes

Custom Functions

Function	Usage	Description
`coalesce`	`{{ coalesce(a, b, c) }}`	First non-null, non-empty value
`prop`	`{{ prop(obj, 'method', arg1) }}`	Safely call a method on an object
`rel`	`{{ rel(object, 'categories', 0) }}`	Safely access a relation by index
`has_relation`	`{% if has_relation(object, 'categories') %}`	Check if relation has items

Path Template Examples

# Simple flat structure
target_path: '/Products/{{ object.getItemNumber() }}/Images'

# Category hierarchy
target_path: '/Products/{{ object.getCategories()|first_of("key", "Uncategorized") }}/{{ object.getItemNumber() }}/Images'

# Locale-aware paths for localized fields
target_path: '/Products/{{ object.getItemNumber() }}/Documents{{ locale ? "/" ~ locale : "" }}'

# Date-based organization
target_path: '/Uploads/{{ date.format("Y/m") }}/{{ className }}'

# Conditional logic with Twig
target_path: '{% if has_relation(object, "categories") %}/Products/{{ object.getCategories()|first_of("key") }}{% else %}/Products/Uncategorized{% endif %}/Assets'

# Joined relation path
target_path: '/Products/{{ object.getCategories()|pluck("key")|join("/") }}/Media'

# Coalesce multiple possible identifiers
target_path: '/Products/{{ coalesce(prop(object, "getItemNumber"), prop(object, "getSku"), object.getKey()) }}/Assets'

# Fallback with slug
target_path: '/{{ className }}/{{ object.getName()|slug|fallback("unnamed") }}'

Expression Language

Rule conditions use Symfony ExpressionLanguage. Three variables are available: object, asset, and rule.

Built-in Functions

Function	Returns	Example
`asset_type(asset)`	`string`	`asset_type(asset) == "image"`
`asset_size(asset)`	`int`	`asset_size(asset) > 1048576`
`asset_extension(asset)`	`string`	`asset_extension(asset) == "pdf"`
`object_class(object)`	`string`	`object_class(object) == "Product"`
`is_image(asset)`	`bool`	`is_image(asset)`
`is_video(asset)`	`bool`	`is_video(asset)`
`is_document(asset)`	`bool`	`is_document(asset)`
`has_property(element, name)`	`bool`	`has_property(asset, "source")`
`path_matches(asset, pattern)`	`bool`	`path_matches(asset, "#/temp/#")`

Condition Examples

# Only objects that have an item number set
condition: 'object.getItemNumber() != null'

# Only images under 10 MB
condition: 'is_image(asset) and asset_size(asset) < 10485760'

# Only PDF files
condition: 'asset_extension(asset) == "pdf"'

# Compound: images over 1 MB from Product class
condition: 'is_image(asset) and asset_size(asset) > 1048576 and object_class(object) == "Product"'

# Skip assets already in the target structure
condition: 'not path_matches(asset, "#^/Products/#")'

# Only process assets with a specific property
condition: 'has_property(asset, "approved") and has_property(asset, "reviewed")'

# Match only videos or documents (no images)
condition: 'is_video(asset) or is_document(asset)'

Commands

Organize Assets

# Organize a single object
bin/console asset-pilot:organize --object-id=42

# Dry run (preview without moving)
bin/console asset-pilot:organize --object-id=42 --dry-run

# Bulk organize all objects of a class
bin/console asset-pilot:organize --class=Product

# Async bulk (dispatch to messenger queue)
bin/console asset-pilot:organize --class=Product --async --batch-size=100

# Verbose dry run — shows full rule evaluation per asset
bin/console asset-pilot:organize --object-id=42 --dry-run -v

Validate Configuration

# Validate all configured rules
bin/console asset-pilot:validate-config

Checks performed:

Class exists in Pimcore (ClassDefinition::getByName())
Fields exist in the class definition (including localized fields)
ExpressionLanguage condition syntax is valid
Twig path template syntax is valid
Callback service exists in the DI container (when strategy=callback)
Filter type/extension values are valid
Warns on duplicate priorities for the same class

Debug Rules

# Debug rule evaluation for a specific object (shows all rules and why they matched/skipped)
bin/console asset-pilot:debug-rule --object-id=42

# Debug a specific asset against all rules
bin/console asset-pilot:debug-rule --object-id=42 --asset-id=100

# Filter to a single rule
bin/console asset-pilot:debug-rule --object-id=42 --rule=product_images

# Filter to a specific field
bin/console asset-pilot:debug-rule --object-id=42 --field=productImages

Output shows a table per rule with: rule name, result (MATCHED/SKIPPED), rejection reason (disabled, class_mismatch, field_mismatch, condition_failed, filter_rejected), condition expression and result, resolved target path, and priority.

View Status

# Show configured rules and statistics
bin/console asset-pilot:status

# JSON output for scripting
bin/console asset-pilot:status --format=json

Audit Log

# Recent operations
bin/console asset-pilot:audit --limit=50

# Filter by class and status
bin/console asset-pilot:audit --class=Product --status=completed --since="1 week ago"

# Filter by rule
bin/console asset-pilot:audit --rule=product_images

# Clean up old entries (respects retention_days config)
bin/console asset-pilot:audit --cleanup

Clean Up Unused Assets

# Preview unused assets
bin/console asset-pilot:cleanup-unused --dry-run

# Delete unused images older than 90 days
bin/console asset-pilot:cleanup-unused --type=image --before="-90 days" --action=delete

# Move unused assets to archive folder
bin/console asset-pilot:cleanup-unused --action=move --move-to="/Archive/Unused"

# Filter by size and extension
bin/console asset-pilot:cleanup-unused --min-size=1048576 --extension=jpg,png --dry-run

Scheduled Jobs (Cron)

All commands can be automated via cron. Example crontab entries:

# --- Nightly ---
# Organize all Product assets (async, processed by messenger workers)
0 2 * * * cd /var/www/html && bin/console asset-pilot:organize --class=Product --async --batch-size=100 >> /var/log/asset-pilot.log 2>&1

# --- Weekly ---
# Generate unused asset report (dry-run, no changes)
0 3 * * 0 cd /var/www/html && bin/console asset-pilot:cleanup-unused --dry-run --type=image 2>&1 | mail -s "Unused Assets Report" admin@example.com

# Archive unused images older than 90 days
0 4 * * 0 cd /var/www/html && bin/console asset-pilot:cleanup-unused --type=image --before="-90 days" --action=move --move-to="/Archive/Unused" >> /var/log/asset-pilot.log 2>&1

# --- Monthly ---
# Clean up old audit log entries
0 5 1 * * cd /var/www/html && bin/console asset-pilot:audit --cleanup >> /var/log/asset-pilot.log 2>&1

# --- CI/CD ---
# Validate config after deployments
# bin/console asset-pilot:validate-config
# bin/console asset-pilot:debug-rule --object-id=42

For Kubernetes/Docker environments, use CronJob resources or container-level cron scheduling.

Permissions

Asset Pilot registers three permissions in Pimcore's native permission system during installation. Assign them to user roles via Settings > Users / Roles > Permissions.

Permission	Key	Description
View	`asset_pilot_view`	View dashboard, rules, audit log, unused assets, search assets. All read-only endpoints.
Operate	`asset_pilot_operate`	Organize assets, lock/unlock, bulk tag, bulk set properties, delete/move unused assets.
Admin	`asset_pilot_admin`	Revert completed operations from the audit log.

All API endpoints enforce permissions via #[IsGranted(AssetPilotPermission::*)] attributes. The Studio UI hides action buttons when the user lacks the required permission.

The GET /permissions endpoint returns the current user's permission set:

{
    "view": true,
    "operate": true,
    "admin": false
}

REST API

All endpoints are prefixed with /pimcore-studio/api/asset-pilot. Requires Pimcore Studio authentication. Permissions are enforced on every endpoint (see Permissions).

Dashboard

Method	Endpoint	Permission	Description
`GET`	`/dashboard`	View	Dashboard statistics
`GET`	`/dashboard/class-stats`	View	Per-class breakdown
`GET`	`/permissions`	—	Current user's permission set

Operations

Method	Endpoint	Permission	Description
`POST`	`/organize`	Operate	Organize a single object
`POST`	`/organize/preview`	View	Dry-run preview
`POST`	`/organize/explain`	View	Detailed rule evaluation per asset
`POST`	`/organize/bulk`	Operate	Bulk organize by class or IDs
`POST`	`/operations/bulk-preview`	View	Paginated bulk preview
`GET`	`/operations/status`	View	Operation statistics

Organize request body

{
    "objectId": 42,
    "dryRun": false,
    "async": true
}

Bulk organize request body

{
    "className": "Product",
    "async": true,
    "batchSize": 50
}

Or with explicit IDs:

{
    "objectIds": [1, 2, 3, 4, 5],
    "async": true,
    "batchSize": 50
}

Explain response

{
    "objectId": 42,
    "operations": [{
        "assetId": 456,
        "sourcePath": "/uploads/photo.jpg",
        "targetPath": "/Products/ART-123/Images/photo.jpg",
        "ruleName": "product_images",
        "status": "completed"
    }],
    "evaluations": [{
        "assetId": 456,
        "assetPath": "/uploads/photo.jpg",
        "fieldName": "images",
        "locale": null,
        "ruleName": "product_images",
        "matched": true,
        "rejectionReason": null,
        "conditionExpression": "object.getItemNumber() != null",
        "conditionResult": true,
        "conditionError": null,
        "filterDetails": null,
        "resolvedPath": "/Products/ART-123/Images",
        "priority": 100,
        "enabled": true
    }, {
        "assetId": 456,
        "assetPath": "/uploads/photo.jpg",
        "fieldName": "images",
        "locale": null,
        "ruleName": "product_documents",
        "matched": false,
        "rejectionReason": "filter_rejected",
        "conditionExpression": null,
        "conditionResult": true,
        "conditionError": null,
        "filterDetails": "type mismatch: image not in [document]",
        "resolvedPath": null,
        "priority": 70,
        "enabled": true
    }]
}

Rules

Method	Endpoint	Permission	Description
`GET`	`/rules`	View	List all configured rules
`GET`	`/rules/{name}`	View	Rule details with statistics
`GET`	`/rules/{name}/preview?objectId=42`	View	Preview rule against an object

Asset Management

Method	Endpoint	Permission	Description
`GET`	`/assets/search`	View	Search assets (params: `q`, `type`, `folder`, `objectId`, `page`, `limit`, `sort`, `order`)
`GET`	`/assets/by-object/{objectId}`	View	Assets linked to a DataObject via dependencies (params: `page`, `limit`, `type`)
`GET`	`/assets/tags`	View	List all available Pimcore tags
`GET`	`/assets/{id}/tags`	View	Get tags for a specific asset
`POST`	`/assets/{id}/lock`	Operate	Lock asset from organization
`DELETE`	`/assets/{id}/lock`	Operate	Unlock asset
`POST`	`/assets/bulk-tag`	Operate	Bulk assign tags to assets
`POST`	`/assets/bulk-property`	Operate	Bulk set custom properties

Search parameters

Parameter	Type	Description
`q`	`string`	Search by filename or path (LIKE match)
`type`	`string`	Filter by asset type: `image`, `document`, `video`, `audio`, `text`, `archive`
`folder`	`string`	Filter by folder path (e.g., `/Products/`)
`objectId`	`int`	Filter to assets referenced by a specific DataObject (via dependencies table)
`page`	`int`	Page number (default: 1)
`limit`	`int`	Items per page (default: 50, max: 200)
`sort`	`string`	Sort field: `id`, `filename`, `type`, `file_size`, `modified_at`
`order`	`string`	Sort order: `asc` or `desc`

Bulk tag request body

{
    "assetIds": [1, 2, 3],
    "tagIds": [10, 20],
    "replace": false
}

Set replace: true to remove all existing tags before assigning new ones.

Bulk property request body

{
    "assetIds": [1, 2, 3],
    "name": "department",
    "type": "text",
    "data": "Marketing"
}

Supported types: text, bool, select.

Unused Assets

Method	Endpoint	Permission	Description
`GET`	`/unused-assets`	View	List unused assets with confidence scoring
`GET`	`/unused-assets/stats`	View	Unused asset statistics by type
`POST`	`/unused-assets/bulk-delete`	Operate	Delete unused assets
`POST`	`/unused-assets/bulk-move`	Operate	Move unused assets to folder

Unused assets parameters

Parameter	Type	Description
`type`	`string`	Filter by asset type
`extension`	`string`	Comma-separated extensions (e.g., `pdf,png,jpg`)
`before`	`string`	Modified before date (ISO format)
`after`	`string`	Modified after date (ISO format)
`folder`	`string`	Filter by folder path
`minSize`	`int`	Minimum file size in bytes
`maxSize`	`int`	Maximum file size in bytes
`confidence`	`string`	Filter by confidence: `definitely_unused`, `probably_unused`, `recently_uploaded`, `historically_used`, `protected`
`page`	`int`	Page number (default: 1)
`limit`	`int`	Items per page (default: 50, max: 200)
`sort`	`string`	Sort field
`order`	`string`	Sort order: `asc` or `desc`

Confidence levels

Level	Criteria	Recommended Action
`definitely_unused`	No references, last modified >90 days ago	Safe to delete
`probably_unused`	No references, last modified 30-90 days ago	Review before deleting
`recently_uploaded`	No references, last modified <30 days ago	Wait — may be in use soon
`historically_used`	No references, but has audit history of past moves	Investigate before deleting
`protected`	Has `asset_pilot_locked` property	Excluded from cleanup

Audit Log

Method	Endpoint	Permission	Description
`GET`	`/audit`	View	Paginated audit entries (params: `page`, `limit`, `class`, `status`, `ruleName`, `sort`, `order`)
`GET`	`/audit/stats`	View	Audit statistics
`GET`	`/audit/export`	View	Export as CSV (params: `class`, `status`, `ruleName`)
`GET`	`/audit/by-rule/{ruleName}/assets`	View	Distinct assets moved by a rule (params: `page`, `limit`, `since`, `class`)
`POST`	`/audit/{id}/revert`	Admin	Revert a completed operation

Assets by rule parameters

Parameter	Type	Description
`since`	`string`	Only include moves after this date (ISO format, e.g., `2026-02-01`)
`class`	`string`	Filter by object class name
`page`	`int`	Page number (default: 1)
`limit`	`int`	Items per page (default: 50)

Studio UI

Asset Pilot integrates into Pimcore Studio as a Module Federation remote. The UI provides six tabs:

Tab	Description
Dashboard	Statistics overview (organized, pending, failed, skipped counts), class breakdown table, recent operations list
Rules	View all configured rules with priority, strategy, target path. Detail modal with configuration and statistics. Preview modal to test a rule against a specific object ID.
Operations	Single object organize (with dry-run, async, and explain modes). Bulk organize by class with paginated preview and "Organize All" button. System status with refresh.
Audit Log	Full operation history with sorting. Filter by class, status, and rule name. CSV export. Revert individual operations.
Unused Assets	Confidence-scored unused asset list with color-coded badges. Filter by type, extensions, date range, folder, size, and confidence level. Bulk delete or move selected assets. Filter presets.
Asset Management	Search assets by filename/path, filter by type, folder, or Object ID. Lock/unlock assets. Bulk assign tags. Bulk set custom properties. Sortable columns with pagination.

Confidence Badges

Unused assets display color-coded confidence badges:

Badge	Color	Meaning
Definitely Unused	Green	Safe to clean up (>90 days, no references)
Probably Unused	Yellow	Review recommended (30-90 days)
Recently Uploaded	Red	Wait before action (<30 days)
Historically Used	Orange	Was previously organized — investigate
Protected	Gray	Locked asset, excluded from cleanup

Localization

The Studio UI ships with English and German translations. All UI strings use the asset-pilot.* i18n namespace.

Idempotency & Loop Prevention

Asset Pilot uses a multi-layer approach to prevent duplicate processing:

Layer	Mechanism	TTL	Purpose
Loop Guard	Redis cache (`cache.app`)	60s	Prevents re-entry when asset moves trigger DataObject saves
Recently Moved	Redis cache	300s (5 min)	Prevents async ping-pong for shared assets between objects
Dispatch Dedup	Redis cache	10s	Prevents burst duplicate dispatches from rapid saves
Stale Job Detection	`dispatchedAt` timestamp	—	Skips processing if object was modified after message dispatch
Already-at-Target	Path comparison	—	Skips move when source path equals target path
DeduplicateStamp	Symfony Lock (Redis)	30s/60s	Transport-level deduplication prevents the same message from being processed twice

The DeduplicateStamp TTLs:

30 seconds for single-object organize messages (asset_pilot_organize_{objectId})
60 seconds for bulk organize messages (asset_pilot_bulk_{batchHash})

Extending

Asset Pilot is built around interfaces. Swap out any component by implementing the interface and registering it as a service.

Custom Filter

Restrict which assets a rule applies to. All registered filters run inside CompositeFilter using AND logic — the first rejection short-circuits evaluation.

namespace App\AssetPilot\Filter;

use Oronts\AssetPilotBundle\Filter\AssetFilterInterface;
use Oronts\AssetPilotBundle\Model\Rule;
use Pimcore\Model\Asset;
use Pimcore\Model\DataObject\AbstractObject;

class PublishedOnlyFilter implements AssetFilterInterface
{
    public function accept(Asset $asset, AbstractObject $object, Rule $rule): bool
    {
        if ($object instanceof \Pimcore\Model\DataObject\Concrete) {
            return $object->isPublished();
        }
        return true;
    }
}

services:
    App\AssetPilot\Filter\PublishedOnlyFilter:
        tags:
            - { name: 'oronts_asset_pilot.filter' }

Custom Strategy

Control when assets should be moved. Implement ConflictStrategyInterface and register with an alias.

namespace App\AssetPilot\Strategy;

use Oronts\AssetPilotBundle\Enum\MoveStrategy;
use Oronts\AssetPilotBundle\Model\Rule;
use Oronts\AssetPilotBundle\Strategy\ConflictStrategyInterface;
use Pimcore\Model\Asset;
use Pimcore\Model\DataObject\AbstractObject;

class BusinessHoursStrategy implements ConflictStrategyInterface
{
    public function resolve(Asset $asset, AbstractObject $object, Rule $rule): bool
    {
        $hour = (int) date('H');
        return $hour >= 9 && $hour < 17;
    }

    public function supports(MoveStrategy $strategy): bool
    {
        return $strategy === MoveStrategy::Callback;
    }
}

services:
    App\AssetPilot\Strategy\BusinessHoursStrategy:
        tags:
            - { name: 'oronts_asset_pilot.strategy', alias: 'business_hours' }

Reference it in a rule config:

oronts_asset_pilot:
    rules:
        controlled_move:
            class: Product
            target_path: '/Products/{{ object.getItemNumber() }}/Images'
            strategy: callback
            callback: App\AssetPilot\Strategy\BusinessHoursStrategy

Custom Path Resolver

Replace the Twig-based path resolution entirely. Implement PathResolverInterface and override the service alias.

namespace App\AssetPilot\PathResolver;

use Oronts\AssetPilotBundle\Model\Rule;
use Oronts\AssetPilotBundle\PathResolver\PathResolverInterface;
use Pimcore\Model\Asset;
use Pimcore\Model\DataObject\AbstractObject;

class DatabasePathResolver implements PathResolverInterface
{
    public function __construct(private readonly \Doctrine\DBAL\Connection $db) {}

    public function resolve(
        AbstractObject $object,
        Asset $asset,
        Rule $rule,
        ?string $locale = null,
    ): string {
        $path = $this->db->fetchOne(
            'SELECT target_path FROM asset_path_mappings WHERE class_name = ? AND rule_name = ?',
            [$object->getClassName(), $rule->name]
        );
        return $path ?: '/Fallback/' . $object->getKey();
    }
}

services:
    Oronts\AssetPilotBundle\PathResolver\PathResolverInterface:
        alias: App\AssetPilot\PathResolver\DatabasePathResolver

Custom Condition Evaluator

Replace the ExpressionLanguage evaluator with your own logic. Implement ConditionEvaluatorInterface and override the service alias.

namespace App\AssetPilot\Condition;

use Oronts\AssetPilotBundle\Condition\ConditionEvaluatorInterface;
use Oronts\AssetPilotBundle\Model\Rule;
use Pimcore\Model\Asset;
use Pimcore\Model\DataObject\AbstractObject;

class WorkflowConditionEvaluator implements ConditionEvaluatorInterface
{
    public function evaluate(AbstractObject $object, Asset $asset, Rule $rule): bool
    {
        if ($rule->condition === null) {
            return true;
        }

        // Only proceed if the object's workflow state matches the condition
        return $object->getProperty('workflow_state') === $rule->condition;
    }
}

services:
    Oronts\AssetPilotBundle\Condition\ConditionEvaluatorInterface:
        alias: App\AssetPilot\Condition\WorkflowConditionEvaluator

Custom Naming Strategy

Control how filenames are generated and collisions are resolved. Implement NamingStrategyInterface and override the service alias.

namespace App\AssetPilot\Naming;

use Oronts\AssetPilotBundle\Naming\NamingStrategyInterface;
use Pimcore\Model\Asset;

class HashNamingStrategy implements NamingStrategyInterface
{
    public function generateName(Asset $asset, string $targetPath): string
    {
        $ext = pathinfo($asset->getFilename(), PATHINFO_EXTENSION);
        $hash = substr(md5($asset->getFilename() . time()), 0, 8);
        return $hash . '.' . $ext;
    }
}

services:
    Oronts\AssetPilotBundle\Naming\NamingStrategyInterface:
        alias: App\AssetPilot\Naming\HashNamingStrategy

Events

Subscribe to asset move events for custom logic:

namespace App\EventListener;

use Oronts\AssetPilotBundle\Event\AssetMoveEvent;
use Oronts\AssetPilotBundle\Event\AssetPilotEvents;
use Symfony\Component\EventDispatcher\Attribute\AsEventListener;

#[AsEventListener(event: AssetPilotEvents::PRE_MOVE)]
class AssetMoveListener
{
    public function __invoke(AssetMoveEvent $event): void
    {
        // Cancel moves to restricted paths
        if (str_starts_with($event->targetPath, '/Protected/')) {
            $event->cancel();
            return;
        }

        // Access event data: $event->asset, $event->object, $event->rule, $event->triggerType
    }
}

Available events:

Event	Constant	Description
`oronts_asset_pilot.pre_move`	`AssetPilotEvents::PRE_MOVE`	Before move, cancellable
`oronts_asset_pilot.post_move`	`AssetPilotEvents::POST_MOVE`	After successful move
`oronts_asset_pilot.move_failed`	`AssetPilotEvents::MOVE_FAILED`	After failed move
`oronts_asset_pilot.bulk_started`	`AssetPilotEvents::BULK_STARTED`	Bulk operation started
`oronts_asset_pilot.bulk_completed`	`AssetPilotEvents::BULK_COMPLETED`	Bulk operation finished

Database Schema

The installer creates a single table:

CREATE TABLE asset_pilot_audit_log (
    id          INT AUTO_INCREMENT PRIMARY KEY,
    asset_id    INT          NOT NULL,
    asset_path_from VARCHAR(500) NOT NULL,
    asset_path_to   VARCHAR(500) NOT NULL,
    object_id   INT          NOT NULL,
    object_class VARCHAR(255) NOT NULL,
    rule_name   VARCHAR(255) NOT NULL,
    trigger_type VARCHAR(50) NOT NULL,
    status      VARCHAR(50)  NOT NULL,
    error_message TEXT        NULL,
    duration_ms INT          NULL,
    user_id     INT          NULL,
    created_at  DATETIME     NOT NULL,

    INDEX idx_audit_asset_id   (asset_id),
    INDEX idx_audit_object_id  (object_id),
    INDEX idx_audit_rule_name  (rule_name),
    INDEX idx_audit_status     (status),
    INDEX idx_audit_created_at (created_at)
);

Testing

The bundle ships with 133 PHPUnit tests covering all core components.

cd bundles/asset-pilot-bundle
composer install
vendor/bin/phpunit

tests/
├── Unit/
│   ├── Condition/      ExpressionConditionEvaluator (15 tests)
│   ├── Engine/         RuleEngine (15 tests)
│   ├── Enum/           MoveStrategy, OperationStatus, TriggerType (5 tests)
│   ├── Event/          AssetMoveEvent, AssetPilotEvents (5 tests)
│   ├── EventListener/  DataObjectSaveListener (10 tests)
│   ├── Filter/         Type, Size, Extension, Composite filters (21 tests)
│   ├── Message/        OrganizeAssetsMessage, BulkOrganizeMessage (5 tests)
│   ├── MessageHandler/ BulkOrganizeHandler (4 tests)
│   ├── Model/          Rule, RuleMatch, MoveOperation, OperationResult, AssetFieldInfo (19 tests)
│   ├── Service/        LoopGuard (11 tests)
│   └── Strategy/       Always, FirstAssignment, Callback, Resolver (23 tests)
└── bootstrap.php

Requirements

Dependency	Version
PHP	>= 8.4
Pimcore	^12.0
Symfony Expression Language	^7.0
Symfony Messenger	^7.0
Symfony Lock	^7.0

License

This project is licensed under the GNU Affero General Public License v3.0 (AGPL-3.0), the same license used by Pimcore itself.

You are free to use, modify, and distribute this bundle in both private and commercial projects. If you modify the source code and distribute it or run it as a service, you must make your modifications available under the same license.

Consulting & Custom Development

Oronts provides custom development and integration services:

Pimcore bundle development and customization
PIM/DAM implementation and architecture
Asset workflow automation
E-commerce platform implementation

Contact: office@oronts.com | oronts.com

Author: Oronts - AI-powered automation, e-commerce platforms, cloud infrastructure.

Contributors: Refaat Al Ktifan (Refaat@alktifan.com)

oronts / asset-pilot-bundle

Maintainers

Package info

Statistics

Security

README

oronts/asset-pilot-bundle

Features

Architecture

Installation

1. Require the package

2. Enable the bundle

3. Install the database table and permissions

4. Configure Messenger transport

5. Configure Symfony Lock (required for message deduplication)

6. Build the Studio UI assets

Configuration

Configuration Reference

Rule Options

Configuration Examples

E-commerce: Product Assets by Item Number

Category-Based Hierarchy

Multi-Class Setup

First Assignment Strategy

Callback Strategy with Custom Logic

Sync Mode (No Messenger Queue)

Asset Protection

Date-Based Organization

Restrictive Filters

Path Templates

Custom Filters

Custom Functions

Path Template Examples

Expression Language

Built-in Functions

Condition Examples

Commands

Organize Assets

Validate Configuration

Debug Rules

View Status

Audit Log

Clean Up Unused Assets

Scheduled Jobs (Cron)

Permissions

REST API

Dashboard

Operations

Organize request body

Bulk organize request body

Explain response

Rules

Asset Management

Search parameters

Bulk tag request body

Bulk property request body

Unused Assets

Unused assets parameters

Confidence levels

Audit Log

Assets by rule parameters

Studio UI

Confidence Badges

Localization

Idempotency & Loop Prevention

Extending

Custom Filter

Custom Strategy

Custom Path Resolver

Custom Condition Evaluator

Custom Naming Strategy

Events

Database Schema

Testing

Requirements

License

Consulting & Custom Development
