mehrdadmahdian/php-workflow-core

A Simple PHP Engine for Simple Business Processes

dev-master 2021-10-02 06:20 UTC

Requires (Dev)

• phpunit/phpunit: *

MIT

• Mehrdad Mahdian

README

(Under Development - Do Not Use This)

This is an amazing workflow engine to interact with your simple business workflows.

This core build your business workflow model using simple activity array of configuration. Code client can run different actions on built process model and update model status.

Process Main Concepts

It is assumed that each process is made up of multiple activity blocks which are connected to each other using transition flows.

• Each activity has its own unique name. This is the key to reach activity element.
• Each activity could be connected to multiple sources. Sources must be in type of activity.
  • An activity could have no source. It means on start action, this activity's status will be updated to active status
• Each activity could be connected to multiple targets. Targets must be in type of activity.
  • An activity could have no target. It means process is in last activity state.
• Each activity has its current status. statuses may be between one of these statuses: active, inactive, done.
• At the start of process all activities have inactive status.
• When activity target is triggered, the target activity goes to active status.
• Each process only could have one active activity at a time.
• Each activity could have its own observers. while updating activity status, observer will be notified.
• This engine does not support conditional or parallel flows.

Installation

Simply run composer require command to include this library in your project

    composer require mehrdadmahdian/php-workflow-core

to access to library feature, this namespace should be used: MehrdadMahdian\PhpWorkflowCore

Usage

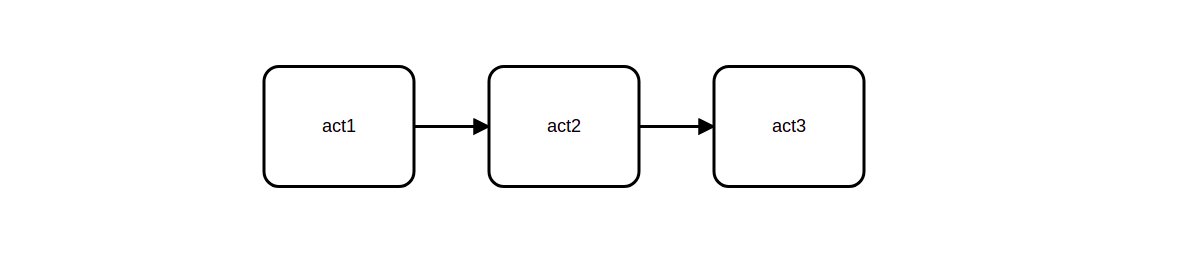

An example of process configuration array is introduced here. This is a process with 3 activities which is not started yet and all activities has null or inactive status. Code Client decided where to load configuration. It can be loaded from permanent storage, or it could be loaded statically form a file.

    $configuration = [
       'activities' => [
           [
               'name' => 'act1',
               'sources' => [],
               'targets' => ['act2'],
//               'status'  => ElementInterface::STATUS_INACTIVE,
               'observers' => [ActivitySampleObserver::class],
               'extra-actions' => [
                    SomeActionTypeWhichImplementsActionInterface1::class,
                    SomeActionTypeWhichImplementsActionInterface2::class
                ]
           ],
           [
               'name' => 'act2',
               'sources' => ['act1'],
               'targets' => ['act3'],
//               'status'  => ElementInterface::STATUS_INACTIVE
           ],
           [
               'name' => 'act3',
               'sources' => ['act2'],
               'targets' => [],
               'status'  => ElementInterface::STATUS_INACTIVE
           ],
       ]
    ];

Process model could be built using package built-in facade method.

    use MehrdadMahdian\PhpWorkflowCore\PhpWorkflowCoreFacade;
    $model = PhpWorkflowCoreFacade::buildProcessModel($configuration);

Actions

client could run engine action using built-in facade too:

    use MehrdadMahdian\PhpWorkflowCore\PhpWorkflowCoreFacade;
    $model = PhpWorkflowCoreFacade::runEngineAction($model, $action, $params);

after each action type, updated model is accessible. Updated model data must be persisted by client if it is needed.

to find thant which actions each activity has, we can use this code:

    use MehrdadMahdian\PhpWorkflowCore\PhpWorkflowCoreFacade;
    $model = PhpWorkflowCoreFacade::getActivityActions($model, $myActivityKey);

it will return list of available actions with their required parameters.

Two built-in actions are supported in this library and each one has its own params.

Start Action

No Parameter is needed in this type of action

    use MehrdadMahdian\PhpWorkflowCore\PhpWorkflowCoreFacade;
    $model = PhpWorkflowCoreFacade::runEngineAction(
        $model, //suppose that model is defined previously in the code. mdoel is in type of ModelInterface
        'start'
    );

Transition Action

    use MehrdadMahdian\PhpWorkflowCore\PhpWorkflowCoreFacade;
    $model = PhpWorkflowCoreFacade::runEngineAction(
        $model,
        'transition',
        ['currentActivityKey' => 'act1', 'targetActivityKey' => 'act2']
     );

Extra Actions

Inside of built in actions of workflow core, we can run desired action which is implements ActionInterface. To do that, action class must be fed to runEngineAction like this:

    use MehrdadMahdian\PhpWorkflowCore\PhpWorkflowCoreFacade;
    $parameters = [
        //key: //value,
        //key2: //value2,
        ...
    ];
    $model = PhpWorkflowCoreFacade::runEngineAction(
        $model,
        \Path\To\My\Custom\Action::class,
        $parameters
     );

Observers

No description yet.

Contributing

if you want to contribute in this project please follow this instruction.

1. Fork the Project
2. Create your Feature Branch (git checkout -b feature/AmazingFeature)
3. Commit your Changes (git commit -m 'Add some AmazingFeature')
4. Push to the Branch (git push origin feature/AmazingFeature)
5. Open a PR on this repository
6. Wait to accept and merge the PR

License

Distributed under the MIT License.

Contact

Mehrdad Mahdian: Gmail

Project Link: PHP Workflow Core

Todo

• missing tests
• get available actions from activity
• support published configurations file.
• configuration validator
• action validator implementation

Suggested Features to contribute

• wrapper for laravel and other php frameworks
