Hyvä Checkout compatibility layer for the InnoShip_InnoShip shipping module.

Developed by Liquidlab Agency — Romania’s first full-service Hyvä agency and the first Hyvä partner in Romania.
We've built production-grade shipping, payment, and pickup-point integrations for merchants across Europe, and we hold ourselves to a high bar: the proof is in the pudding — this repo ships with automated end-to-end tests so you know the checkout flow keeps working.

The upstream InnoShip_InnoShip module ships a working Luma checkout integration: a PUDO (pickup-drop-off) point picker built on Knockout/jQuery components and window.checkoutConfig. None of that runs inside Hyvä Checkout, which uses Magewire + Alpine.js and does not expose checkoutConfig to the frontend.

This module bridges that gap. It replaces InnoShip's checkout-side UI with a Hyvä-native equivalent while continuing to use InnoShip's database, shipping carrier, AWB generation, and order-management code unchanged.

This module is an independent, community-developed integration. It is not affiliated with, endorsed by, or developed in partnership with Innoship.

Screenshots

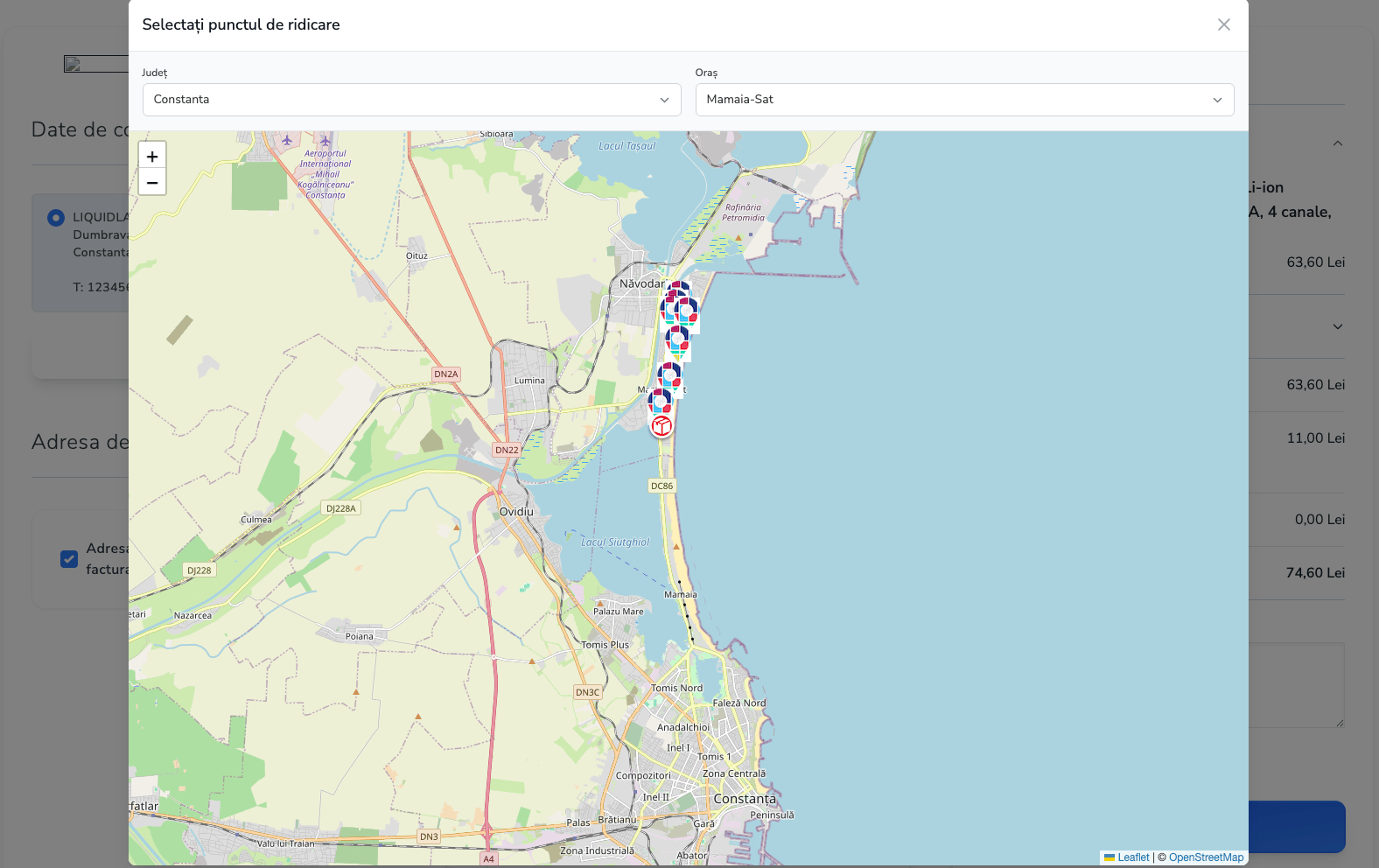

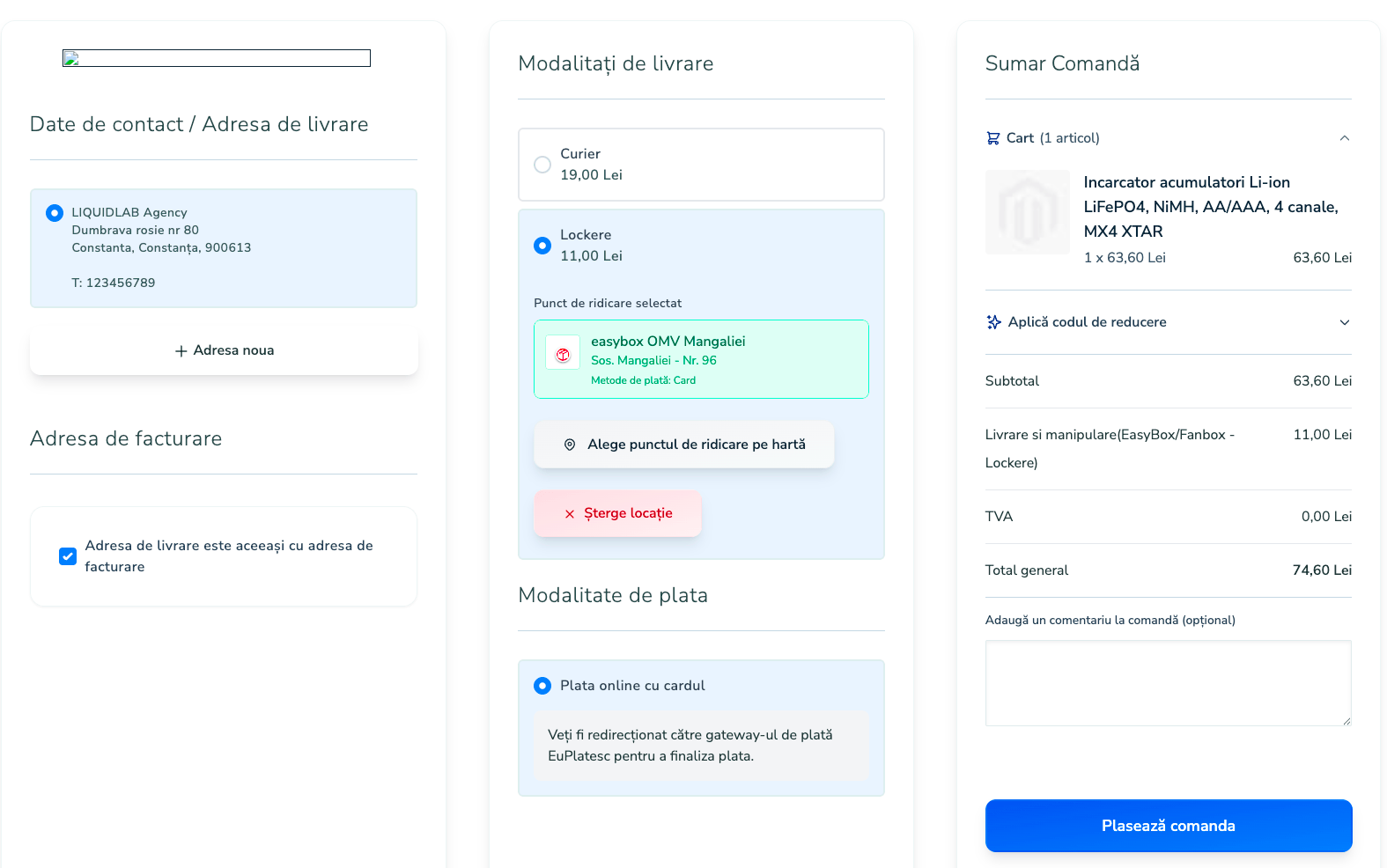

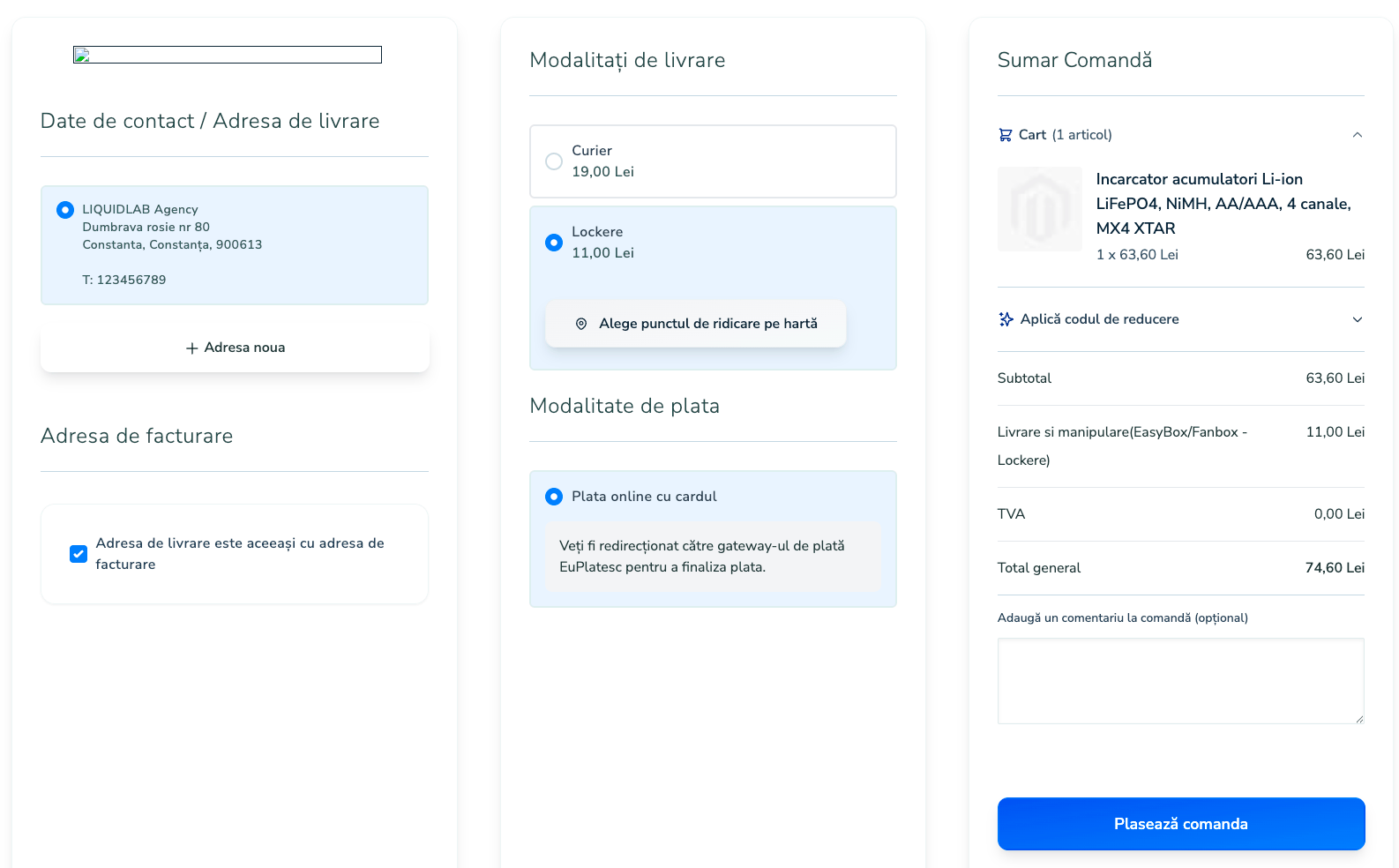

_{Checkout — locker method (no point selected)}	_{Interactive Leaflet map picker}	_{Selected pickup point with “Clear” button}

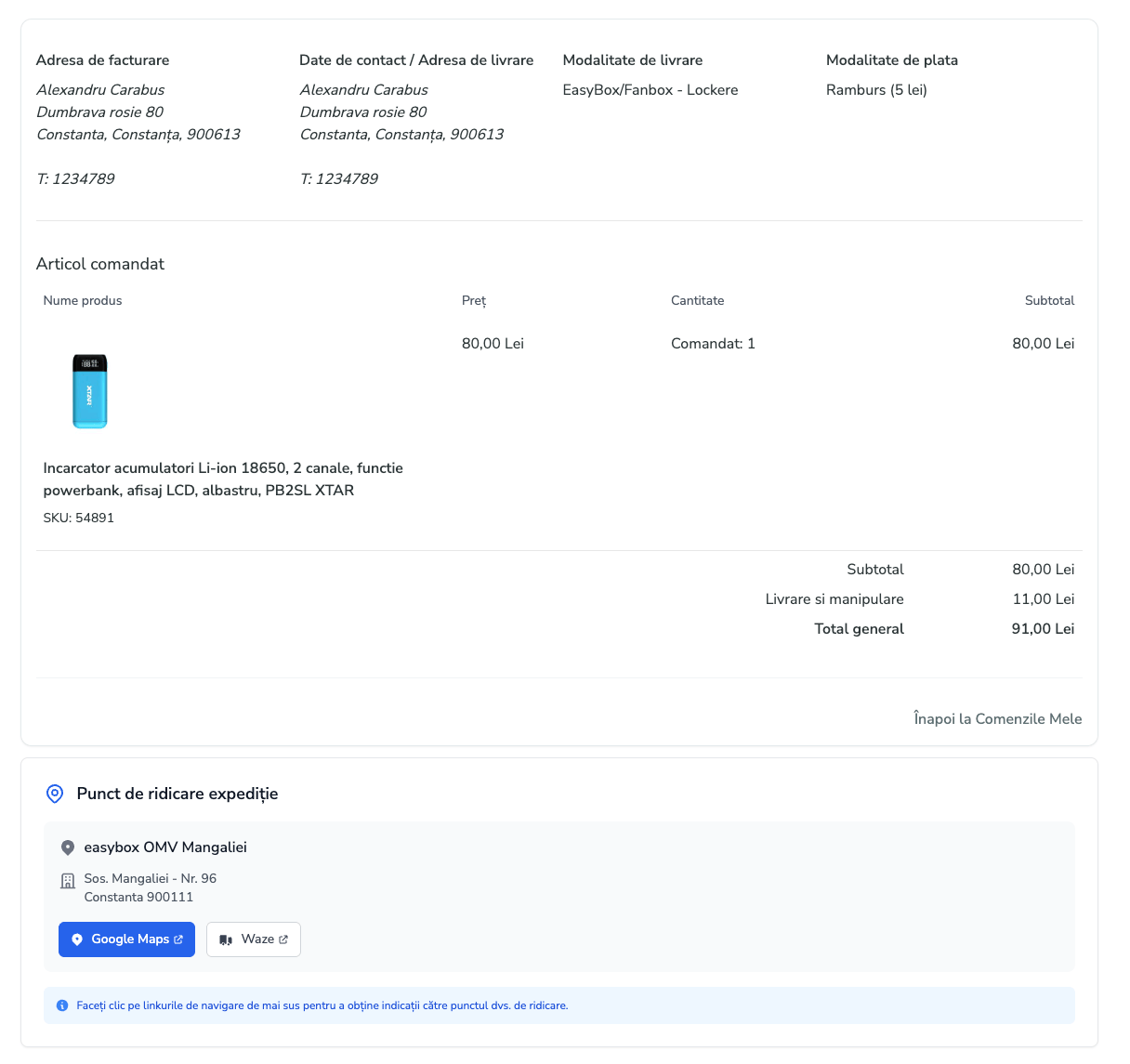

_{Customer order view — pickup point summary}

What it does

1. PUDO point picker in Hyvä Checkout

When the customer chooses an InnoShip shipping method (e.g. innoshipcargusgo_*), Hyvä Checkout renders a "Choose Pickup Point on Map" button under the shipping method.

Clicking it opens a modal with an interactive Leaflet map of available pickup points.
The customer can narrow results by county and city (county/city lists come from the innoship_pudo table).
If no county is selected but the customer's shipping address has a Romanian region, the map auto-centers on that region and shows points within ~50 km, sorted by distance.
Marker icons reflect the courier (Cargus, DPD, FAN, eMag, Posta Romana, etc.).
Each marker's popup shows the address, phone number, opening hours, accepted payment methods, and a "Select This Point" button.

The picker is implemented as two Magewire components, Magewire\PudoPicker (modal + filters + map data) and Magewire\PudoPoint (selected-point summary), wired together via emit() / $listeners. The map UI itself is an Alpine.js component (view/frontend/web/js/pudo-picker.js).

2. Persisted PUDO selection

The PUDO selection is saved to the checkout session as soon as the customer picks a point — it is not transient UI state. This gives the picker real saving functionality:

The selection survives Magewire roundtrips during checkout (filter changes, address edits, payment-method switches).
It survives full page reloads. If the customer refreshes mid-checkout or returns to checkout in the same session, the picker remounts with the previously chosen point already selected and displayed — no need to re-pick.
The selection is also written to the quote shipping address (innoship_pudo_id, innoship_courier_id, plus extension attributes) and the address fields are rewritten to the pickup point's address. This is required because InnoShip's AWB-generation code reads the destination from the shipping address.
On PudoPicker mount, the component reconciles the quote shipping address against the session: if the session holds a selected PUDO whose ID is missing from the current quote address, it re-applies the selection so order submission carries the PUDO ID. The check is idempotent (early-returns when the IDs already match) so it does not trigger redundant quote saves.

The session storage key is innoship_selected_pudo_point (defined as INNOSHIP_PUDO_SESSION_KEY in Magewire\PudoPicker and Magewire\PudoPoint). The customer can clear the selection at any time using the "Clear PUDO" button shown next to the chosen point.

3. Pre-submit observer

Observer\CheckoutSubmitBefore listens on checkout_submit_before (which fires earlier than the InnoShip module's own sales_model_service_quote_submit_before observer). It re-stamps the PUDO data onto the shipping address from the most authoritative available source (quote custom data → session → existing address fields) and saves the quote.

This is defensive: Hyvä's checkout flow has multiple steps that may reload or restore the shipping address, and InnoShip's downstream code expects the PUDO fields to be present before its own observer runs. Without this, late address restorations can blank out innoship_pudo_id and the AWB generation fails.

4. Disabled upstream controllers

Several InnoShip_InnoShip frontend controllers exist only to serve the Luma checkout JS (view/frontend/web/js/checkout.js) and have no purpose in a Hyvä-only storefront. Rather than fork or patch InnoShip_InnoShip, this module declares DI preferences in etc/frontend/di.xml that swap each unused controller class for a shared no-op stub (Controller/Disabled/NotFound) which throws NotFoundException — every dead URL returns a clean 404.

Disabled endpoints:

/innoshipf/pudo/getpudo
/innoshipf/pudo/getmap
/innoshipf/pudo/setpudo
/innoshipf/pudo/getpudofromlocation
/innoshipf/courier/listcouriers
/innoshipf/courier/setcourierid

The stub implements both HttpGet/HttpPostActionInterface and CsrfAwareActionInterface so POSTs reach the 404 instead of being rejected at 405 / CSRF. Admin AWB controllers (Adminhtml/Awb/*) are untouched — the preferences are scoped to etc/frontend/di.xml.

5. Validation gate

Magewire\PudoPoint implements Hyvä's EvaluationInterface. If the selected shipping method is an InnoShip method, the customer cannot proceed past the shipping step until a pickup point is chosen — Hyvä displays an inline error and emits shipping:method:error.

6. Order-view PUDO summary

On the customer's order view page (My Account → Orders), the module overrides InnoShip's order_info_innoship_front block with a Hyvä-friendly template (templates/order/order_shipping_pudo.phtml). It shows the chosen pickup point's name, address, and "Open in Google Maps" / "Open in Waze" deep links. PUDO lookups go through ViewModel\PudoInfo, which reads from the innoship_pudo table via this module's repository.

How it integrates with InnoShip_InnoShip

Concern	Owned by
`innoship_pudo` table + cron sync of pickup points	`InnoShip_InnoShip` (this module reads only)
Shipping carriers (`innoshipcargusgo`, etc.) and AWB generation	`InnoShip_InnoShip`
`quote_address` / `sales_order_address` columns (`innoship_pudo_id`, `innoship_courier_id`, `innoship_shipping_price`)	`InnoShip_InnoShip` schema
Marker images and bundled Leaflet 1.9.4 assets	`InnoShip_InnoShip::images/...`, `InnoShip_InnoShip::js/leaflet.js`
Hyvä-compatible PUDO picker UI + modal	This module
Magewire components + Alpine map controller	This module
Pre-submit safety observer	This module
Disabling unused `InnoShip_InnoShip` frontend controllers via DI preferences	This module
Hyvä order-view template override	This module

The module is also registered with Hyvä's CompatModuleRegistry (in etc/frontend/di.xml) so Hyvä knows that Liquidlab_InnoShipHyva is the compatibility layer for InnoShip_InnoShip and will skip InnoShip's Luma-specific frontend assets.

Requirements

Magento 2.4+
PHP 8.1+
InnoShip_InnoShip (provides the schema, Leaflet assets, and shipping carriers)
Hyva_Checkout
magewirephp/magewire

Installation

composer require liquidlab-agency/magento2-innoship-hyva-checkout
