lacv/pipo-scanner

A professional document scanner component for Filament v3/v5, powered by OpenCV.js and jscanify. Capture, crop, filter and upload documents as PDF directly from the browser camera.

v1.1.0 2026-03-30 00:45 UTC

Requires

• php: ^8.1
• filament/filament: ^3.0|^5.0
• illuminate/support: ^10.0|^11.0|^12.0|^13.0

MIT

• LACV

• pdf
• document
• laravel
• scanner
• camera
• filament
• OpenCV
• jscanify

README

A professional document scanner component for Filament v3/v5, powered by OpenCV.js and jscanify.

Capture documents directly from the device camera, auto-detect edges, adjust corners, apply filters, and save as a multi-page PDF — all from the browser, with zero native dependencies.

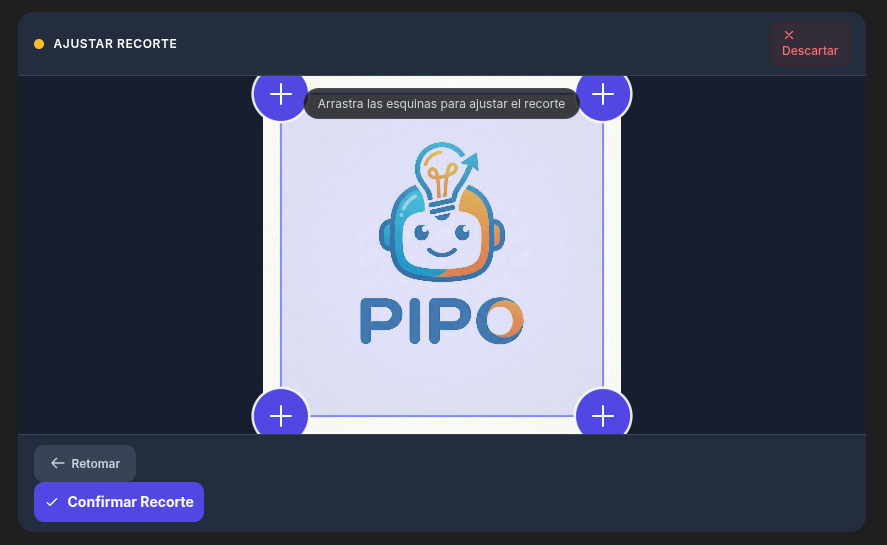

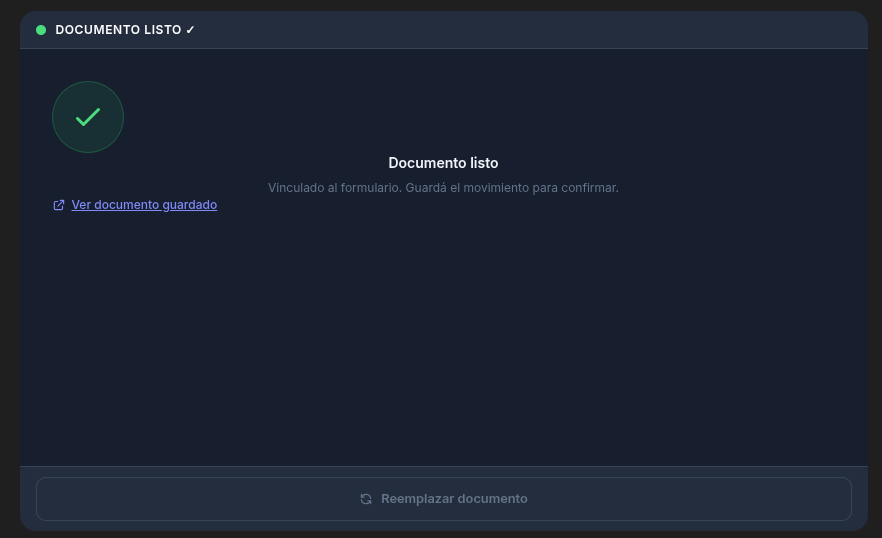

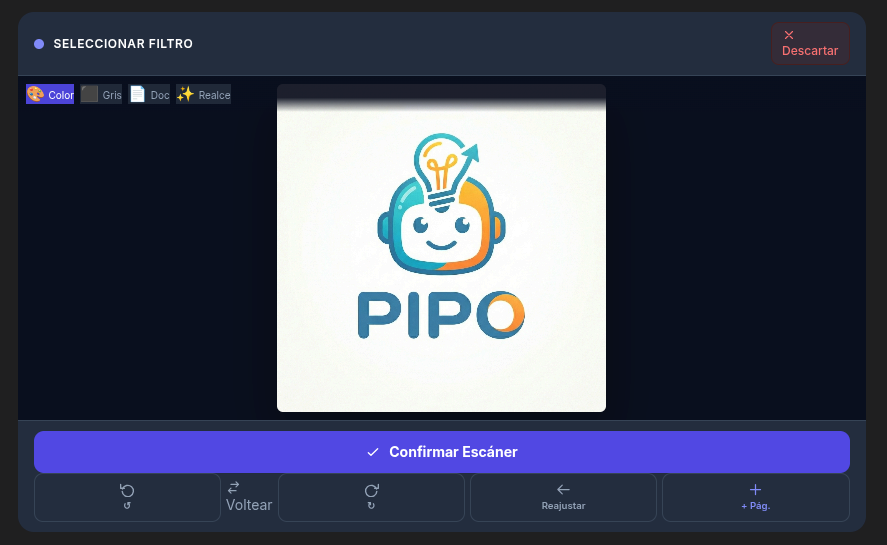

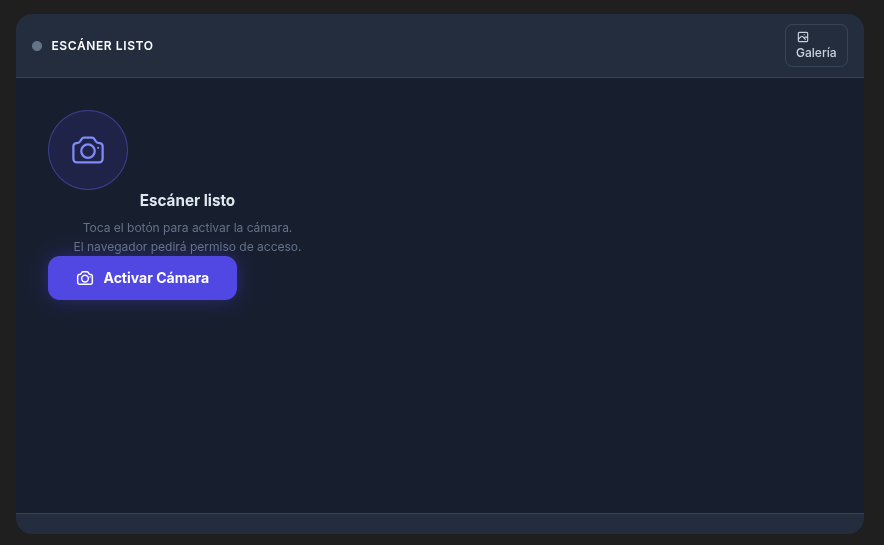

Ready	Editor	Filter	Saved

Features

• 📷 Camera capture with real-time automatic edge detection
• ✂️ Manual corner adjustment with magnifier loupe for pixel-perfect crops
• 🎨 Three filters: color, grayscale, black & white
• 🔄 Rotation (90° steps) and horizontal flip
• 📄 Multi-page PDF — scan multiple pages into a single document
• 📁 Edit mode — open an existing document and add or replace pages
• 📱 Mobile-first — works on Android and iOS browsers (requires HTTPS)
• 🔒 Secure upload — base64 PDF sent via authenticated POST, stored on any Laravel disk

Requirements

Dependency	Version
PHP	^8.1
Laravel	^10.0 | ^11.0 | ^12.0 | ^13.0
Filament	^3.0 | ^5.0
Livewire	^3.0

Note: Camera access requires HTTPS (or localhost). Plain HTTP over LAN will not expose navigator.mediaDevices in most browsers.

Installation

1. Install via Composer:

composer require lacv/pipo-scanner

2. Publish the JS asset (required):

php artisan vendor:publish --tag=pipo-scanner-assets

This copies jscanify.js to public/vendor/pipo-scanner/jscanify.js.

3. Optionally publish the config:

php artisan vendor:publish --tag=pipo-scanner-config

Register the Plugin

In your panel provider (e.g. app/Providers/Filament/AdminPanelProvider.php):

use Lacv\PipoScanner\PipoScannerPlugin;

public function panel(Panel $panel): Panel
{
    return $panel
        ->plugin(PipoScannerPlugin::make());
}

Usage

Recommended: ScannerField (native Filament field)

Drop it directly into your form schema — no extra boilerplate needed. The field state (file path) is handled automatically by Filament, just like any other field.

use Lacv\PipoScanner\Forms\Components\ScannerField;

ScannerField::make('document_path')
    ->label('Document')
    ->columnSpanFull(),

In edit mode the field reads its own state ($record->document_path) and shows the existing document automatically — no extra code needed.

Available options

Method	Default	Description
->disk('s3')	config('pipo-scanner.disk')	Storage disk
->directory('contracts/2026')	config('pipo-scanner.directory')	Upload subdirectory
->maxFileSize(8 * 1024 * 1024)	config('pipo-scanner.max_file_size')	Max upload size in bytes
->height(450)	580	Scanner panel height in px

Full example:

ScannerField::make('document_path')
    ->label('Document')
    ->disk('public')
    ->directory('documents/contracts')
    ->maxFileSize(8 * 1024 * 1024)   // 8 MB
    ->height(480)
    ->columnSpanFull(),

Legacy: ViewField (manual wiring)

The original approach is still supported for backward compatibility.

It communicates back to Livewire via two mechanisms:

1. Calls $wire.setScannerDocumentPath(path) on the Livewire component.
2. Dispatches a browser event scanner-saved with { path, url }.

Step 1 — Add a method to your Livewire page/resource:

public ?string $document_path = null;

public function setScannerDocumentPath(string $path): void
{
    $this->document_path = $path;
}

Step 2 — Add the field to your form schema:

use Filament\Forms\Components\ViewField;
use Filament\Forms\Components\Hidden;

Hidden::make('document_path'),

ViewField::make('scanner')
    ->view('pipo-scanner::components.scanner')
    ->columnSpanFull(),

Step 3 — Pass existing document in edit mode:

ViewField::make('scanner')
    ->view('pipo-scanner::components.scanner')
    ->viewData([
        'existingPath' => $this->record?->document_path,
        'existingUrl'  => $this->record?->document_path
            ? Storage::disk('public')->url($this->record->document_path)
            : null,
    ])
    ->columnSpanFull(),

How It Works

Browser Camera
    ↓
OpenCV.js (edge detection at ~4fps, downscaled 40% for performance)
    ↓
Auto-detect document corners → draw overlay on live feed
    ↓
User captures frame (or manually adjusts corners with loupe)
    ↓
jscanify crops & perspective-corrects the image
    ↓
User selects filter: color / grayscale / B&W
    ↓
User can rotate 90° or flip horizontally
    ↓
Repeat for multiple pages (accumulated in memory)
    ↓
jsPDF compiles all pages into a single PDF
    ↓
Base64 PDF sent via POST to /pipo-scanner/upload
    ↓
Laravel stores file on configured disk
    ↓
Returns { path, url } → updates Livewire component

Events

Browser event

After a successful save the component dispatches:

$dispatch('scanner-saved', { path: 'documents/scanner/temp/scan_xxx.pdf', url: 'https://...' })

Listen to it with Alpine.js:

<div x-on:scanner-saved.window="myHandler($event.detail)">

Livewire method

The component automatically calls $wire.setScannerDocumentPath(path) on the parent Livewire component. Just define the method on your page/component:

public function setScannerDocumentPath(string $path): void
{
    $this->data['document_path'] = $path;
}

Configuration

After publishing the config file (config/pipo-scanner.php):

return [
    // Storage disk (default: 'public')
    'disk' => env('PIPO_SCANNER_DISK', 'public'),

    // Directory within the disk
    'directory' => env('PIPO_SCANNER_DIRECTORY', 'documents/scanner/temp'),

    // Maximum file size in bytes (default: 4MB)
    'max_file_size' => env('PIPO_SCANNER_MAX_SIZE', 4 * 1024 * 1024),

    // Upload route URL path
    'upload_route' => env('PIPO_SCANNER_UPLOAD_ROUTE', '/pipo-scanner/upload'),
];

Or via .env:

PIPO_SCANNER_DISK=s3
PIPO_SCANNER_DIRECTORY=scans/documents
PIPO_SCANNER_MAX_SIZE=8388608

Mobile Considerations

• Android: Camera permission prompt appears on first use. The component defers getUserMedia() until an explicit user tap to ensure the gesture context required by Android browsers.
• iOS (Safari): Supported on iOS 14.3+. Requires HTTPS.
• HTTP on LAN: navigator.mediaDevices is not exposed. Use HTTPS or localhost.

Customizing the View

To override the default view, publish it:

php artisan vendor:publish --tag=pipo-scanner-views

The view will be copied to resources/views/vendor/pipo-scanner/components/scanner.blade.php.

Credits

• OpenCV.js — computer vision library for edge detection
• jscanify — document scanning library built on OpenCV.js
• jsPDF — client-side PDF generation

License

MIT — see LICENSE file.
