README

DB Digram

Interactive database diagram builder for Laravel.

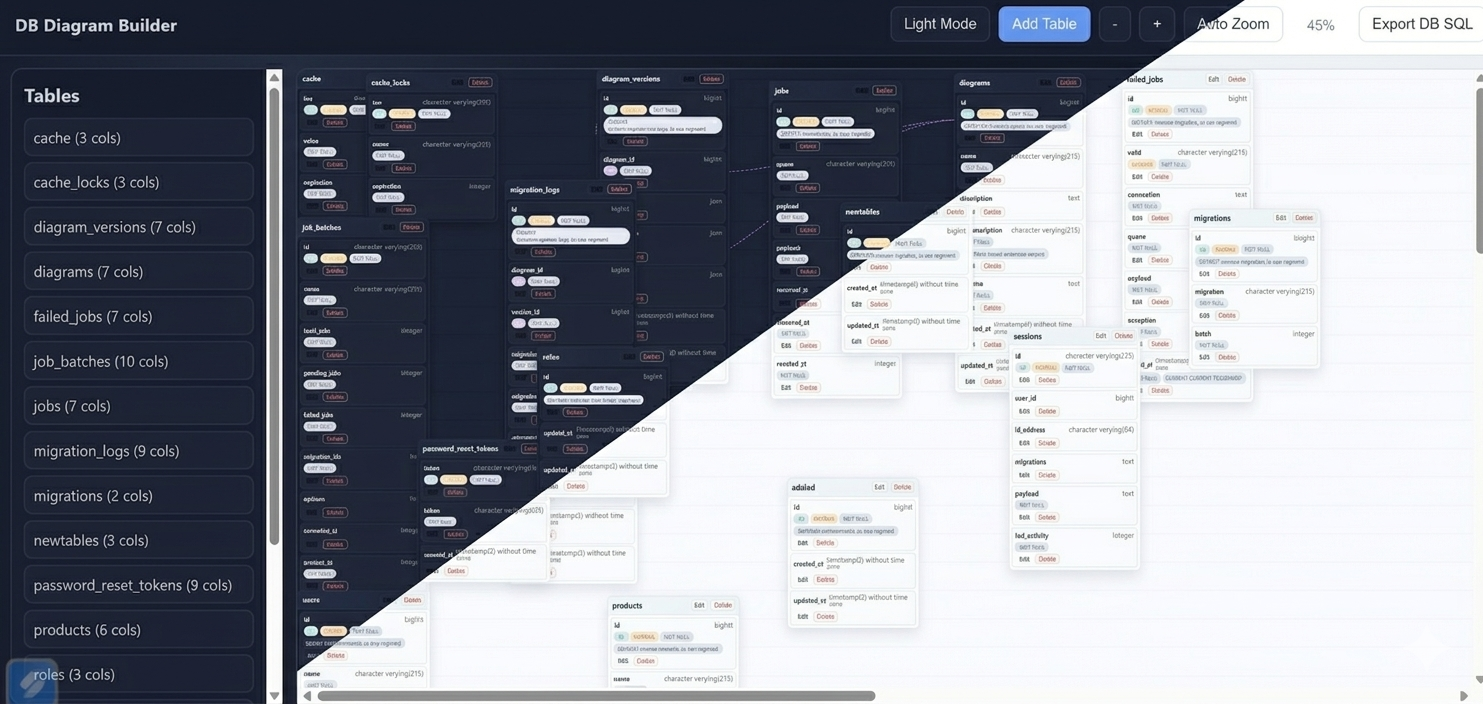

This package provides a visual UI to inspect your schema, create/update/delete tables and columns, and export SQL.

composer require hisee/db-digram

Laravel package auto-discovery is enabled, so no manual provider registration is required.

If your app has auto-discovery disabled, register the provider manually in bootstrap/providers.php:

Hussain\DBDigram\DbDigramServiceProvider::class,

After installation, publish the package config file:

php artisan vendor:publish --tag=db-digram-config

This creates config/db-digram.php in your app where you can enable/disable the package:

return [
	'enabled' => true,
	'auth' => [
		'enabled' => false,
		'email' => '',
		'password' => '',
		'realm' => 'DB Diagram Access',
	],
];

You can also configure these values in .env:

DB_DIGRAM_AUTH_ENABLED=true
DB_DIGRAM_AUTH_EMAIL=admin@example.com
DB_DIGRAM_AUTH_PASSWORD=secret-password
DB_DIGRAM_AUTH_REALM="DB Diagram Login"

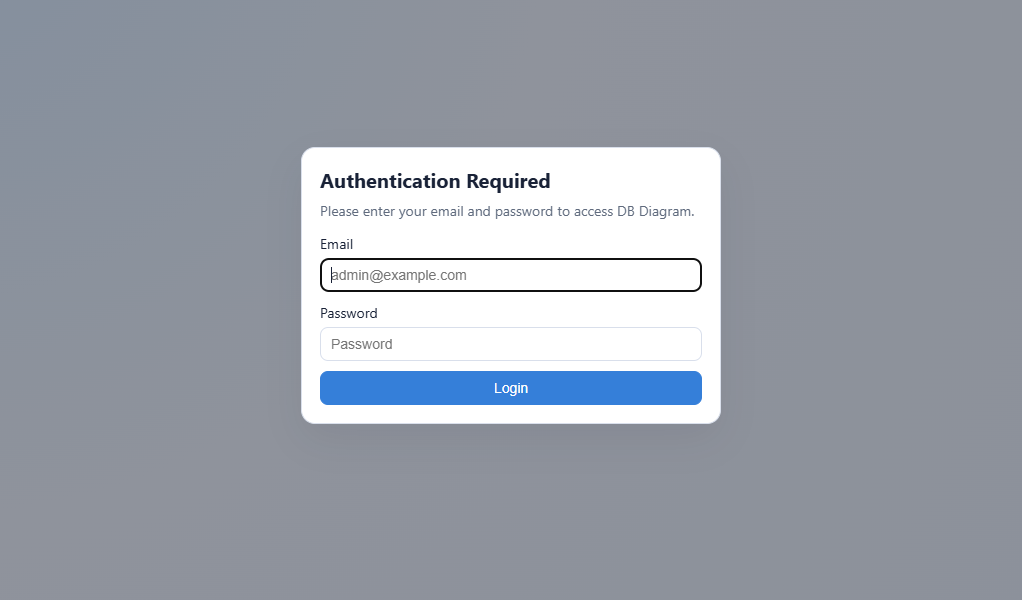

When auth is enabled, the page shows a login modal before the diagram is displayed.

Start your app and open:

Main capabilities in the UI:

Schema actions create migration files in your host app under database/migrations.
Table and column changes are applied by running migrations internally.
Use carefully in production environments.
Keep backups before destructive schema changes.
