elgohr/laravel-trans-builder

A professional UI-based migration builder for Laravel Translatable package

v1 2026-03-22 10:43 UTC

Requires

• php: ^8.1
• laravel/framework: ^10.0|^11.0|^12.0|^13.0
• livewire/livewire: ^3.0

Suggests

• astrotomic/laravel-translatable: Install this to use generated models with the Translatable trait.

MIT

• Amir Nagy

README

A professional UI-based migration builder for Laravel that simplifies creating database tables with full translatable field support using the Astrotomic Laravel Translatable package.

🎯 Features

Core Features

• Visual UI Builder - Intuitive interface to design database tables using a phpMyAdmin-like builder
• Translatable Fields - Seamlessly separate translatable and non-translatable columns
• Automatic Translation Tables - Auto-generates translation tables with proper constraints
• Full Customization - Configure every aspect of your table structure
• Live Preview - Preview generated migration and model code before export
• One-Click Download - Export migration and model files directly
• Generate In Project - Write migration, models, repository files, and seeder directly into your Laravel project
• Artisan Command - Quick access via php artisan translatable:builder

Advanced Features

• Multiple primary key types (Auto-increment, Big ID, UUID)
• Foreign key management with cascade actions
• Database engine and charset configuration
• Soft deletes support
• Timestamps management
• Custom naming for translation tables and foreign keys
• Column reordering
• Edit/remove columns before generation
• Model generation with Translatable integration
• Repository generation with admin CRUD pattern
• Seeder generation for main and translation tables

📦 Installation

1. Install via Composer

composer require elgohr/laravel-trans-builder

2. Publish Configuration (Optional)

php artisan vendor:publish --tag=translatable-builder-config

3. Requirements

• PHP 8.1+
• Laravel 10.0+
• Livewire 3.0+

Astrotomic Translatable is optional for installation. If installed, generated models include the trait usage automatically.

🚀 Quick Start

Access the Builder

Option 1: Web Route

http://your-app.test/translatable-builder

Option 2: Artisan Command

php artisan translatable:builder

# With auto-serve
php artisan translatable:builder --serve

Basic Workflow

1. Step 1: Basic Configuration

   • Enter table name
   • Configure primary key, engine, charset
   • Set timestamps, soft deletes options
   • Customize translation table names (optional)

2. Step 2: Add Columns

   • Click "Add Column"
   • Configure each column:
     • Name, type, length/precision
     • Nullable, default values
     • Indexes (unique, index)
     • Foreign keys
     • Mark as "Translatable" ✨

3. Step 3: Preview

   • Review generated migration
   • Review generated model
   • Copy code, download files, or generate directly in project

4. Step 4: Use Generated Files

   • Place migration in database/migrations/
   • Place model in app/Models/
   • Run php artisan migrate

5. Optional: Generate In Project (Recommended)

   • Click Generate In Project in Preview
   • The package generates automatically:
     • Migration in database/migrations
     • Model folder in app/Models/{Model}
     • {Model}.php
     • {Model}Translation.php
     • {Model}Repository.php
     • {Model}EloquentRepository/Eloquent{Model}Repository.php
     • {Model}Seeder.php in database/seeders

🖼️ Interface Screenshots

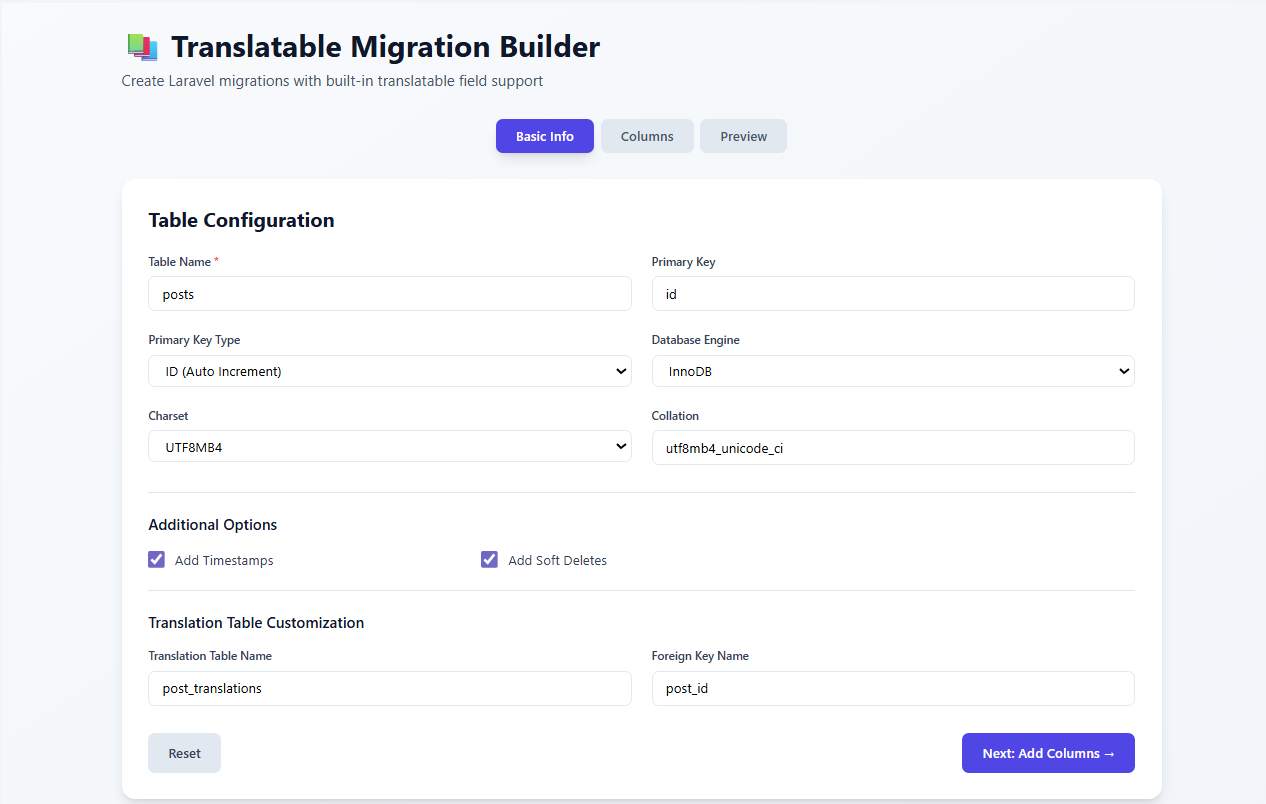

Table Configuration (Step 1)

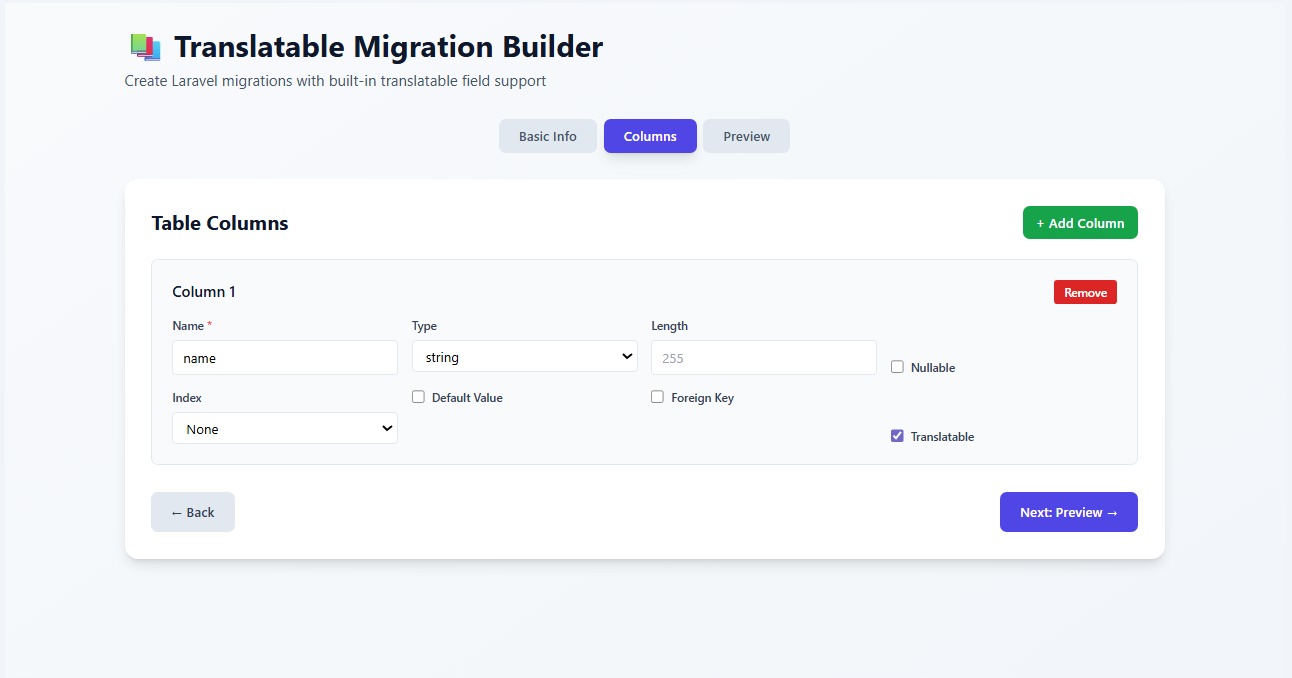

Columns Builder (Step 2)

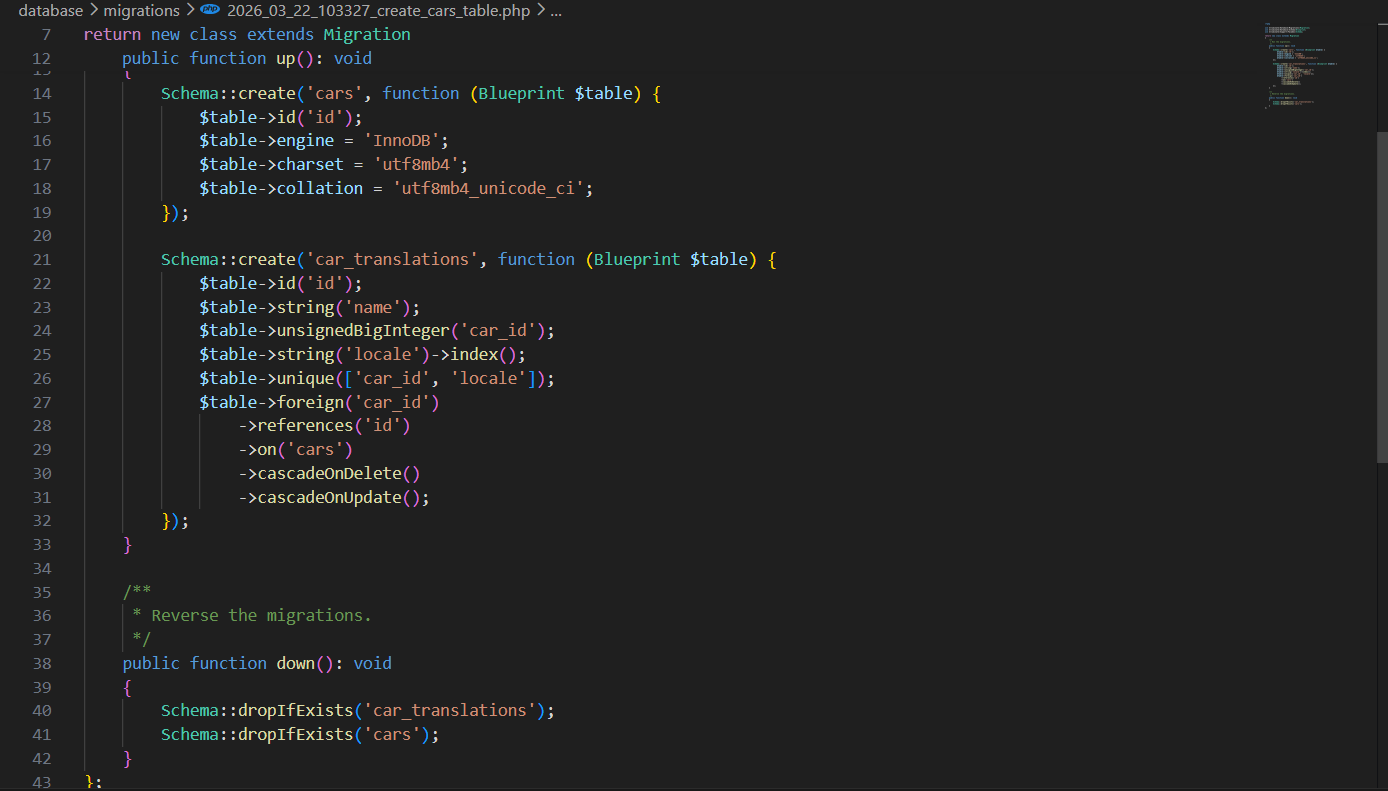

Generated Migration Output

🎨 Usage Examples

Building a Blog System

Table Configuration:

• Table Name: posts
• Timestamps: ✓
• Soft Deletes: ✓

Columns:

1. user_id (foreignId) → users.id
2. title (string, 200) → Translatable ✓
3. slug (string, 200) → Translatable ✓
4. content (text) → Translatable ✓
5. excerpt (text, nullable) → Translatable ✓
6. is_published (boolean, default: false)
7. published_at (dateTime, nullable)
8. view_count (integer, default: 0)

Generated Files:

Migration:

Schema::create('posts', function (Blueprint $table) {
    $table->id();
    $table->foreignId('user_id')->constrained('users')->cascadeOnDelete();
    $table->boolean('is_published')->default(false);
    $table->dateTime('published_at')->nullable();
    $table->integer('view_count')->default(0);
    $table->softDeletes();
    $table->timestamps();
});

Schema::create('posts_translations', function (Blueprint $table) {
    $table->id();
    $table->string('title');
    $table->string('slug');
    $table->text('content');
    $table->text('excerpt')->nullable();
    $table->string('locale')->index();
    $table->unique(['posts_id', 'locale']);
    $table->foreign('posts_id')->references('id')->on('posts')->cascadeOnDelete();
});

Model:

class Post extends Model
{
    use Translatable;

    public $translatedAttributes = ['title', 'slug', 'content', 'excerpt'];

    protected $casts = [
        'is_published' => 'boolean',
        'published_at' => 'datetime',
        'view_count' => 'integer',
    ];

    public function user()
    {
        return $this->belongsTo(User::class);
    }
}

Building a Product Catalog

Table Configuration:

• Table Name: products
• Timestamps: ✓
• Engine: InnoDB
• Charset: utf8mb4

Columns:

1. sku (string, 100, unique)
2. price (decimal, 10, 2, default: 0)
3. stock (integer, default: 0, nullable)
4. is_active (boolean, default: true)
5. category_id (foreignId) → categories.id
6. name (string, 200) → Translatable ✓
7. description (text) → Translatable ✓
8. slug (string) → Translatable ✓

⚙️ Configuration

Config File: config/translatable-builder.php

return [
    // Enable/disable builder
    'enabled' => env('TRANSLATABLE_BUILDER_ENABLED', true),

    // Route configuration
    'route_prefix' => 'translatable-builder',
    'middleware' => ['web'],

    // File paths
    'migration_path' => 'database/migrations',
    'model_path' => 'app/Models',
    'seeder_path' => 'database/seeders',
    'model_namespace' => 'App\\Models',

    // Available column types
    'column_types' => [
        'string', 'text', 'integer', 'bigInteger', 'decimal',
        'float', 'boolean', 'date', 'dateTime', 'time', 'json',
        'jsonb', 'uuid', 'enum', 'foreignId', 'morphs',
    ],

    // Available index types
    'index_types' => [
        'index' => 'Index',
        'unique' => 'Unique',
        'primary' => 'Primary Key',
    ],
];

🔑 Key Concepts

Translatable Columns

When you mark a column as "Translatable":

• It's removed from the main table
• It's added to the translations table
• The builder automatically handles:
  • Translation table creation
  • Locale column (indexed)
  • Foreign key to main table
  • Unique constraint on [foreign_key, locale]

Example Structure

Before (without Translations):

$table->string('name');
$table->text('description');

After (with Translations):

Main Table (products):
- id
- sku
- price
- stock
- created_at
- updated_at

Translations Table (products_translations):
- id
- products_id (foreign key)
- locale (indexed)
- name
- description
- unique(products_id, locale)

📁 Package Structure

translatable-migration-builder/
├── config/
│   └── translatable-builder.php          # Configuration
├── resources/
│   ├── views/
│   │   ├── index.blade.php               # Main view
│   │   └── livewire/
│   │       └── builder.blade.php         # Livewire component
│   ├── css/
│   │   └── builder.css                   # Styling (optional)
│   ├── js/
│   │   └── builder.js                    # JavaScript (optional)
│   └── examples/
│       ├── 2024_03_22_120000_create_products_table.php
│       └── Product.php
├── routes/
│   └── web.php                           # Routes
├── src/
│   ├── Builders/
│   │   ├── Column.php                    # Column model
│   │   └── Table.php                     # Table model
│   ├── Commands/
│   │   └── LaunchBuilderCommand.php      # Artisan command
│   ├── Generators/
│   │   ├── MigrationGenerator.php        # Migration code generator
│   │   └── ModelGenerator.php            # Model code generator
│   ├── Http/
│   │   └── Controllers/
│   │       └── BuilderController.php     # Route controller
│   ├── Livewire/
│   │   └── BuilderComponent.php          # Livewire component
│   ├── Support/                          # Helper utilities (optional)
│   ├── Contracts/                        # Interfaces (optional)
│   └── TranslatableMigrationBuilderServiceProvider.php
├── composer.json
└── README.md

🛠️ Architecture

Builder Classes

Column.php - Represents a single database column

$column = new Column('title', 'string');
$column->setLength(200)
       ->setNullable(false)
       ->setTranslatable(true);

Table.php - Represents a complete table structure

$table = new Table('products');
$table->setPrimaryKey('id')
      ->setTimestamps(true)
      ->addColumn($column);

Generators

MigrationGenerator.php - Generates Laravel migration PHP code

$generator = new MigrationGenerator();
$code = $generator->generate($table);
$filename = $generator->getFilename($table);

ModelGenerator.php - Generates Laravel model with Translatable trait

$generator = new ModelGenerator();
$code = $generator->generate($table);

Livewire Component

BuilderComponent.php - Manages UI state and interactions

• addColumn() - Add new column
• removeColumn() - Remove column
• updateColumn() - Update column properties
• goToStep() - Navigate between steps
• generatePreview() - Generate preview code
• downloadMigration() - Export migration file
• downloadModel() - Export model file
• generateInProject() - Generate migration, models, repository files, and seeder directly in Laravel project

🎯 Best Practices

Table Naming

// Use plural form for tables
products, users, posts, categories

// Translation tables auto-generated as
products_translations, users_translations, etc.

Column Naming

// Use snake_case
user_id, category_id, product_name

// Foreign keys follow convention
{singular_table}_id (user_id, category_id)

Translatable Fields

// Good - Textual content
title, description, content, slug, meta_title, meta_description

// Bad - Config/status fields (should NOT be translatable)
is_active, status, price, stock

🔒 Security

Access Control

By default, the builder is accessible to all authenticated users. Restrict access by modifying middleware:

// config/translatable-builder.php
'middleware' => ['web', 'auth', 'admin'], // Add custom middleware

Environment Control

// .env
TRANSLATABLE_BUILDER_ENABLED=true  # Set to false in production

🐛 Troubleshooting

Builder not loading?

1. Ensure Livewire is properly installed
2. Check if route is accessible: php artisan route:list | grep translatable
3. Verify TRANSLATABLE_BUILDER_ENABLED is true in .env

Generated migration fails?

1. Check table name doesn't conflict with existing tables
2. Verify foreign key references exist
3. Ensure column names are valid MySQL identifiers

Model not working with Translatable?

1. Verify $translatedAttributes are set correctly
2. Check foreign key names match migration
3. Ensure Astrotomic package is installed

📚 Additional Resources

• Astrotomic Translatable Docs
• Laravel Migrations
• Livewire Documentation

📝 License

MIT License - See LICENSE file

🤝 Contributing

Contributions are welcome! Please submit issues and pull requests.

📧 Support

For issues, questions, or feature requests, please open an issue on GitHub.

Built with ❤️ for Laravel developers who value clean, translatable databases
