eduardoribeirodev/filament-leaflet

Um widget de mapa para FilamentPHP.

v4.7.1 2026-03-09 16:13 UTC

Requires

• php: ^8.1
• filament/filament: ^4.0|^5.0

MIT

README

A powerful and elegant Leaflet integration for Filament PHP that makes creating interactive maps a breeze. Build beautiful, feature-rich maps with markers, clusters, shapes, and more using a fluent, expressive API.

Features

• 🗺️ Interactive Maps - Full Leaflet integration with customizable tile layers
• 📍 Markers & Clusters - Beautiful markers with popup/tooltip support and intelligent clustering
• 🎨 Shapes - Circles, polygons, polylines, rectangles, and circle markers
• 🎯 Click Events - Handle clicks on markers, shapes, and the map itself
• 📊 GeoJSON Support - Display density maps with custom color schemes
• 🔄 Model Binding - Automatically create markers from Eloquent models
• 🎨 Multiple Tile Layers - Switch between OpenStreetMap, Satellite, and custom layers
• 💾 CRUD Operations - Create markers directly from map clicks
• 🎭 Customizable - Extensive configuration options for every element

Latest Features

• Form Field (MapPicker) - Pick coordinates directly in forms with automatic latitude/longitude sync or JSON storage
• Table Column (MapColumn) - Display maps in Filament table columns for at-a-glance location visualization
• Infolist Entry (MapEntry) - Display read-only maps in Filament infolists
• Model GeoJSON Files - Automatic GeoJSON loading from models with HasGeoJsonFile trait
• Layer Groups - Organize markers and shapes with automatic coverage area calculation
• Editable Layers & Draw Control - Edit markers and shapes directly on the map
• Dynamic Icons - Marker icons with automatic sizing and anchor point calculation
• Heroicon Support - Use Filament Heroicons directly in markers with automatic SVG rendering
• Enhanced Shapes - Factory methods (fromRecord()) for all shape classes with support for JSON columns
• JSON Storage - Store coordinates as JSON in single database column
• Map Interaction Control - Toggle dragging, zooming, and auto-recenter behavior
• Static Maps - Display read-only maps with automatic interaction disabling
• Auto-Recenter - Automatically recenter maps after users pan around
• Mapbox Tile Layer Support - New tile layer provider with configurable Access Token and tile size
• Marker CRUD Actions - Built-in view, edit, and delete actions for markers on the map
• Coordinate DTO - Improved handling of latitude/longitude pairs with dedicated DTO class

Installation

composer require eduardoribeirodev/filament-leaflet

Publish the assets:

php artisan vendor:publish --tag=filament-leaflet

This will publish the Leaflet assets used by the package.

Table of Contents

• Installation
• Core Components
  • Map Widget
  • MapPicker (Form Field)
  • MapColumn (Table Column)
  • MapEntry (Infolist)
• Map Elements
  • Markers
  • Layer Groups
  • Shapes
  • Editable Layers
• User Interactions
• Advanced Features
• Best Practices
• Configuration Reference
  • Method Reference
  • Concern Methods Reference

Core Components

Map Widget

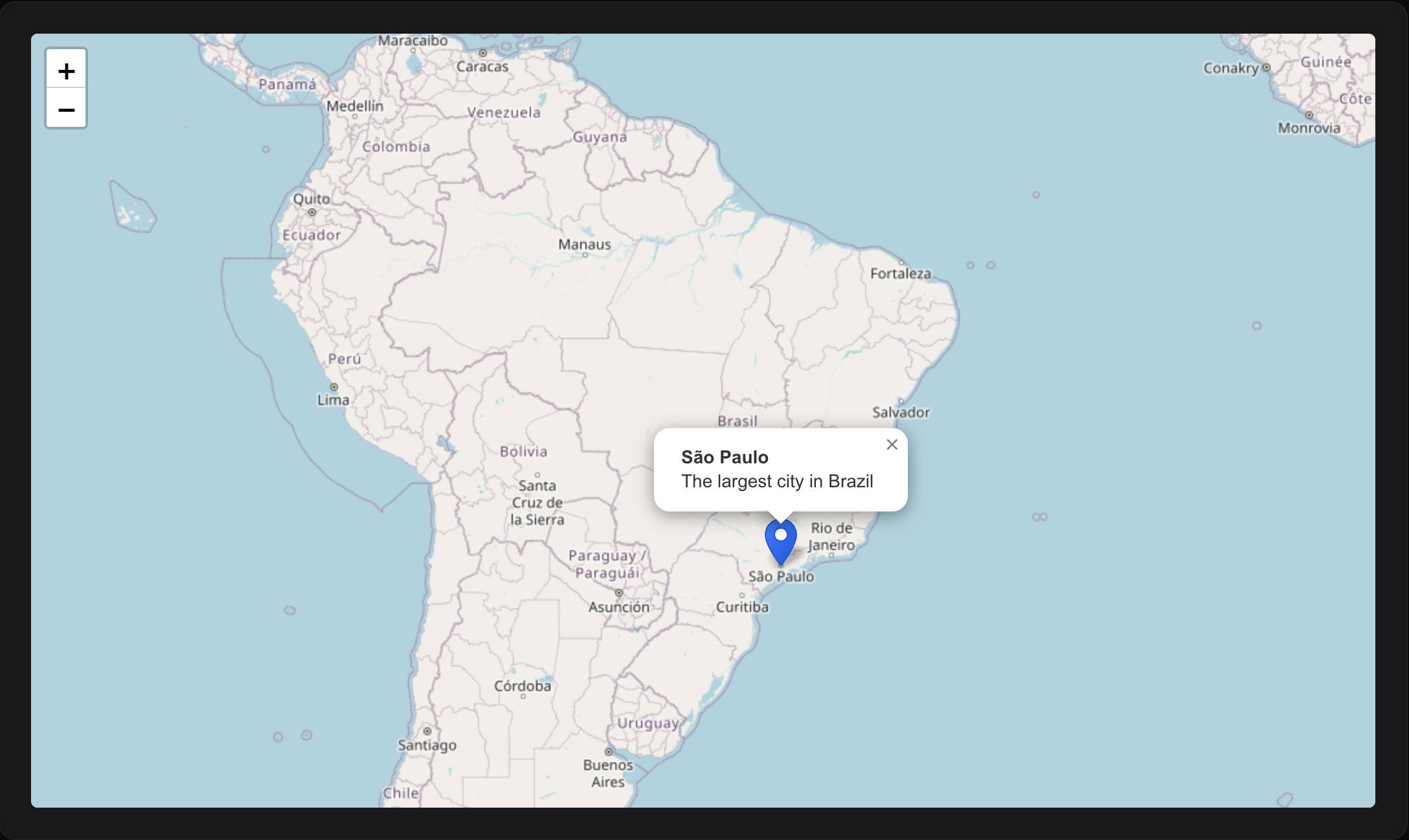

Create your first interactive map widget:

namespace App\Filament\Widgets;

use EduardoRibeiroDev\FilamentLeaflet\Widgets\MapWidget;
use EduardoRibeiroDev\FilamentLeaflet\Support\Markers\Marker;

class MyMapWidget extends MapWidget
{
    protected ?string $heading = 'My Locations';
    protected array $mapCenter = [-23.5505, -46.6333];
    protected int $defaultZoom = 12;
    protected int $mapHeight = 600;

    protected function getMarkers(): array
    {
        return [
            Marker::make(-23.5505, -46.6333)
                ->title('São Paulo')
                ->popupContent('The largest city in Brazil'),
        ];
    }
}

Basic Configuration

class MyMapWidget extends MapWidget
{
    // Display
    protected ?string $heading = 'Store Locations';
    protected int $mapHeight = 600;

    // Map center and zoom
    protected array $mapCenter = [-14.235, -51.9253];
    protected int $defaultZoom = 4;
    protected int $maxZoom = 18;
    protected int $minZoom = 2;
}

Map Interaction Control

Control how users interact with your map:

class MyMapWidget extends MapWidget
{
    // Allow/prevent dragging
    protected bool $mapDraggable = true;

    // Allow/prevent zooming (scroll wheel, pinch)
    protected bool $mapZoomable = true;

    // Auto-recenter after user pans (in milliseconds)
    // Set to null to disable
    protected ?int $recenterMapTimeout = 5000;  // Recenter after 5 seconds

    // Auto-center to user's current location
    protected bool $autoCenter = false;
}

Static Maps - Disable all interactions:

MapPicker::make('location')
    ->static()  // Equivalent to ->mapDraggable(false)->mapZoomable(false)

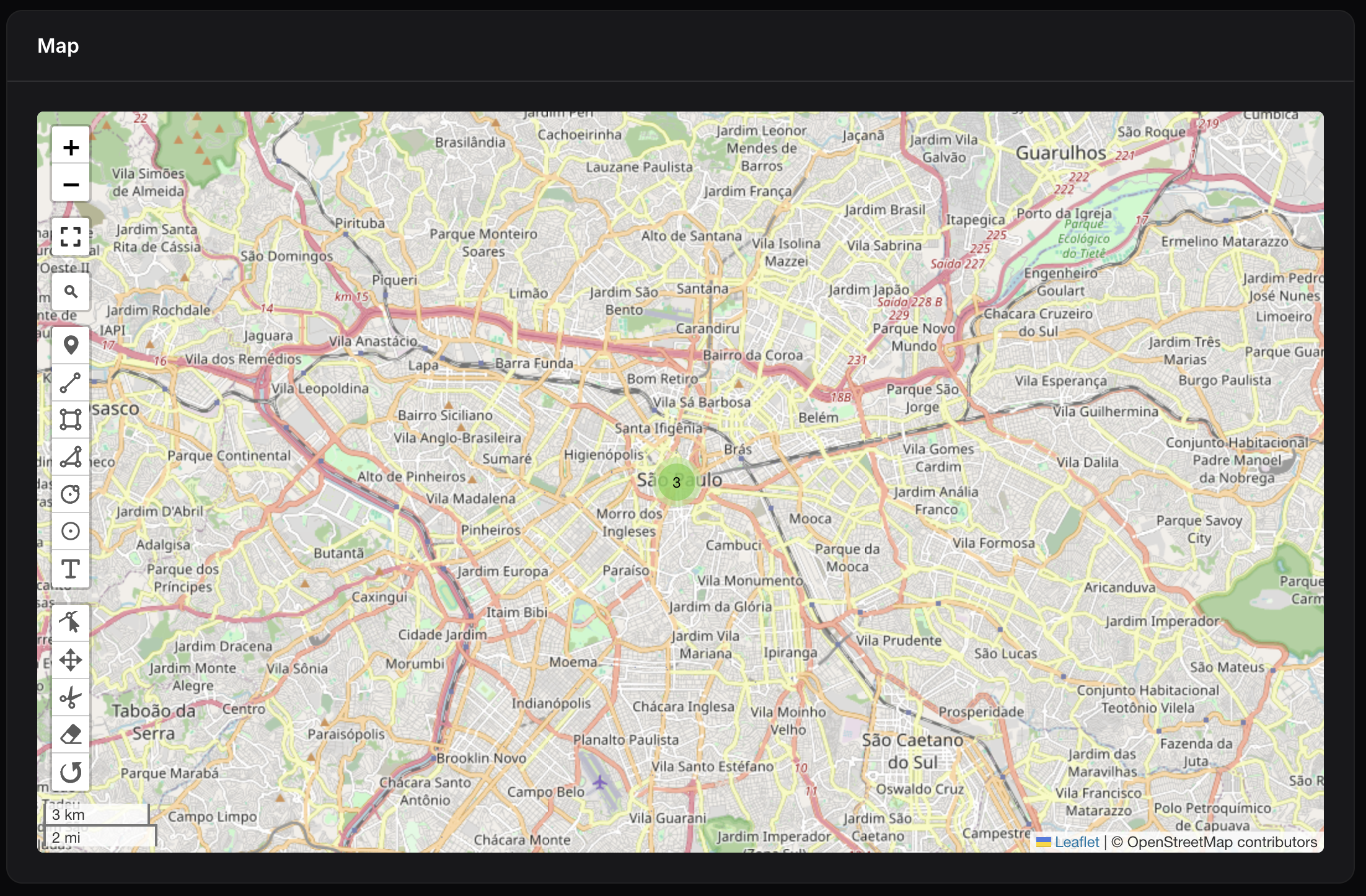

Controls

Enable/disable map controls:

class MyMapWidget extends MapWidget
{
    protected bool $hasAttributionControl = true;
    protected bool $hasScaleControl = true;
    protected bool $hasZoomControl = true;
    protected bool $hasFullscreenControl = true;
    protected bool $hasSearchControl = true;

    protected bool $hasDrawMarkerControl = true;
    protected bool $hasDrawCircleMarkerControl = true;
    protected bool $hasDrawCircleControl = true;
    protected bool $hasDrawPolylineControl = true;
    protected bool $hasDrawRectangleControl = true;
    protected bool $hasDrawPolygonControl = true;
    protected bool $hasDrawTextControl = true;
    protected bool $hasEditLayersControl = true;
    protected bool $hasDragLayersControl = true;
    protected bool $hasRemoveLayersControl = true;
    protected bool $hasRotateLayersControl = true;
    protected bool $hasCutPolygonControl = true;
}

Conditionally show controls at runtime:

protected function hasDrawCircleControl(): bool
{
    return auth()?->user()?->is_admin;
}

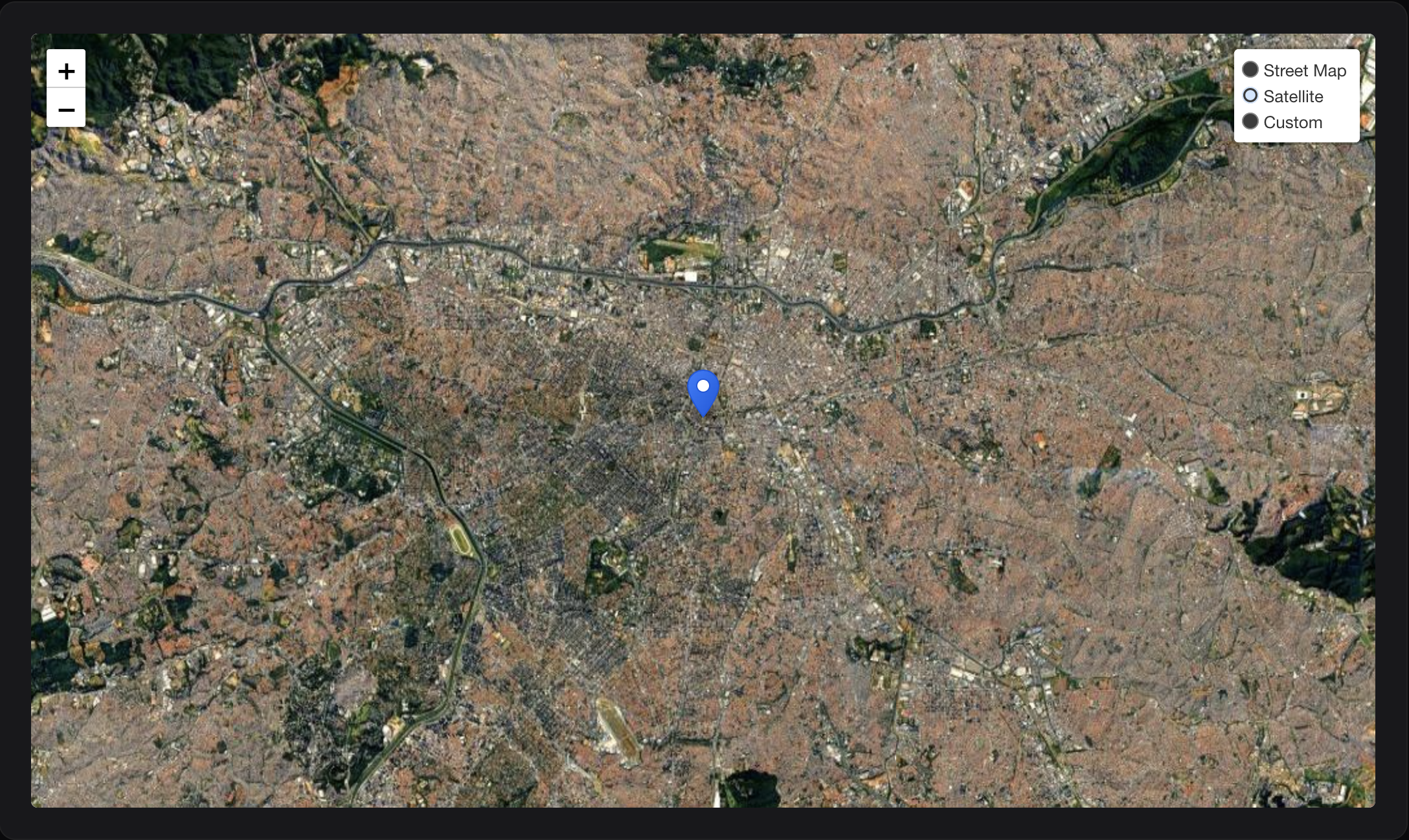

Tile Layers

Choose from multiple providers or add custom layers:

use EduardoRibeiroDev\FilamentLeaflet\Enums\TileLayer;

class MyMapWidget extends MapWidget
{
    // Single layer
    protected TileLayer|string|array $tileLayersUrl = TileLayer::OpenStreetMap;

    // Multiple layers
    protected TileLayer|string|array $tileLayersUrl = [
        'Street Map' => TileLayer::OpenStreetMap,
        'Satellite' => TileLayer::GoogleSatellite,
        'Custom' => 'https://{s}.tile.custom.com/{z}/{x}/{y}.png',
    ];
}

Available providers: OpenStreetMap, GoogleStreets, GoogleSatellite, GoogleHybrid, GoogleTerrain, EsriWorldImagery, EsriWorldStreetMap, EsriNatGeo, CartoPositron, CartoDarkMatter, Mapbox

Mapbox Tile Layer:

To use Mapbox tiles, configure your access token in .env or config/services.php:

Environment variables:

MAPBOX_ACCESS_TOKEN=your_mapbox_access_token_here
MAPBOX_TILE_SIZE=512

Or in config/services.php:

'mapbox' => [
    'token' => env('MAPBOX_ACCESS_TOKEN'),
    'tile_size' => env('MAPBOX_TILE_SIZE', 512),
],

Then use the Mapbox tile layer in your widget:

use EduardoRibeiroDev\FilamentLeaflet\Enums\TileLayer;

class MyMapWidget extends MapWidget
{
    // Single Mapbox layer
    protected TileLayer|string|array $tileLayersUrl = TileLayer::MapboxStreets;
}

Available Mapbox providers:

• TileLayer::MapboxStreets - Streets layer
• TileLayer::MapboxOutdoors - Outdoors layer
• TileLayer::MapboxLight - Light layer
• TileLayer::MapboxDark - Dark layer
• TileLayer::MapboxSatellite - Satellite layer

Or use multiple Mapbox layers:

protected TileLayer|string|array $tileLayersUrl = [
    'Street Map' => TileLayer::OpenStreetMap,
    'Mapbox Streets' => TileLayer::MapboxStreets,
    'Mapbox Satellite' => TileLayer::MapboxSatellite,
    'Mapbox Outdoors' => TileLayer::MapboxOutdoors,
];

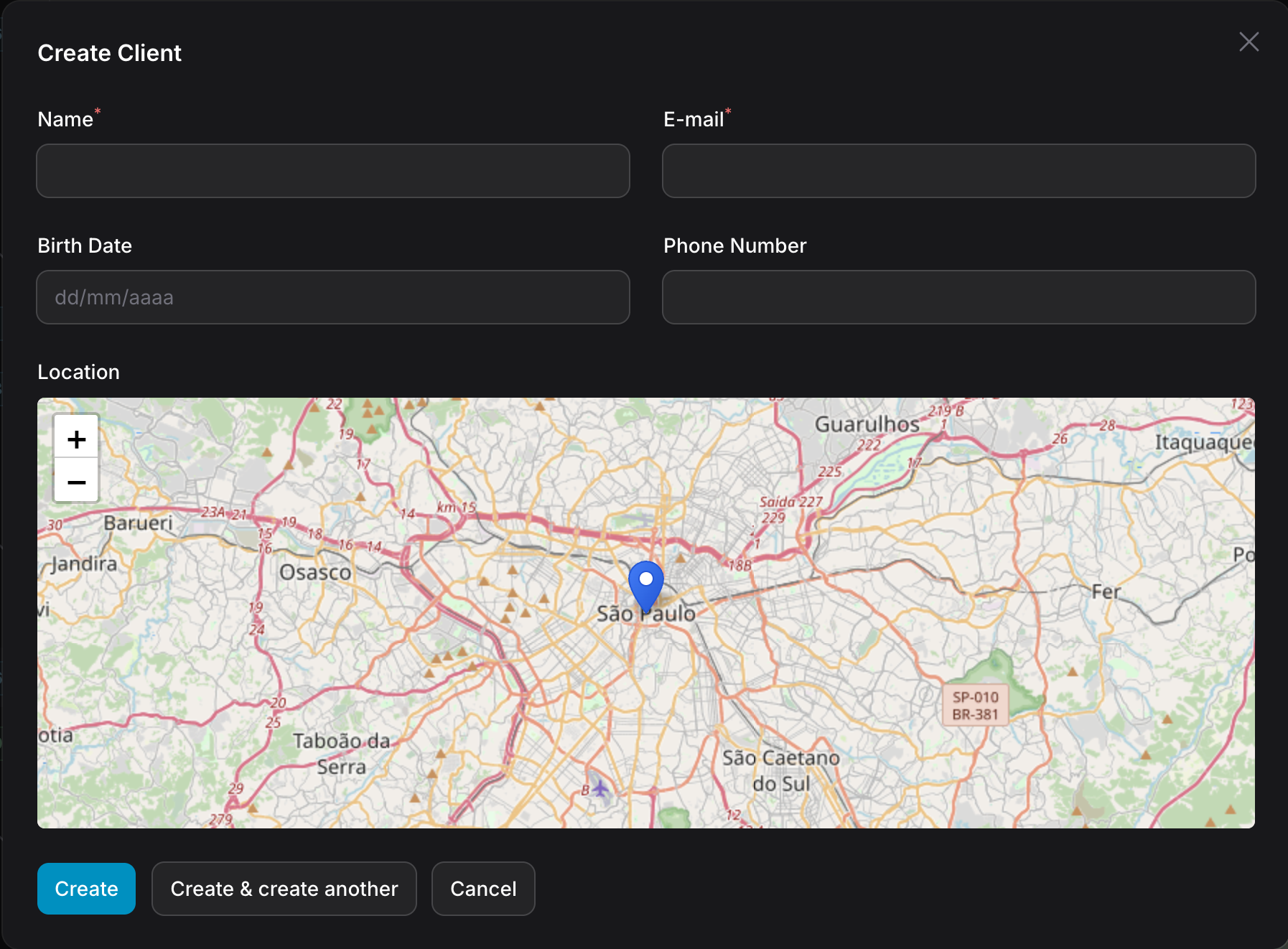

MapPicker (Form Field)

Add an interactive map inside Filament forms. It syncs map clicks to form fields and supports all MapWidget configuration methods.

use EduardoRibeiroDev\FilamentLeaflet\Fields\MapPicker;
use EduardoRibeiroDev\FilamentLeaflet\Enums\TileLayer;

MapPicker::make('location')
    ->height(300)
    ->center(-23.5505, -46.6333)
    ->zoom(11)
    ->autoCenter()  // Auto-center to user's location
    ->tileLayersUrl(TileLayer::OpenStreetMap)
    ->columnSpanFull()

Default behavior: Updates form's latitude and longitude fields. Customize with:

MapPicker::make('location')
    ->latitudeFieldName('lat')
    ->longitudeFieldName('lng')

Store as JSON: Keep coordinates in a single column:

MapPicker::make('location')
    ->storeAsJson()  // Stores: { "latitude": -23.5505, "longitude": -46.6333 }

Load GeoJSON: Automatically loads from models with HasGeoJsonFile trait or getGeoJsonUrl() method:

use EduardoRibeiroDev\FilamentLeaflet\Concerns\HasGeoJsonFile;

class DeliveryZone extends Model
{
    use HasGeoJsonFile;

    public function getGeoJsonFileAttributeName(): string
    {
        return 'geojson_file';
    }

    public function getGeoJsonFileDisk(): ?string
    {
        return 's3';
    }

    public function getExpirationTime(): ?DateTime
    {
        return now()->addHour();
    }
}

Customize pick marker: Visual feedback when clicking the map:

MapPicker::make('location')
    ->pickMarker(fn(Marker $marker) => $marker->blue()->title('Selected'))

Dynamic configuration: Most methods accept closures:

MapPicker::make('location')
    ->center(fn() => [$lat, $lng])
    ->height(fn($record) => 300)
    ->zoom(fn($record) => $record->zoom_level)
    ->mapDraggable(fn($record) => $record->is_editable)
    ->recenterTimeout(fn($record) => $record->is_read_only ? 3000 : null)

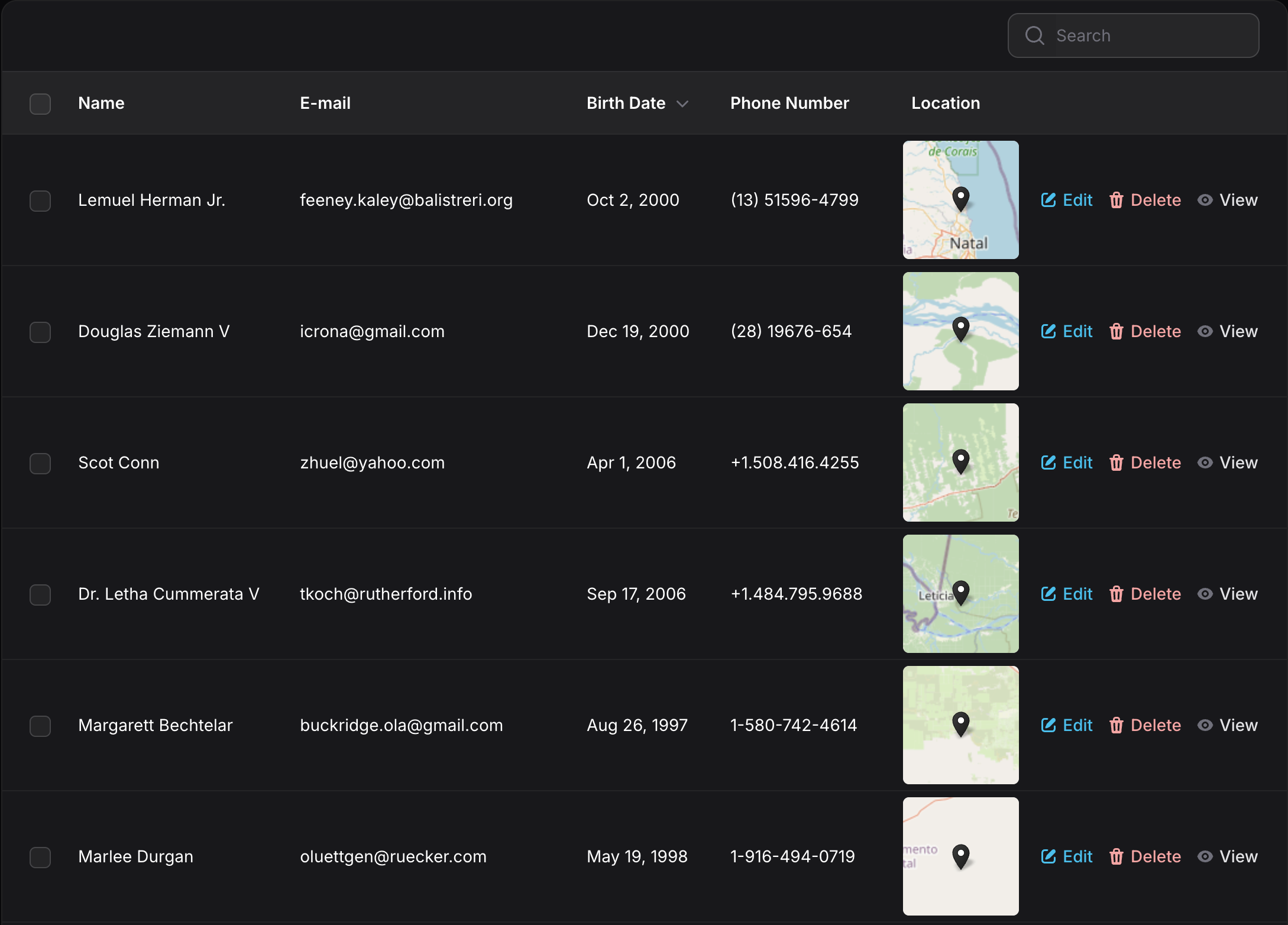

MapColumn (Table Column)

Display maps directly in Filament table columns:

use EduardoRibeiroDev\FilamentLeaflet\Tables\MapColumn;
use EduardoRibeiroDev\FilamentLeaflet\Support\Markers\Marker;

MapColumn::make('location')
    ->height(100)
    ->zoom(8)
    ->pickMarker(fn(Marker $marker) => $marker->black())
    ->static()    // Disable interactions in table preview

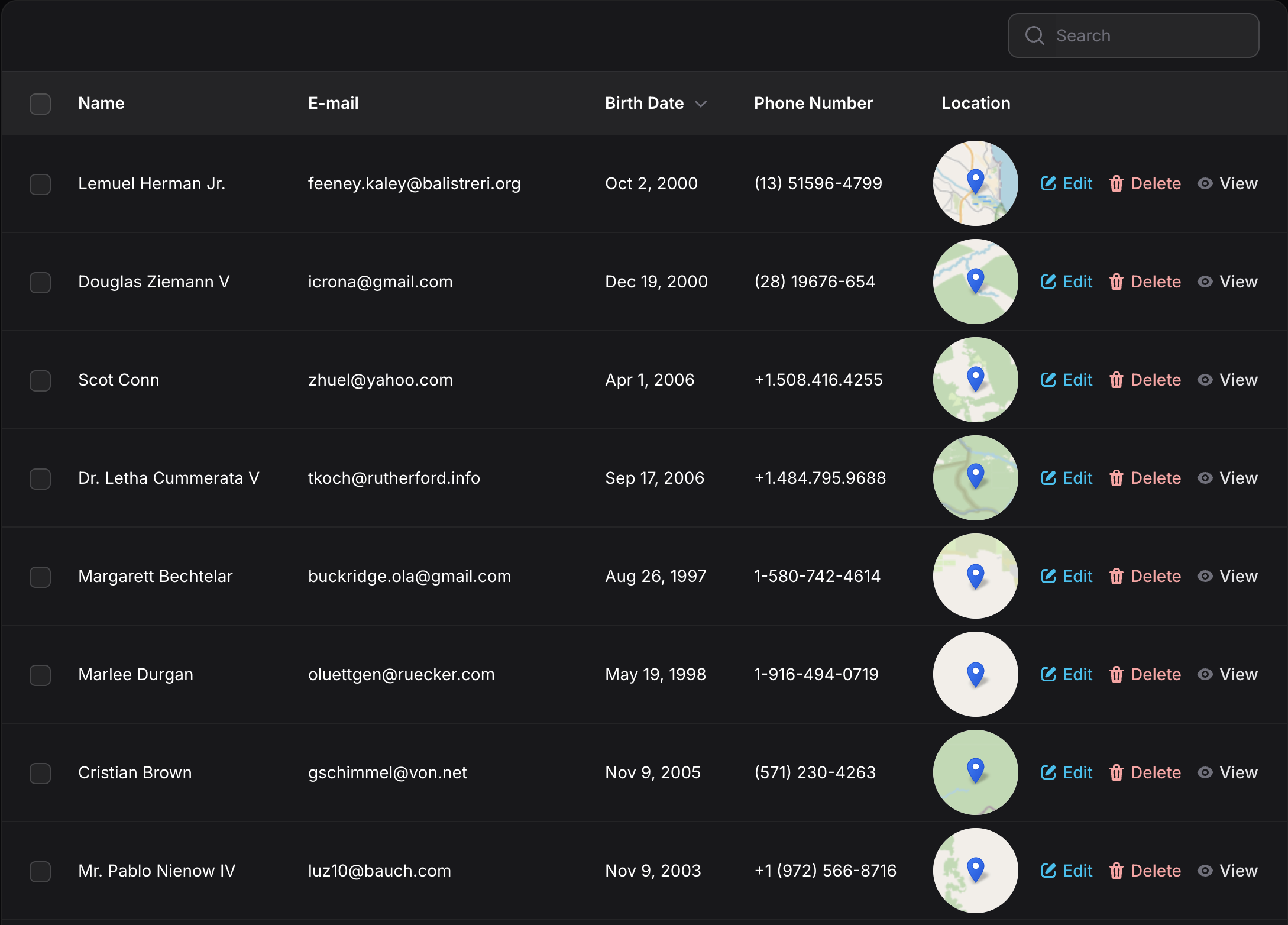

Display circular maps for a unique visual style:

MapColumn::make('location')
    ->height(72)
    ->zoom(5)
    ->pickMarker(fn(Marker $marker) => $marker->iconSize([14, 25]))
    ->circular()  // Optional: circular display

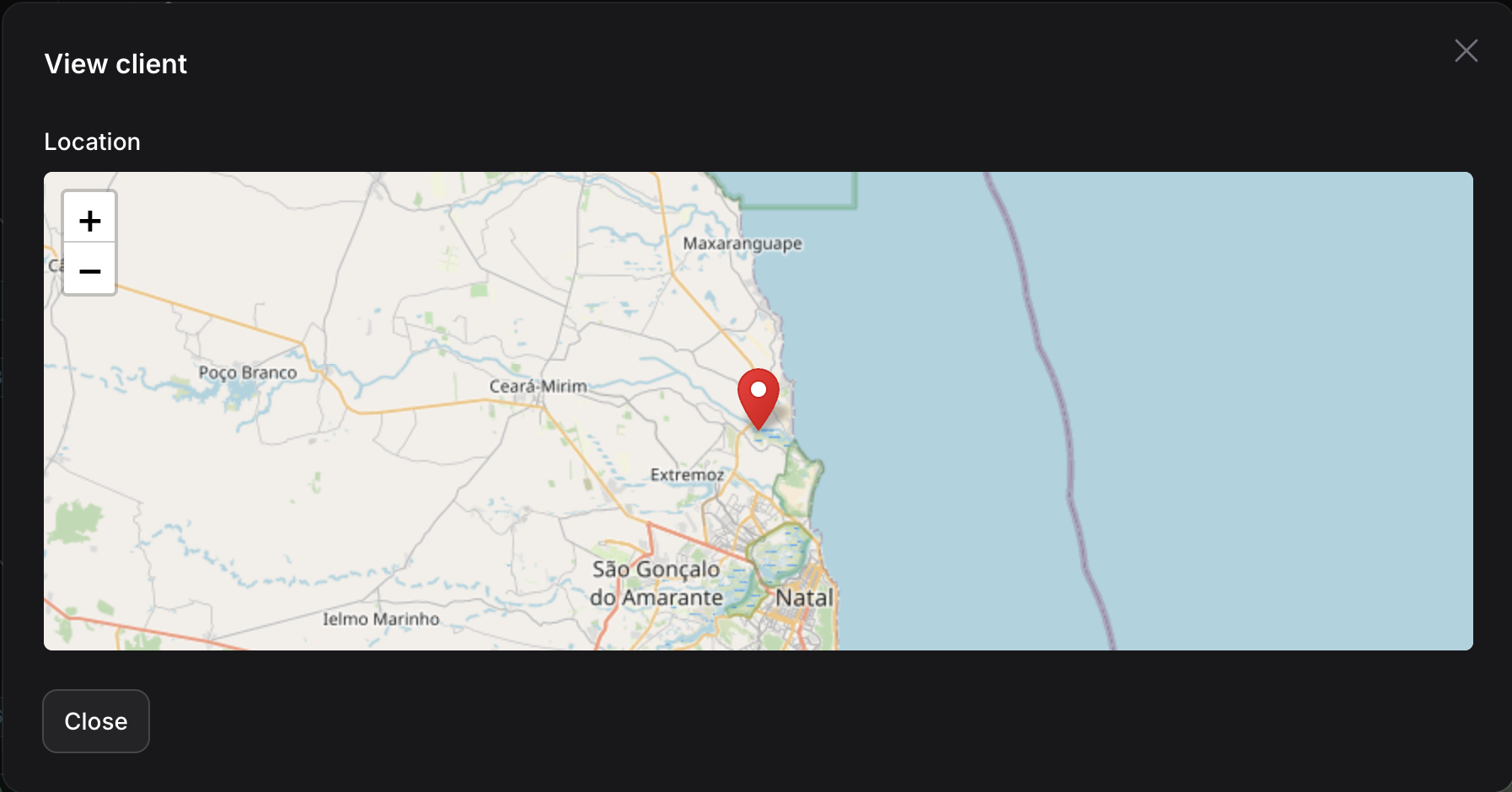

MapEntry (Infolist)

Display read-only maps in Filament infolists:

use EduardoRibeiroDev\FilamentLeaflet\Infolists\MapEntry;
use EduardoRibeiroDev\FilamentLeaflet\Support\Markers\Marker;

MapEntry::make('location')
    ->height(284)
    ->zoom(10)
    ->pickMarker(fn(Marker $marker) => $marker->red())
    ->static()    // Disable interactions (enabled by default)
    ->columnSpanFull()

Auto-recenter: Maps automatically recenter after 3 seconds when users pan around. This provides a guided viewing experience while allowing temporary exploration:

    ->recenterTimeout(5000)  // Recenter after 5 seconds (null to disable)

Map Elements

Markers

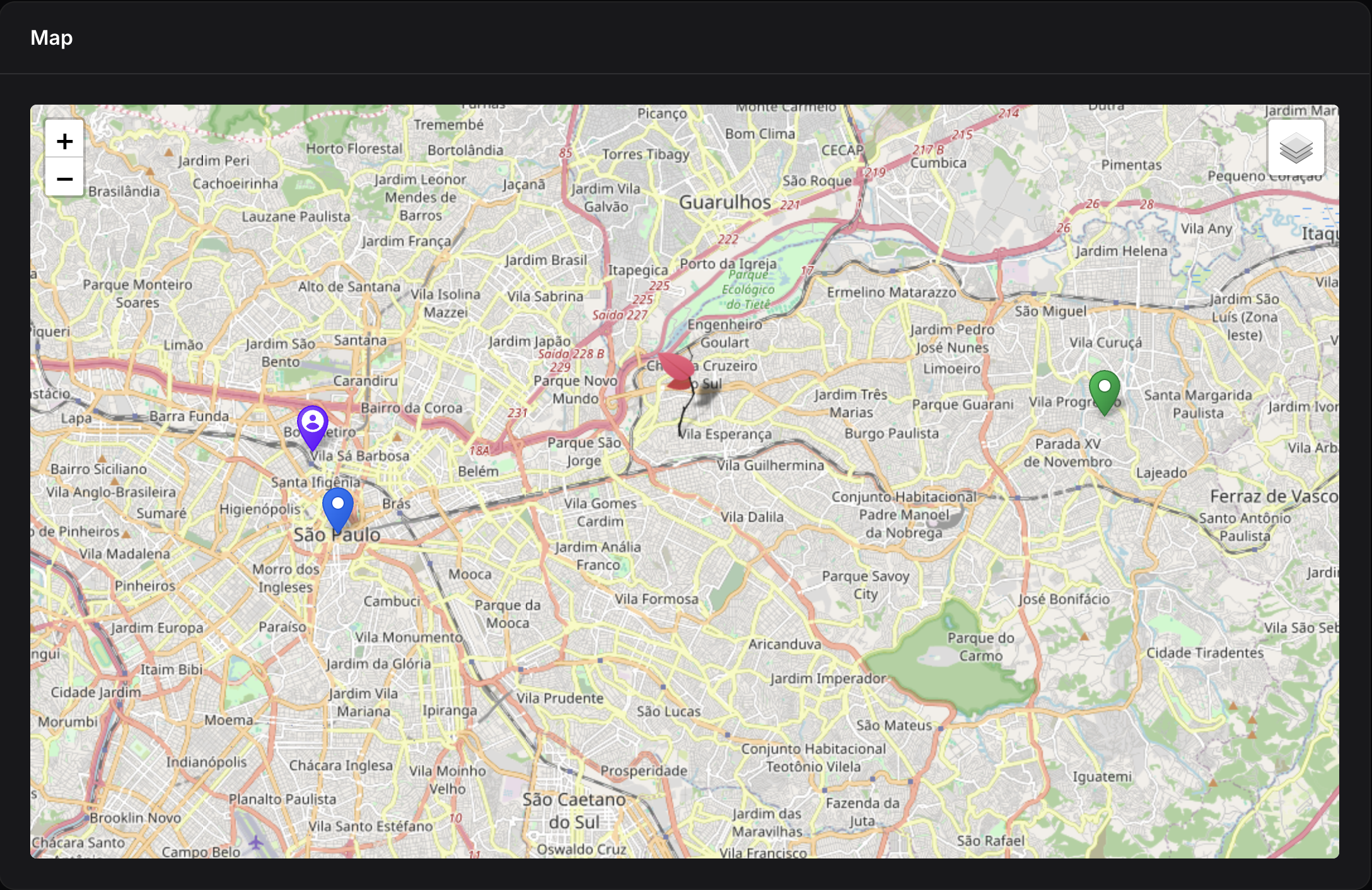

Creating Markers

use EduardoRibeiroDev\FilamentLeaflet\Support\Markers\Marker;
use Filament\Support\Colors\Color;

protected function getMarkers(): array
{
    return [
        Marker::make(-23.5505, -46.6333)->title('Simple marker'),
        Marker::make(-23.5212, -46.4243)->green()->title('Colored marker'),
        Marker::make(-23.5266, -46.5412)->icon('https://leafletjs.com/examples/custom-icons/leaf-red.png', [32, 72]),
        Marker::make(-23.5300, -46.6400)->violet()->icon('heroicon-user-circle')->title('Heroicon marker'),
    ];
}

Marker Icons

Markers support multiple icon types with different visual behaviors:

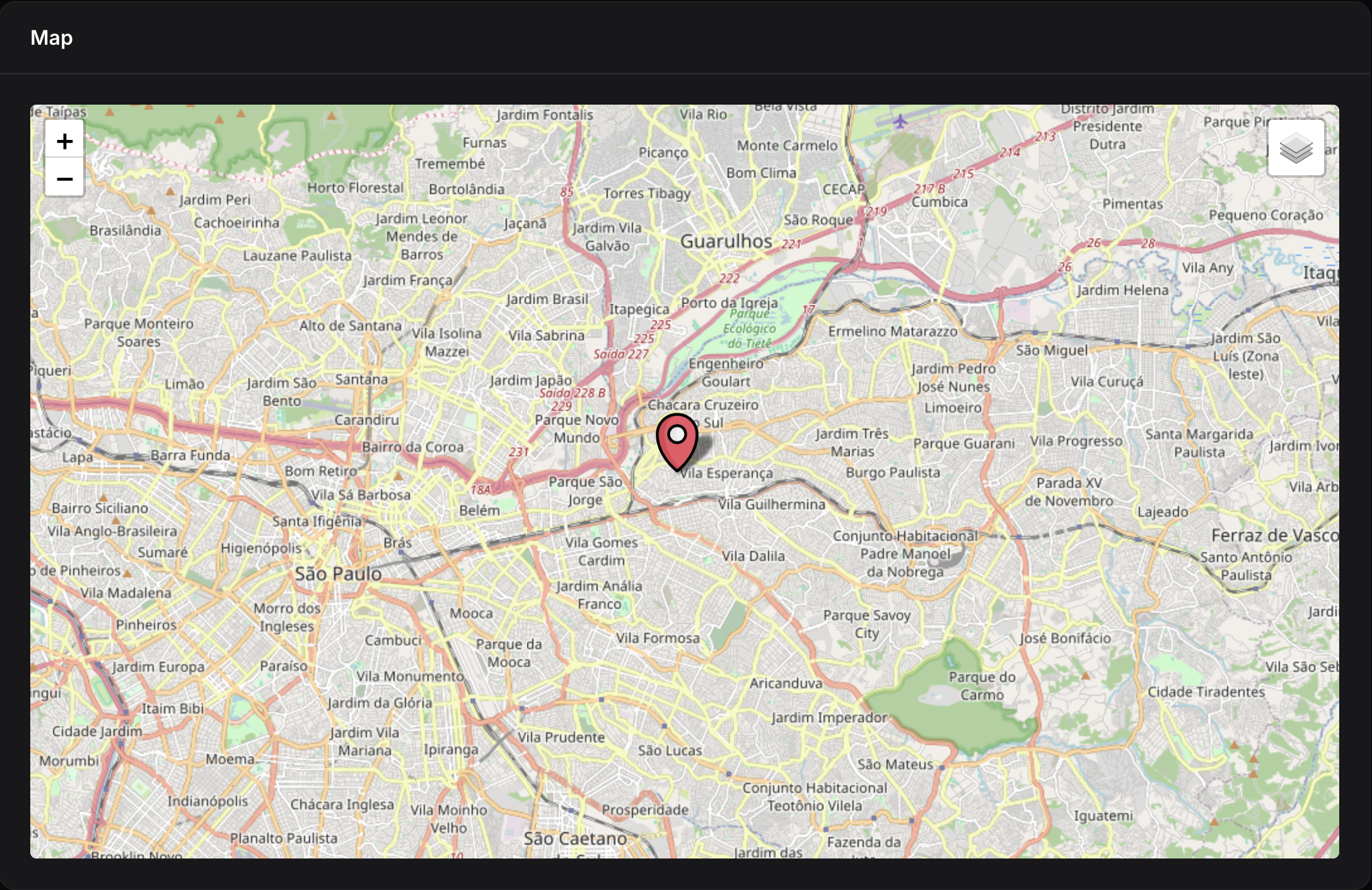

Custom Icon URL (replaces the entire marker):

Marker::make(-23.5505, -46.6333)
    ->icon('https://example.com/icon.png', [54, 54])
    ->title('Custom Icon Marker')

When using a custom icon URL, the entire marker is replaced with your custom image - the marker's color is ignored.

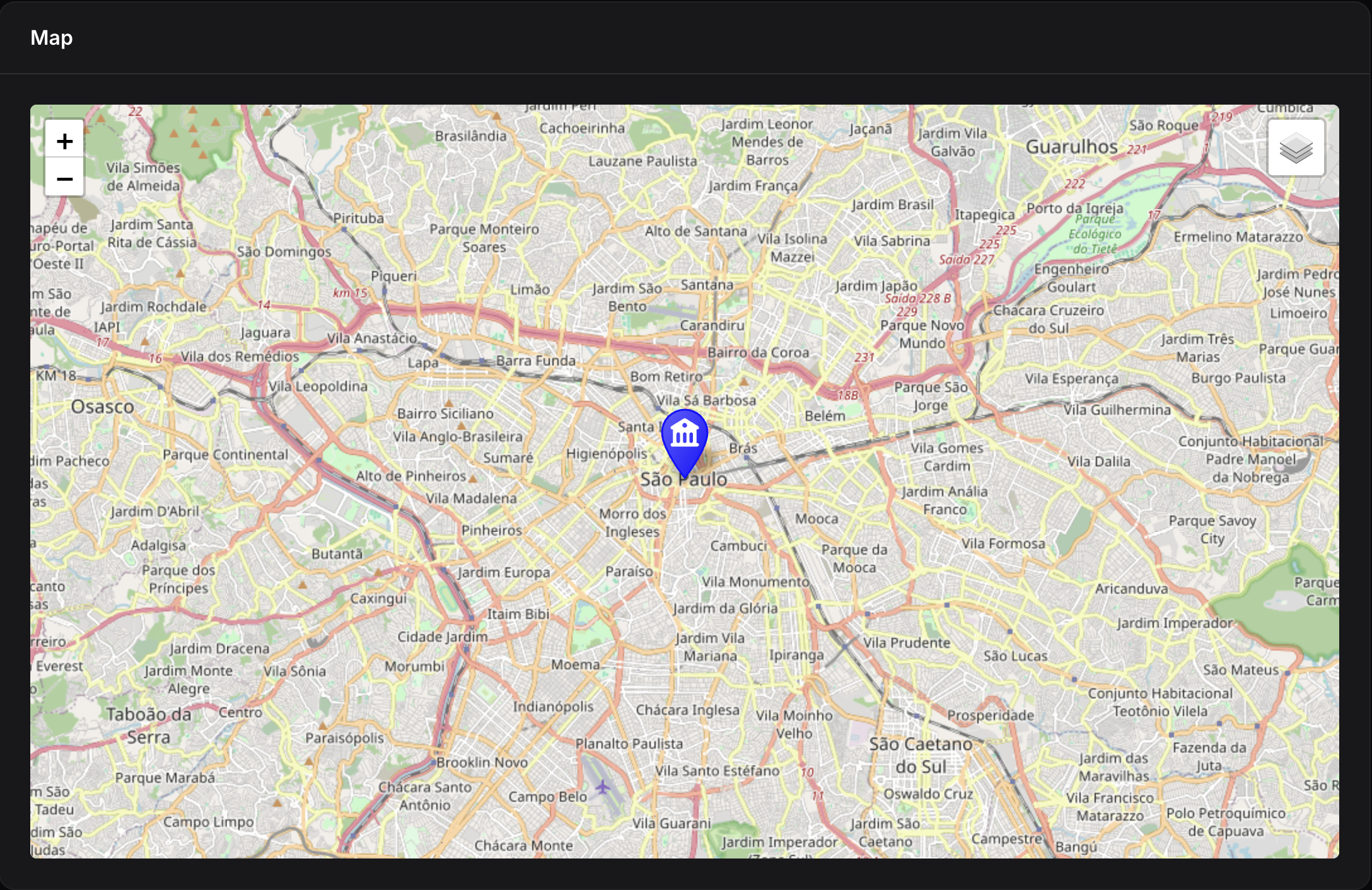

Heroicons (Filament Icons) (icon in center):

use Filament\Support\Icons\Heroicon;

Marker::make(-23.5505, -46.6333)
    ->icon(Heroicon::BuildingLibrary)        // Using Heroicon enum
    ->icon('heroicon-building-library')      // Using string
    ->heroicon('building-library')           // Using explicit heroicon() method
    ->iconSize([36, 54])
    ->title('Heroicon Marker')
    ->color(Color::Indigo);

When using Heroicons, the marker keeps its default styled appearance with the color gradient, and the Heroicon is automatically rendered in the center in white. The marker's color settings (.blue(), .red(), etc.) are fully respected.

Icon Appearance:

• Icon URL: Fully replaces marker appearance (color is ignored)
• Heroicon: Keeps marker style (with color gradient) with the icon rendered in the center

Marker Colors

Markers accept colors in multiple formats:

Using Color Class:

Marker::make(-23.5505, -46.6333)
    ->color(Color::Blue)  // Color class constant
    ->blue()              // Convenience method

Using string formats:

Marker::make(-23.5505, -46.6333)
    ->color('#3388ff')           // Hex color
    ->color('rgb(51, 136, 255)') // RGB color
    ->color('oklch(59% 0.15 262)')  // OKLCH color

Available convenience methods: blue(), red(), green(), orange(), yellow(), violet(), gray(), black(), gold(), randomColor()

From Eloquent Models

// Basic usage
Marker::fromRecord(
    record: $store,
    latColumn: 'latitude',
    lngColumn: 'longitude',
    titleColumn: 'name',
    popupFieldsColumns: ['address', 'phone'],
    color: Color::Blue,
);

// With JSON coordinates
Marker::fromRecord(
    record: $store,
    jsonColumn: 'coordinates',
    latColumn: 'lat',
    lngColumn: 'lng',
);

// With custom callback
Marker::fromRecord(
    record: $store,
    mapRecordCallback: function (Marker $marker, Model $record) {
        $marker->gold()->popupFields(['hours' => $record->hours]);
    }
);

Layer Groups

Layer groups are a powerful way to organize and manage multiple layers on your map. They allow you to:

• Toggle visibility - Show/hide entire groups of layers at once
• Organize layers - Group related markers and shapes together
• Improve performance - Manage large datasets efficiently
• Control layer management - Add/remove layers from groups dynamically

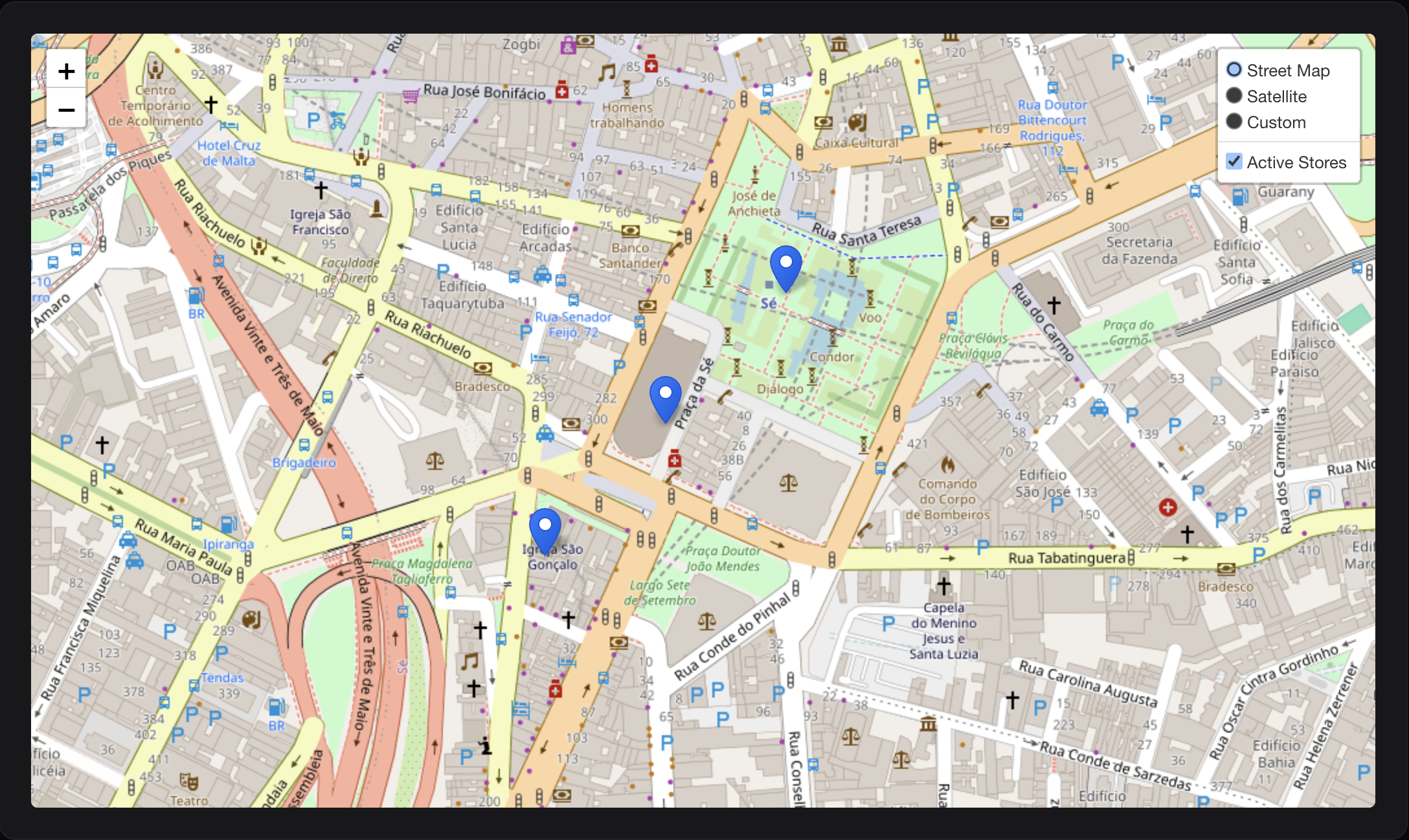

Layer Group

A simple container for organizing related layers. Perfect for grouping logically related markers and shapes without any automatic behavior:

use EduardoRibeiroDev\FilamentLeaflet\Support\Groups\LayerGroup;

protected function getMarkers(): array
{
    return [
        LayerGroup::make([
            Marker::make(-23.5505, -46.6333)->title('Store 1'),
            Marker::make(-23.5515, -46.6343)->title('Store 2'),
            Marker::make(-23.5525, -46.6353)->title('Store 3'),
        ])
        ->name('Active Stores')
        ->id('active-stores'),
    ];
}

Using the group() helper method (shorthand):

Instead of wrapping layers in LayerGroup::make(), you can use the group() method on any layer to automatically group multiple layers:

protected function getMarkers(): array
{
    return [
        Marker::make(-23.5505, -46.6333)
            ->title('Store 1')
            ->group('Active Stores'),

        Marker::make(-23.5515, -46.6343)
            ->title('Store 2')
            ->group('Active Stores'),

        Marker::make(-23.5525, -46.6353)
            ->title('Store 3')
            ->group('Active Stores'),
    ];
}

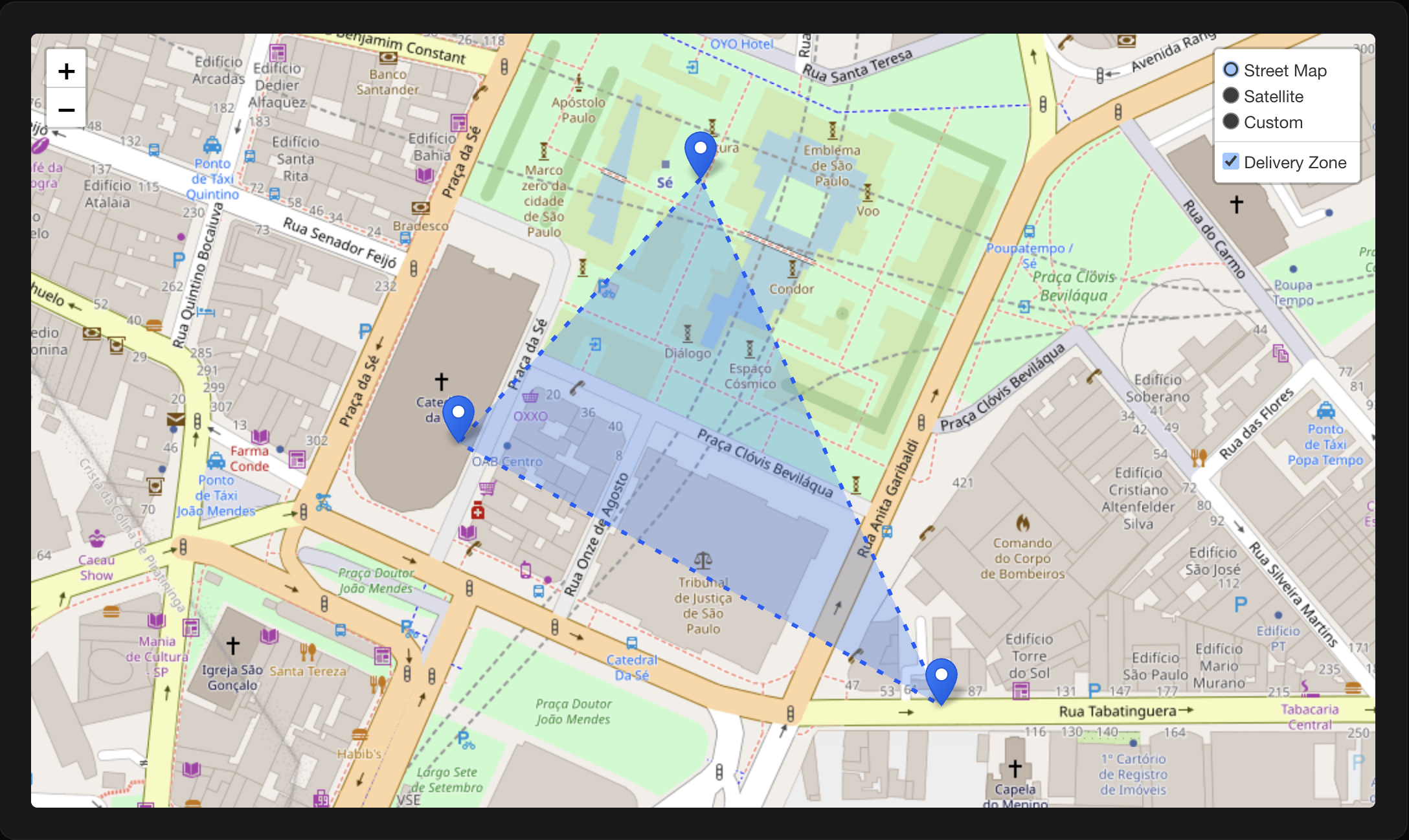

Feature Group

Creates a polygon envelope around all layers in the group. This is useful for visualizing the coverage area or boundary of a set of points:

use EduardoRibeiroDev\FilamentLeaflet\Support\Groups\FeatureGroup;

protected function getMarkers(): array
{
    return [
        FeatureGroup::make([
            Marker::make(-23.5505, -46.6333)->title('Point 1'),
            Marker::make(-23.5515, -46.6343)->title('Point 2'),
            Marker::make(-23.5525, -46.6323)->title('Point 3'),
        ])
            ->name('Delivery Zone')
            ->blue()
            ->fillBlue()
            ->fillOpacity(0.3)
            ->weight(3)
            ->dashArray(5, 10),
    ];
}

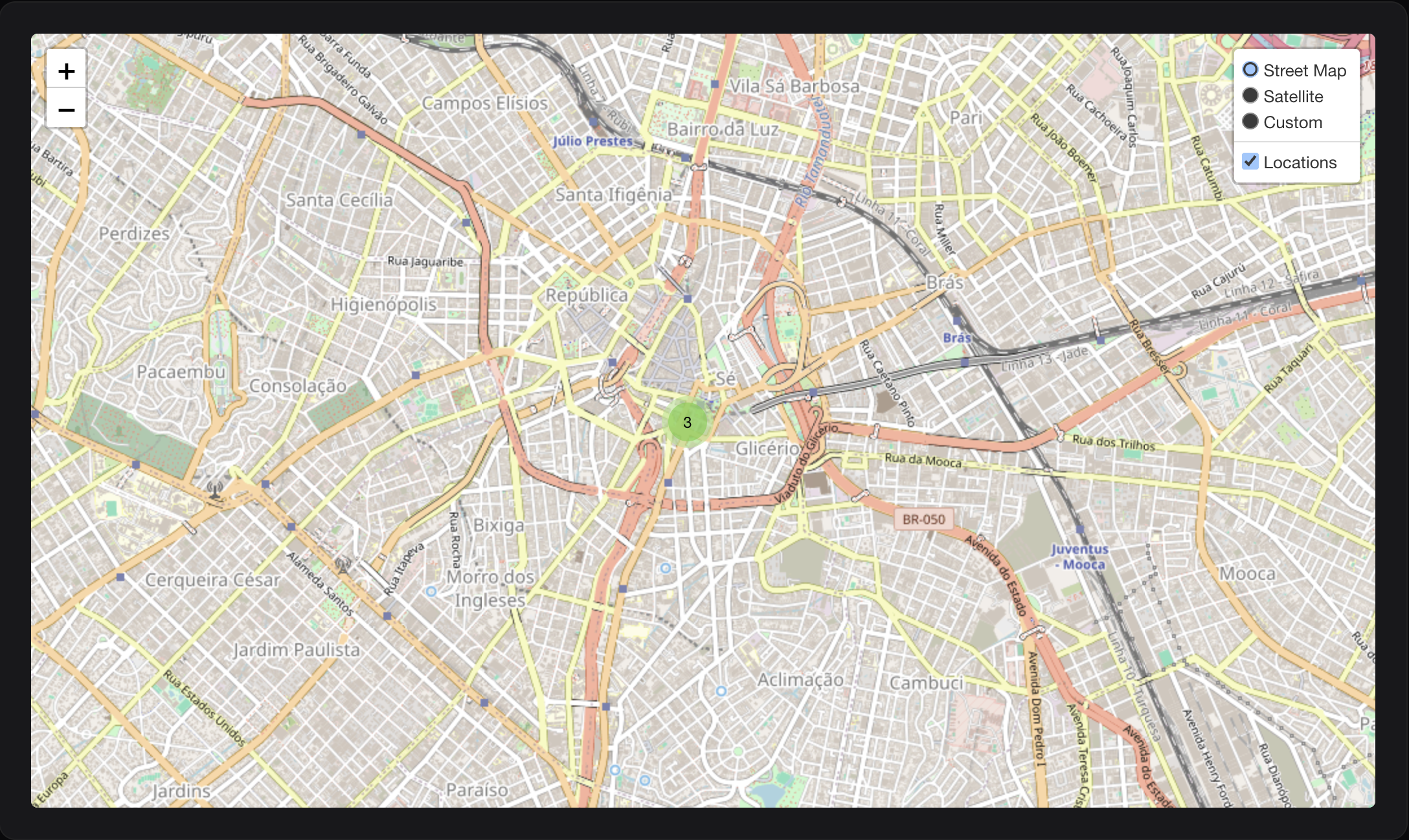

Marker Cluster

Groups nearby markers into clusters for better performance and visual clarity, especially with large datasets. Clusters automatically expand when zooming in:

use EduardoRibeiroDev\FilamentLeaflet\Support\Groups\MarkerCluster;

protected function getMarkers(): array
{
    return [
        MarkerCluster::make([
            Marker::make(-23.5505, -46.6333)->title('Location 1'),
            Marker::make(-23.5515, -46.6343)->title('Location 2'),
            Marker::make(-23.5525, -46.6353)->title('Location 3'),
        ])
        ->maxClusterRadius(80)
        ->showCoverageOnHover()
        ->name('Locations')
        ->spiderfyOnMaxZoom(),
    ];
}

Cluster from Model:

Create clusters directly from Eloquent models with powerful customization:

use App\Models\Store;

protected function getMarkers(): array
{
    return [
        MarkerCluster::fromModel(
            model: Store::class,
            latColumn: 'latitude',
            lngColumn: 'longitude',
            titleColumn: 'name',
            descriptionColumn: 'description',
            popupFieldsColumns: ['address', 'phone'],
            color: Color::Green,
        )
        ->maxClusterRadius(60)
        ->disableClusteringAtZoom(15),
    ];
}

Cluster with Query Modification:

Filter and customize the query used to load markers:

MarkerCluster::fromModel(
    model: Store::class,
    latColumn: 'latitude',
    lngColumn: 'longitude',
    modifyQueryCallback: function ($query) {
        return $query
            ->where('status', 'active')
            ->where('city', 'São Paulo')
            ->orderBy('name');
    },
    mapRecordCallback: function (Marker $marker, Model $record) {
        // Customize each marker based on record properties
        if ($record->isPremium()) {
            $marker->gold()->icon('/images/premium-icon.png');
        }

        // Add status-based styling
        match($record->status) {
            'open' => $marker->green(),
            'busy' => $marker->orange(),
            'closed' => $marker->red(),
            default => $marker->gray(),
        };

        // Add popup with custom fields
        $marker->popupFields([
            'manager' => $record->manager_name,
            'staff' => $record->staff_count . ' employees',
            'rating' => $record->rating . ' ⭐',
        ]);
    }
);

Advanced cluster configuration:

MarkerCluster::make($markers)
    ->maxClusterRadius(80)              // Cluster radius in pixels
    ->showCoverageOnHover(true)         // Highlight cluster area on hover
    ->zoomToBoundsOnClick(true)         // Zoom to cluster bounds when clicked
    ->spiderfyOnMaxZoom(true)           // Spread markers at max zoom
    ->removeOutsideVisibleBounds(true)  // Remove markers outside viewport for performance
    ->disableClusteringAtZoom(15)       // Stop clustering at zoom level 15+
    ->animate(true);                    // Animate cluster changes;

Shapes

Draw various geometric shapes on your map:

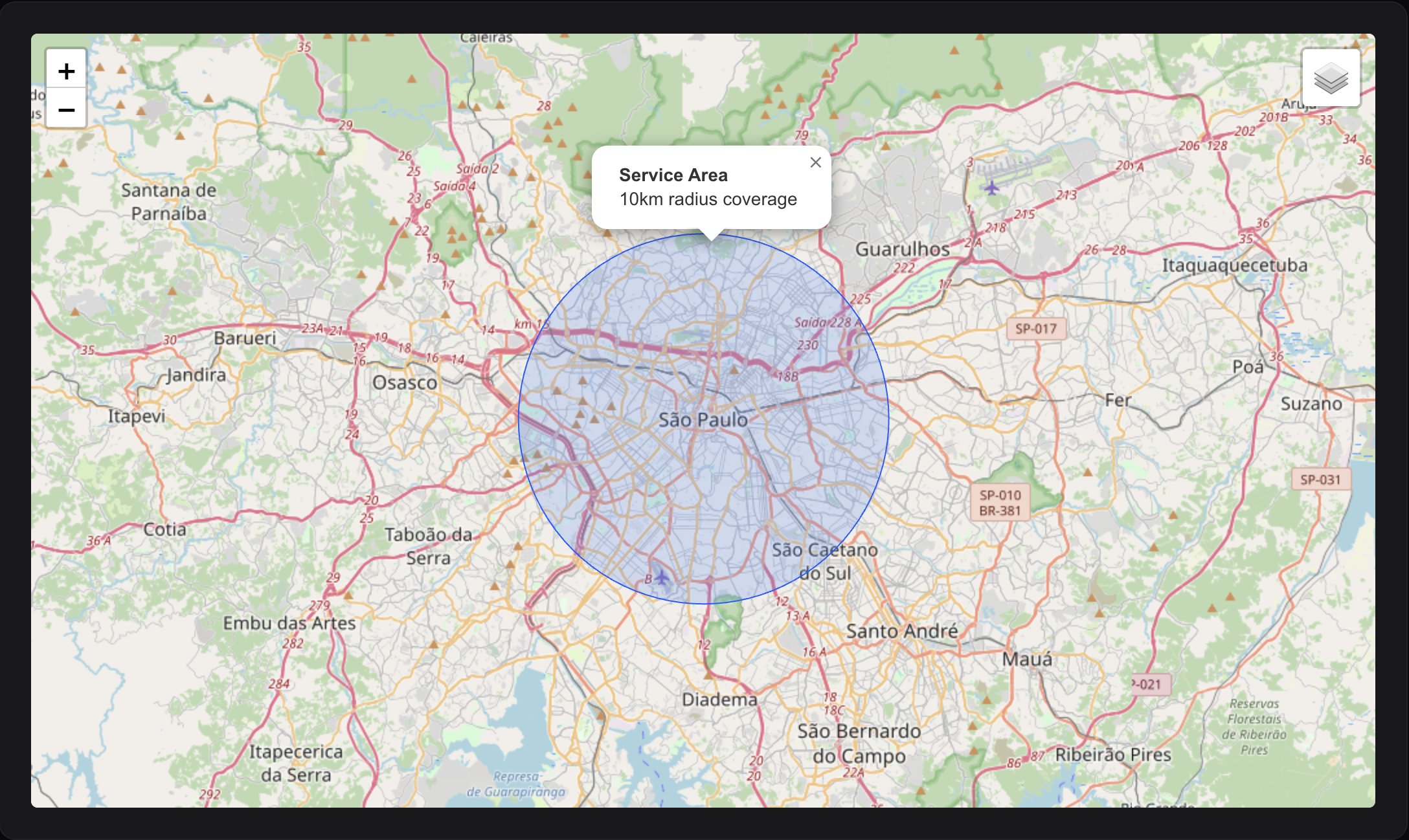

Circles

Circles with radius in various units:

use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Circle;

protected function getShapes(): array
{
    return [
        Circle::make(-23.5505, -46.6333)
            ->popupContent('10km radius coverage')
            ->title('Service Area')
            ->blue()
            ->fillBlue()
            ->fillOpacity(0.2)
            ->radius(10000)           // Radius in meters (default)
            ->radiusInKilometers(10)  // Radius in kilometers
            ->radiusInMiles(6.2)      // Radius in miles
            ->radiusInFeet(32808)     // Radius in feet
    ];
}

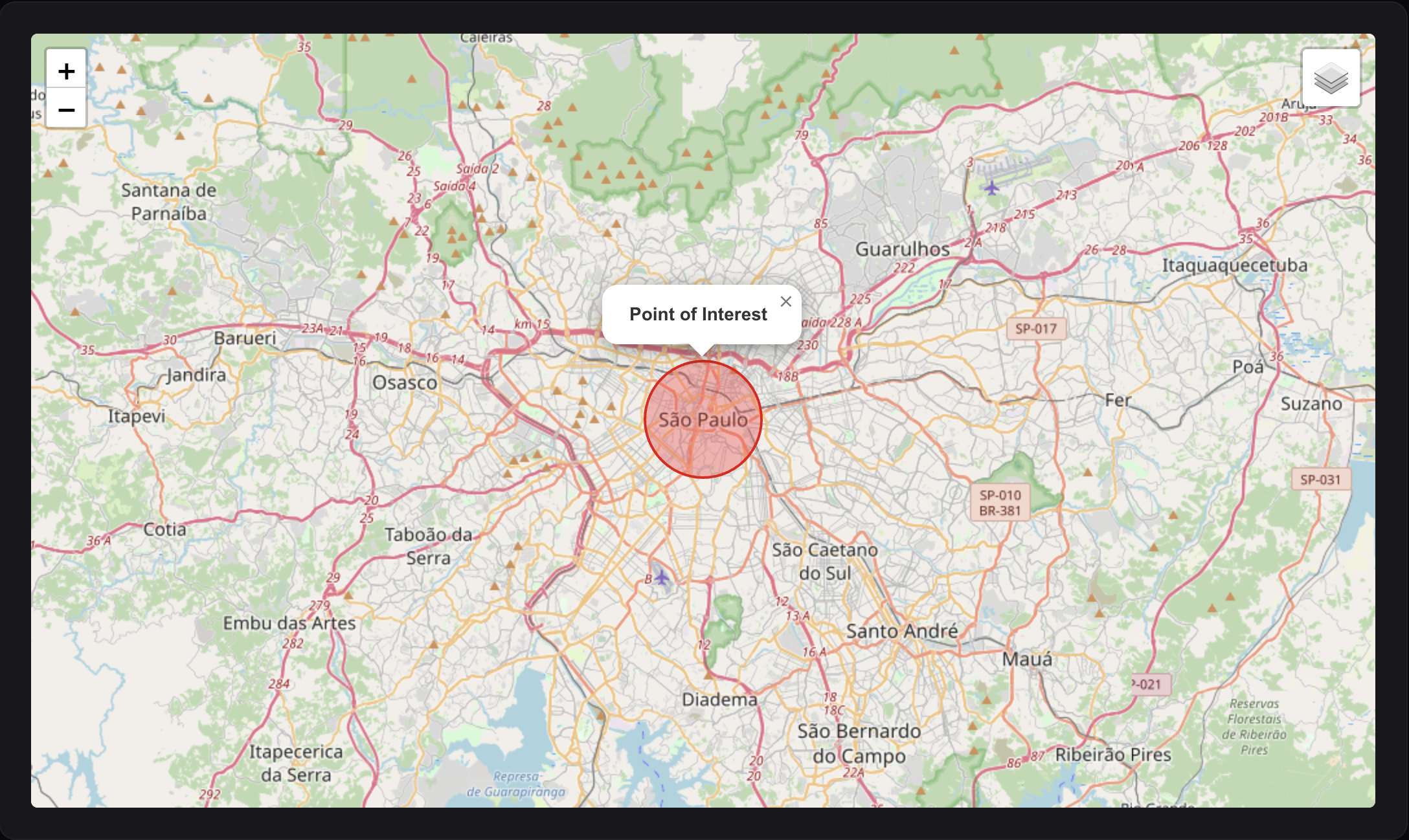

Circle Markers

Small circles with pixel-based radius (like markers but circular):

use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\CircleMarker;

CircleMarker::make(-23.5505, -46.6333)
    ->radius(45) // Radius in pixels
    ->red()
    ->fillRed()
    ->weight(2)
    ->title('Point of Interest');

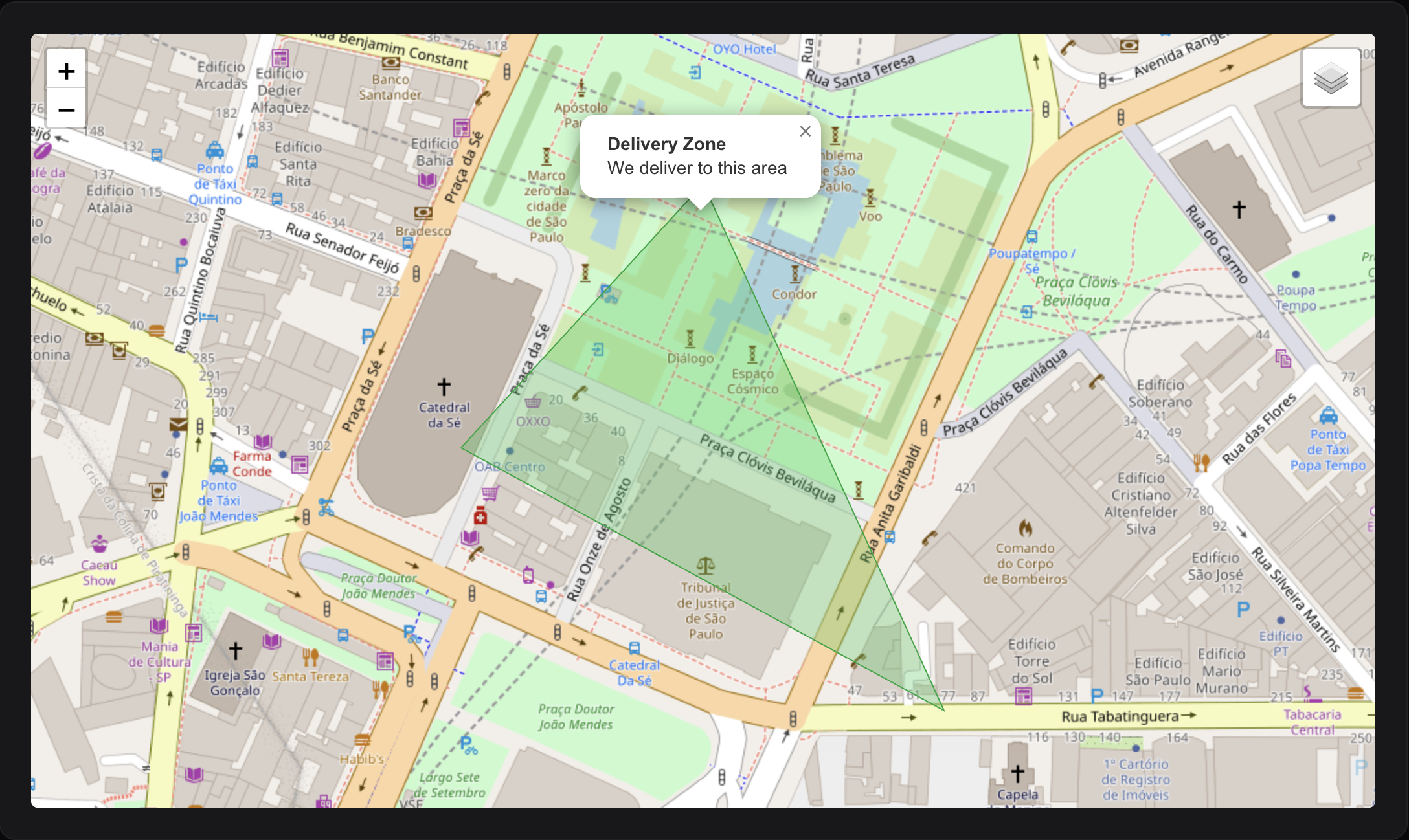

Polygons

Draw custom polygons:

use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Polygon;

// Define a polygon area
Polygon::make(
    [-23.5505, -46.6333],
    [-23.5515, -46.6343],
    [-23.5525, -46.6323],
    [-23.5505, -46.6333], // Close the polygon
)
->green()
->fillGreen()
->fillOpacity(0.3)
->title('Delivery Zone')
->popupContent('We deliver to this area');

// Or build point by point
Polygon::make()
    ->addPoint(-23.5505, -46.6333)
    ->addPoint(-23.5515, -46.6343)
    ->addPoint(-23.5525, -46.6323)
    ->addPoint(-23.5505, -46.6333)
    ->blue();

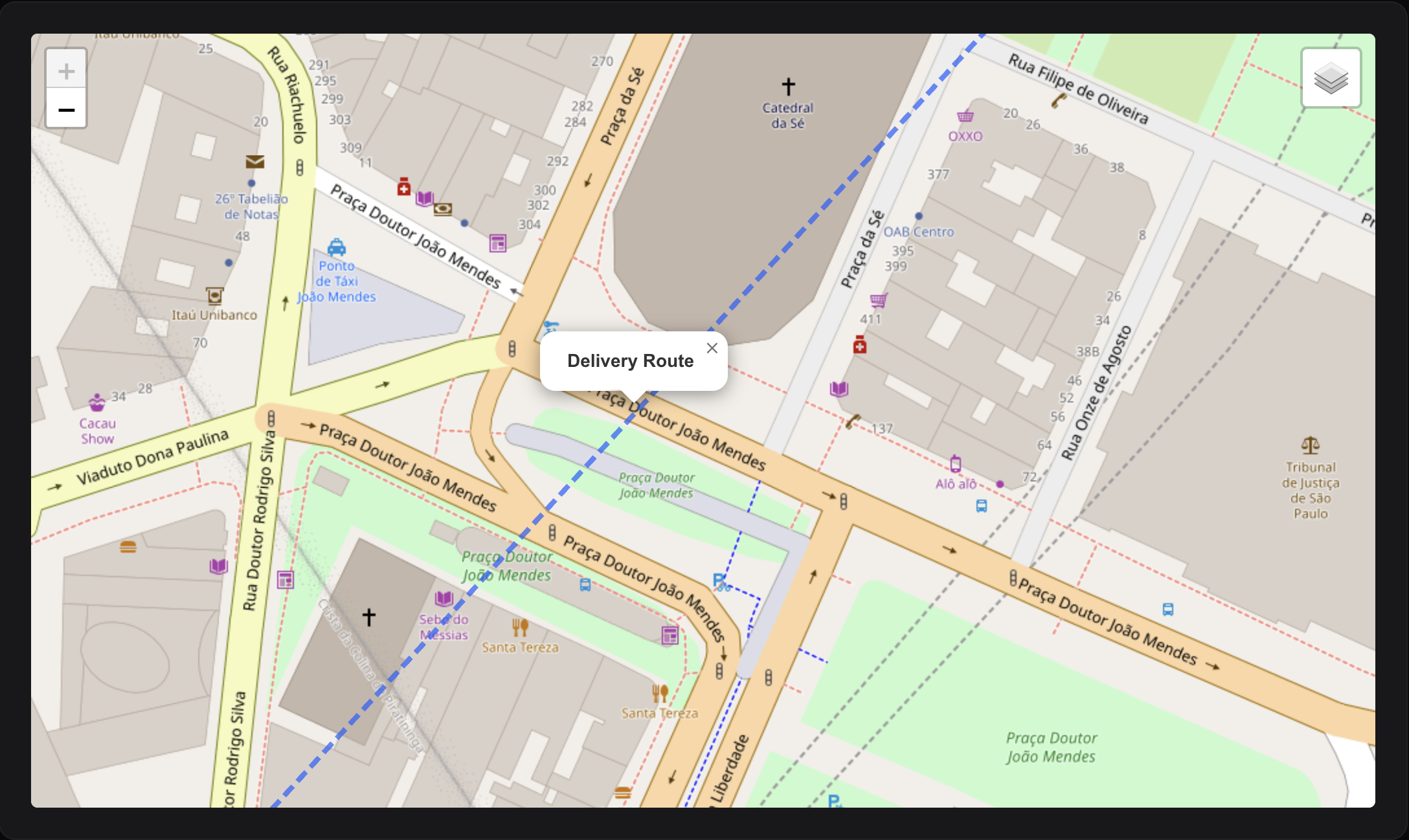

Polylines

Draw lines connecting multiple points:

use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Polyline;

// Route or path
Polyline::make(
    [-23.5505, -46.6333],
    [-23.5515, -46.6343],
    [-23.5525, -46.6353],
    [-23.5535, -46.6363],
)
->blue()
->weight(4)
->opacity(0.7)
->dashArray('10, 5')      // Dashed line
->smoothFactor(1.5)       // Smooth curves
->title('Delivery Route');

// Or build incrementally
Polyline::make()
    ->addPoint(-23.5505, -46.6333)
    ->addPoint(-23.5515, -46.6343)
    ->addPoint(-23.5525, -46.6353)
    ->red()
    ->weight(3);

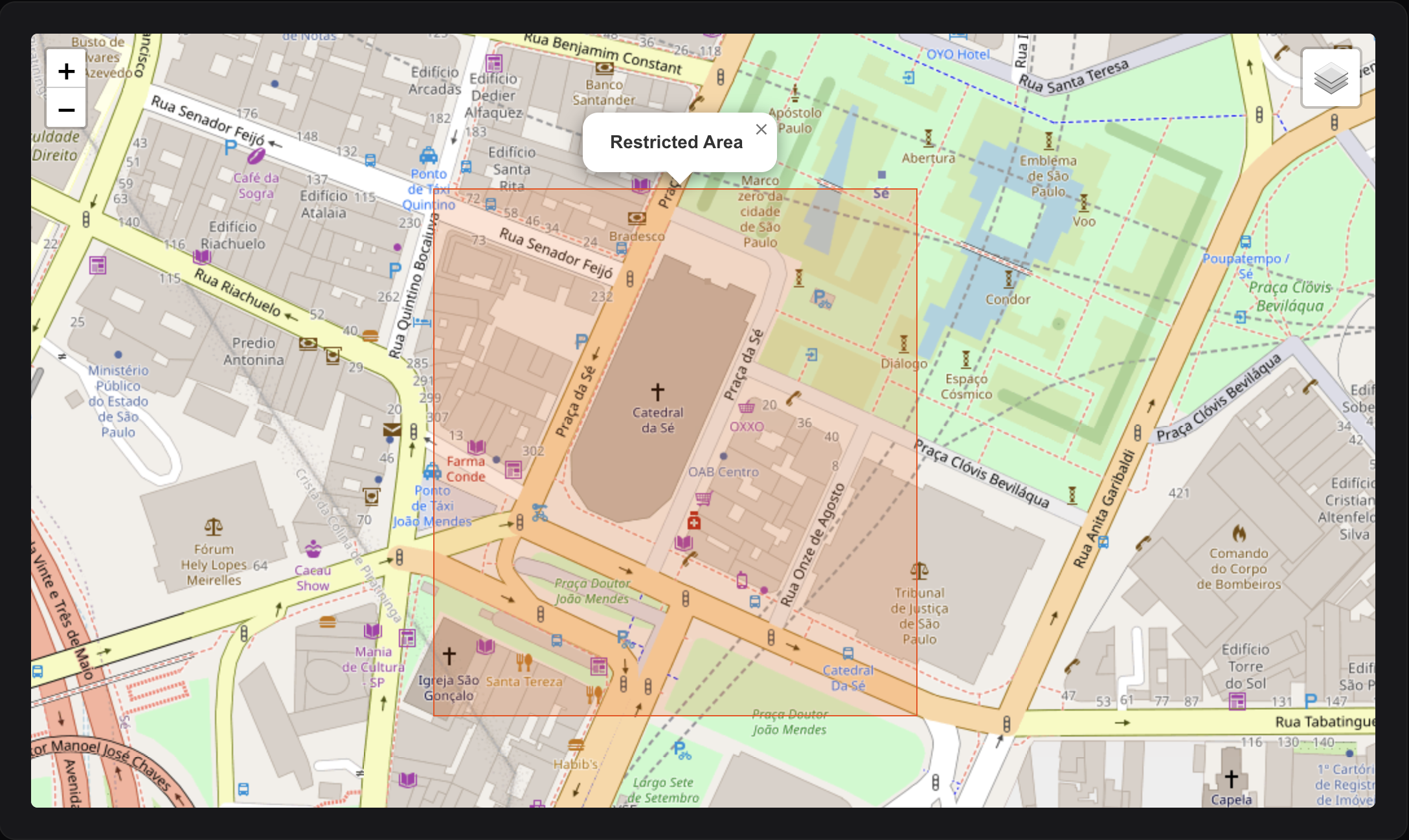

Rectangles

Draw rectangular bounds:

use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Rectangle;

// Using corner coordinates
Rectangle::make(
    [-23.5505, -46.6333],  // Southwest corner
    [-23.5525, -46.6353]   // Northeast corner
)
->orange()
->fillOrange()
->fillOpacity(0.2)
->title('Restricted Area');

// Alternative syntax
Rectangle::makeFromCoordinates(
    -23.5505, -46.6333,    // Southwest lat, lng
    -23.5525, -46.6353     // Northeast lat, lng
)
->red();

Shapes from Eloquent Models

All shape classes support fromRecord() factory methods for easy creation from database records:

use App\Models\DeliveryZone;
use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Circle;
use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Polygon;
use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Polyline;
use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\Rectangle;
use EduardoRibeiroDev\FilamentLeaflet\Support\Shapes\CircleMarker;

protected function getShapes(): array
{
    return DeliveryZone::all()->map(function ($zone) {
        // Circle from record
        return Circle::fromRecord(
            record: $zone,
            latColumn: 'latitude',
            lngColumn: 'longitude',
            titleColumn: 'name',
            descriptionColumn: 'description',
            popupFieldsColumns: ['address', 'radius'],
        );
    })->all();
}

Improved Support for JSON Columns:

Shapes now intelligently handle JSON-stored coordinates:

Circle::fromRecord(
    record: $zone,
    jsonColumn: 'center_coordinates',  // Stores: { "lat": -23.5505, "lng": -46.6333 }
    latColumn: 'lat',                   // Keys within the JSON
    lngColumn: 'lng',
);

Each shape type supports the fromRecord() method with common parameters:

• record: The Eloquent model instance
• latColumn/lngColumn: Column names for coordinates (for Circle, CircleMarker)
• radiusColumn: Column name for radius (for Circle, CircleMarker)
• jsonColumn: Column name for JSON coordinates (case of storing lat/lng as JSON)
• pointsColumn: Column name for points array (for Polygon, Polyline)
• boundsColumn: Column name for bounds array (for Rectangle)
• titleColumn: Column name for the shape title
• descriptionColumn: Column name for the popup content
• popupFieldsColumns: Array of column names to include in popup
• color: Default color for the shape
• mapRecordCallback: Closure to customize the shape based on the record

Circle from Record

Circle::fromRecord(
    record: $zone,
    latColumn: 'center_lat',
    lngColumn: 'center_lng',
    radiusColumn: 'coverage_radius_km',
    titleColumn: 'zone_name',
    descriptionColumn: 'zone_description',
    mapRecordCallback: fn(Circle $circle, $record) =>
        $circle->radiusInKilometers($record->coverage_radius_km)
);

Polygon from Record

// Assumes database structure: points => [[lat, lng], [lat, lng], ...]
Polygon::fromRecord(
    record: $zone,
    pointsColumn: 'boundary_points',
    titleColumn: 'zone_name',
    popupFieldsColumns: ['area_sqkm', 'population'],
);

Polyline from Record

// Store route as JSON array of [lat, lng] coordinates
Polyline::fromRecord(
    record: $deliveryRoute,
    pointsColumn: 'route_path',
    titleColumn: 'route_name',
    descriptionColumn: 'destination',
    mapRecordCallback: fn(Polyline $line, $record) =>
        $record->is_completed
            ? $line->green()->weight(2)
            : $line->red()->weight(3)
);

Rectangle from Record

// Assumes database structure: bounds => [[lat1, lng1], [lat2, lng2]]
Rectangle::fromRecord(
    record: $territory,
    boundsColumn: 'service_bounds',
    titleColumn: 'territory_name',
    popupFieldsColumns: ['region', 'sales_person'],
);

Shape Styling

Circle::make(-23.5505, -46.6333)
    ->radius(5000)

    // Border styling
    ->color(Color::Blue)        // Border color
    ->weight(3)                 // Border width in pixels
    ->opacity(0.8)              // Border opacity (0-1)
    ->dashArray('5, 10')        // Dashed border pattern

    // Fill styling
    ->fillColor(Color::Green)   // Fill color
    ->fillOpacity(0.3)          // Fill opacity (0-1)

Editable Layers

Make markers and shapes editable directly on the map by enabling the draw control:

class MyMapWidget extends MapWidget
{
    protected bool $hasEditLayersControl = true;

    protected function getMarkers(): array
    {
        return [
            Marker::make(-23.5505, -46.6333)
                ->title('Editable Marker')
                ->editable(),  // Make this marker editable

            Circle::make(-23.5505, -46.6333)
                ->radiusInKilometers(5)
                ->editable(),  // Make this circle editable
        ];
    }
}

You can also make all layers in a group editable:

LayerGroup::make([
    Marker::make(-23.5505, -46.6333)->title('Point 1'),
    Marker::make(-23.5515, -46.6343)->title('Point 2'),
    Marker::make(-23.5525, -46.6353)->title('Point 3'),
])
->name('Editable Points')
->editable(),  // All markers in the group are now editable

User Interactions

Popups and Tooltips

Tooltips (appear on hover)

Marker::make(-23.5505, -46.6333)
    ->tooltip(
        content: 'São Paulo City',
        permanent: false,
        direction: 'top',
        options: ['offset' => [0, -20]]
    );

// Or using individual methods
Marker::make(-23.5505, -46.6333)
    ->tooltipContent('São Paulo')
    ->tooltipPermanent(true)
    ->tooltipDirection('top');

Popups (appear on click)

Marker::make(-23.5505, -46.6333)
    ->popupTitle('Store Location')
    ->popupContent('Visit our main store')
    ->popupFields([
        'address' => '123 Main Street',
        'phone' => '[phone]',
        'email' => '[e-mail]',
    ])
    ->popupOptions(['maxWidth' => 300]);

// Or use shorthand
Marker::make(-23.5505, -46.6333)
    ->popup(
        content: 'Store description',
        fields: ['address' => '123 Main St', 'phone' => '[phone]'],
        options: ['maxWidth' => 300]
    );

How popup fields work: Keys are automatically converted to title case, underscores replaced with spaces, and translated using Laravel's __() helper. Both keys and values support translation keys.

Combined Usage

Marker::make(-23.5505, -46.6333)
    ->title('Pizza Palace')
    ->popupContent('Best pizza in town')
    ->popupFields([
        'address' => '123 Main St',
        'phone' => '[phone]',
        'rating' => '4.5 ⭐',
    ]);

Click Actions

Marker Click Handler

use Filament\Notifications\Notification;

Marker::make(-23.5505, -46.6333)
    ->title('Interactive Marker')
    ->action(function (Marker $marker) { // Or ->onClick()
        Notification::make()
            ->title('Marker Clicked!')
            ->body('ID: ' . $marker->getId())
            ->send();
    });

Shape Click Handler

Circle::make(-23.5505, -46.6333)
    ->radius(5000)
    ->action(function (Circle $circle) { // Or ->onClick()
        Notification::make()
            ->title('Circle clicked')
            ->send();
    });

From Model Records

protected function getMarkers(): array
{
    return Store::all()->map(function ($store) {
        return Marker::fromRecord(
            record: $store,
            latColumn: 'latitude',
            lngColumn: 'longitude',
        )->action(function (Marker $marker, Store $record) { // Or ->onClick()
            Notification::make()
                ->title("You clicked: {$record->name}")
                ->body("Address: {$record->address}")
                ->send();

            return redirect()->route('stores.show', $record);
        });
    })->all();
}

Map Click Handler

Handle clicks on the map itself:

public function handleMapClick(float $latitude, float $longitude): void
{
    Notification::make()
        ->title('Map clicked')
        ->body("Coordinates: {$latitude}, {$longitude}")
        ->send();
}

Field/Entry/Column Click Handlers

Handle map clicks in form fields, infolists, or table columns:

use EduardoRibeiroDev\FilamentLeaflet\Fields\MapPicker;
use Filament\Notifications\Notification;

MapPicker::make('location')
    ->height(300)
    ->onMapClick(function (float $latitude, float $longitude) {
        Notification::make()
            ->title('Location Selected')
            ->body("Lat: {$latitude}, Lng: {$longitude}")
            ->send();
    });

Handle layer (marker/shape) clicks:

use EduardoRibeiroDev\FilamentLeaflet\Support\BaseLayer;

MapPicker::make('location')
    ->height(300)
    ->onLayerClick(function (BaseLayer $layer) {
        Notification::make()
            ->title('Layer Clicked')
            ->body("Layer ID: {$layer->getId()} - Type: {$layer->getType()}")
            ->send();
    });

Advanced Features

Model Integration & CRUD Operations

Enable creating markers directly from map clicks:

use App\Models\Location;

class LocationMapWidget extends MapWidget
{
    protected ?string $markerModel = Location::class;
    protected string $latitudeColumnName = 'latitude';
    protected string $longitudeColumnName = 'longitude';
    protected ?string $jsonCoordinatesColumnName = 'coordinates'; // For JSON storage

    protected function getFormComponents(): array
    {
        return [
            TextInput::make('name')->required(),
            ColorPicker::make('color')->rgb(),
            Textarea::make('description')->columnSpanFull(),
        ];
    }
}

When users click the map, a form modal opens to create a new marker. If coordinates are stored as JSON, the widget automatically converts latitude/longitude into the configured JSON column.

Built-in Marker Actions:

Define custom actions to execute when clicking markers with records using the $markerClickAction property:

use App\Models\Store;

class LocationMapWidget extends MapWidget
{
    protected ?string $markerModel = Store::class;
    protected string $latitudeColumnName = 'latitude';
    protected string $longitudeColumnName = 'longitude';

    // Define the action to execute when a marker is clicked
    protected ?string $markerClickAction = 'view'; // 'view', 'edit', 'delete' or null

    protected function getMarkers(): array
    {
        return Store::all()->map(fn($store) =>
            Marker::fromRecord(
                record: $store,
                latColumn: 'latitude',
                lngColumn: 'longitude',
                titleColumn: 'name',
            )
        )->all();
    }
}

Available marker click actions:

• 'view' - Display a read-only modal with the marker's record details
• 'edit' - Open an edit form for the marker's record (default)
• 'delete' - Prompt to delete the marker's record
• null - No action

Using a Resource Form:

use App\Filament\Resources\Locations\LocationResource;

class LocationMapWidget extends MapWidget
{
    protected ?string $markerModel = Location::class;
    protected ?string $markerResource = LocationResource::class;
}

Hooks:

protected function afterMarkerCreated(Model $record): void
{
    Notification::make()
        ->title('Location created!')
        ->body("Created: {$record->name}")
        ->success()
        ->send();
}

protected function mutateFormDataBeforeCreate(array $data): array
{
    $data['user_id'] = auth()->id();
    $data['status'] = 'active';
    return parent::mutateFormDataBeforeCreate($data);
}

Keep Maps in Sync with Tables:

use EduardoRibeiroDev\FilamentLeaflet\Concerns\InteractsWithMap;

class ManageLocations extends ManageRecords
{
    use InteractsWithMap;
}

This automatically refreshes the map after create/edit/delete actions.

GeoJSON Density Maps

Display choropleth maps with custom density data:

class BrazilDensityWidget extends MapWidget
{
    protected ?string $geoJsonUrl = 'https://example.com/brazil-states.json';

    protected array $geoJsonColors = [
        '#FED976', '#FEB24C', '#FD8D3C', '#FC4E2A',
        '#E31A1C', '#BD0026', '#800026',
    ];

    protected function getGeoJsonData(): array
    {
        return [
            'SP' => 166.23,  // São Paulo
            'RJ' => 365.23,  // Rio de Janeiro
            'MG' => 33.41,   // Minas Gerais
        ];
    }

    protected function getGeoJsonTooltip(): string
    {
        return <<<HTML
            <h4>{state}</h4>
            <b>Population Density: {density} per km²</b>
        HTML;
    }
}

Colors are automatically applied based on data distribution.

Multi-Language Support

The package includes built-in support for: English (en), Portuguese (pt_BR, pt_PT), Spanish (es), French (fr), German (de), Italian (it).

All draw control labels, tooltips, and messages are automatically translated based on your application's locale.

To customize translations:

php artisan vendor:publish --tag=filament-leaflet-translations

Then edit files in lang/vendor/filament-leaflet.

Best Practices

Performance Optimization

1. Use Marker Clusters for large datasets:

// Bad: 1000 individual markers
protected function getMarkers(): array
{
    return Store::all()->map(fn($s) => Marker::fromRecord($s))->all();
}

// Good: Clustered markers
protected function getMarkers(): array
{
    return [
        MarkerCluster::fromModel(Store::class)
            ->maxClusterRadius(80)
    ];
}

1. Limit data with query modifications:

MarkerCluster::fromModel(
    model: Store::class,
    modifyQueryCallback: fn($q) => $q->limit(100)->latest()
)

1. Use appropriate zoom levels:

protected int $defaultZoom = 12;  // City level
protected int $maxZoom = 18;      // Street level
protected int $minZoom = 3;       // Country level

Debugging

Enable logging for map interactions:

public function handleMapClick(float $latitude, float $longitude): void
{
    logger("Map clicked", compact('latitude', 'longitude'));
}

Configuration Reference

Customization

Custom Styles

Add custom CSS to your map:

public function getCustomStyles(): string
{
    return <<<CSS
        .custom-marker {
            filter: hue-rotate(45deg);
        }

        .leaflet-popup-content {
            font-family: 'Inter', sans-serif;
        }
    CSS;
}

Custom Scripts

Execute JavaScript after map initialization:

public function getCustomScripts(): string
{
    return <<<JS
        function customFunction() {
            // Your code
        }
    JS;
}

Method Reference

MapWidget

Method	Description
getHeading()	Returns the widget heading
getAutoCenter()	Returns the auto-center setting
getMarkers()	Returns array of markers to display
getShapes()	Returns array of shapes to display
getLayers()	Returns combined markers and shapes
onMapClick($lat, $lng)	Handles map click events
onLayerClick($layerId)	Handles layer click events
refreshMap()	Manually refresh the map
afterMarkerCreated($record)	Hook after marker creation
mutateFormDataBeforeCreate($data)	Transform form data before save
$markerClickAction	Define action for marker clicks (view/edit/delete)
$markerModel	Eloquent model class for markers (enables CRUD)
$markerResource	Optional Filament Resource for marker actions

MapPicker

Method	Description
make($name)	Create a new MapPicker field
autoCenter(bool)	Auto-center map to user's current location
center($lat, $lng)	Set map center coordinates
zoom($level)	Set initial zoom level
height($pixels)	Set map height
mapDraggable($bool)	Enable/disable map dragging
mapZoomable($bool)	Enable/disable map zooming
static()	Disable all map interactions (dragging & zooming)
recenterTimeout($milliseconds)	Auto-recenter map after X ms of inactivity
tileLayersUrl($layers)	Set tile layer(s)
markers($array)	Set initial markers
shapes($array)	Set initial shapes
geoJsonUrl($url)	Set GeoJSON URL
geoJsonData($data)	Set GeoJSON density data
geoJsonTooltip($tooltip)	Set GeoJSON tooltip template
latitudeFieldName($name)	Customize latitude field name
longitudeFieldName($name)	Customize longitude field name
storeAsJson($bool)	Store coordinates as JSON in single column
pickMarker($marker)	Customize the temporary marker shown on click
onMapClick($callback)	Handle map click events with closure callback
onLayerClick($callback)	Handle layer click events with closure callback
handleMapClick($lat, $lng)	Exposed Livewire method for map clicks
handleLayerClick($layerId)	Exposed Livewire method for layer clicks

MapEntry

Method	Description
make($name)	Create a new MapEntry entry
autoCenter(bool)	Auto-center map to user's current location
center($lat, $lng)	Set map center coordinates
zoom($level)	Set initial zoom level
height($pixels)	Set map height
mapDraggable($bool)	Enable/disable map dragging
mapZoomable($bool)	Enable/disable map zooming
static()	Disable all map interactions (dragging & zooming)
recenterTimeout($milliseconds)	Auto-recenter map after X ms of inactivity
tileLayersUrl($layers)	Set tile layer(s)
markers($array)	Set initial markers
shapes($array)	Set initial shapes
geoJsonUrl($url)	Set GeoJSON URL
geoJsonData($data)	Set GeoJSON density data
geoJsonTooltip($tooltip)	Set GeoJSON tooltip template
latitudeFieldName($name)	Customize latitude field name
longitudeFieldName($name)	Customize longitude field name
storeAsJson($bool)	Store coordinates as JSON in single column
pickMarker($marker)	Customize the temporary marker shown on click
onMapClick($callback)	Handle map click events with closure callback
onLayerClick($callback)	Handle layer click events with closure callback

MapColumn

Method	Description
make($name)	Create a new MapColumn column
autoCenter(bool)	Auto-center map to user's current location
center($lat, $lng)	Set map center coordinates
zoom($level)	Set initial zoom level
height($pixels)	Set map height
circular($value)	Display map as circular container
mapDraggable($bool)	Enable/disable map dragging
mapZoomable($bool)	Enable/disable map zooming
static()	Disable all map interactions (dragging & zooming)
recenterTimeout($milliseconds)	Auto-recenter map after X ms of inactivity
tileLayersUrl($layers)	Set tile layer(s)
markers($array)	Set initial markers
shapes($array)	Set initial shapes
geoJsonUrl($url)	Set GeoJSON URL
geoJsonData($data)	Set GeoJSON density data
geoJsonTooltip($tooltip)	Set GeoJSON tooltip template
latitudeFieldName($name)	Customize latitude field name
longitudeFieldName($name)	Customize longitude field name
storeAsJson($bool)	Store coordinates as JSON in single column
pickMarker($marker)	Customize the temporary marker shown on click
onMapClick($callback)	Handle map click events with closure callback
onLayerClick($callback)	Handle layer click events with closure callback

Marker

Method	Description
make($lat, $lng)	Create a new marker
fromRecord()	Create marker from Eloquent model
id($id)	Set marker ID
title($title)	Set title (tooltip & popup)
color($color)	Set marker color
icon($icon, $size)	Set custom icon URL or Heroicon
iconUrl($url)	Set custom icon URL
iconSize($size)	Set icon size as [width, height]
heroicon($icon)	Set Heroicon (string or Heroicon enum)
draggable($bool)	Make marker draggable
editable($bool)	Make marker editable on the map
group($group)	Assign to group (string or BaseLayerGroup)
popup($content, $fields, $options)	Configure popup
tooltip($content, $permanent, $direction, $options)	Configure tooltip
action($callback)	Set click handler
distanceTo($marker)	Calculate distance to another marker
validate()	Validate coordinates

Shape (All Shapes)

Method	Description
color($color)	Set border color
fillColor($color)	Set fill color
weight($pixels)	Set border width
opacity($value)	Set border opacity (0-1)
fillOpacity($value)	Set fill opacity (0-1)
dashArray($pattern)	Set dash pattern
editable($bool)	Make shape editable on the map
popup($content, $fields, $options)	Configure popup
tooltip($content, $permanent, $direction, $options)	Configure tooltip
action($callback)	Set click handler
group($group)	Assign to group (string or BaseLayerGroup)
getCoordinates()	Get center coordinates of the shape

Circle

Method	Description
make($lat, $lng)	Create circle
radius($meters)	Set radius in meters
radiusInMeters($meters)	Set radius in meters
radiusInKilometers($km)	Set radius in kilometers
radiusInMiles($miles)	Set radius in miles
radiusInFeet($feet)	Set radius in feet

CircleMarker

Method	Description
make($lat, $lng)	Create circle marker
radius($pixels)	Set radius in pixels

Polygon & Polyline

Method	Description
make($coordinates)	Create with coordinates
addPoint($lat, $lng)	Add vertex/point

Polyline

Method	Description
smoothFactor($factor)	Set line smoothing

Rectangle

Method	Description
make($corner1, $corner2)	Create with corners
makeFromCoordinates($lat1, $lng1, $lat2, $lng2)	Create with coordinates

Layer Group (Base)

Method	Description
make($layers)	Create layer group with layers
id($id)	Set group ID
name($name)	Set group name
option($key, $value)	Set a group option
getLayers()	Get all layers in the group

LayerGroup

Method	Description
make($layers)	Create simple layer group
name($name)	Set user-visible group name
id($id)	Set group ID for controls
editable($bool)	Make all layers in group editable

FeatureGroup

Method	Description
make($markers)	Create feature group from markers
name($name)	Set zone/area name
blue(), red(), etc.	Set border color
fillBlue(), fillRed(), etc.	Set fill color
fillOpacity($value)	Set fill transparency (0-1)
weight($pixels)	Set border width
editable($bool)	Make all layers in group editable

MarkerCluster

Method	Description
make($markers)	Create cluster with markers
fromModel()	Create cluster from Eloquent model
marker($marker)	Add single marker
markers($array)	Add multiple markers
name($name)	Set cluster group name
editable($bool)	Make all markers in cluster editable
maxClusterRadius($pixels)	Set cluster radius (pixels)
showCoverageOnHover($bool)	Show cluster coverage on hover
zoomToBoundsOnClick($bool)	Zoom to bounds when clicked
spiderfyOnMaxZoom($bool)	Spread markers at max zoom
disableClusteringAtZoom($level)	Disable clustering at zoom level
animate($bool)	Animate cluster changes
modifyQueryUsing($callback)	Modify database query
mapRecordUsing($callback)	Customize each marker

Color Reference

Markers and shapes accept colors from multiple sources:

Tile Layer Reference

Available tile layer providers:

• TileLayer::OpenStreetMap - Free, open-source map tile provider
• TileLayer::GoogleStreets - Google Streets map layer
• TileLayer::GoogleSatellite - Google Satellite imagery layer
• TileLayer::GoogleHybrid - Google hybrid (streets + satellite) layer
• TileLayer::GoogleTerrain - Google terrain layer
• TileLayer::EsriWorldImagery - ESRI World Imagery layer
• TileLayer::EsriWorldStreetMap - ESRI World Street Map
• TileLayer::EsriNatGeo - ESRI National Geographic layer
• TileLayer::CartoPositron - Carto Positron light map
• TileLayer::CartoDarkMatter - Carto Dark Matter map
• TileLayer::Mapbox - Mapbox tiles (requires configured Access Token)

Concern Methods Reference

HasGeoJsonFile

Method	Description
getGeoJsonFileAttributeName()	Returns the model attribute storing GeoJSON (default: 'geojson')
getGeoJsonFileDisk()	Returns the storage disk for the file (default: null = local)
getExpirationTime()	Returns DateTime for temporary URL expiration (default: null = permanent)
getGeoJsonUrl()	Returns the accessible URL for the GeoJSON file

Map Configuration Properties

These properties control core map behavior:

Property	Type	Default	Description
$mapCenter	array	[-14.235, -51.9253]	Initial map center [latitude, longitude]
$autoCenter	bool	false	Auto-center to user's current location on load
$defaultZoom	int	4	Initial zoom level
$mapHeight	int	504	Map height in pixels
$mapDraggable	bool	true	Allow users to pan by dragging
$mapZoomable	bool	true	Allow users to zoom (scroll wheel, pinch)
$recenterMapTimeout	?int	null	Auto-recenter after X milliseconds of panning
$maxZoom	int	18	Maximum zoom level allowed
$minZoom	int	2	Minimum zoom level allowed
$hasDrawMarkerControl	bool	false	Show draw marker control
$hasDrawCircleMarkerControl	bool	false	Show draw circle marker toolbar
$hasDrawCircleControl	bool	false	Show draw circle toolbar
$hasDrawPolylineControl	bool	false	Show draw polyline toolbar
$hasDrawRectangleControl	bool	false	Show draw rectangle toolbar
$hasDrawPolygonControl	bool	false	Show draw polygon toolbar
$hasDrawTextControl	bool	false	Show draw text toolbar
$hasEditLayersControl	bool	false	Show edit layers toolbar
$hasDragLayersControl	bool	false	Show drag layers toolbar
$hasRemoveLayersControl	bool	false	Show remove layers toolbar
$hasRotateLayersControl	bool	false	Show rotate layers toolbar
$hasCutPolygonControl	bool	false	Show cut polygon toolbar
$hasFullscreenControl	bool	false	Show fullscreen button
$hasSearchControl	bool	false	Show address search
$hasScaleControl	bool	false	Show distance scale
$hasZoomControl	bool	true	Show zoom +/- buttons
$hasAttributionControl	bool	false	Show attribution text
$tileLayersUrl	mixed	OpenStreetMap	Base map tile layers

License

This package is open-sourced software licensed under the MIT license.

Credits

• Built for Filament
• Uses Leaflet for mapping
• Created by Eduardo Ribeiro

Support

For issues, questions, or contributions, please visit the GitHub repository. Don't forget, Jesus loves you ❤️.
