A semantic clone detector and refactoring assistant for PHP codebases. Behaves more like an "extract function" advisor than a copy/paste finder.

phpdup parses every file in a PHP codebase into an Abstract Syntax Tree, normalizes those ASTs into a canonical form, and finds clusters of parameterizable duplication — places where the shape of the code repeats and only literals, identifiers, method names, table names, or whole optional segments of code vary.

For each cluster it doesn't just point at the duplicates, it tells you what the abstraction would look like — its parameter list, types, and a suggested function name — ready to drop into a refactor.

A run on tests/Fixtures returns its top 2 clusters by impact. Each cluster's "Suggested abstraction" box is the function signature phpdup is recommending you extract; the "Holes" table lists every parameter with its inferred type and the values observed across cluster members. Compare with classic copy/paste detectors that only highlight the duplication; phpdup tells you the threshold and the role string are the parameters of the abstraction with their inferred types and observed values, ready to apply.

Features
Installation
- PHAR (recommended)
- Composer
- From source
Self-update
Quick start
How it works
- Pipeline
- Normalization modes
- Clustering
- Two-tier TED pre-filter
- Anti-unification
- Multi-seed search
- Pattern recognition
- Architectural analyzers
- Cluster coherence (outlier detection)
- Refactor-safety scoring
- Ranking
- Parallelism
- Incremental indexing
- Persistent cluster cache
- Lazy AST loading
Type-3 / optional-segment detection
Type-4 / behavioural similarity
ORM- / DB-aware semantic deduplication
TUI mode
Watch mode
SIGINT soft-cancel
phpdup serve REST API
Output formats
Configuration
- Per-directory overrides
- Project profiles
- Auto-tune
- Normalization plugins
CLI reference
Programmatic use
Examples
Static analysis & config validation
Benchmarks
- Comparative benchmark suite
- Feature matrix
- Internal scaling benchmark
Architecture
Testing
Performance
Roadmap
FAQ
Contributing
License

Features

Semantic, not textual. Compares AST structure, not source text — so whitespace, comments, and identifier renames don't fool it.
All four clone types. Type-1 (exact), type-2 (renamed variables / literals), type-3 (statements present in some members but absent from others — see Type-3 / optional-segment detection), and an experimental type-4 behavioural-similarity scorer that catches I/O-equivalent code with structurally different implementations (e.g. foreach-accumulator vs array_reduce, switch vs match). See Type-4 / behavioural similarity.
Parameter discovery. For every cluster, identifies the literals, identifiers, method names, class names, and entire optional code segments that vary, and proposes them as parameters of a suggested abstraction with inferred types and named placeholders.
Three normalization modes. From strict (variable rename tolerant only) to aggressive (also collapses literal values, method names, property names, and class names) — pick the precision/recall trade-off you want.
Three-phase clustering.
- Hash buckets for exact canonical matches — O(N).
- N-gram inverted index + Jaccard + APTED tree-edit-distance for near-duplicates — never quadratic in practice.

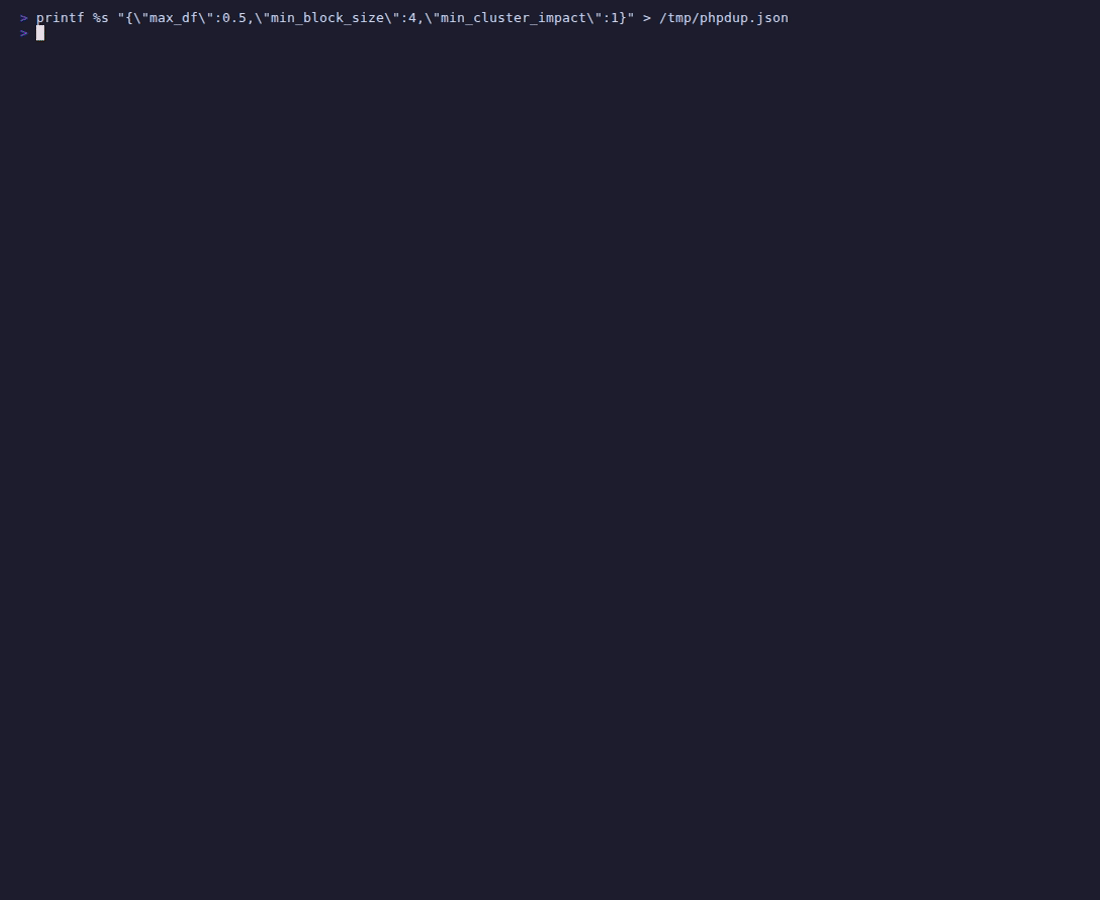

- Containment fallback for type-3 clones whose Jaccard would fail because one block is a near-subset of another.
Anti-unification with statement-array LCS. For every cluster phpdup computes the most-specific generalization of its members, using LCS over per-statement structural hashes when stmt arrays differ in length. Disagreements become typed parameter holes; per-statement gaps become defaulted boolean parameters.
Pattern recognition (22 tags). Tags clusters that match well-known refactor archetypes — structural, domain, framework:
- Structural: sql-builder · crud-handler · validation-chain · strategy · config-driven · state-machine · optional-segments.
- Domain (I.A.2-7): loop-map (foreach + accumulator append) · loop-filter (foreach + leading guard-continue) · sql-query (literal SQL string in body) · http-call (Guzzle / cURL / wp_remote_* shapes) · error-handler (try-catch with logger or rethrow) · builder-chain (≥3 method-call chain) · container-registration (DI binders) · db-op (DB operation shape — __DB_READ__ / __DB_WRITE__ / __DB_UPSERT__ tokens produced by --db-aware canonicalisation).
- Framework (IX.A): controller-action (Laravel/Symfony controllers) · migration (Laravel/Doctrine migrations) · eloquent-model (App\\Models\\…) · repository-method (*Repository::find/get/save…) · event-listener · service-provider (Laravel SP / Symfony Bundle) · query-builder-chain (Doctrine/Eloquent QB entry points).
Architectural analyzers (IX.B). Beyond the pattern tags, three analyzers post-process every cluster and emit architectural_findings[] with severity + remedial suggestion:
- SOLID — flags SRP-mixed bodies (persistence + side-effect calls in one block) and DIP-violating concrete-class-string holes.
- Design pattern — recognises Strategy / Factory / Builder shapes from existing tags + hole types.
- Anti-pattern — Long Parameter List (>5 holes), Primitive Obsession (all holes scalar primitives).
Cluster coherence (VI.A.3). Per-cluster outlier detection via mean pairwise n-gram Jaccard; flags members that don't belong with the rest. Surfaces as outlier_members[] in JSON and a ⚠ marker in CLI.
Refactor-safety scoring (VI.A.1). Combines hole type-safety, cross-namespace span, member count, and pattern-tag deltas into a [0,1] score. --min-safety filters clusters that look risky to mechanically extract.
Impact-ranked output. Clusters sorted by how many lines disappear if the abstraction is applied, with a separate confidence score that flags risky refactors (subtree-level holes, cross-namespace spans).

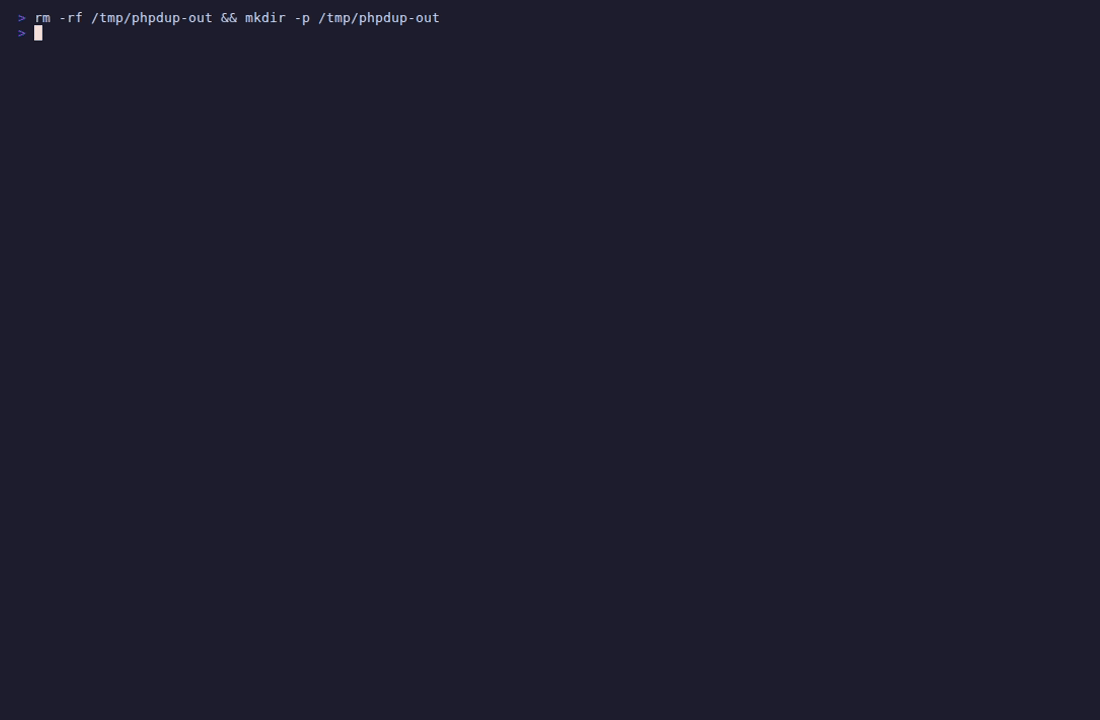

Twelve output formats.
- SugarCraft-styled colorized CLI (with a --plain switch and --summary-only / --clusters verbosity modes).
- Structured JSON (machine-readable, full cluster + hole metadata including present_in_members[] for type-3 holes, outlier_members[], architectural_findings[], safety score; carries a schema_version field — docs/JETBRAINS_PLUGIN.md is the stable contract for IDE plugins).
- Interactive HTML site (sortable/filterable index, mini-map of cluster impact, copy-signature buttons, syntax-highlighted code, optional-segment rows tinted amber, per-hole tweaker UI with localStorage persistence + JSON export).
- SARIF 2.1.0 (GitHub Code Scanning / GitLab Code Quality, with grouping fingerprints + optionalSegmentCount).
- GitLab SAST v15.x (MR security widget, severity-bucketed by impact).
- Unified diffs per cluster + cumulative --patch file.
- Checkstyle XML (Jenkins / Sonar / Bitbucket consumers).
- CSV (--csv=FILE) — one row per cluster member with similarity / impact / safety / signature for spreadsheets and BI ingest.
- Prometheus text-format (--prometheus=FILE) — phpdup_clusters_total, phpdup_total_impact, per-tag counters; ready for pushgateway scraping.
- Time-series JSONL (--timeseries=FILE) — one append-only line per run, commit-tagged via GIT_COMMIT / GITHUB_SHA / CI_COMMIT_SHA; lets you track duplicate debt over time in BigQuery / ClickHouse / Elastic.
- Graphviz DOT (--graphviz=FILE) — file→cluster bipartite graph; render with dot -Tpng ….
- PlantUML (--plantuml=FILE) — class diagram with cluster packages and pattern-tag stereotypes.
- Refactor patches (--refactor-patch=DIR) — heuristic, manual-review-required .patch per cluster: adds a Refactored/<id>.php skeleton plus per-member edit hints. Bails to a manual-review header when $this/self::/yield/ closure capture would make mechanical replacement unsafe.
- PHPUnit test skeletons (--refactor-tests=DIR) — one markTestIncomplete() test class per cluster with a data provider populated from observed hole values.
Optional SugarCraft TUI (--tui). Four-pane FlexBox dashboard driven by the cooperative pipeline — counts, sparkline, OSC 9;4 taskbar progress all build up live frame-by-frame as work progresses. Six themes, full keyboard, ←/→ to cycle clusters in detail view.

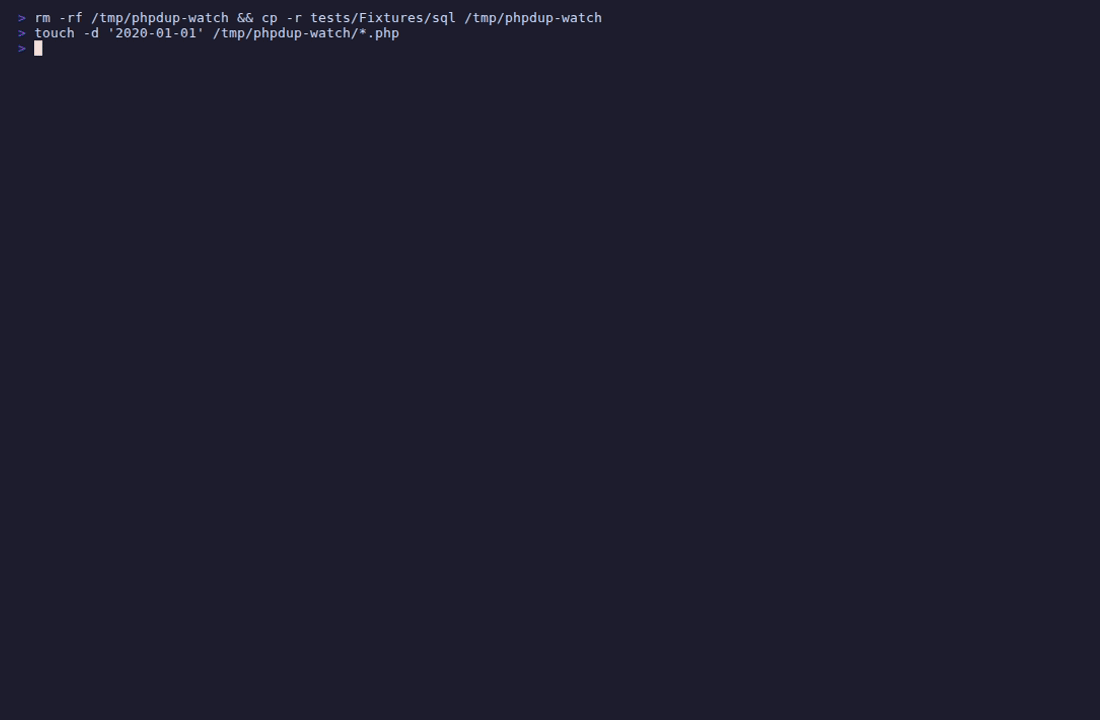

Watch mode (--watch). Re-runs analysis on file changes via a poll-based React\EventLoop timer; Ctrl+C exits cleanly. Combines with --tui for a live dashboard that resets and rebuilds on every change.
SIGINT soft-cancel. First Ctrl+C flips PipelineState::$cancelled; cooperative stages check it between yields, short-circuit to the Reporting stage, and produce a partial report. Second Ctrl+C falls back to the default kill. Exit code is the canonical 130.
REST API server (phpdup serve). Minimal HTTP service for in-house dashboards, CI integrations, and the playground front-end. Routes: GET /healthz, POST /analyze (sync), POST /jobs + GET /jobs/{id} (async-shaped). Hand-rolled HTTP/1.1 parser — no ReactPHP dep. SSRF guard, Content-Length cap, JSON_THROW_ON_ERROR, default bind to 127.0.0.1. See docs/SERVER.md.
PHAR distribution. phpdup.phar is published with every release plus a sha256 sidecar; download once, run anywhere with PHP 8.1+ and ext-phar. phpdup self-update (aliases update / upgrade) replaces the running binary in place after hash verification. Build locally with php -d phar.readonly=0 build-phar.php. See docs/PHAR.md.
Block-kind filter (--kinds=method,closure). Drops non-matching block kinds at extraction time so clustering only sees what you asked for.
PHP 8.x syntax-surface canonicalisation. match arms collapsed to switch-equivalent token shape, named arguments reordered to lexicographic order, attributes stripped in aggressive mode — so syntactic-only differences across PHP 8.0 → 8.4 don't fool clustering.
Auto-tune (--auto-tune). Probes the corpus before analysis and picks size-appropriate defaults: tiny (<200 files) gets relaxed thresholds, medium (<20k) tightens max-df, large (≥20k) forces --exact-only to keep memory in check. Explicit CLI flags always override the picks.
Project profiles. profiles/{laravel,symfony,drupal, wordpress,myadmin,generic}.json ship preset config. --profile=NAME selects one explicitly; auto-detect kicks in via project-marker files (artisan, bin/console, wp-config.php, include/Orm, etc.) when no explicit config is given.
Per-directory config overrides. .phpdup.json files discovered at any depth in the scan tree, validated against the schema, layered ancestor-first so deeper directories override parents. Symbols (db_symbols.methods and db_symbols.functions) are additive — per-directory symbols append to root-config symbols rather than replacing them, allowing incremental extension without full duplication.
User-defined normalization plugins. Implement Phpdup\Normalization\NormalizationPlugin, register the FQCN in phpdup.json -> normalization.plugins[], and your plugin runs after the built-in passes for project-specific canonicalisation (e.g. unify SDK alias methods, project-specific identifier normalisation).

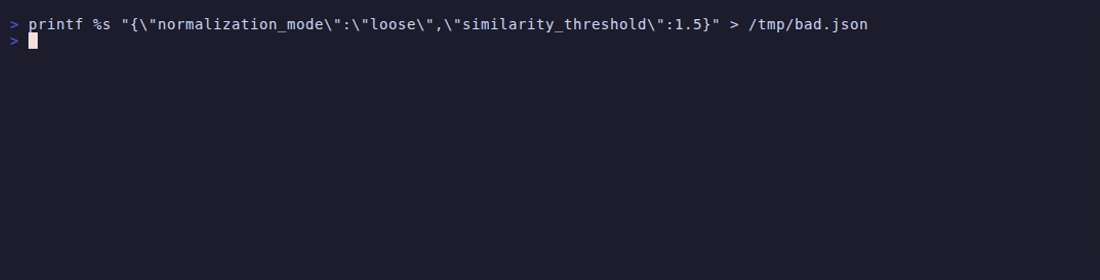

Schema-validated config. phpdup.json is checked against docs/config-schema.json at load time; --validate-config exits with the field path on the first violation before any analysis runs.
Shell completion for bash, fish, and zsh via phpdup completion <shell>. Output is the standard Symfony Console completion script with commented-out installation instructions prepended, so you can paste-and-follow inline.
Composable pipeline with cooperative iteration. Five stages (Scanning, Preprocessing, Clustering, Refactoring, Reporting) all implement a tiny StageInterface and share a PipelineState; cooperative stages additionally yield mid-execution so the TUI can repaint while parallel work is in flight. A ProgressListener interface lets observers (the TUI, watchers) hook in without touching stages.
Streaming worker pool. WorkerPool::runStreaming() returns a \Generator that yields each child-process result as soon as it arrives — multiplexing children's per-process socketpairs via stream_select — so PreprocessStage can drive the dashboard live instead of blocking on the slowest worker. The classic collect-and-return run() is now a thin synchronous drain over the same code path.
Parallelized preprocessing, pair scoring, and refactor. pcntl_fork worker pool batches files for parse + extract + normalize + fingerprint (PreprocessWorker); candidate pairs for Jaccard + tree-edit scoring (PairScoreWorker); and per-cluster anti-unification + tagging (RefactorWorker). Auto CPU detection, serial fallback when pcntl is unavailable.
APTED-style tree edit distance with weighted edits. Zhang-Shasha forest-distance DP with heavy-path child ordering and bounded early termination, plus a --ted-weights={default,semantic} cost model that gives method calls cost 2.0, control flow 1.5, literals 0.5 — better proxy for behavioural similarity than unit costs.
Two-tier TED pre-filter. Before the O(n²) DP runs, a size-delta check + 64-bit (node-type, depth) shapelet sketch reject obviously-different pairs in ~10 ALU ops. See Two-tier TED pre-filter.
Three candidate-pair indexes. NgramInvertedIndex (default, small / medium corpora), BloomCandidateIndex (drop-in replacement that holds a fixed-size 2 KiB filter per block — trades posting-list memory for O(n²) bit-overlap scoring on huge corpora), and LshIndex (MinHash signatures + 32-band / 4-row LSH — near-constant lookup time per block).
External-sort streaming-clustering primitive. Disk-backed K-way merge sort over (key, payload) tuples — foundation for clustering corpora that don't fit in RAM.
Incremental indexing. Per-file block snapshots keyed by content hash + parser version + config key. Editing one file leaves the other 999 snapshots intact.
Persistent cluster cache (II.B.4). Snapshots the final cluster list to <cacheDir>/clusters.idx after every successful run. Re-running on an unchanged corpus skips Cluster + Refactor stages entirely. Wholesale invalidation on any block change.
Lazy AST loading. Original ASTs are dropped after fingerprinting and reloaded on demand only for blocks that end up in clusters. RSS scales sub-linearly with corpus size.
AST + token caches. SHA-1 keyed disk caches (AstCache for full Stmt[] and TokenCache for raw token streams), both versioned to the parser release so warm-cache runs skip parsing entirely.
Comparative benchmark suite. bench/run-all.sh runs phpdup alongside phpcpd / pmd-cpd / jscpd / simian on a curated mix of real OSS corpora (Symfony Console, Laravel HTTP, PHPUnit, WordPress core) plus a synthetic-fuzz corpus with known ground truth — emits wall-time / RSS / cluster-count comparison plus precision/recall/F1 on the synthetic set. See Benchmarks and bench/feature-matrix.md.
Memory ceiling. --max-memory=MB warns and suggests --exact-only if peak RSS exceeds the threshold mid-pipeline.
--stage halt point. --stage=clustering runs the pipeline only up to (and including) clustering and stops — useful for debugging incremental cache hits or profiling individual stages.
Production-ready PHP. Strict types throughout, PSR-4 autoloaded, PHPStan level 6 clean, Psalm errorLevel 6 clean (no baseline), 396+ PHPUnit tests across four suites (Unit, Integration, Golden snapshots, Fuzz detection-rate), requires PHP 8.1+.

Installation

PHAR (recommended)

The fastest way to try phpdup. Download the self-contained phpdup.phar from the latest GitHub release, verify the SHA-256, and drop it on your PATH:

curl -sSLO https://github.com/detain/php-dup-finder/releases/latest/download/phpdup.phar
curl -sSLO https://github.com/detain/php-dup-finder/releases/latest/download/phpdup.phar.sha256
sha256sum --check phpdup.phar.sha256

chmod +x phpdup.phar
sudo mv phpdup.phar /usr/local/bin/phpdup

Requirements: PHP 8.1+ with ext-phar. The phar is ~7 MB.

Once installed, keep it current with the built-in self-updater:

phpdup self-update         # download & swap the binary in place
phpdup self-update --dry-run   # check what's available, change nothing

update and upgrade are aliases. See Self-update for the full flow + offline notes.

Build the phar yourself (e.g. for a private fork):

composer install --no-dev --optimize-autoloader
php -d phar.readonly=0 build-phar.php

See docs/PHAR.md for the full distribution flow, release process, and troubleshooting (phar.readonly, ext-phar on shared hosting, etc.).

Via Composer

composer require --dev detain/php-dup-finder
vendor/bin/phpdup analyze src

The package isn't on Packagist yet — declare the GitHub repo manually:

{
    "require-dev": {
        "detain/php-dup-finder": "dev-master"
    },
    "repositories": [
        { "type": "vcs", "url": "https://github.com/detain/php-dup-finder" }
    ],
    "minimum-stability": "dev",
    "prefer-stable": true
}

From source

git clone https://github.com/detain/php-dup-finder.git
cd php-dup-finder
composer install
bin/phpdup analyze /path/to/your/code

Requirements:

PHP 8.1 or newer
ext-hash (for xxh128)
ext-pcntl + ext-posix (optional — without them phpdup runs serially with no other change)
ext-phar (for the phar distribution; not needed for source/composer)
ext-curl (optional; preferred over streams for MlClient and the self-updater's HTTP fetches)
Composer (for source / composer install only)

Self-update

When phpdup is installed as a phar, it can replace itself in place with the latest GitHub release:

phpdup self-update           # download, verify sha256, swap
phpdup self-update --dry-run # report the latest tag, change nothing
phpdup update                # alias
phpdup upgrade               # alias

The flow:

Resolves https://api.github.com/repos/detain/php-dup-finder/releases/latest.
Downloads phpdup.phar and phpdup.phar.sha256 from the release assets to a temp dir.
Verifies the SHA-256 — refuses to swap on mismatch.
Renames the running binary to phpdup.phar.old (rollback safety), moves the new phar into place, and marks it executable.
Prints the new version.

Requires write access to wherever the phar lives (i.e. don't put it in /usr/local/bin if you wouldn't sudo to update; install per- user under ~/.local/bin instead). Falls back gracefully when GitHub returns "no releases yet" ({"message":"Not Found"}) so a fresh fork can still call --dry-run without erroring out.

Composer / source installs don't use self-update — pull and re-install the usual way:

composer update detain/php-dup-finder
# or, for a source clone:
git pull && composer install

Quick start

Scan a directory and print the top duplicates (auto-parallelized):

bin/phpdup analyze src

Multiple directories with both reports:

bin/phpdup analyze src lib \
    --json    duplicates.json \
    --html    duplicates-report \
    --min-impact 30

Use a config file for repeatable runs:

bin/phpdup analyze --config phpdup.json

Quick exact-clones-only pass for CI (very fast, ~6 s on a 3,300-block corpus):

bin/phpdup analyze src --exact-only --min-impact 50

Emit every CI-relevant format in one shot:

bin/phpdup analyze src \
    --sarif       phpdup.sarif \
    --gitlab-sast phpdup.gitlab.json \
    --diff        ./phpdup-diffs \
    --checkstyle  phpdup.xml \
    --json        phpdup.json \
    --html        phpdup-report

Filter to one block kind and gate on impact:

bin/phpdup analyze src --kinds=method --min-impact=50 --exact-only

Live-reload while you refactor:

bin/phpdup analyze src --watch

Show the interactive dashboard while analysis runs:

bin/phpdup analyze src --tui --theme=dracula

How it works

Pipeline

flowchart TB
    subgraph Scan["Scanning"]
        A[Scanner walks paths] -->|absolute file paths| B[FileScanner]
    end

    subgraph Preprocess["Preprocessing — parallel via WorkerPool::runStreaming"]
        C[AstParser + AstCache] --> D[BlockExtractor with --kinds filter]
        D --> E[Normalizer<br/>strict / default / aggressive]
        E --> F[SubtreeHasher + NgramFingerprint]
        F --> G[(IndexStore<br/>per-file snapshot)]
    end

    subgraph Cluster["Clustering"]
        H[BlockIndex] --> I[NgramInvertedIndex]
        I -->|candidate pairs| J{Pair scoring}
        J -->|hash-bucket: exact match| K[Edge weight = 1.0]
        J -->|Jaccard >= threshold| L[APTED tree-edit-distance]
        J -->|Jaccard < threshold<br/>+ optional_blocks_enabled| M[ContainmentSimilarity<br/>type-3 fallback]
        L --> N[Edge weight = min<br/>jaccard, ted]
        M --> O[Edge weight = containment]
        K --> P[Union-find]
        N --> P
        O --> P
        P --> Q[Clusters]
    end

    subgraph Refactor["Refactoring"]
        R[AntiUnifier seed = max-size member] --> S{stmt arrays<br/>differ in length?}
        S -->|yes + type-3 enabled| T[LCS on stmt hashes<br/>→ optional_block holes]
        S -->|no| U[Recurse normally<br/>→ literal/identifier/name holes]
        T --> V[ParameterSynthesizer]
        U --> V
        V --> W[bool $includeFooBar = false<br/>or typed required param]
        W --> X[SignatureBuilder + PatternRecognizer]
    end

    subgraph Report["Reporting"]
        Y[Ranker by impact] --> Z[CLI / JSON / HTML / SARIF<br/>GitLab SAST / Diff / Checkstyle]
    end

    B --> C
    G --> H
    Q --> R
    X --> Y

    %% Observer overlay
    PL[ProgressListener<br/>e.g. PhpdupModel TUI] -.observes.-> Scan
    PL -.observes.-> Preprocess
    PL -.observes.-> Cluster
    PL -.observes.-> Refactor

The whole pipeline is also driven cooperatively as a \Generator (Pipeline::iter()) — each yield point is a chance for the TUI runtime to repaint or for a watcher to inject a RestartPipelineMsg.

Stage	Output
Scanning	absolute file paths (glob include/exclude)
Preprocessing	annotated blocks (canonical AST + n-gram bag + structural hash) per file
Clustering	clusters with similarity scores + edge weights
Refactoring	generalized AST, holes, signature, pattern tags
Reporting	CLI / JSON / HTML / SARIF / GitLab SAST / diff / Checkstyle output

Normalization modes

Mode	Variable rename	Literal collapse	Name collapse
`strict`	yes	no	no
`default`	yes	yes	no
`aggressive`	yes	yes	yes

In aggressive mode (default), two functions with different table names, different method names, and different literal values can still cluster together.

Clustering

Three phases:

Exact canonical clones. All blocks sharing the same Merkle hash over the canonical AST land in the same bucket. O(N) work.
Near-duplicates. For each block, candidates are pulled from a rare-n-gram inverted index (ignoring n-grams that occur in more than max_df × N blocks). Each candidate is scored by Jaccard similarity on the canonical n-gram multiset; survivors are refined with APTED-style bounded tree-edit-distance.
Type-3 fallback. When Jaccard fails but ContainmentSimilarity shows the smaller block is mostly contained in the larger (containment ≥ 0.85 AND size_ratio ≥ 0.6), the pair is accepted anyway. See Type-3 / optional-segment detection.

Surviving edges feed a union-find that merges them into clusters.

Anti-unification

For every cluster phpdup computes the most-specific generalization of its members. The classic recursion:

au(t1, t2) =
    if root(t1) == root(t2) and arity matches:
        Node(root(t1), [au(c1_i, c2_i) for i in children])
    else:
        Hole(observed=[t1, t2])

Extensions in phpdup:

Seed = max-size member. Cluster member with the most AST nodes is used as the template, so the "maximal" version drives the abstraction and shorter members get optional segments highlighted (instead of the alignment failing because the seed happened to be short).
LCS for stmt arrays. When two stmts/cases/catches arrays differ in length, phpdup runs LCS over per-statement structural hashes; matched positions recurse, unmatched template positions become optional_block holes.

The resulting template has Hole markers at every position where members disagreed. Each hole tracks its observed values across all members (in cluster order), so reports show threshold ∈ {10, 20, 30} and role ∈ {'admin', 'moderator', 'editor'}.

Pattern recognition

After anti-unification, each cluster is checked against a small catalog of refactor archetypes (sql-builder, crud-handler, validation-chain, strategy, config-driven, state-machine, optional-segments). Tags are advisory; they don't change clustering, just label the cluster in the report.

Ranking

Each cluster gets two scores:

Impact ≈ (members - 1) × avgBlockSize - holesPenalty. How many lines of code disappear if the abstraction is applied.
Confidence in [0,1]. Cluster similarity, penalized for subtree-level holes (large variable subtrees) and cross-namespace spans, bumped for same-class cohesion.

Clusters below min_cluster_impact are dropped. Survivors are sorted by descending impact, breaking ties by member count and similarity.

Parallelism

Phpdup\Parallel\WorkerPool partitions a list of items into N batches, forks one child per batch via pcntl_fork, runs the closure in the child, and the parent reaps results. There are two collection modes:

run() — collect-and-return. Each child writes its full result to a temp file when finished; the parent reads them all once every child has exited.
runStreaming() — yield-as-results-arrive. Children write length-prefixed serialized records (4-byte big-endian uint32 + payload) to per-child stream_socket_pairs; the parent multiplexes via stream_select and the returned \Generator yields each record live. PreprocessStage consumes this so the cooperative pipeline gets mid-stage progress events instead of blocking until every fork exits.

Two phases use the pool:

PreprocessWorker — each child does parse + extract + normalize
- hash + n-gram fingerprint for its file batch.
PairScoreWorker — once candidate pairs are generated from the inverted index, the master batches them across workers; each child runs Jaccard + bounded TED + (when enabled) the type-3 containment fallback on its batch and emits surviving edges.

CPU count is auto-detected (nproc / /proc/cpuinfo) or overridable via --workers N / PHPDUP_WORKERS=N. When pcntl_* is unavailable (Windows, sandboxed PHP), the pool detects this at runtime and falls back to a serial code path with the same closure interface — callers don't branch.

Incremental indexing

Phpdup\Persistence\IndexStore snapshots each file's extracted + normalized + fingerprinted blocks under <cache_dir>/<sha1(path)>.idx. Each snapshot stores:

file_hash — sha1_file() of the source.
parser_version — bumped together with the AST cache key.
config_key — sha1 of the relevant config fields (block size, normalization mode, n-gram size). Changing any of these invalidates the snapshot automatically.
blocks — serialized Block[] ready to pour into the index.

On re-runs the master splits files into "reuse" (snapshot hit) and "process" (snapshot miss) buckets and only the latter goes through the worker pool. Editing one file leaves the other snapshots intact.

Disable with --no-incremental for benchmarking or when paranoid about cache poisoning.

Lazy AST loading

After fingerprinting we drop Block::$ast (the original PhpParser subtree) and reload it on demand inside AntiUnifier via BlockAstLoader. The loader walks the file's parse-cached statement list looking for the unique (kind, start_line, end_line, declared_name) tuple; matches are populated back into the Block.

The AST cache is consulted first so on warm runs no parsing happens at all. Disable with --no-lazy-ast if you have RAM to spare and want maximum speed (the reload overhead is roughly equal to the RSS savings on small corpora — see BENCHMARKS.md).

Type-3 / optional-segment detection

A "type-3" clone is one where the structures match, but some members have extra (or missing) statements relative to others. phpdup detects these in two coordinated stages.

The fixture run shows phpdup pulling in two blocks whose statements share a common prefix but where the longer block has two extra calls (some_other_logic($here) and and_more($f)). The "Suggested abstraction" box ends up with two defaulted boolean parameters named after the absent code:

function extractedFunction(
    bool $includeSomeOtherLogic = false,
    bool $includeAndMore = false,
): mixed

…and the cluster is tagged optional-segments. Each row in the Holes table is marked optional_block with the literal <absent> sentinel showing which members lacked the segment.

Clustering: containment fallback

When the n-gram Jaccard between two candidate blocks falls below similarity_threshold, the clusterer tries ContainmentSimilarity = |A ∩ B|min / min(sum(A), sum(B)), which returns 1.0 whenever the smaller bag is fully contained in the larger regardless of size disparity. The pair is accepted with the containment score as the edge weight only when:

containment ≥ optional_blocks_containment   (default 0.85)  AND
size_ratio  ≥ optional_blocks_min_overlap    (default 0.6)

The size-ratio guard prevents a 1-line block from clustering with a 100-line block on a single shared n-gram.

Anti-unification: LCS over statement arrays

The seed (template) is the cluster member with the most AST nodes. When walk() reaches a stmts / cases / catches array whose length differs from the seed's, phpdup runs LCS over each statement's structural hash:

Matched template positions recurse via the normal walk — variables, literals, names inside the matched statement still produce regular holes.
Unmatched template positions become optional_block holes — one per missing statement, capped at optional_blocks_max_per_cluster (default 3) so over-flexible clusters don't explode into seven-boolean signatures.

Each optional_block hole becomes a default-false bool parameter. The name is derived from the first non-stop-word identifier in the segment, e.g. a missing some_other_logic($here); becomes bool $includeSomeOtherLogic = false. SignatureBuilder groups required parameters first then defaulted booleans so the resulting signature is syntactically valid PHP.

Tunables

{
  "optional_blocks": {
    "enabled": true,
    "containment": 0.85,
    "min_overlap": 0.6,
    "max_per_cluster": 3,
    "min_segment_length": 1
  }
}

CLI overrides:

bin/phpdup analyze src \
    --optional-blocks=on \
    --optional-blocks-containment=0.85

To disable type-3 detection completely: optional_blocks.enabled = false (or --optional-blocks=off); the clusterer reverts to Jaccard-only and AntiUnifier falls back to whole-array subtree holes when stmt arrays differ in length.

How it surfaces in reporters

CLI — Holes table shows kind = optional_block, observed values include the literal <absent> marker for members where the segment was missing.
JSON — every optional_block hole carries present_in_members: [int, ...] listing the cluster-member indices that did include the segment.
SARIF — each result's properties adds optionalSegmentCount and hasOptionalSegments so PR-annotation tooling can flag type-3 clusters distinctly.
HTML — optional rows are tinted amber, get a "type-3" badge, and italicize the <absent> sentinel.

Type-4 / behavioural similarity (experimental)

Type-1/2/3 detection compares shape — what tokens the AST emits. Type-4 detection compares behaviour — what data flows through the block, what calls it makes, what it returns. Two functions that compute the same value with structurally different implementations (foreach accumulator vs array_reduce, recursion vs iteration, switch vs match) cluster under type-4 even when AST similarity rejects them.

phpdup's type-4 scaffold:

Phpdup\Semantic\DataflowSummarizer — walks the block once and emits (vars, calls, returns, sideEffects).
Phpdup\Semantic\DbOperationTagger — separately walks the block and emits a tag → count multiset of recognised database operations (db.read, db.write, db.delete, db.execute, db.query). Library- and extension-agnostic by design — see Behavioural-tag scoring below.
Phpdup\Similarity\BehaviouralSimilarity — weighted Jaccard over those summaries (var-set 1×, call-multiset 2×, return-shape 2×, side-effect-flag 1×, DB-op-tag multiset 2×) → [0,1] score.
Phpdup\Semantic\CallGraph and Phpdup\Semantic\ControlFlowGraph — coarse per-block summaries used by future type-4 boost paths.

Type-4 has higher false-positive risk than type-1/2/3 by design. Today it's a foundational scaffold; the live wiring into the clusterer (as a fourth-tier fallback after Jaccard + APTED + containment all reject) is gated behind a future --type4 flag. See docs/algorithms/anti-unification.md for the algorithmic reference and docs/plans/orm-db-semantic-dedup.md for how this connects to the broader plan for ORM/DB semantic-equivalence detection.

ORM- / DB-aware semantic deduplication

Stock AST clustering misses duplicates that the developer thinks of as "the same operation" because the surface call shape is different — typically when the same database write/read is expressed via an ORM in one place and via raw SQL in another. The four examples below all perform the same write, but none cluster without --db-aware:

// Eloquent
$user = User::find($id);
$user->name = 'Bob';
$user->save();

// Doctrine
$user = $em->find(User::class, $id);
$user->setName('Bob');
$em->flush();

// Raw PDO
$pdo->query("UPDATE users SET name = 'Bob' WHERE id = {$id}");

// Query builder
$db->table('users')->where('id', $id)->update(['name' => 'Bob']);

Pass --db-aware and phpdup runs Phpdup\Normalization\DbOpCanonicalizer as a pre-pass during normalisation. It rewrites recognised database calls into canonical synthetic FuncCalls — __DB_FIND__("user"), __DB_QUERY__("users", "SELECT"), __DB_WRITE__("users") etc. — so equivalent variants produce identical token streams and cluster together in tier-1 / tier-2.

What is recognised

The stock symbol table in Phpdup\Normalization\DbOpRegistry covers:

Eloquent / Laravel — Model::find, Model::all, Model::create, DB::table, DB::select, Model::where(...) ->first|get|update|delete(), etc.
Doctrine ORM — EntityManager::find, EntityManager::flush, EntityManager::persist, Repository::findOneBy, Repository::findAll.
PDO — PDO::query, PDO::prepare, PDOStatement::execute, PDOStatement::fetch*.
mysqli (object + procedural) — mysqli::query, mysqli_query, mysqli_stmt_execute, mysqli_fetch_*.
PostgreSQL — pg_query, pg_query_params, pg_fetch_*, pg_insert, pg_update, pg_delete.
Firebird / InterBase — ibase_query, ibase_prepare, ibase_execute, ibase_fetch_row, ibase_fetch_assoc, ibase_fetch_object, ibase_commit, ibase_rollback.
MSSQL / DB-Library — mssql_query, mssql_fetch_row, mssql_fetch_array, mssql_fetch_assoc, mssql_fetch_object, mssql_num_rows.
IBM DB2 — db2_prepare, db2_execute, db2_query, db2_fetch_row, db2_fetch_assoc, db2_fetch_array, db2_fetch_object, db2_num_rows.
Async MySQL clients — amphp/mysql (amysql_query, amysql_fetch_assoc, amysql_fetch_row, amysql_free_result), friends-of-reactphp/mysql (react_mysql_query, react_mysql_fetch_assoc, react_mysql_fetch_row), Swoole Coroutine MySQL (swoole_mysql_query, swoole_mysql_fetch_assoc, swoole_mysql_fetch_row), OpenSwoole MySQL (openswoole_mysql_query), Workerman mysql (workerman_mysql_query).
Async PostgreSQL clients — amphp/postgres (apg_query, apg_fetch_assoc, apg_fetch_row, apg_free_result), reactphp/postgres (react_pg_query, react_pg_fetch_assoc, react_pg_fetch_row), Swoole coroutine postgres (swoole_postgres_query).
Oracle OCI8 — oci_parse, oci_execute, oci_fetch, oci_fetch_assoc, oci_fetch_row, oci_fetch_object, oci_free_statement, oci_commit, oci_rollback.
Cassandra (phpcassa) — phpcassa_query, phpcassa_fetch.
LevelDB — leveldb_get, leveldb_put, leveldb_delete, leveldb_open.
Memcached — memcached_get, memcached_set, memcached_add, memcached_replace, memcached_delete, memcached_increment, memcached_decrement, memcached_flush.
Async transaction methods — beginTransaction, commit, rollback are classified OP_WRITE; auxiliary methods affectedRows → OP_READ, insertId → OP_WRITE, count → OP_READ.
Generic CRUD verbs — any method named find, findById, save, update, delete, query, execute on an unknown receiver — coarse but high-recall. Also: table, select, insert, upsert, lock, unlock via the illuminate/database query builder facade (Laravel DB::table()->... chains).
Raw SQL strings — passed to any of the above. The bundled Phpdup\Normalization\SqlTableExtractor lifts the verb (SELECT / INSERT / UPDATE / DELETE / REPLACE / TRUNCATE) and the primary table out of the literal string so the verb shows up as a token in the synthesised __DB_<OP>__ call.

How it slots into the pipeline

   1. ScanningStage
   2. PreprocessStage
        a. AstParser       → plain AST
        b. BlockExtractor  → (file, kind, range)
        c. Normalizer
              ├── DbOpCanonicalizer  ← only when --db-aware
              └── CanonicalizingVisitor (vars, literals, names)
        d. SubtreeHasher + NgramFingerprint
   3. ClusterStage
   4. RefactorStage
   5. ReportStage

DbOpCanonicalizer runs before the standard variable / literal / name passes so the synthesised __DB_<OP>__ token names survive the aggressive name-canonicalisation pass (they're treated as structural function names, like isset or count).

Risk profile and false positives

--db-aware is intentionally biased toward high recall — a few benign false positives (e.g. an unrelated query() method on a non-DB class folding to __DB_QUERY__) are cheaper than missing real ORM ↔ raw-SQL clones. Two safeguards:

Off by default. Tier-1 AST-only clustering remains the unmodified path; nothing in the existing report stream changes without --db-aware.
Cache invalidated on toggle. Phpdup\Pipeline\Stages\PreprocessStage includes dbAware in its config-key hash, so flipping the flag between runs reprocesses every file rather than reusing stale-canonicalised blocks.

For per-project tuning, the DbOpRegistry constructor accepts customMethodOps and customFunctionOps maps so you can extend or override the stock dispatch table — wire that into a normalisation plugin (see Normalisation plugins) for project-specific rewrites.

Trinity-collapse — `--trinity-collapse`

--db-aware folds individual DB calls. The natural follow-up is trinity-collapse: detecting the canonical CRUD shape

$user = User::find($id);          // (1) read
$user->name = 'Bob';              // (2) mutate
$user->save();                    // (3) save

…and rewriting the three statements as a single __DB_UPSERT__("user") synthetic call so the ORM idiom clusters with the raw equivalent

$pdo->query("UPDATE users SET name = 'Bob' WHERE id = $id");

(which --db-aware separately folds to a __DB_WRITE__ token).

Phpdup\Normalization\TrinityCollapser walks every statement-array in the AST (function/method/closure bodies, if/else branches, loop bodies) and looks for triplets of the shape read → mutate(s) → save where:

The read is any DbOpRegistry::OP_READ call assigned to a variable ($x = User::find($id), $x = $em->find(User::class, $id), $x = $repo->findOneBy([...]), …).
The mutate(s) are property assignments ($x->name = 'Bob', $x->name .= 'X') or setter calls ($x->setName('Bob'), $x->withFoo(...), $x->addThing(...)) on the bound variable. At least one mutation is required — read+save with no change in between is left untouched.
The save terminates the chain: receiver-bound writes ($x->save(), $x->update()), Doctrine flush ($em->flush()), or $em->persist($x) (with $x matching the bound variable as the first argument).

Mutation detection improvements. The collapser recognises additional mutation patterns beyond simple property assignment:

ArrayAccess / array assignment — $x['key'] = value via Node\Expr\ArrayDimFetch on the bound variable.
Direct array append — $x[] = value appends on the bound variable.
Extended ORM mutator prefixes — setter-method prefixes force, update, change, modify are recognised in addition to the base set / with / add / remove / append / replace set, so idioms like $x->forceUpdate(...) or $x->changeName(...) are correctly classified as mutations.

Any unrelated statement between the read and save abandons the trinity — the dataflow walker is intentionally conservative; false misses are preferable to false matches.

--trinity-collapse composes with --db-aware (the typical combination), and runs as a pre-pass before DbOpCanonicalizer so the collapser can pattern-match on the original read/save call shapes.

Behavioural-tag scoring

The Type-4 behavioural scorer (Phpdup\Similarity\BehaviouralSimilarity) gains a fifth band: a DB op-tag multiset Jaccard weighted equally with the existing call-name and return-shape bands.

Phpdup\Semantic\DbOperationTagger walks each block once and produces a coarse tag → count summary:

['db.read' => 2, 'db.write' => 1, 'db.execute' => 1]

Two functions with the same DB-shape — same number of reads, writes, deletes, executes, and queries — score similarly under the tag band regardless of which library or extension delivers each operation. That collapses the library/extension axis (Eloquent vs Doctrine vs PDO vs mysqli vs pg_*) without needing per-pair surface analysis.

The tag band is a no-op for blocks that do not touch the database (empty bag vs empty bag is 1.0 by convention) so non-DB code is unaffected. The behavioural scorer's total weight is now 1 + 2 + 2 + 1 + 2 = 8 (variables + calls + returns + side-effects + DB tags), normalised back to [0, 1].

The tagger reuses the same DbOpRegistry as DbOpCanonicalizer, so the recognised call set is consistent across the canonicalisation and scoring layers, and synthetic __DB_<OP>__ calls produced by --db-aware / --trinity-collapse are also tagged correctly.

Symbol equivalence classes

The stock DbOpRegistry covers the obvious surface area but every codebase has wrappers, helpers, and homegrown façades that do DB work without using a recognised name. Option 4 of the plan exposes a user-extensible symbol equivalence registry: declare in phpdup.json (or in a profile JSON) that app_db_get, MyRepo::lookup, and LegacyDb::raw all mean the same thing as the stock entries — and they fold to the same canonical __DB_<OP>__ tokens.

{
    "db_aware": true,
    "db_symbols": {
        "methods": {
            "lookup":     "db.read",
            "persistMe":  "db.write",
            "wipe":       "db.delete"
        },
        "functions": {
            "app_db_get":   "db.read",
            "app_db_query": "db.query"
        }
    }
}

Allowed canonical ops: db.read, db.write, db.delete, db.execute, db.query. Custom entries override stock ones with the same name; everything else is additive.

Bundled symbol packs. Twenty-eight framework-flavoured packs ship out of the box and can be loaded via --profile:

Profile name	What it adds
`db-aware-laravel`	Eloquent / Laravel methods (`firstWhere`, `pluck`, `chunk`, `increment`, raw* helpers).
`db-aware-doctrine`	Doctrine ORM / DBAL (`createQuery`, `executeStatement`, `fetchAssociative*`, transaction helpers).
`db-aware-cake`	CakePHP ORM (`patchEntity`, `saveOrFail`, `findThreaded`, `loadInto`).
`db-aware-codeigniter`	CodeIgniter 4 DB Query Builder (`get`, `insert`, `update`, `delete`, `countAll`, `escape`).
`db-aware-thinkorm`	ThinkPHP 6.x / think-orm (`find`, `select`, `insert`, `update`, `delete`, `count`, aggregation).
`db-aware-yii`	Yii 2 ActiveRecord / DB (`find`, `findOne`, `findAll`, `save`, `insert`, `update`, `delete`, `createCommand`).
`db-aware-medoo`	Medoo (`select`, `insert`, `update`, `delete`, `create`, `drop`, `query`, `exec`).
`db-aware-propel`	Propel ORM (`doSelect`, `doInsert`, `doUpdate`, `doDelete`, `find`, `save`).
`db-aware-redbean`	RedBeanPHP (`find`, `dispense`, `store`, `trash`, `save`, `load`, `wipe`, `related`).
`db-aware-cycle`	Cycle ORM (`find`, `findAll`, `persist`, `delete`, `select`, `where`, `aggregate`).
`db-aware-phpactiverecord`	PHP ActiveRecord (`find`, `all`, `first`, `last`, `create`, `save`, `update`, `delete`, `destroy`).
`db-aware-myadmin`	MyAdmin custom db_abstraction (`MyDb\Mysqli\Db`, `MyDb\Pdo\Db` — `query`, `qr`, `next_record`, `prepare`, `execute`).
`db-aware-myadmin-orm`	MyAdmin custom ORM (`MyAdmin\Orm\*` extending `Base\Orm` — `find`, `load`, `save`, `update`, `insert`, `delete`, `truncate`).
`db-aware-illuminate`	Illuminate Database standalone (`DB::table()`, `DB::select()`, `DB::insert()`, `DB::update()`, `DB::delete()`, `DB::raw()`).
`db-aware-aura`	Aura.Sql (`fetchAll`, `fetchOne`, `query`, `execute`, `quote`, `begin/commit/rollback`).
`db-aware-atlas`	Atlas.PDO (`fetchAll`, `fetchAssoc`, `fetchSelect`, `begin/commit/rollback`).
`db-aware-easydb`	EasyDB (`query`, `fetchAll`, `fetchOne`, `iterator`, `safeQuery`, `build`).
`db-aware-dibi`	Dibi (`query`, `fetchAll`, `fetch`, `test`, `begin/commit/rollback`).
`db-aware-pixie`	Pixie Query Builder (`table`, `get`, `insert`, `update`, `delete`, `where`, `orderBy`).
`db-aware-redis`	Redis (Predis, Credis, phpredis) — `get`, `set`, `mget`, `mset`, `hget`, `hset`, `del`, `expire`, etc.
`db-aware-mongodb`	MongoDB driver (`find`, `findOne`, `insertOne`, `insertMany`, `updateOne`, `deleteOne`, `aggregate`, `count`, etc.).
`db-aware-elasticsearch`	Elasticsearch PHP client (`search`, `index`, `get`, `mget`, `bulk`, `delete`, `update`, `count`, `scroll`, `msearch`).
`db-aware-neo4j`	Neo4j PHP client (`run`, `match`, `create`, `merge`, `set`, `delete`, `detachDelete`).
`db-aware-influxdb`	InfluxDB client (`query`, `write`, `ping`, `bucket`, `organization`, `flux`).
`db-aware-couchdb`	Doctrine CouchDB ODM (`find`, `findBy`, `persist`, `save`, `remove`, `delete`, `refresh`).
`db-aware-couchbase`	Couchbase SDK (`get`, `upsert`, `insert`, `replace`, `remove`, `lookupIn`, `mutateIn`, `view`, `query`).
`db-aware-idiorm`	Idiorm/Paris (`find`, `findOne`, `where`, `orderBy`, `count`, `create`, `save`, `update`, `delete`).
`db-aware-laminas`	Laminas\Db (formerly Zend\Db) adapter (`select`, `fetchAll`, `fetchOne`, `query`, `insert`, `update`, `delete`).
`db-aware-phalcon`	Phalcon ORM (`find`, `findFirst`, `save`, `create`, `update`, `delete`, `refresh`, `query`, `aggregate`, `sum`, `count`, `average`, `min`, `max`).

Compose them with --db-aware for the canonicalisation pass plus the stock DB call coverage. The user's own db_symbols in phpdup.json win over profile-provided symbols, which in turn win over the stock registry.

IR — intermediate representation lift

Phpdup\Ir\ is the foundational scaffold for option 5 of the plan: a canonical, language-/library-agnostic representation that sits between the PHP AST and the similarity scorer.

Block (PHP AST) → IR (canonical operation graph) → fingerprint / score

The IR replaces PHP-specific syntax (the difference between $x->y and $x['y'], between for and foreach, between if/else and match) with a small set of operation-shaped nodes:

IR node	Lifts from
`DbReadIr`	`Model::find`, `$em->find(...)`, `$pdo->query("SELECT …")`, `pg_*` reads.
`DbWriteIr`	`$x->save`, `$em->flush`, `$pdo->query("UPDATE …")`, `pg_insert/update`.
`DbDeleteIr`	`Model::destroy`, `$em->remove`, `DELETE FROM …`, `TRUNCATE …`.
`DbQueryIr`	Generic `query`/`exec` calls with no clean read/write classification.
`DbExecuteIr`	`prepare`/`execute`-style two-phase calls.
`AssignIr`	Local assignments — LHS shape collapsed to `var`/`prop`/`index`/…
`BranchIr`	`if`/`else`, `match`, `switch` (unfolded into nested branches), ternaries.
`LoopIr`	`for`, `foreach`, `while`, `do-while` — keyword distinction erased.
`CallIr`	Any unrecognised method/function/static call.
`ReturnIr`	`return [expr];` and bare `return;`.
`VarIr`	Variable references (name collapsed to `__V`).
`LiteralIr`	Scalar literals (only the type — `str`/`int`/`float`/`bool`/`null` — survives).
`BlockIr`	Statement sequences (function/method bodies, branch arms, loop bodies).

Phpdup\Ir\IrLifter walks a PhpParser AST and produces an IR tree. Lifting is partial by design: unrecognised input shapes (e.g. eval, goto, complex variable-variables) fall through to a generic CallIr carrying the node class name; if the lift fails outright the lifter returns null and callers fall back to AST-level scoring (per the plan's risk-mitigation note).

Phpdup\Ir\IrPrinter produces a deterministic token stream and a human-readable pretty-print. Phpdup\Ir\IrSimilarity scores two IR trees: 1.0 for identical printed-token streams (a SHA-1-hash fast path is exposed via IrSimilarity::hash()), then a multiset-Jaccard fallback for partial overlap.

The IR scorer is wired into the Clusterer as a fifth tier behind --scorer=ir. When AST Jaccard / TED / containment all reject a pair, the clusterer falls back to multiset Jaccard over the pre-computed IR token bags (Block::$irBag, populated by PreprocessWorker when scorer=ir); pairs at or above --ir-threshold (default 0.85) form edges weighted by the IR similarity. Lift failure on either block leaves irBag null and the IR tier silently skips that pair, preserving the plan's risk-mitigation note ("fall back to AST scoring on lift failure").

ML-learned pair similarity (sidecar)

phpdup ships a sidecar contract for option 6 of the plan: an external ML pair-scoring service trained on a labelled corpus that includes ORM ↔ raw-SQL examples. The PHP side stays light:

Phpdup\Ml\PairFeatures extracts an 11-field feature vector from a (blockA, blockB) pair using the existing dataflow summary, DB op tags, and IR token-stream — no ML libraries required.
Phpdup\Ml\MlPairClient is the HTTP companion to the existing MlClient (cluster-safety scoring). It POSTs the feature vector to /score-pair on a configured sidecar and consumes a single {similarity, confidence} response.
MlPairClient::score() returns null on transport error, malformed response, or unsafe URL — callers fall back to AST-level scoring without code-path branching, mirroring the IR lifter's fail-graceful pattern.

The wire contract is documented in docs/ML.md; the labelled-corpus format the sidecar expects is documented in docs/ml-corpus-format.md. A feature_version field is embedded in every payload so the sidecar can warn when the model was trained against a different feature shape (the PairFeatures::FEATURE_VERSION constant bumps any time the schema changes).

The model itself, the training pipeline, and the labelled corpus all live in a sister repository — phpdup ships only the contract and the feature extractor.

Once a sidecar is running, point phpdup at it via --ml-pair-url (or ml_pair_url in phpdup.json):

bin/phpdup analyze src --ml-pair-url=https://ml.example.com/api \
                       --ml-pair-threshold=0.85

Phpdup\Clustering\Clusterer and Phpdup\Parallel\PairScoreWorker both consult the configured Phpdup\Ml\PairScorer as the last clustering tier — after structural-hash, AST Jaccard + TED, containment, and IR have all rejected a pair. The client returns null on transport failure (model unavailable, SSRF-rejected URL, malformed response) so the rest of the pipeline keeps running with reduced precision rather than failing the run, mirroring the IR lifter's fail-graceful contract.

TUI mode

--tui opens a SugarCraft dashboard that drives the analysis pipeline from inside the runtime — counts and timings tick up as work progresses instead of appearing post-hoc.

What you get:

Four-pane FlexBox dashboard with live counts for Scanning / Preprocessing / Clustering / Refactoring.
SugarCraft spinner in the running pane (one of 12 animation styles) plus a real elapsed-time stopwatch.
Sparkline of stage durations as each stage completes.
OSC 9;4 taskbar progress — ConEmu, WezTerm, and Windows Terminal pin a progress indicator on the OS taskbar.
Six themes: ansi (default), plain, charm, dracula, nord, catppuccin — pick via --theme=NAME.
Keyboard: q / Ctrl+C quit, Ctrl+Z suspend, ↑/↓ cycle pane focus, Enter open detail, ←/→ cycle clusters in detail view, t toggle sort (impact / similarity / name), h toggle help, Esc dismiss detail.
--plain forces plain CLI output even when --tui would otherwise fire (handy for CI and pipes).

The pipeline runs inside the runtime via a cooperative Pipeline::iter() generator. Each next() advances to the next yield point — pre-stage, post-stage, every 16 files in ScanningStage, every 32 records streamed back from the parallel preprocess pool. Between yields the runtime renders, so the sparkline, file counts, parse-error totals, and taskbar progress build up frame-by-frame.

Watch mode

--watch keeps phpdup running and re-analyzes on every file change.

A React\EventLoop periodic timer (default 1.5 s) polls filemtime() for every scanned file, with clearstatcache() before each read to defeat PHP's stat cache. When any mtime changes, phpdup re-runs the full pipeline and reports change detected (N files) — reload #X.

Polling instead of inotify / FSEvents keeps the watcher dependency-free and portable to macOS / Linux without an extension — at the cost of a small (≤ 1.5 s) reload latency.

Ctrl+C (or SIGTERM) triggers a clean teardown via Loop::addSignal. --watch --tui is supported — the watcher's periodic timer registers on the same React\EventLoop instance the SugarCraft Program runs on, so the dashboard stays interactive while polling. On change, the watcher dispatches a RestartPipelineMsg to the program; the model resets state, rebuilds the cooperative generator via its factory, and the live counts in the panes drop to zero before climbing back up.

SIGINT soft-cancel

Pressing Ctrl+C mid-analysis (outside --watch) doesn't drop the work in progress. Phpdup\Cli\SignalHandler registers an async SIGINT handler that flips PipelineState::$cancelled; the cooperative pipeline checks this between stages and short-circuits straight to the Reporting stage. The user gets a partial report covering whatever clusters had already formed, plus a non-zero exit code (130, the canonical SIGINT code) so CI workflows can distinguish "user cancelled" from "clean run".

A second Ctrl+C restores the default SIGINT handler so a truly stuck process can still be killed with the third-time-is-default escape hatch.

`phpdup serve` REST API

phpdup serve boots a minimal HTTP service on top of the analysis pipeline. Useful for in-house dashboards, CI integrations, and a hosted-backend playground front-end.

phpdup serve --host 127.0.0.1 --port 8080

Routes:

Method	Path	Body	Returns
GET	`/healthz`	—	`text/plain "ok"`
POST	`/analyze`	JSON: `{"paths":["src","lib"]}`	full JSON report
POST	`/jobs`	JSON: same as `/analyze`	`202 {"job_id":"…"}`
GET	`/jobs/{id}`	—	job status + result

Implementation is intentionally dependency-light: stream_socket_server plus a hand-rolled HTTP/1.1 parser. No ReactPHP / Amp dep — for high-traffic deployments, swap in Roadrunner / FrankenPHP / FPM behind nginx and reuse Phpdup\Server\Application directly.

Security defaults:

Default bind is 127.0.0.1 — exposing it externally requires a reverse proxy.
Content-Length is capped at 16 MB.
JSON parsing uses JSON_THROW_ON_ERROR and returns 400 on malformed bodies.
The Application class is fully transport-agnostic and unit-tested without networking.

See docs/SERVER.md for the full contract, deployment notes, and the playground architecture.

Output formats

bin/phpdup analyze src \
    --json           phpdup.json \
    --html           phpdup-report \
    --sarif          phpdup.sarif \
    --gitlab-sast    phpdup.gitlab.json \
    --diff           ./phpdup-diffs \
    --patch          phpdup.patch \
    --checkstyle     phpdup.xml \
    --csv            phpdup.csv \
    --prometheus     phpdup.prom \
    --timeseries     phpdup-history.jsonl \
    --graphviz       phpdup.dot \
    --plantuml       phpdup.puml \
    --refactor-patch ./phpdup-refactors \
    --refactor-tests ./phpdup-refactor-tests

phpdup ships twelve output formats; the additions over the classic five are:

CSV (--csv=FILE) — flat one-row-per-cluster-member; ideal for spreadsheets / BI ingest. Multi-line signatures are collapsed to one line so consumers don't have to handle embedded newlines.
Prometheus text-format (--prometheus=FILE) — # HELP / # TYPE annotated gauges suitable for pushgateway scraping or CI dashboards. Per-pattern-tag counters included.
Time-series JSONL (--timeseries=FILE) — one append-only line per run, commit-tagged via GIT_COMMIT / GITHUB_SHA / CI_COMMIT_SHA / BUILD_VCS_NUMBER (with .git/HEAD fallback) so duplicate-debt curves over time are trivial to track.
Graphviz DOT (--graphviz=FILE) — file→cluster bipartite graph; render with dot -Tpng phpdup.dot -o phpdup.png.
PlantUML (--plantuml=FILE) — class-diagram-style with each cluster as a package and pattern-tag stereotypes.
Refactor patches (--refactor-patch=DIR) — heuristic, manual- review-required .patch files. Each adds a Refactored/<id>.php skeleton with the suggested abstraction signature plus per-member edit hints. Bails to a manual-review header when $this/self::/yield/closure capture would make mechanical replacement unsafe.
PHPUnit test skeletons (--refactor-tests=DIR) — one markTestIncomplete() test class per cluster with a casesProvider() populated from observed hole values.

CLI

SugarCraft-styled colorized terminal output. Honors --no-ansi / non-TTY: switches to Theme::plain() and skips the styled box / chips, producing clean ASCII.

JSON (`--json=FILE`)

{
  "phpdup_version": "0.1.0",
  "summary": { "files": 1888, "blocks": 12340, "clusters": 87 },
  "clusters": [
    {
      "id": "Xaeb0e34a",
      "kind": "method",
      "exact": true,
      "similarity": 1.0,
      "confidence": 1.0,
      "impact": 74,
      "pattern_tags": ["config-driven", "crud-handler", "sql-builder"],
      "signature": "function findById(string $value): mixed",
      "members": [ ... ],
      "holes": [
        {
          "placeholder": "__P0",
          "kind": "literal",
          "inferred_type": "string",
          "suggested_name": "$value",
          "observed": [
            "'SELECT * FROM users WHERE id = ?'",
            "'SELECT * FROM products WHERE id = ?'"
          ]
        },
        {
          "placeholder": "__O0",
          "kind": "optional_block",
          "inferred_type": "bool",
          "suggested_name": "$includeAudit",
          "observed": ["audit($id);", "<absent>"],
          "present_in_members": [0]
        }
      ]
    }
  ]
}

holes[].present_in_members is unique to optional_block holes — it lists the cluster-member indices that did include the segment.

HTML (`--html=DIR`)

A static-site report with:

Index page sorted by impact, with an interactive mini-map of cluster-impact distribution (green bars exact, blue bars near-duplicate; click to jump).
Client-side column sort (click any header) and a search filter input.
Copy-suggested-signature button per cluster (Clipboard API + an execCommand fallback for non-secure contexts).
Per-cluster page with member sources side-by-side, inline syntax highlighting (no external dep, no build step), holes table, unified diff between the first two members.
Optional rows tinted amber, with a "type-3" badge and italicized <absent> sentinel.

JS lives in app.js next to style.css — both inlined into the build, no external deps, no build step.

SARIF (`--sarif=FILE`)

SARIF 2.1.0 output for GitHub Code Scanning and GitLab Code Quality. Each duplicate block becomes a result with rule phpdup/duplicate-logic, level warning for exact / note for near-duplicate, the cluster's suggested signature in properties.suggestedSignature, and shared partialFingerprints.clusterId so SARIF consumers can group sibling results into a single cluster annotation. Type-3 clusters add properties.optionalSegmentCount and properties.hasOptionalSegments.

In a GitHub Actions workflow:

- run: vendor/bin/phpdup analyze src --sarif=phpdup.sarif --min-impact=50
- uses: github/codeql-action/upload-sarif@v3
  if: always()
  with:
    sarif_file: phpdup.sarif

GitLab SAST (`--gitlab-sast=FILE`)

GitLab SAST report v15.x. Severity is impact-bucketed (>100 High, >=50 Medium, >=20 Low, otherwise Info). Confidence is High for exact clones, otherwise derived from the cluster confidence score. Wire it into .gitlab-ci.yml as a report.sast artifact so the MR security widget surfaces duplicates.

Diff and patch (`--diff=DIR`, `--patch=FILE`)

--diff=DIR writes one .diff file per cluster — pairwise unified diffs from member[0] to each subsequent member, with a header comment showing the suggested abstraction and anchor location. --patch=FILE concatenates every cluster's diff into one cumulative patch file.

Checkstyle XML (`--checkstyle=FILE`)

Consumable by Jenkins Warnings NG, Bitbucket Reports, Sonar, Detekt — anything that parses Checkstyle. Each duplicate is an <error> with source="phpdup.duplicate-logic", severity warning for exact / info for near-duplicate, and a descriptive message linking back to the cluster id.

Configuration

Drop a phpdup.json next to your code, or pass --config:

{
  "paths":   ["src", "app", "lib"],
  "exclude": ["vendor/**", "node_modules/**", "**/*.tpl.php", "tests/**"],
  "min_block_size":       8,
  "max_block_size":       800,
  "normalization_mode":   "aggressive",
  "similarity_threshold": 0.80,
  "tree_threshold":       0.85,
  "min_cluster_impact":   20,
  "max_df":               0.01,
  "ngram_size":           5,
  "cache_dir":            ".phpdup-cache",
  "workers":              0,
  "incremental":          true,
  "lazy_ast":             true,
  "kinds":                ["method", "closure"],
  "optional_blocks": {
    "enabled":             true,
    "containment":         0.85,
    "min_overlap":         0.6,
    "max_per_cluster":     3,
    "min_segment_length":  1
  },
  "report": {
    "html": "phpdup-report",
    "json": "phpdup.json"
  }
}

The full schema lives at docs/config-schema.json and is validated by ConfigLoader::validate() whenever a config file is loaded.

CLI flags override config values. Run bin/phpdup analyze --help for the full list, or see CLI reference below for per-flag details and effect snippets.

bin/phpdup analyze --config phpdup.json --validate-config runs validation in isolation and exits with 0 (OK) or 2 (with the field-path error message), so CI can gate on config drift before any analysis runs.

CLI reference

Usage: phpdup analyze <paths...> [options]

Tuning

`--min-block-size N` (default: `8`)

Minimum AST node count for a block to be considered. Lower picks up small fragments (often noisy); higher quiets the report by ignoring short blocks.

bin/phpdup analyze src --min-block-size=4   # very chatty — short snippets clustered
bin/phpdup analyze src --min-block-size=20  # only meaningful methods

`--mode strict|default|aggressive` (default: `aggressive`)

Normalization mode. See Normalization modes.

bin/phpdup analyze src --mode=strict       # variable rename only — fewer false positives
bin/phpdup analyze src --mode=aggressive   # also collapse names + literals — more findings

`--similarity N` (default: `0.80`)

Jaccard similarity threshold for the near-duplicate phase. Below this, the type-3 fallback may still apply.

bin/phpdup analyze src --similarity=0.95   # strict — very obvious clones only
bin/phpdup analyze src --similarity=0.65   # loose — many type-2 clones surfaced

`--max-df N` (default: `0.01`)

Maximum document-frequency for an n-gram to be used as a candidate-pair seed. Tuned for large codebases; bump for tiny fixtures where every n-gram is "common" by ratio.

bin/phpdup analyze tests/Fixtures --max-df=0.5    # tiny corpus needs higher cutoff
bin/phpdup analyze big-codebase --max-df=0.001    # very strict on a 50k-block corpus

`--min-impact N` (default: `20`)

Minimum cluster impact (≈ duplicated-line count) to include in output. Quiets the report; doesn't change clustering.

bin/phpdup analyze src --min-impact=50    # only show big wins
bin/phpdup analyze src --min-impact=1     # show everything that clustered

`--exact-only`

Skip the near-duplicate phase entirely. ~6× faster on large corpora; emits only Type-1 (canonical-hash-equal) clusters.

bin/phpdup analyze src --exact-only --min-impact=50

`--kinds K1,K2,...`

bin/phpdup analyze src --kinds=method                # methods only
bin/phpdup analyze src --kinds=method,closure        # methods + closures
bin/phpdup analyze src --kinds=if,foreach,switch     # control structures only

`--max-memory MB`

Soft memory ceiling. When peak RSS exceeds this mid-pipeline, phpdup logs phpdup: peak RSS X MB exceeded --max-memory=Y and suggests --exact-only. 0 (default) disables.

bin/phpdup analyze huge-monorepo --max-memory=1024   # warn if RSS > 1 GB

`--optional-blocks on|off` (default: `on`)

Type-3 / "optional-segment" detection master switch. See Type-3 / optional-segment detection.

bin/phpdup analyze src --optional-blocks=off    # legacy Jaccard-only behaviour

`--optional-blocks-containment N` (default: `0.85`)

Containment-fallback threshold for the type-3 path.

bin/phpdup analyze src --optional-blocks-containment=0.95   # very strict
bin/phpdup analyze src --optional-blocks-containment=0.7    # permissive

Output

`--html DIR`

Write the interactive HTML report into DIR.

bin/phpdup analyze src --html=phpdup-report
# open phpdup-report/index.html in a browser

`--json FILE`

Structured JSON dump.

bin/phpdup analyze src --json=phpdup.json
jq '.clusters | length' phpdup.json

`--sarif FILE`

SARIF 2.1.0 output for GitHub PR annotations.

bin/phpdup analyze src --sarif=phpdup.sarif
gh codeql-action upload-sarif phpdup.sarif       # in CI

`--gitlab-sast FILE`

GitLab SAST report v15.x for the MR security widget.

bin/phpdup analyze src --gitlab-sast=gl-sast-report.json

`--diff DIR`

One .diff file per cluster (pairwise unified diffs from member[0]).

bin/phpdup analyze src --diff=./phpdup-diffs
ls phpdup-diffs/*.diff | wc -l

`--patch FILE`

Single cumulative patch file containing every cluster diff.

bin/phpdup analyze src --patch=phpdup.patch

`--checkstyle FILE`

Checkstyle XML for Jenkins / Sonar / Bitbucket consumers.

bin/phpdup analyze src --checkstyle=phpdup.xml

`--limit N` (default: `50`)

Maximum number of clusters to print to the terminal. Doesn't affect file outputs.

bin/phpdup analyze src --limit=10        # top 10 in the CLI
bin/phpdup analyze src --limit=1000      # show everything

`--sort KEY[:asc|desc]` (default: `impact:desc`)

Order clusters by a chosen attribute and direction. Affects every output format (CLI, JSON, HTML, SARIF, GitLab SAST, Diff, Checkstyle) because it runs inside the Ranker after impact + confidence are computed.

Key	Sorts clusters by …
`impact`	Estimated lines saved if the abstraction is applied (the default).
`members`	Number of duplicate blocks in the cluster (alias: `size`, `count`).
`block-size`	Average AST node count per member (proxy for "how big each duplicate is").
`lines`	Total duplicated lines across all members.
`similarity`	Edge weight (1.0 for exact, lower for type-2/3 near-dupes).
`confidence`	The Ranker's `[0..1]` "how safe is this refactor" score.
`name`	First member's qualified name (`Namespace\Class::method`), alphabetical.
`file`	First member's file path, alphabetical.
`id`	Cluster id, alphabetical (mainly useful for stable diffs across runs).

Direction defaults to desc. Use :asc / :desc, or the shortcut prefixes - (desc) and + (asc):

bin/phpdup analyze src --sort=members:desc       # most-duplicated clusters first
bin/phpdup analyze src --sort=block-size:desc    # biggest blocks first
bin/phpdup analyze src --sort=lines              # most duplicated lines (desc default)
bin/phpdup analyze src --sort=similarity:asc     # weakest matches first — review marginal type-3
bin/phpdup analyze src --sort=confidence:desc    # safest refactors first
bin/phpdup analyze src --sort=name:asc           # alphabetical
bin/phpdup analyze src --sort=-impact            # leading - = desc shortcut
bin/phpdup analyze src --sort=+lines             # leading + = asc shortcut

Ties are broken consistently (members DESC ▸ similarity DESC ▸ id ASC) so the same input always produces the same final ordering regardless of the user's primary direction.

In the TUI, the t key cycles through the same sort keys live (impact → members → block-size → lines → similarity → confidence → name → wrap), and shift-T toggles asc/desc. The current sort is shown in the Tip line.

`--stats`

Print pipeline stage timings, block-kind histogram, and worker info after the report.

bin/phpdup analyze src --stats

Runtime

`-c, --config FILE`

Load settings from a phpdup.json file. CLI flags override file values.

bin/phpdup analyze --config=phpdup.json src

`-j, --workers N` (default: `0` = auto)

Worker count for parallel preprocess + pair scoring. 0 autodetects from nproc / /proc/cpuinfo. 1 forces serial.

bin/phpdup analyze src --workers=8       # explicit
bin/phpdup analyze src -j 1              # serial — debugging

`--no-cache`

Don't read or write the AST cache for this run.

bin/phpdup analyze src --no-cache    # benchmarking, or after upgrading php-parser

`--no-incremental`

Disable per-file index reuse. Forces re-fingerprinting every file even when the IndexStore has a hit.

bin/phpdup analyze src --no-incremental    # benchmarking, or paranoid about cache

`--no-lazy-ast`

Keep all original ASTs in memory throughout the run. Higher RSS, slightly faster anti-unification.

bin/phpdup analyze src --no-lazy-ast    # have RAM, want speed

`--stage NAME`

Halt the pipeline after STAGE (one of scanning, preprocessing, clustering, refactoring, reporting). Useful for debugging incremental cache hits or profiling individual stages.

bin/phpdup analyze src --stage=preprocessing --stats   # measure how long parsing takes
bin/phpdup analyze src --stage=clustering              # see clusters before refactor synthesis

TUI / watch

`--tui`

Show the interactive SugarCraft dashboard while analysis runs. Requires a real TTY.

bin/phpdup analyze src --tui

`--theme NAME` (default: `ansi`)

bin/phpdup analyze src --tui --theme=dracula
bin/phpdup analyze src --tui --theme=catppuccin

`--plain`

Force plain CLI output (no TUI, no ANSI colours). Useful when a CI shell reports isatty()=true but you want non-coloured output.

bin/phpdup analyze src --plain

`--watch`

Stay running and re-analyze on file changes via a poll-based React\EventLoop timer. Combines with --tui for a live dashboard.

bin/phpdup analyze src --watch              # plain mode, prints reload messages
bin/phpdup analyze src --watch --tui        # interactive dashboard, resets on change

Validation

`--validate-config`

Validate the --config file against the documented schema and exit without running analysis. Exit 0 = OK, 2 = error (with field path).

bin/phpdup analyze --config=phpdup.json --validate-config && echo OK

Shell completion

phpdup ships its own completion sub-command. The output is the standard Symfony Console completion script for the chosen shell, with commented-out installation instructions prepended so you can cat the dump and follow the steps inline:

bin/phpdup completion bash    # → bash script + comments showing 3 install paths
bin/phpdup completion fish    # → fish script + comments
bin/phpdup completion zsh     # → zsh script + comments (#compdef stays first)

The most common one-liner per shell:

# bash — per-user completion under XDG home
mkdir -p ~/.local/share/bash-completion/completions
phpdup completion bash > ~/.local/share/bash-completion/completions/phpdup

# fish — auto-loaded on next shell start
mkdir -p ~/.config/fish/completions
phpdup completion fish > ~/.config/fish/completions/phpdup.fish

# zsh — pick a directory on $fpath BEFORE compinit
mkdir -p ~/.zsh/completions
phpdup completion zsh > ~/.zsh/completions/_phpdup
# then in ~/.zshrc, before 'compinit':  fpath=(~/.zsh/completions $fpath)

When shell is omitted, $SHELL is consulted. Unknown shells exit 2.

Exit codes

Code	Meaning
`0`	Analysis ran. Note: phpdup does NOT exit non-zero
	when clusters are found. Use the JSON report to gate
	CI; an empty `clusters` array means clean.
`1`	Internal error.
`2`	Missing required argument or invalid configuration.

Environment variables

Variable	Effect
`PHPDUP_WORKERS`	Override worker count (lower precedence than `-j`).
`COLUMNS`	Override terminal width detection for the CLI report.

Programmatic use

The pipeline is fully composable from PHP. The simplest entrypoint is Pipeline itself; everything else is plugged into it via stage constructors:

use Phpdup\Cli\Config;
use Phpdup\Pipeline\Pipeline;
use Phpdup\Pipeline\PipelineState;
use Phpdup\Pipeline\Stages\ScanningStage;
use Phpdup\Pipeline\Stages\PreprocessStage;
use Phpdup\Pipeline\Stages\ClusterStage;
use Phpdup\Pipeline\Stages\RefactorStage;
use Phpdup\Pipeline\Stages\ReportStage;
use Symfony\Component\Console\Output\NullOutput;

$config = new Config(
    paths: ['src'],
    exclude: ['vendor/**'],
    optionalBlocksEnabled: true,
);
$state = new PipelineState($config);

(new Pipeline([
    new ScanningStage(),
    new PreprocessStage(useCache: true),
    new ClusterStage(exactOnly: false),
    new RefactorStage(useCache: true),
    new ReportStage(limit: 50, showStats: false),
]))->run($state, new NullOutput());

foreach ($state->clusters as $c) {
    echo "{$c->size()} members, signature: {$c->signature}\n";
}

For finer-grained control — e.g. to run preprocessing without clustering, or to drive the pipeline cooperatively from your own event loop — use Pipeline::iter() and pump the generator yourself. That's exactly how the TUI works.

Examples

Threshold-gated notification (type-2)

Input:

public function notifyHigh($user, int $score): void {
    if ($score > 10) { $this->mailer->send('admin', $user); }
}
public function notifyMid($user, int $score): void {
    if ($score > 20) { $this->mailer->send('moderator', $user); }
}

Output:

function notifyByThresholdAndStrategy(
    int $threshold,
    string $value,
): mixed

Holes:

Param	Type	Observed
`$threshold`	int	`10, 20`
`$value`	string	`'admin', 'moderator'`

Patterns: config-driven.

Repository CRUD (type-1 / type-2)

Three classes with findById($db, $id) differing only in table name.

function findById(string $value): mixed

Param	Type	Observed
`$value`	string	`'SELECT * FROM users WHERE id = ?'`,
		`'SELECT * FROM products WHERE id = ?'`,
		`'SELECT * FROM orders WHERE id = ?'`

Patterns: config-driven, crud-handler, sql-builder.

Optional segments (type-3)

The user-asked-for case — see Type-3 / optional-segment detection for the algorithm. Two if bodies share the same first three statements; the longer one has two extra calls at the tail.

function extractedFunction(
    bool $includeSomeOtherLogic = false,
    bool $includeAndMore = false,
): mixed

Param	Type	Kind	Observed
`$includeSomeOtherLogic`	bool	`optional_block`	`some_other_logic($here);`, `<absent>`
`$includeAndMore`	bool	`optional_block`	`and_more($f);`, `<absent>`

Patterns: optional-segments.

Strategy dispatch

A chain of if (...) calls each invoking a different validator, all with the same shape. Cluster tagged strategy, single hole on the call name, with the list of method names as observed values — a clear hint to extract an interface and an array of strategies.

Static analysis & config validation

CI runs three layers of static checks on every push and PR:

- run: find src tests -name '*.php' -print0 | xargs -0 -n1 -P4 php -l > /dev/null
- run: vendor/bin/phpstan analyse --memory-limit=1G --no-progress
- run: vendor/bin/psalm --no-progress --no-cache

PHPStan level 6 is clean (no baseline). Configuration in phpstan.neon.
Psalm runs at error level 6 with a tracked baseline (psalm-baseline.xml) for legacy InvalidArrayOffset / MissingParamType findings in the APTED implementation.
Config schema validation — ConfigLoader::validate() mirrors docs/config-schema.json and throws a RuntimeException whose message names the offending field on the first violation. --validate-config runs validation in isolation for CI gating.

Benchmarks

phpdup ships a real comparative benchmark harness — not synthetic microbenchmarks. The suite runs phpdup alongside the other PHP duplicate-detection tools that anyone might reach for, on a curated mix of public OSS corpora, and reports wall time, peak RSS, cluster counts, plus precision / recall / F1 against ground truth. It's designed to be honest — phpdup is not the best tool in every cell, and the matrix below says so out loud.

Comparative benchmark suite

bench/run-all.sh

That's the whole flow:

Auto-download phpcpd.phar (phar-only; ~3 MB).
npm install jscpd@4 into bench/tools/ (skipped if no node).
Shallow-clone OSS corpora (Symfony Console, Laravel HTTP, PHPUnit, WordPress core).
Generate the synthetic-fuzz corpus deterministically.
Run every available tool against every corpus with a per-tool wall-time cap.
Score each tool's output against the synthetic corpus's .ground-truth.json.

Outputs:

bench/results/latest.md — per (tool, corpus) wall time / RSS / cluster count.
bench/results/detection-rate.md — per-tool precision / recall / F1 on the synthetic corpus (the only fair-fight scenario, since we know the right answer).

Tools probed (auto-skipped when missing — — in the table):

Tool	Source	Auto-installed
phpdup	`bin/phpdup` (this repo)	always
phpcpd	`bench/tools/phpcpd.phar`	yes
pmd-cpd	system `pmd cpd`	no — install separately
jscpd	`bench/tools/node_modules/.bin/jscpd`	yes (npm)
simian	system `simian`	no — commercial

See bench/README.md for adding new tools or corpora, and bench/feature-matrix.md for the capability comparison.

Feature matrix

A hand-curated 40+ row capability comparison vs phpcpd, pmd-cpd, jscpd, and simian — full table in bench/feature-matrix.md. The summary:

Where phpdup wins:

Suggested-refactor output. No other tool produces a parameterised function signature, hole inventory, and unified-diff patches. If your goal is "I want to refactor the duplicates", phpdup is the only practical choice.
Type-3 detection. --optional-blocks finds clones that differ in optional segments — phpcpd / pmd-cpd / jscpd require contiguous identical token runs and miss this entirely.
Reporter coverage. phpdup ships 12 output formats including SARIF, GitLab SAST, Prometheus, Graphviz, and time-series JSONL. None of the others ship more than three.
Pattern-tag classification. Tagging clusters as sql-builder, crud-handler, controller-action, etc. is unique and lets you filter / route findings by type.
Live workflow. --watch + TUI is for the inner-loop developer who wants feedback as they refactor; nothing else covers this.
Honesty. phpdup ships a synthetic-fuzz ground-truth scorer (bench/score.php) and publishes precision/recall — the others publish neither.

Where phpdup loses:

Pure speed for exact clones. phpcpd's tokenizer is dead simple and beats phpdup's AST + APTED pipeline on raw wall time when all you want is "is anything copy-pasted verbatim?". Use phpdup --exact-only to close most of that gap.
Cold-start RSS for tiny inputs. phpcpd peaks ~50 MB; phpdup peaks ~60–80 MB because it loads php-parser, Symfony Console, and the whole pipeline scaffolding.
Mature IDE integration. PMD has a JetBrains plugin going back over a decade; phpdup has none yet (the contract for a future IntelliJ plugin lives at docs/JETBRAINS_PLUGIN.md). If your team already lives inside PhpStorm's PMD inspections, that's a real lock-in.
Multi-language support. jscpd handles PHP, JS/TS, Python, Java, Ruby, Go, Rust, etc. from a single binary. phpdup is PHP-only by design.
Maintenance perception. phpcpd is archived but it's the historical default — many CI pipelines still run it.

Quick chooser:

If you need…	Reach for…
Refactor-actionable output, type-3 detection, pattern tags, any of the unique reporters	phpdup
A fast exact-clone gate in CI, no other features	phpcpd
JetBrains IDE inspection / polyglot Java + PHP project	pmd-cpd
Multi-language: PHP + JS + Python + … from one binary	jscpd
Commercial line-based diff finder	simian

Internal scaling benchmark

phpdup's own parallel scaling on a real PHP corpus (include/Api/: 530 files, 3,295 comparable blocks, 96 clusters):

Configuration	Wall time	vs serial
serial (`--workers 1`), cold cache	61.13 s	1.00×
4 workers, cold cache	30.39 s	2.01×
8 workers, cold cache	21.11 s	2.90×
16 workers, cold cache	17.47 s	3.50×
8 workers, `--exact-only`	5.74 s	10.65×

Cluster output is byte-identical across configurations — the speedups don't come from skipping work. APTED does correct Zhang-Shasha work (slower per pair than a bounded heuristic would be); the user-visible win comes from parallelism stacking on top.

Reproduce on your own corpus:

rm -rf .phpdup-cache
/usr/bin/time -f "%e s wall, %M KB rss" \
  bin/phpdup analyze /path/to/your/code \
    --min-impact 100 --stats --workers 8 --no-cache

Wall-time stage breakdown (8 workers, cold cache)

Stage	Time	Share	Implementation
Preprocess	1.4 s	7%	Parse + extract + normalize + fingerprint, parallel
Cluster	14.3 s	68%	APTED + parallel candidate-pair scoring
Refactor	4.2 s	20%	Anti-unify + synthesize + pattern-tag (parallel via `RefactorWorker`)
Reporting/IO	1.2 s	5%
Total	21.1 s	100%	Peak RSS 464 MB

Clustering still dominates, with the parallel TED workload itself being the largest single chunk.

Honest reporting on what doesn't pay off

APTED alone is a serial regression. Correct, but slower than the older bounded top-down: 61 s vs 35 s on this corpus, single thread. The win has to come from parallelism stacking on top.
Diminishing returns past 8 workers. 16 → 8 saves 4 s; the serial sections impose an Amdahl's-law ceiling at ~2× on this corpus.
Lazy AST is currently no faster than full-memory mode at this scale — the ~2 s reload overhead roughly cancels the small RSS saving. The default (lazy_ast: true) is conservative; if you have a large host, set it to false in phpdup.json for a speed bump.
Incremental warm-cache savings are modest when the cluster phase dominates total wall time. Incremental shines when the corpus grows by a few files per run.
Persistent cluster cache wins big on no-change re-runs — it skips Cluster + Refactor entirely. But invalidates wholesale on any block change, so it's "warm" only when no source moved.

Tuning knobs that move the needle

--workers N — parallelism level (0 = auto-detect).
--exact-only — skip near-duplicate detection. 5.74 s wall on the corpus above (8 workers) — the fastest "is this clean?" gate.
--similarity (default 0.80) — raising prunes more pairs before TED.
--min-block-size (default 8) — fewer blocks, fewer pairs.
--max-df (default 0.01) — stricter rare-gram cutoff.
--auto-tune — picks the size-appropriate combination of the above based on your corpus shape; explicit flags still win.
--ted-weights=semantic — weights method calls heavier than literals; slower per pair, but better at clustering behavioural near-duplicates.
--no-incremental — disable per-file index snapshots.
--no-lazy-ast — keep all original ASTs in RAM.

For exploratory analysis on any codebase:

bin/phpdup analyze src --auto-tune --workers $(nproc)

CI gate (exact clones only, fastest):

bin/phpdup analyze src --exact-only --min-impact 30 --workers 8

Massive monorepo (low memory budget):

bin/phpdup analyze src \
  --workers $(nproc) \
  --min-block-size 20 \
  --similarity 0.88
# lazy_ast and incremental are on by default.

Architecture

See ARCHITECTURE.md for the full design document including data structures, algorithm details, and the staged implementation plan.

The project is organized as:

src/
  Cli/            CLI entry point, ConfigLoader (with schema validation), Command
  Pipeline/       Stage enum, PipelineState, ProgressListener,
                  CooperativeStageInterface, Pipeline orchestrator,
                  five Stage classes (Scanning/Preprocess/Cluster/Refactor/Report).
  Scanning/       File walking and glob filtering
  Parsing/        nikic/php-parser wrapper + AST cache
  Extraction/     Block selection (with --kinds filter) + lazy AST loader
  Normalization/  Three-pass canonicalization
  Fingerprint/    Structural hash + n-gram bag
  Index/          In-memory + inverted index
  Persistence/    IndexStore (per-file block snapshots)
  Similarity/     Jaccard, ContainmentSimilarity (type-3), APTED tree-edit-distance
  Clustering/     Hash-bucket + union-find with type-3 containment fallback
  Parallel/       WorkerPool (run + runStreaming) + Preprocess/PairScore workers
  Refactor/       Anti-unification with statement-array LCS,
                  parameter/signature synth (incl. optional_block bools),
                  pattern recognition.
  Reporting/      CLI / JSON / HTML / SARIF / GitLab SAST / Diff / Checkstyle
                  reporters + ranker
  Tui/            PhpdupModel (SugarCraft Model + ProgressListener), ViewState,
                  Msg types (StagePumpedMsg, RestartPipelineMsg),
                  TuiRunner (theme resolution + Program boot, with
                  shared-loop support for --watch + --tui)
  Watch/          WatchRunner (poll-based React\EventLoop watcher)
  Util/           AST serializer, hash helpers, line range

Modules have small, documented surfaces. New normalization rules, similarity metrics, or pattern recognizers plug in without touching the rest of the pipeline.

Testing

composer test                  # full suite
vendor/bin/phpunit --testsuite Unit
vendor/bin/phpunit --testsuite Integration
composer coverage:html         # writes tests/phpunit/coverage-html/

The test suite (165+ tests, 469+ assertions) covers:

Scanner glob semantics
Normalizer canonicalization across all three modes
N-gram fingerprint determinism + Jaccard floor on unrelated code
ContainmentSimilarity: subset/overlap/empty cases + size-ratio guard
APTED correctness on identical, renamed, unrelated trees, plus bounded short-circuit behavior
WorkerPool serial path, parallel path (skipped without pcntl), empty input, CPU-count detection, and the streaming variant including child-exception propagation and array-vs-generator task returns
IndexStore round-trip, file-change invalidation, config-key invalidation
Pipeline orchestration: stage ordering, stopAfter halting at the right boundary, stageProgress reset between stages, cooperative iter() yielding pre/post-stage and mid-stage for cooperative stages
ProgressListener wiring: per-file scan + preprocess events fire, null listener is the default and never branches stage behaviour
BlockExtractor --kinds filter rejects unknown kinds and keeps the ones you ask for
ConfigLoader schema validation: every field's bounds + the cross-field min_block_size <= max_block_size rule + the optional_blocks sub-object
Anti-unifier hole discovery on the canonical examples + type-3 optional-block formation, max-per-cluster cap fallback, seed selection regardless of cluster.members order, observed-value remapping after the seed swap
ParameterSynthesizer type inference (every branch) + optional_block name derivation (verb-from-segment, stop-word skip, snake-to-camel, no-identifier fallback)
SignatureBuilder: required-then-optional ordering, default-false rendering, optional-only-cluster signatures, name fallback
PatternRecognizer: optional-segments tag presence/absence, plus config-driven, strategy, crud-handler
Reporters: SARIF, GitLab SAST, Diff (per-cluster + cumulative patch), Checkstyle XML, JSON (with present_in_members), HTML index/cluster pages — each tested against a real Pipeline run on fixture data including the type-3 optional fixture
TUI: ViewState pane focus / sort cycling, PhpdupModel key bindings, View::progressBar taskbar updates, ←/→ cluster navigation, StagePumpedMsg pump / generator exhaustion, RestartPipelineMsg rebuild, theme resolution
End-to-end on a fixture corpus with expected clusters

GitHub Actions runs the full suite on every push and PR across PHP 8.1, 8.2, 8.3, 8.4, then PHPStan level 6 and Psalm on PHP 8.3, then uploads Clover coverage to Codecov.

Performance

Asymptotic complexity

Operation	Complexity	Notes
File scanning	O(F)	F = file count
Parsing	O(L) per file	L = lines; cached on subsequent runs; parallelized
Block extraction	O(N)	N = AST node count
Normalization	O(N)	parallelized
Hashing	O(N) per block	parallelized
Hash bucketing	O(B)	B = block count
Inverted-index candidate	O(B × g̅)	g̅ = avg n-grams per block, with rare-gram pre-filter
Pairwise Jaccard	candidate-bounded	only blocks sharing rare grams; parallelized
Tree edit distance	bounded by `(1−τ) × max(\|a\|,\|b\|)`	APTED-style Zhang-Shasha forest DP with heavy-path order; aborts early
Anti-unification	O(\|cluster\| × N) per cluster	currently serial
LCS for stmt arrays	O(n × m) per divergent array	bounded by `optional_blocks_max_per_cluster`

Tunable knobs

min_block_size — kills boilerplate (the biggest noise source).
max_block_size — caps TED work; blocks above this are dropped.
max_df — rare-gram filter cutoff for candidate generation.
similarity_threshold and tree_threshold — where to draw the near-duplicate line.
optional_blocks.containment and optional_blocks.min_overlap — type-3 detection sensitivity.
workers — parallelism level.
incremental / lazy_ast — re-run reuse and memory budget.

Caches

AST cache (<cache_dir>/parser-v5_<sha1>.cache) — serialized parse trees keyed by sha1(file) + parser_version. Re-runs with no source changes skip parsing entirely.
Index store (<cache_dir>/<sha1(path)>.idx) — per-file block snapshots keyed by content hash + parser version + config key. Re-runs reuse blocks for unchanged files.

Both live under .phpdup-cache/ next to the project root and are safe to delete at any time.

Roadmap

Active planning docs:

ORM / DB-aware semantic deduplication — docs/plans/orm-db-semantic-dedup.md. Six-option matrix (DB-call canonical token rewrite, read→mutate→save trinity collapse, behavioural call-graph similarity, symbol equivalence-class registry, IR lift, ML- learned similarity) with a recommended phased rollout. Closes the gap where today an Eloquent User::find()->save() and an equivalent raw-SQL UPDATE don't cluster.
LSP server — deferred until the persistent cluster cache earns its keep on real workloads (it just shipped). LSP needs incremental file-change re-scoring, which the cluster cache unblocks.
Streaming clustering for >10M-block corpora — Phpdup\Index\ExternalSort is the on-disk K-way merge primitive; the wired-in clusterer path is the next layer of work.
VSCode extension — depends on LSP.

Architectural decisions live under docs/adr/ and algorithm references under docs/algorithms/. Tutorials are in docs/tutorials/, CI integration recipes in docs/CI.md, and the IDE-plugin / playground contracts in docs/JETBRAINS_PLUGIN.md

docs/PLAYGROUND.md.

FAQ

How is this different from PHPCPD? PHPCPD finds duplicated tokens — long runs of identical lexer output. phpdup works on the AST after canonicalization, so renamed variables, different literals, different method names, and entire optional code segments can all cluster together. More importantly, phpdup tells you what the abstraction would look like — its parameter list, types, and a suggested function name — not just where the duplication is.

Will it rewrite my code? No. phpdup is advisory only. It surfaces opportunities; humans decide. Auto-rewriting was an explicit non-goal — see ARCHITECTURE.md §1.

Does the parallel mode work on Windows / sandboxed PHP? The worker pool detects pcntl_* availability at runtime and falls back to a serial code path automatically. The CLI still accepts --workers N so config files don't have to branch — the value is ignored when pcntl is missing.

How much RAM does the cache use? The AST cache stores serialized parser output keyed by file hash; typical PHP file → ~5–50 KB on disk. The index store (incremental snapshots) is ~10–100 KB per file. Both live under .phpdup-cache/ next to your project root by default and can be nuked at any time.

Why don't I get the threshold/role example as cleanly on my code? Try --mode=aggressive --min-impact=30. The defaults are tuned for quiet output on first run. Lowering --min-impact and switching to aggressive exposes more candidates. Conversely, dropping to default mode reduces false positives if you're getting noise.

Does it support PHP 7.x? The tool itself requires PHP 8.1+ (uses xxh128 and constructor property promotion). It can analyze codebases written in older PHP versions — the parser handles 5.x and up.

Does it handle modern PHP 8.x syntax? Yes — match expressions, enums, readonly, named arguments, attributes, nullsafe, first-class callable syntax — all supported by nikic/php-parser v5.

How do I re-render the demo GIFs? Install VHS, then:

docs/tapes/render.sh                    # render all
docs/tapes/render.sh tui-live.tape      # render one

VHS needs a Chromium binary. On Ubuntu 23.10+ where unprivileged user namespaces are restricted (and /usr/bin/chromium-browser is the Snap-only stub), pass CHROME_BIN=/path/to/chrome — Playwright's chrome-headless-shell works well — and the script bootstraps a --no-sandbox shim on PATH.

The TUI looks empty / didn't appear when I added --tui. The dashboard requires a real TTY for keyboard input and rendering. If your terminal isn't a real TTY (CI, piped stdout, redirected file) the SugarCraft Program will fail to attach to the input stream — use --plain instead. The pipeline now runs inside the runtime, so the panes update live as work progresses; if all the panes are still at zero something likely failed during pipeline init (run bin/phpdup analyze … --plain to see the error message that the TUI might be hiding).

Contributing

PRs welcome. Please:

Run composer test and add tests for new functionality.
Match the existing PHP coding style (declare(strict_types=1), PSR-4, constructor property promotion, narrow public surfaces).
For new normalization rules, similarity metrics, or pattern recognizers, document the rule in the relevant module's docblock.

For larger architectural changes, open an issue first to discuss the design.

License

MIT — see LICENSE.

detain / php-dup-finder

Maintainers

Package info

Statistics

Security
