cywolf/page_link_insights

A TYPO3 extension that adds a backend module with a D3.js force diagram visualization for understanding page relationships and content themes

v1.7.0 2025-11-27 14:08 UTC

Requires

• cywolf/nlp-tools: ^1.2
• typo3/cms-core: ^12.4 || ^13.0

GPL-2.0-or-later

README

This TYPO3 extension helps you optimize your website's internal linking structure by providing a powerful visual representation of content-based page connections. Page Link Insights focuses specifically on links within your content elements, helping you understand and improve your site's semantic link structure and SEO performance.

Features

Comprehensive Link Analysis

• Interactive Force Diagram: Visualize page relationships with D3.js
• Content-Based Analysis: Focus on actual content links rather than navigation
• Link Type Detection: Identify different types of page references (HTML, typolink, content elements)
• Fullscreen Mode: Maximize graph visibility with one click (ESC to exit)
• Linkvalidator Integration: Optional integration with TYPO3's cms-linkvalidator for accurate broken link detection

Advanced Page Metrics

• PageRank Calculation: See which pages carry the most authority
• Centrality Scores: Identify key junction pages in your content
• Inbound/Outbound Links: Track connection counts for each page
• Broken Link Detection: Automatically identify and visualize broken references (enhanced with linkvalidator data when available)

Thematic Analysis

• Keyword Extraction: Automatically identify significant terms on each page
• Theme Clustering: Group related content by detected themes
• Page-Theme Association: See which themes are relevant to each page
• NLP Integration: Uses NlpTools for advanced text analysis

Global Statistics

• Network Density: Understand overall interconnection level
• Orphaned Pages: Find pages with no incoming links
• Link Averages: Track average connections per page
• SEO Insights: Identify structural improvements

Solr Integration

• Enhanced Relevance: Boost search results based on PageRank and link metrics
• Custom Fields: Add link metrics to Solr index
• Sorting Options: Allow sorting by page importance

Scheduler Task

• Automated Analysis: Schedule regular site structure analysis
• Theme Processing: Update thematic groupings automatically
• Historical Tracking: Maintain metrics history for trend analysis

Requirements

• TYPO3 12.4 - 13.4
• PHP 8.1 - 8.4
• NlpTools extension (for thematic analysis)

Optional

• cms-linkvalidator: For enhanced broken link detection with actual HTTP validation
• semantic_suggestion: For AI-powered semantic content relationships

Installation

Via Composer

composer require cywolf/page_link_insights

Via TYPO3 Extension Manager

1. Login to TYPO3 Backend
2. Go to Admin Tools > Extensions
3. Click on "Get Extensions"
4. Search for "page_link_insights"
5. Click "Import and Install"

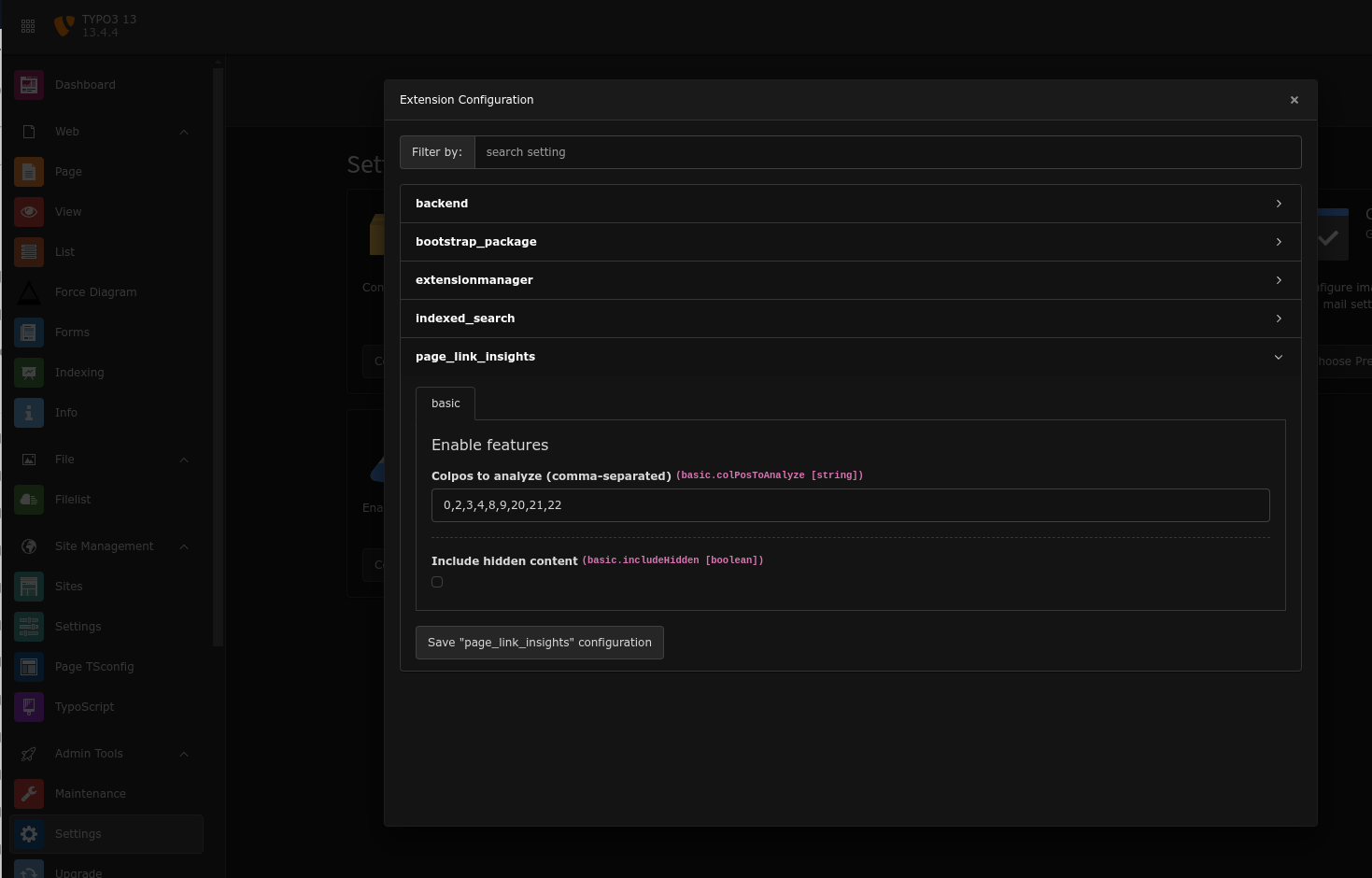

Configuration

The extension can be configured through the Extension Configuration in TYPO3 Backend:

1. Go to Admin Tools > Settings > Extension Configuration
2. Select "page_link_insights"
3. Configure the following options:

Basic Options

Option	Default	Description
colPosToAnalyze	0,2	Comma-separated list of content column positions to analyze
includeHidden	false	Include hidden pages and content elements
includeSemanticSuggestions	true	Show semantic suggestions in diagram (requires semantic_suggestion extension)

Advanced Options

Option	Default	Description
includeShortcuts	false	Include shortcut pages (doktype 4) in diagrams
includeExternalLinks	false	Include external link pages (doktype 3) in diagrams
useLinkvalidator	true	Use TYPO3 linkvalidator for broken link detection (if available)

Note: The useLinkvalidator option provides more accurate broken link detection when cms-linkvalidator is installed and its scheduler task has been run. If linkvalidator is not available, the extension falls back to checking if target pages exist in the database.

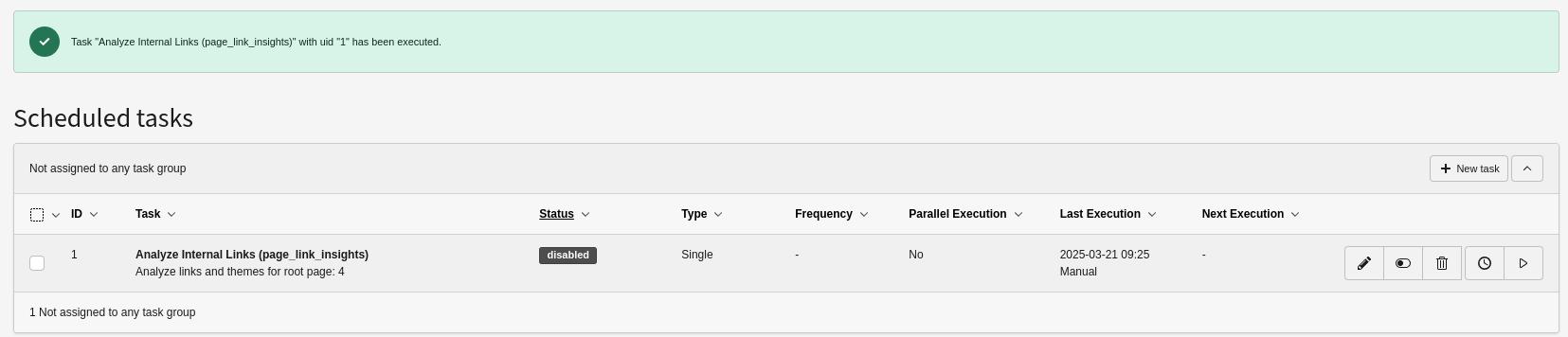

Scheduler Task

To set up automatic link analysis:

1. Go to Scheduler module
2. Add a new task
3. Select "Analyze Page Links and Themes"
4. Configure the root page ID
5. Set your preferred frequency

Usage

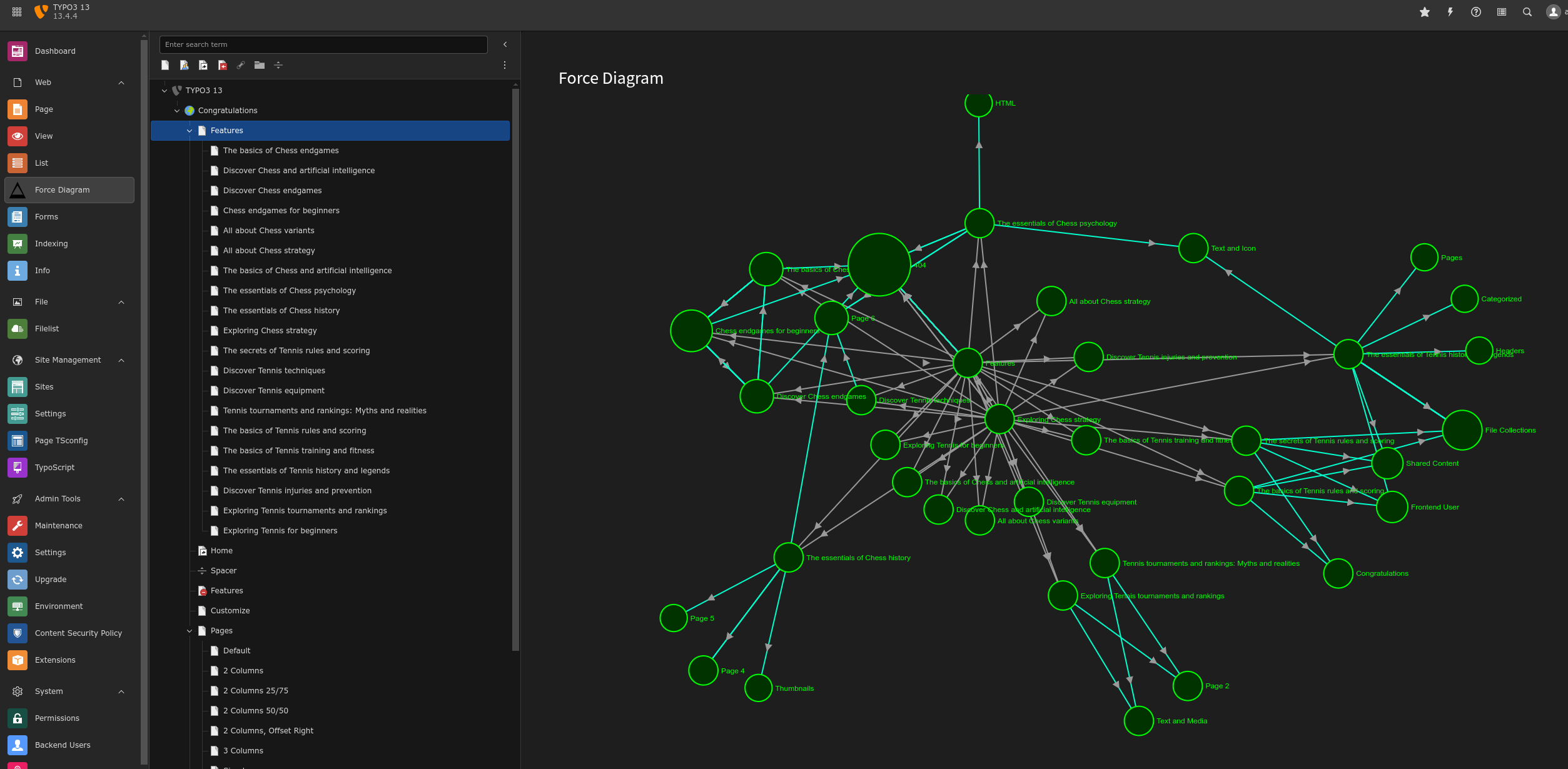

Visualizing Page Links

1. Open the TYPO3 Backend
2. Navigate to the Web > Page Link Insights module
3. Select a page in the page tree
4. Explore the force diagram visualization:
   • Larger nodes indicate pages with more incoming links
   • Colors represent different link types
   • Dashed red lines indicate broken links
   • Hover over elements for detailed information

Interactive Features

• Zoom and Pan: Navigate through complex diagrams using mouse wheel and drag
• Drag Nodes: Reposition elements for better visualization
• Ctrl+Click: Open the page directly in TYPO3 backend
• Right-Click: Remove node from visualization (temporary)
• Tooltips: Show detailed page and link information on hover

Toolbar Buttons

• Filters: Filter links by type (standard, semantic, broken, menu, HTML, typolink)
• Help: Display diagram legend and interaction guide
• Fit to Window: Auto-zoom to show all nodes
• Fullscreen: Maximize graph area (press ESC to exit)

Compact Header

The module header displays status badges that can be dismissed:

• colPos badge: Shows which column positions are being analyzed
• Semantic badge: Indicates if semantic suggestions are enabled/available

Understanding Thematic Analysis

The extension now includes thematic analysis capabilities that:

• Automatically extract significant keywords from your pages
• Group these keywords into global themes
• Associate themes with relevant pages
• Visualize themes in the D3.js force diagram with color coding

Pages with similar content will be grouped together and colored according to their dominant theme, providing instant visual insights into your content structure.

NLP Support

• If the cywolf/nlp-tools extension is installed, it will be used for advanced linguistic analysis
• If this extension is not available or encounters errors, a fallback method is automatically used
• In all cases, relevant themes will be generated for your pages

The clustering visualization works in both TYPO3 v12 and v13, and is compatible with PHP 8.1 to 8.4.

Linkvalidator Integration

When cms-linkvalidator is installed and configured:

1. Run the linkvalidator scheduler task to populate broken link data
2. Page Link Insights will automatically use this data for more accurate broken link detection
3. Broken links are marked with their source:
   • linkvalidator: Detected by TYPO3's linkvalidator (HTTP validated)
   • page_not_found: Target page doesn't exist in database (fallback method)

To disable linkvalidator integration, set useLinkvalidator = 0 in extension configuration.

Solr Integration

For search functionality enhancement, see README_SOLR.md.

Troubleshooting

• Empty Visualization: Ensure selected page has content with page references
• Missing Links: Check if links are in the analyzed column positions
• Performance Issues: Large sites may need higher PHP memory limits
• Theme Analysis Errors: Verify NlpTools extension is installed
• Linkvalidator Not Working: Ensure cms-linkvalidator scheduler task has been run at least once
• Semantic Suggestions Missing: Install and configure the semantic_suggestion extension

Support and Contribution

For bug reports and feature requests, please use the issue tracker on GitHub: Project Issue Tracker

License

This project is licensed under the GNU General Public License v2.0.
