README

The ApcoPay PHP library provides the functionality to process financial transactions with the ApcoPay gateway.

Requirements

The PHP extension cURL is required.
A merchant account with ApcoPay. Send an email to hello@apcopay.eu to set up a merchant account.

Installation

The recommended method of installation is via Packagist and Composer. Run the following command to install the package and add it as a requirement to your project's composer.json:

composer require apcopay/apcopay_php

Alternatively, the ApcoPay PHP library can also be used by copying the contents of this repository in the project folder and using PHP require on the files as shown below.

Description

The ApcoPay PHP library

File loading

The ApcoPay PHP library files can be loaded with the following options:

Composer autoloading

For more information about composer autoloading go to https://getcomposer.org/doc/01-basic-usage.md#autoloading

Skip this step if you already have composer autoloading set up

require __DIR__ . '/vendor/autoload.php';

PHP require

require __DIR__ . '/apcopay_php/src/ApcoPayGateway.php';
require __DIR__ . '/apcopay_php/src/Configuration.php';
require __DIR__ . '/apcopay_php/src/TransactionType.php';
require __DIR__ . '/apcopay_php/src/TransactionRequest.php';
require __DIR__ . '/apcopay_php/src/TransactionResponse.php';
require __DIR__ . '/apcopay_php/src/NotificationRequest.php';
require __DIR__ . '/apcopay_php/src/RedirectRequest.php';

Initialization

The ApcoPayGateway configuration requires the following 5 parameters:

Merchant id - The merchant id/code with ApcoPay
Merchant password - The merchant password with ApcoPay
Hashing secret - The hashing secret word with ApcoPay
Notification url - The url that transaction status notifications are sent to. Should be processed as shown in the notification request example below.
Redirection url - The url the user is redirected to after a 3DS payment. Should be processed as shown in the redirect request example below.

Initialise ApcoPayGateway example

$gateway = new ApcoPay\ApcoPayGateway(
    new ApcoPay\Configuration(
        "1234",
        "dfnu2345b2354vbu",
        "3ui423ui4",
        "https://merchanturl.com/apcopay/notification",
        "https://merchanturl.com/apcopay/redirect"
    )
);

Process transaction

TransactionRequest

amount
currency_code - ISO 4217 numeric code
transaction_type - Numeric code as defined TransactionType class
order_reference - Merchant order reference. Must not contain ||
card_number
card_cvv
card_holder
card_expiry_month
card_expiry_year
user_ip
original_transaction_id - The id of a prior transaction
user_defined_function - Must not contain ||

TransactionRequest mandatory fields

	amount	currency_code	transaction_type	order_reference	card_number	card_cvv	card_holder	card_expiry_month	card_expiry_year	original_transaction_id
Purchase	Mandatory	Mandatory	Mandatory	Recommended	Mandatory	Recommended	Mandatory	Mandatory	Mandatory
Void Purchase			Mandatory	Recommended						Mandatory
Authorisation	Mandatory	Mandatory	Mandatory	Recommended	Mandatory	Recommended	Mandatory	Mandatory	Mandatory
Capture	Mandatory	Mandatory	Mandatory	Recommended			Mandatory			Mandatory
Void Credit			Mandatory	Recommended						Mandatory
Void Capture			Mandatory	Recommended						Mandatory
Void Authorisation			Mandatory	Recommended						Mandatory
Repeat Purchase			Mandatory	Recommended						Mandatory
Partial Refund			Mandatory	Recommended						Mandatory
Original Credit			Mandatory	Recommended						Mandatory
Repeat Authorisation			Mandatory	Recommended						Mandatory

TransactionResponse

result - Transaction result indicating the status of the transaction
psp_id - Id of the transaction from the ApcoPay gateway
bank_transaction_id - Id of the transaction from the bank
date - Date of transaction. Format: yyyyMMdd
time - Time of transaction. Format: HHmmss
acquirer_reference
authorization_code
address_verification_response
acquirer_code - Processing bank code
user_ip
user_defined_function
extra_data
card_country - Card issuing country

Result codes

Accepted transactions can have one of the following results:

APPROVED
CAPTURED
VOIDED
ENROLLED (Only Used when the Card is 3Dsecure Enrolled and needs verification with Visa/MasterCard)

Declined transaction results will vary between banks

Process transaction example

$transactionRequest = new ApcoPay\TransactionRequest();
$transactionRequest->amount = "2.40";
$transactionRequest->currency_code = "978";
$transactionRequest->order_reference = "1234";
$transactionRequest->transaction_type = ApcoPay\TransactionType::Purchase;

$transactionRequest->card_number = "4444444444444444";
$transactionRequest->card_cvv = "123";
$transactionRequest->card_holder = "John Doe";
$transactionRequest->card_expiry_month = "12";
$transactionRequest->card_expiry_year = "2023";

$transactionResponse = $gateway->processTransaction($transactionRequest);

if ($transactionResponse->result === "CAPTURED" || $transactionResponse->result === "APPROVED" || $transactionResponse->result === "VOIDED") {
    // Transaction successful
} else if ($transactionResponse->result == 'ENROLLED') {
    $redirectUrl = "https://www.apsp.biz/pay/3DSFP2/verify.aspx?id=" . $transactionResponse->psp_id;
    // Redirect to $redirectUrl
} else {
    // Transaction failed
}

Notification request

Note: The notification response should always return HTTP status code 200 with content OK

Notification request example

$request = $_POST["params"];
$request = urldecode($request);
if (!$gateway->verify($request)) {
    die("Hash mismatch");
    return;
}
$notificationRequest = $gateway->parseNotification($request);
if ($notificationRequest->result === "OK") {
    // TODO: update order to successful
} else {
    // TODO: update order to declined
}
echo 'OK';
header("HTTP/1.1 200 OK");

Redirect request

Redirect request example

$request = $_GET["params"];
$request = str_replace("\\\"", "\"", $request);
if (!$gateway->verify($request)) {
    die("Hash mismatch");
    return;
}
$redirectRequest = $gateway->parseRedirect($request);
if ($redirectRequest->result === "OK") {
    echo '<div>Transaction successful</div>';
    echo '<div>Order reference: ' . $redirectRequest->order_reference . '</div>';
} else {
    echo '<div>Transaction failed</div>';
    echo '<div>Order reference: ' . $redirectRequest->order_reference . '</div>';
    echo '<div>Result: ' . $redirectRequest->result . '</div>';
}

Process flow

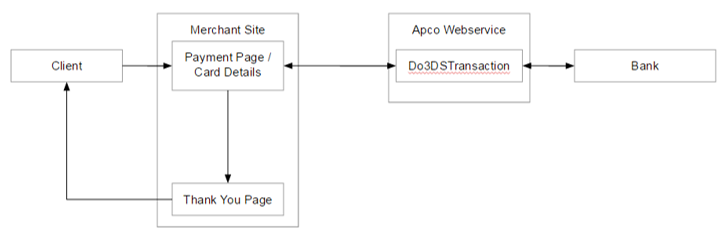

Normal transaction flow

3DS transaction flow

The Apco Pay web service will verify whether the card submitted is 3Dsecure ENROLLED
1. If the card is not enrolled for 3ds, the web service will return a normal response described in the previous section
2. If the card is enrolled the client needs to be redirected to the verification page https://www.apsp.biz/pay/3DSFP2/verify.aspx?id=4a502205024f474a8aa1933ceac42e56 Where Id needs to be replaced with the value that was returned in the first response
The Client must continue the verification and submit his PIN
After a successful verification the client is redirected the redirection_url in the configuration

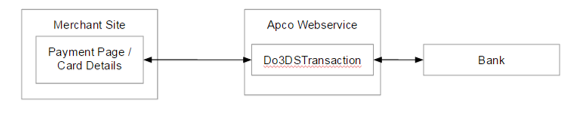

Reference transaction flow

Transaction types

Name	Value	Description
Purchase	1	Transfers value from the cardholders account
Void Purchase	3	Cancellation of a purchase transaction – Before end of day
Authorisation	4	Reserve the specified value from the card holder
Capture	5	Transfers a reserved value from the cardholders account
Void Credit	6	Cancel a credit - Before end of day
Void Capture	7	Cancel a capture - Before end of day
Void Authorisation	9	Cancel an authorization - Before end of day
Repeat Purchase	11	Repeats a purchase by submitting the original PSPID
Partial Refund	12	Reverse a partial/full amount of the original transaction
Original Credit	13	Pay out an amount greater than the amount of the original transaction
Repeat Authorisation	14	Repeats an authorization by submitting the original PSPID

Transaction types in detail

Authorisation

Authorisation - Authorisation is the first part of a two-step process

If approved, the requested amount is reserved from the credit limit of the submitted card. The reservation process is therefore used if the capturing is to be completed at a later date.

Important - The authorisation (reservation) period is approx. 7 days for credit cards and 3 days for debit cards (we recommend that you check with the bank being used). Once the reservation period has expired, it is no longer possible to capture this transaction.

Capture

Capturing is the second step of the two-step process mentioned above. A capture transaction must be preceded by an "Authorisation" transaction.

The amount to be captured must be less than or equal to the authorized amount. This also means, that partial amounts can be captured.

During the capture, an amount is debited from the customer account and credited to the merchant account.

Purchase

Purchase is a payment transaction done in a single step.

The purchase transaction handles both an authorisation and a capture at the same time.

If approved, the requested amount is debited from the customer account and credited to the merchant account.

Partial Refund

Refunds are transactions that return the payments to the customer. The refunded amount can be a part of the paid amount or the full paid amount. Refunds can relate to an existing Capture or to a Purchase. In the case of credit card payments, refunds are credited to your customer's credit card account.

Important - Refunds are not allowed for gaming merchants.

Original Credit

The original credit is used to pay out an amount greater than the amount of the original transaction.

Void Purchase, Void Credit, Void Capture and Void Authorisation

If a Void request is executed by 23:59 (bank’s time zone) of the original transaction date - the acquirer would be able to cancel this transaction.

Testing

	Card Number	Expiry Date	CVV
Normal successful transaction	4444 4444 4444 4444	12/yy where yy is the current year	444
Rejected normal transaction	5555 5555 5555 5557	12/yy where yy is the current year	444
Successful 3DS transaction	4444 4444 4444 2228	12/yy where yy is the current year	444

License

The ApcoPay PHP library is open-sourced software licensed under the MIT license.
